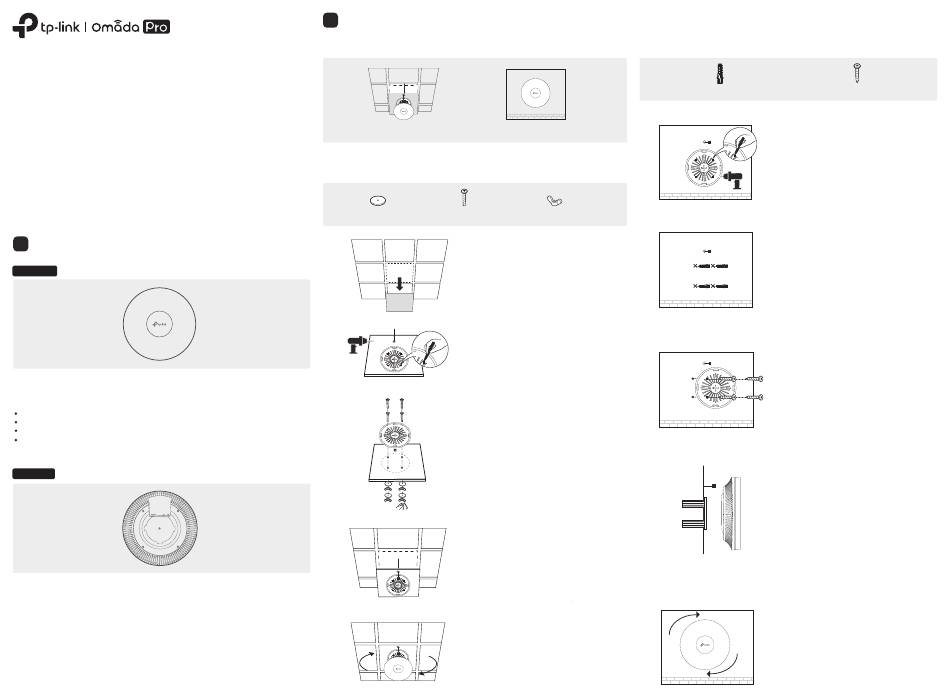

TP-Link Omada Pro AP9670 Quick Installation Manual

Quick Installation Guide
Wireless Access Point
Note: AP9670 is used as an example throughout the Guide. Images may differ from your actual product.
©2023 TP-Link 7106510352 REV1.1.0
1 Hardware Overview
Front Panel
LED Indicator
On: Working normally/Initializing.
Off: Working abnormally/Power off/LED is turned off.
Flash:
Flash twice: Initialization is completed.
Flash once per second: The AP is upgrading.
Flash quickly: The AP is resetting or the controller is locating the AP*.
Flash slowly: The AP is in the isolated state.
* When the Locate feature is activated in the controller, the LED flashes quickly to locate and identify the device. The LED will
flash for 10 minutes, or you can disable the feature manually to stop it flashing.
Rear Panel
RESET
With the device powered on, press and hold the button for about 5 seconds until the LED flashes quickly. Then release the
button. The device will restore to factory default settings.
Ethernet Port (PoE)
The port is used to connect to a router or a switch to transmit data, or to a PSE (Power Sourcing Equipment), such as a PoE switch,
for both data transmission and Power over Ethernet (PoE) through Ethernet cable.
Power Port
Plug one end of the power adapter to this port and the other end to a standard electrical wall outlet to power the AP.
Note: Power adapter is not provided. For power supply specifications, please refer to the label at the bottom of the product.
Hardware Installation
2
The AP can be ceiling-mounted or wall-mounted. Choose a mounting method according to your
needs. Follow the steps below for the appropriate installation.
Option 1: Ceiling Mounting Option 2: Wall Mounting
Option 1: Ceiling Mounting
Note: Make sure that the ceiling tile is bigger than the AP.
Washers Pan-head Screws
1
Remove the ceiling tile.
2
Drill Hole for Ethernet cable
Place the mounting bracket in the center of the
ceiling tile. Mark positions for the screw holes
and a position for the Ethernet cable hole.
Drill 4 mm diameter holes for the screws and a 25
mm diameter hole for the Ethernet cable at the
marked positions.
3
Secure the mounting bracket to the ceiling tile
using pan-head screws, washers and wing nuts,
as shown on the left.
4
Feed the Ethernet cable through the hole and set
the ceiling tile back into place.
5
Connect the Ethernet cable to the Ethernet port.
Attach the AP to the mounting bracket, then rotate
the AP until it locks into place, as shown on the left.
Option 2: Wall Mounting
Plastic Wall Anchors
Wing Nuts
Self-tapping Screws
1
If your Ethernet cable feeds through the wall, you
can position the mounting bracket below the cable
hole. Mark positions for the screw holes and then
drill 6 mm diameter holes at the marked positions.
2
Insert the plastic wall anchors into the 6 mm
diameter holes.
3
Secure the mounting bracket to the wall by driving
the self-tapping screws into the anchors. Make
sure that the shoulders of the mounting bracket are
on the outside.
4
Connect the Ethernet cable to the Ethernet port on
the AP.
5
Attach the AP to the mounting bracket, then rotate
the AP until it locks into place, as shown on the left.
