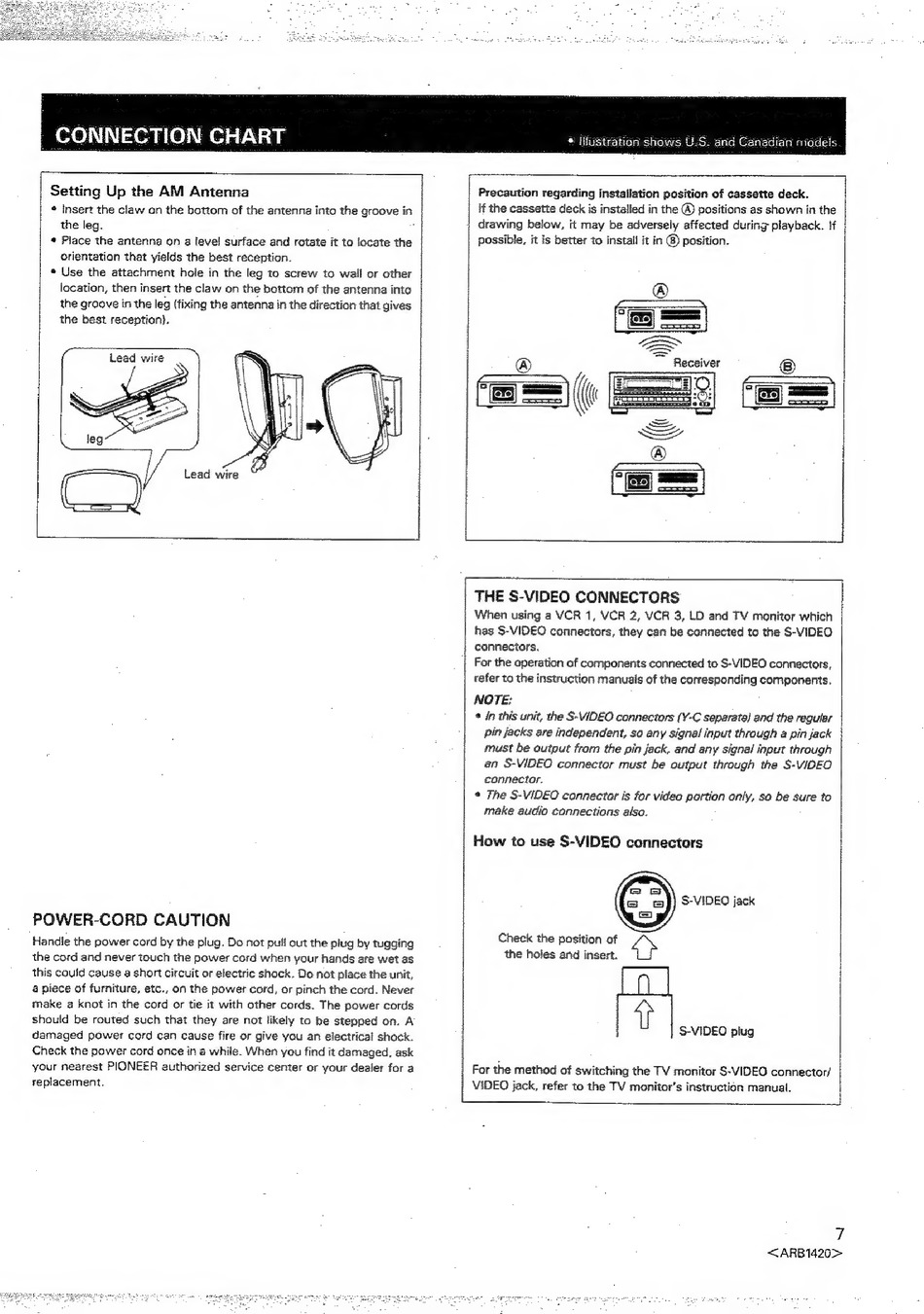

CONNECTION CHART
© llustration shows U.S. and Canadian middels
Setting Up the AM Antenna
¢ insert the claw on the bottom of the antenna into the groove in
the leg. '
* Place the antenna on a level surface and rotate it to locate the
orientation that yields the best reception.
* Use the attachment hole in the leg to screw to wail or other
location, then insert the claw on the bottom of the antenna into
| the groove in the leg (fixing the antenna in the direction that gives
the best reception).
Lead wire
Lead wire
a
Precaution regarding installation position of cassette deck. i
if the cassette deck is installed in the @ positions as shown in the
drawing below, it may be adversely affected during playback. If
possible, it is better to install it in @) position.
POWER-CORD CAUTION
Handie the power cord by the plug. Do not pull out the plug by tugging
the cord and never touch the power cord when your hands are wet as
this could cause a short circuit or electric shock. Do not place the unit,
a piece of furniture, etc., on the power cord, or pinch the cord. Never
make a knot in the cord or tie it with other cords. The power cords
should be routed such that they are not likely to be stepped on. A
damaged power cord can cause fire or give you an electrical shock.
Check the power cord once in a while. When you find it damaged, ask
your nearest PIONEER authorized service center or your dealer for a
replacement.
THE S-VIDEO CONNECTORS
When using a VCR 1, VCR 2, VCR 3, LD and TV monitor which
has S-VIDEO connectors, they can be connected to the S-VIDEO
connectors.
For the operation of components connected to S-VIDEO connectors,
refer to the instruction manuals of the corresponding components.
NOTE:
* dn this unit, the S-VIDEO connectors (Y-C separate} and the regular
pin jacks are independent, so any signal input through a pin jack
must be output from the pin jack, and any signal input through
an S-VIDEO connector must be output through the S-VIDEO
connector.
* The S-VIDEO connector is for video portion only, so be sure to
make audio connections also.
How to use S-VIDEO connectors
(— =)
S-VIDEO jack
=
Check the position of &>
the holes and insert.
tT
S-VIDEO plug
7
<ARB1420>
