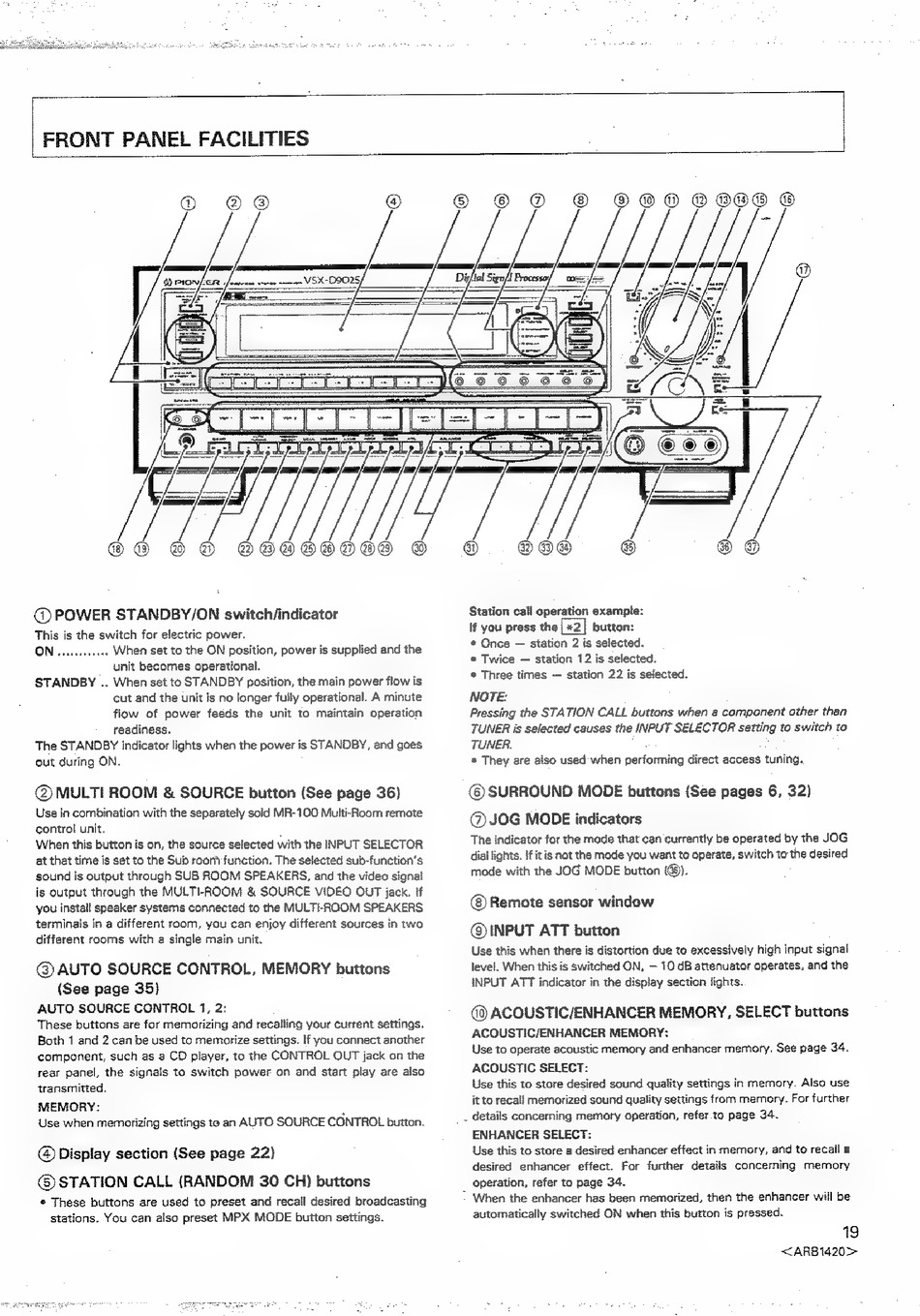

@ POWER STANDBY/ON switch/indicator
This is the switch for electric power.
ON vere .. When set to the ON position, power is supplied and the
unit becomes operational.
STANDBY .. When set to STANDBY position, the main power flow is
cut and the unit is no longer fully operational. A minute
flow of power feeds the unit to maintain operation
readiness.
The STANDBY indicator lights when the power is STANDBY, and goes
out during ON.
@ MULTI ROOM & SOURCE button (See page 36)
Use in combination with the separately sold MR-100 Multi-Room remote
control unit.
When this button is on, the source selected with the INPUT SELECTOR
at that time is set to the Sub roon' function. The selected sub-function's
sound is output through SUB ROOM SPEAKERS, and the video signal
is output through the MULTI-ROOM & SOURCE VIDEO OUT jack. If
you install speaker systems connected to the MULTI-ROOM SPEAKERS
terminals in a different room, you can enjoy different sources in two
different rooms with a single main unit.
@ AUTO SOURCE CONTROL, MEMORY buttons
(See page 35)
AUTO SOURCE CONTROL 1, 2:
These buttons are for memorizing and recalling your current settings.
Both 1 and 2 can be used to memorize settings. If you connect another
component, such as a CD player, to the CONTROL OUT jack on the
rear panel, the signals to switch power on and start play are also
transmitted.
Use when memorizing settings te an AUTO SOURCE CONTROL button.
@ Display section (See page 22)
@ STATION CALL (RANDOM 30 CH} buttons
© These buttons are used to preset and recall desired broadcasting
stations. You can also preset MPX MODE button settings.
Station call operation example:
If you press the [x2] button:
* Once — station 2 is selected.
* Twice — station 12 is selected.
* Three times — station 22 is selected.
NOTE:
Pressing the STATION CALL buttons when a component other than
TUNER is selected causes the INPUT SELECTOR setting to switch to
TUNER.
* They ere also used when performing direct access tuning.
(©) SURROUND MODE buttons (See pages 6, 32)
@JOG MODE indicators
The indicator for the mode that can currently be operated by the JOG
dial lights. If it is not the mode you want to operate, switch to the desired
mode with the JOG MODE button {@®).
@) Remote sensor window
@ INPUT ATT button
Use this when there is distortion due to excessively high input signal
level. When this is switched ON, — 10 dB attenuator operates, and the
INPUT ATT indicator in the display section fights.
@ ACOUSTIC/ENHANCER MEMORY, SELECT buttons
ACOUSTIC/ENHANCER MEMORY:
Use to operate acoustic memory and enhancer memory. See page 34.
ACOUSTIC SELECT:
Use this to store desired sound quality settings in memory. Also use
it to recall memorized sound quality settings from memory. For further
_ details concerning memory operation, refer to page 34.
ENHANCER SELECT:
Use this to store a desired enhancer effect in memory, and to recail a
desired enhancer effect. For further details concerning memory
operation, refer to page 34.
* When the enhancer has been memorized, then the enhancer wiil be
automatically switched ON when this button is pressed.
19
