Toa ZM-9003 Operating Instructions

ZONE MANAGER
Thank you for purchasing TOA's Zone Manager.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
1. GENERAL DESCRIPTION
The ZM-9003 is a remote control switch panel with 4 interlocking selection switches and 2
momentary switches. Connecting it to the 9000 Series amplifier's control input terminal permits
various controls such as BGM source selection and the sound volume adjustment.
It can be mounted in an American standard 2-gang electrical box in a wall.

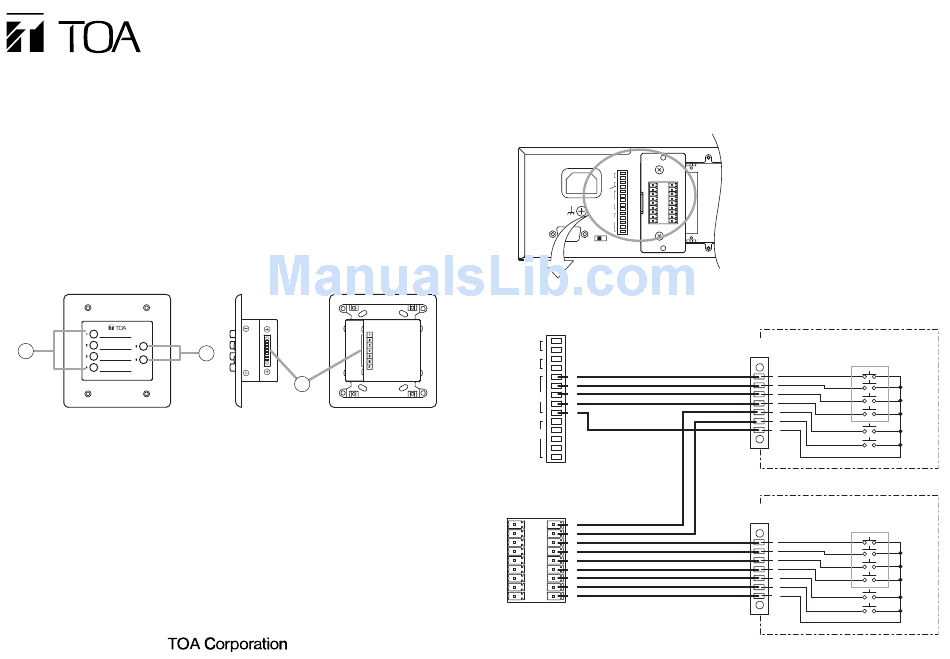

2. NOMENCLATURE AND FUNCTIONS
[Front]
1
1. Interlocking selecion swiches [1 – 4]
Activate the function assigned to them when pressed.
2. Momentary switches [5, 6]
Activate the function assigned to them when pressed.
3. Control output terminal [1 – 6, E]
Connect this terminal to the 9000 Series amplifier's control input terminal.
Use a cable with 250 Ω or less line resistance (per line) for this connection.
Avoid installation of this cable and power cables in the same conduit. Separate piping.

OPERATING INSTRUCTIONS

ZM-9003
[Side] [Rear]
2
3
3. CONNECTIONS
Up to 2 ZM-9003 units can be connected to the 9000 Series amplifier.
One C-001T Control I/O Expansion Module is required for connection.
Connect the ZM-9003 to each control input terminal of the C-001T and 9000 Series amplifier as
shown below.
Function assignment to the interlocking selection switches or momentary swiches is performed at
the 9000 Series amplifier. For the method, refer to the instruction manual supplied with the 9000
Series amplifier.
9000 Series amplifier
C-001T
CTRL
I/O
REMT
IN
VOL1
E OUT IN
IN
1
E
2
REMT
1
3
VOL2
2
4
3
IN
5
4
6
E
7
1
8
2
OUT
E
3
4
E
9000 Series amplifier
(Control-I/O connection terminal)
CTRL
I/O
REMT
IN
VOL1
E
REMT IN
VOL2
E
1
2
3
IN
4
E
1
2
OUT
3
4
E
C-001T
(Control input/output terminal)
OUT IN
1
2
3
4
5
6
7
8
E
ZM-9003
(Control output terminal)
4 interlocking switches
1
1
2
2
3
3
4
4
5
6
5
E
6
ZM-9003
(Control output terminal)
4 interlocking switches
1
1
2
2
3
3
4
4
5
6
5
E
6
