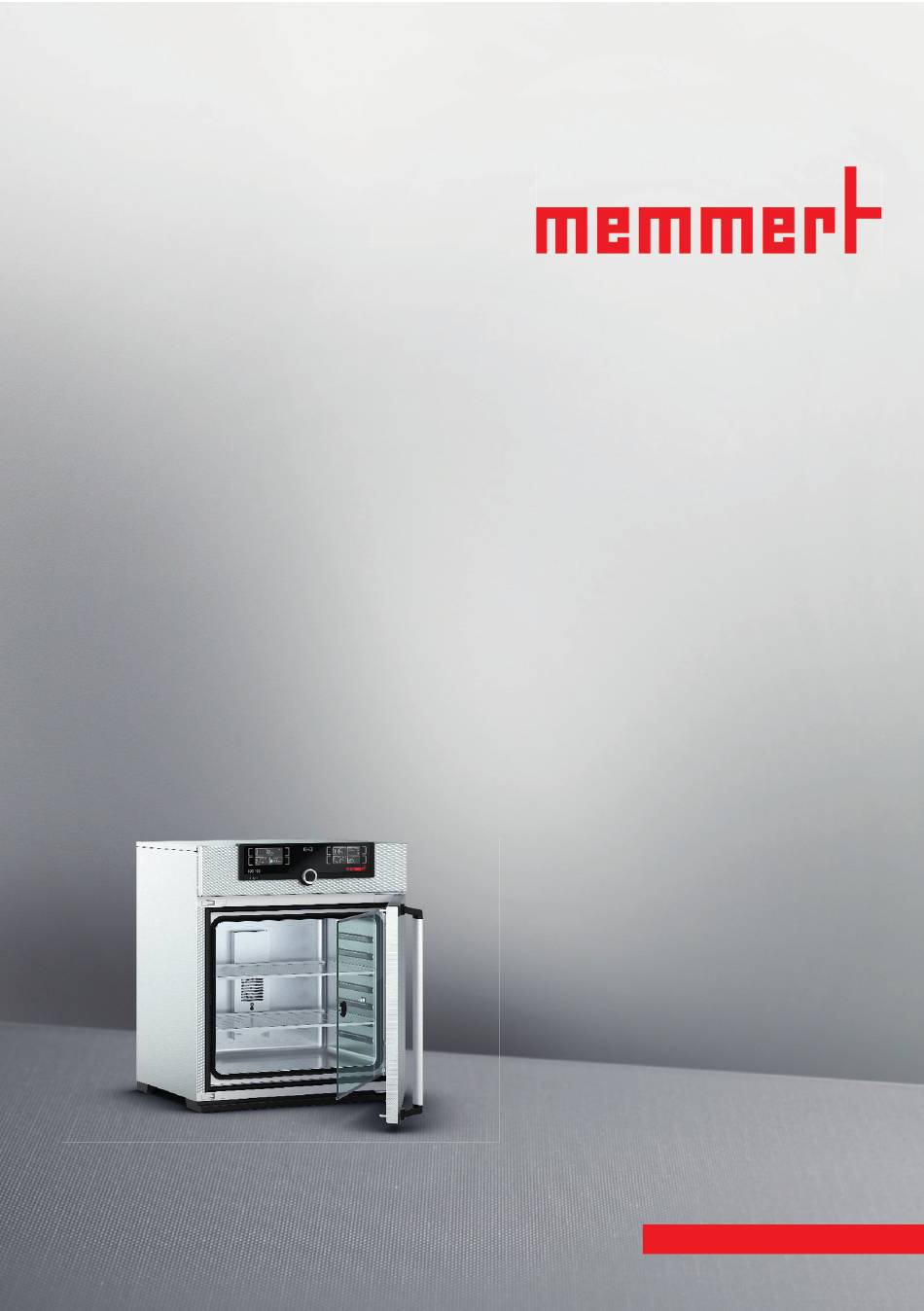

ICOmed
OPERATING MANUAL
O
CO
INCUBATOR ICOmed
2
MADE IN GERMANY.
www.memmert.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICOmed 50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Memmert ICOmed 50

Summary of Contents for Memmert ICOmed 50

  • Page 1 ICOmed OPERATING MANUAL INCUBATOR ICOmed MADE IN GERMANY. www.memmert.com...
  • Page 2 Willi-Memmert-Str. 90-96 DE-91186 Büchenbach Germany Please contact our customer service before sending appliances for repair or before returning equipment, otherwise, we have to refuse acceptance of the shipment. © 2020 MEMMERT GmbH + Co. KG D39062 | Date 01/2020 Changes reserved...
  • Page 3 Function and operation are identical. Other documents that have to be observed When operating the appliance with the MEMMERT AtmoCONTROL PC software, observe the separate software manual. To open the AtmoCONTROL software manual, click on “Help” in the AtmoCONTROL menu bar.

  • Page 4: Table Of Contents

    Contents Contents For your safety Terms and signs used......................6 Product safety and dangers ....................6 Requirements of the operating personnel ................8 Responsibility of the owner ....................8 Intended use ........................8 Changes and conversions ....................9 Behaviour in case of malfunctions and irregularities ............9 What to do in case of accidents ..................
  • Page 5 Contents Malfunctions, warning and error messages Warning messages of the monitoring function ..............43 Malfunctions, operating problems and appliance errors ..........46 Power failure ........................47 Menu mode Overview ..........................48 Basic operation in menu mode using the example of language selection ....... 49 Setup..........................

  • Page 6: For Your Safety

    For your safety For your safety 1.1 Terms and signs used In this manual and on the appliance itself, certain common terms and signs are used to warn you of possible dangers or to give you hints that are important in avoiding injury or damage. Observe and follow these notes and regulations to avoid accidents and damage.
  • Page 7 For your safety WARNING After removing covers, live parts may be exposed. You may receive an electric shock if you touch these parts. Disconnect the mains plug before removing any covers. Only electrical engineers may work on the electrical equipment of the appliances. WARNING When loading the appliance with an unsuitable load, poisonous or explosive vapours or gases may be produced.

  • Page 8: Requirements Of The Operating Personnel

    For your safety and N are not dangerous substances in terms of the German Hazardous Substances Ordinance (GefStoffV). You should nevertheless familiarise yourself with the applicable safety regulations prior to handling such gas bottles. 1.3 Requirements of the operating personnel The appliance may only be operated and maintained by persons who are of legal age and have been instructed accordingly.

  • Page 9: Changes And Conversions

    For your safety 1.5.1 Intended purpose as per Directive 93/42/EEC (Council Directive to unify legal provisions of the member states concerning medical devices) The CO incubator ICOmed is used to generate and maintain constant ambient conditions for the in-vitro fertilisation (IVF) application field, especially for the incubation of oocytes, sperma- tozoa and zygotes in special culture dishes for IVF application as well as for gene expression and the biosynthesis of RNA and proteins.

  • Page 10: Switching Off The Appliance In An Emergency

    For your safety 1.9 Switching off the appliance in an emergency Press the main switch at the ControlCOCKPIT (Fig. 1) and disconnect the power plug. This disconnects the appliance from the power supply at all poles. Fig. 1 Switch off the appliance by press- ing the main switch D39062 | Date 01/2020...

  • Page 11: Construction And Description

    Construction and description Construction and description 2.1 Construction Fig. 2 Construction of CO incubators ICOmed 1 ControlCOCKPIT with capacitive function 4 Stainless steel perforated sheet keys and LCD displays (see page 28) 5 Water tray (passive humidity control) 2 On/Off switch (see page 24) 6 Adjustable feet 3 Inner glass door 7 Nameplate (see page 13)

  • Page 12: Material

    Construction and description 2.3 Material For the outer housing, MEMMERT uses stainless steel (Mat.No. 1.4016 – ASTM 430) and for the interior, stainless steel (Mat.No. 1.4301 – ASTM 304) is used, which stands out through its high stability, optimal hygienic properties and corrosion resistance to many (but not all!) chemical compounds (caution for example with chlorine compounds).

  • Page 13: Designation (Nameplate)

    Construction and description Ethernet interface Via Ethernet interface, the appliance can be connected to a network, so that you can trans- fer programmes created with the AtmoCON- TROL software to the appliance and read out protocols. The Ethernet interface is located on the rear of the appliance (Fig.

  • Page 14: Technical Data

    Construction and description 2.7 Technical data Appliance size Appliance width D* [mm] Appliance height E* [mm] 1066 1176 (varies due to adjustable feet) Appliance depth F* (without door handle) [mm] Depth of door handle [mm] Chamber width A* [mm] Chamber height B* [mm] Interior depth C* [mm] (less 35 mm for fan) Chamber volume [litres] Net weight [kg]...

  • Page 15: Applied Directives And Standards

    Dimensions 2.8 Applied directives and standards Based on the standards and guidelines listed in the following, the products described in this manual have received a CE label from the company Memmert: 0197 ► Council Directive 93/42/EEC from 14 June 1993 on medical devices with amend- ments.

  • Page 16: Ambient Conditions

    Construction and description 2.11 Ambient conditions ► The appliance may only be used in enclosed areas and under the following ambient condi- tions: Ambient temperature 10 °C to 35 °C Humidity rh max. 70 %, non-condensing Overvoltage category Pollution degree Altitude of installation max.

  • Page 17: Delivery, Transport And Setting Up

    Delivery, transport and setting up Delivery, transport and setting up 3.1 For your safety WARNING Because of the heavy weight of the appliance, you could injure your- self if you try to lift it. To carry appliances of size 50, at least two persons are needed;...

  • Page 18: Delivery

    Delivery, transport and setting up 3.2 Delivery The appliance is packed in cardboard and is delivered on a wooden palette. 3.3 Transport The appliance can be transported in the following ways: ► With a forklift truck; move the forks of the truck entirely under the pallet. ►...

  • Page 19: Setting Up

    Delivery, transport and setting up 3.6 Setting up 3.6.1 Preconditions The installation site must be flat and horizontal and must be able to reliably bear the weight of the appliance (see Technical data on page 14). Do not place the appliance on a flamma- ble surface.
  • Page 20 Always attach the appliance to a wall with the tilt protection included in the delivery. In case there is not enough space, do not put the appliance into operation and do not open the door. Contact the Memmert service (see page 2). 1. Screw the tilt protection onto the back of the ap- pliance as illustrated.
  • Page 21 Delivery, transport and setting up 3.6.3 Adjusting the doors For appliances it is possible to adjust doors that warp due to the floor conditions. In order to do so, every door has two adjuster screws at the top and at the bottom (Fig. 9). First, adjust the door at the top and then, if further adjustment is necessary, at the bottom as well.

  • Page 22: Putting Into Operation

    4.2 Establishing water supply 4.2.1 Water specifi cations Only demineralised/deionised water with the following specifications may be used in Memmert appliances: ► Conductivity of 5 – 10 μS/cm ► pH value between 5 and 7 ►...

  • Page 23: Co And N Connection

    Putting into operation 4.2.2 For appliances with passive humidity control: inserting the water tray Mount the provided sealing lip to the narrow side of the water tray (Fig. 11) and fill 1.5 cm to 2 cm of water into the tray (for specifications see section 4.2.1). Place the water tray with the attached sealing lip in the centre of the appliance floor and carefully push it towards the rear panel until the sealing lip is completely under the ventilation opening, touching the rear panel along its entire length (Fig.

  • Page 24: Switching On

    Putting into operation CAUTION Danger of suffocation. CO and N can have a suffocating effect in high concentrations. In normal mode, the appliance emits small amounts of CO and N to its surroundings. You should therefore ensure that the room in which it is installed is properly ventilated. A ventilation rate of 250 m³...

  • Page 25: Operation And Control

    Operation and control Operation and control 5.1 For your safety WARNING Leaving the door open during operation can cause the appliance to overheat or pose a fi re hazard. Do not leave the door open during operation. WARNING Gas bottles may burst or explode at high temperatures. Keep the gas bottles away from open fl...

  • Page 26: Opening The Door

    Operation and control 5.3 Opening the door ► To open the door, pull the door handle to the side (to the left or to the right, depending on the door variation, see Fig. Fig. 15 , A). ► To close the appliance, push the door closed and push the door handle to the side (B). Fig.

  • Page 27: Loading The Appliance

    Operation and control 5.4 Loading the appliance WARNING When loading the appliance with an unsuitable load, poisonous or explosive vapours or gases may be produced. This could cause the appliance to explode, and people could be severely injured or poi- soned.
  • Page 28 Operation and control LIGHT LIGHT Fr 20.10.2010 20:31 12.Sept.2012 13:44 TEMP Manual Mode Holz trocknen aufheizen .4 °C 09:12h Set 37 .0 °C TIMER TIMER HUMIDITY ALARM of °C ALARM GRAPH °C 000°C .0 °C .0 °C auto 000°C auto off + / - 0.0 13:30 23.11.
  • Page 29 Operation and control 5.5.2 Basic operation In general, all settings are made according to the following pattern: 1. Activate the desired parameter (e.g. tem- TEMP TEMP perature). To do so, press the correspond- .4 °C ing activation key on the left or right or °C .5°C the respective display.
  • Page 30 Operation and control The status display shows you which operating mode or operating state the appliance is currently in. The current operating state is highlighted in colour and indicated by the text display:  Appliance is in programme mode ■ 12.Sept.2012 13:44 Programme is stopped...
  • Page 31 Operation and control Adjustment range: 0 to 20 % in steps of 0.1 % The number 1 or 2 displayed in the gas bottle symbol indicates which gas bottle is currently active. (only for corresponding model) Adjustment range: 1 % to 20 % in steps of 0.1 % 5.5.5 Operation with digital backwards counter with target time setting, adjustable from 1 minute to 99 days (timer) In timer operation, you can adjust the time the appliance runs at the set values.
  • Page 32 Operation and control 4. Now, as described under 5.5.2 , set the individual values which you want the appliance to operate at. The set values can be changed at any time while the timer elapses. The changes are effective immediately. Setup , you can choose if the timer should run setpoint-dependent or not.
  • Page 33 Operation and control Only the programme currently selected in menu mode and shown in the display can be used. If you want to process another programme, you need to activate it in menu mode first (description from page 60). 3. To start the programme, press the confir- 12.Sept.2012 10:44 mation key.

  • Page 34: Monitoring Function

    Operation and control You can now ► restart the programme as described ► select another programme for processing in menu mode (see page 60) and run it as described. ► return to manual mode. To do so, reactivate it by pressing the 12.Sept.2012 13:44 activation key next to the status display, then turn the turn...
  • Page 35 Operation and control Emergency operation °C Setting MAX Set temperature Controller error Fig. 20 Schematic diagram of how TWW temperature monitoring works Electronic temperature limiter ( TWB) protection class 2 acc. to DIN 12 880 If the manually set monitoring temperature max is exceeded, the TWB switches off heating permanently (Fig.
  • Page 36 Operation and control When the temperature violates the set tolerance band around the setpoint (in the example in Fig. 22: 50 °C ± 2 K) – e.g. if the door is opened during operation (section B of illustration) – the alarm is set off.
  • Page 37 Operation and control 1. By turning the turn control, adjust the ALARM desired lower alarm limit value, in the example on the right 35.5 °C. °C °C The lower alarm limit value cannot be set auto higher than the top one. If no undertem- perature protection limit is required, set the lowest temperature.
  • Page 38 Operation and control 5.6.2 Humidity monitoring (only for appliances in the corresponding configuration) If humidity monitoring was triggered, this Set 37.0 °C is indicated by the humidity display: the actual humidity is highlighted in red and a FEUCHTE HUMIDITY warning symbol is shown ( Fig.
  • Page 39 Operation and control 6. By turning the turn control, adjust the ALARM desired upper alarm limit, in the example on the right 70 % rh. .0 %rh 7. Accept the selection by pressing the ALARM Alarm confirmation key and leave the display by pressing the activation key on .0 %rh the side.
  • Page 40 Operation and control 4. By turning the turn control, adjust the ALARM desired lower alarm limit, in the example on the right 7 %. .0 % 5. Accept the selection by pressing the ALARM confirmation key. The upper alarm limit is automatically highlighted.

  • Page 41: Graph

    Operation and control 5.7 Graph The GRAPH display provides an overview of the chronological sequence of the setpoint values and actual values for temperature, humidity, CO and O content as a curve. Press the activation key to the °C 12.09.2012 Fr 20.10.2010 20:34 GRAPH right of the...

  • Page 42: Ending Operation

    Operation and control Appliance sterilisation procedure 1. If there is a HEPA filter in the interior of the fan box (Additional equipment, Fig. 26) is fitted: Remove HEPA filter. It can get damaged during sterilisation. 2. Empty the water trays or, for appliances with active humidity control, open the door briefly to vent the appliance and let the humidity escape.

  • Page 43: Malfunctions, Warning And Error Messages

    Do not try to rectify appli- ance errors yourself by opening the appliance, instead, contact the MEMMERT customer service department (see page 2) or an author- ised service point. 6.1 Warning messages of the monitoring function...
  • Page 44 Malfunctions, warning and error messages Description Cause Action Temperature alarm and The electronic Deactivate the alarm by pressing “TWB” are displayed temperature the confirmation key. limiter (TWB) TEMP Increase the difference between Page 36 permanently the monitoring and setpoint switched off °C temperature - by either increas- heating.
  • Page 45 Malfunctions, warning and error messages 6.1.3 CO Monitoring Description Cause Action Alarm indicates that the Open the door for 30 sec. and upper CO alarm limit wait to see if the appliance then was exceeded steadily adjusts to the setpoint. If the error occurs again, contact customer service.

  • Page 46: Malfunctions, Operating Problems And Appliance Errors

    Malfunctions, warning and error messages 6.2 Malfunctions, operating problems and appliance errors Description Cause Action Displays are dark External power supply Check the Page 22 was interrupted power supply Miniature fuse, appliance Contact customer Page 2 fuse or power module service faulty Displays cannot be...

  • Page 47: Power Failure

    Malfunctions, warning and error messages Description Cause Action ► Humidity sensor defective No humidity con- Error message trol possible the humidity display ► Contact customer Page 2 service HUMIDITY Set 50 .0 %rh ► sensor is defective No CO control Error message possible the CO...

  • Page 48: Menu Mode

    Menu mode Menu mode In menu mode, you can make basic settings, load programmes and export protocols, as well as calibrate the appliance. NOTICE ► Before changing menu settings, read the description of the respective functions on the fol- lowing pages to avoid possible damage to the appliance and/or chamber load. To enter menu mode, press the MENU key.

  • Page 49: Basic Operation In Menu Mode Using The Example Of Language Selection

    Menu mode 7.2 Basic operation in menu mode using the example of language selection In general, all settings in menu mode are done just like in operating mode: Activate the respective display, use the turn control for setting and press the confirmation key to accept the change.

  • Page 50: Setup

    Menu mode All other settings can be made accordingly. The settings possible are described in the follow- ing sections. If no new values are entered or confirmed for approx. 30 seconds, the appliance automati- cally restores the former values. 7.3 Setup 7.3.1 Overview SETUP In the...
  • Page 51 Menu mode SETUP 1. Activate the display. The entry Setup SETUP address is automatically highlighted. IP address 192. 168. 1 0 0 . 100 Balance Subnet mask 255. 255. 0 . 0 IP Adresse 192. 168. 1 0 0 . 100 Unit °C Einheit...
  • Page 52 Menu mode 7.3.3 Timer Mode Here, you can choose whether the digital backwards counter with target time setting (see page 31, timer) should run IP address 255. 145. 1 3 6 . 225 setpoint-dependent or not – this determines whether the timer Subnet mask 255.

  • Page 53: Date And Time

    Menu mode 7.4 Date and time TIME In the display, you can set the date and time, time zone and daylight saving time. Changes can only be made in manual operating mode. NOTICE Always set the time zone (and daylight saving time yes/no) before you set the date and time. Avoid changing the set time after that since this can lead to gaps or overlapping when record- ing measured values.

  • Page 54: Calibration

    Menu mode 7. Set daylight savings to off () or on  ) with the turn control – in this case Date 12 . 05 . 2012 on (  ). Save the setting by pressing the Time 12 : 00 confirmation key.
  • Page 55 Menu mode Example: Temperature deviation at 42 °C should be corrected. 1. Press the activation key to the right of JUSTIEREN Calibrate CALIB display. The display is enlarged Temperatur Cal1 40.0 -0,2 Temperature 30.0 °C and the temperature adjustment option Cal1 Cal2 100.0...
  • Page 56 Menu mode 9. In the SETUP, adjust the calibration value Cal2 to +1.6 K (measured reference value 30.0 Cal1 minus displayed value) and save the set- 42.0 Cal2 ting by pressing the confirmation key. 60.0 Cal3 10. After the calibration procedure, the TEMP temperature measured by the reference instrument should now also be 42 °C.
  • Page 57 Menu mode Example: Humidity deviation at 60 % should be corrected: 1. Press the activation key to the right of JUSTIEREN Calibrate CALIB display. The display is enlarged Temperatur Cal1 40.0 -0,2 Temperature 30.0 °C and the temperature adjustment option Cal1 Cal2 100.0...
  • Page 58 Menu mode 9. Wait until the appliance reaches the set humidity and displays 60 % rh. The FEUCHTE reference instrument should display 58.5 % rh. .0 %rh 58.5 %rh Set 60 .0 %rh 10. In the SETUP, adjust the calibration value Cal2 to –1.5 % (measured reference value Temperature 40.0...
  • Page 59 Menu mode 1. Press the activation key to the right of JUSTIEREN Calibrate CALIB display. The display is enlarged Temperatur Cal1 40.0 -0,2 Temperature 30.0 and the temperature adjustment option °C Cal1 Cal2 100.0 +0,1 40.0 Humidity °C Cal2 is automatically selected. Cal3 180.0 -0,2...

  • Page 60: Programme

    Menu mode 9. Wait until the appliance reaches the setpoint and displays 10 %. The reference instrument displays 8.5 %, for example. 8.5 %CO2 10. In the SETUP, adjust the calibration value Cal2 to –1.5 % (reference value measured Temperature Cal1 %CO2 minus value displayed) and save the set-...

  • Page 61: Sounds

    Menu mode 3. With the turn control, select the pro- gramme you want to make available Select Test 012 Delete Test 022 for use, in this example the sterilisation Test 013 Steri 180 programme Test 014 Steri 180 Test 015 4.

  • Page 62: Protocol

    Menu mode 2. Save the selection by pressing the confir- Sound mation key. The adjustment options are automatically highlighted. Keysound At the end On alarm If door open 3. With the turn control, select the desired Sound setting – in this example OFF (). Keysound At the end On alarm...

  • Page 63: User Id

    Menu mode 3. Save your selection by pressing the confir- Protocol mation key. The transfer starts and a status symbol indicates the progress. 1 Week 1 Month Complete control range 4. As soon as the transfer is complete, a Protocol check mark appears in front of the period 1 Week selected.
  • Page 64 Menu mode 2. Activate the USER ID. To do so, press the USER-ID activation key on the right side of the Activate USER ID display. The display is enlarged Deactivate Activate and the entry is automatically highlighted. 3. Confirm the activation by pressing the USER-ID confirmation key.

  • Page 65: Maintenance And Servicing

    Maintenance and Servicing Maintenance and Servicing WARNING Danger due to electric shock. Disconnect the mains plug before any cleaning or maintenance work. 8.1 Regular maintenance Annually: ► Check the sterile filters and the water pump filters in the control unit and replace them if they are dirty.

  • Page 66: Storage And Disposal

    Storage and disposal Storage and disposal 9.1 Storage The appliance may only be stored under the following conditions: ► in a dry and enclosed, dust-free room ► frost-free ► disconnected from the power supply and gas supply Close the valves of the gas bottles and disconnect the hoses. Gas bottles may only be stored in closed rooms if these are sufficiently ventilated.
  • Page 67 Index Index Disposal 65 Log memory 46, 61 Door 25 Accessories 16 Accidents 9 Maintenance 64 Activation button 28 Electrical connection 12 Malfunctions 9, 42, 44 Alarm 33, 34, 36, 38, 39, 42 Electrical equipment 12 Manufacturer 2 Ambient conditions 16 Electronic temperature moni- Material 12 Ambient temperature 16...
  • Page 68 Index Sound 53, 60 Temperature limiter 35 Water supply 21 SOUND 60 Temperature monitor 33, 34 Water tank 22 Speaker symbol 33, 36, 38, Temperature monitoring 33 Water tray 22 39, 42 Temperature sensor 33 Weight 14 Standards 15 Tilt protection 20 What to do in case of ac- Starting a programme 31 Time 52...
  • Page 69 Appendix Appendix T T echnical description according to EN 60601-1-2 EMC – Guidance Operation Manual Amendment Incubator ICOxxmed ICO50med ICO105med ICO150med ICO240med D39062 | Date 01/2020...
  • Page 70 Appendix T T echnical description according to EN 60601-1-2 Guidance and manufacturer’s declaration – electromagnetic emissions The Memmert CO Incubator ICOxxmed is intended for use in the electromagnetic environment specified below. The customer or user of the CO Incubator ICOxxmed should assure that it is used in such an environment.
  • Page 71 Appendix T T echnical description according to EN 60601-1-2 Guidance and manufacturer’s declaration – electromagnetic immunity The Memmert CO Incubator ICOxxmed is intended for use in the electromagnetic environment specified below. The customer or user of the CO Incubator ICOxxmed should assure that it is used in such an environment.
  • Page 72 Appendix T T echnical description according to EN 60601-1-2 Recommended separation distances between portable and mobile RF communications equipment and the Memmert steriliser type S.. The CO Incubator ICOxxmed is intended for use in electromagnetic enviroment in which radiated RF disturbances are controlled.
  • Page 76 Incubator ICOmed D39062 | Date 01/2020 englisch Memmert GmbH + Co. KG Postfach 1720 | D-91107 Schwabach Tel. +49 9122 925-0 | Fax +49 9122 14585 E-Mail: sales@memmert.com facebook.com/memmert.family...
