kozy heat SP-41-L Installation And Operation Manual

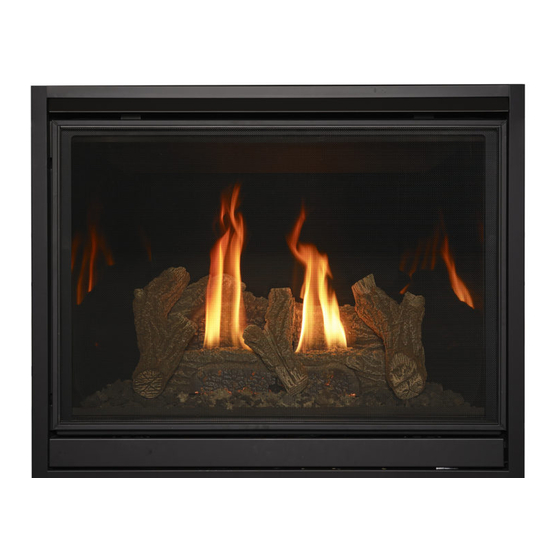

Direct vent gas fireplace
Hide thumbs Also See for SP-41-L:
Table of Contents

Advertisement

Quick Links

Download this manual

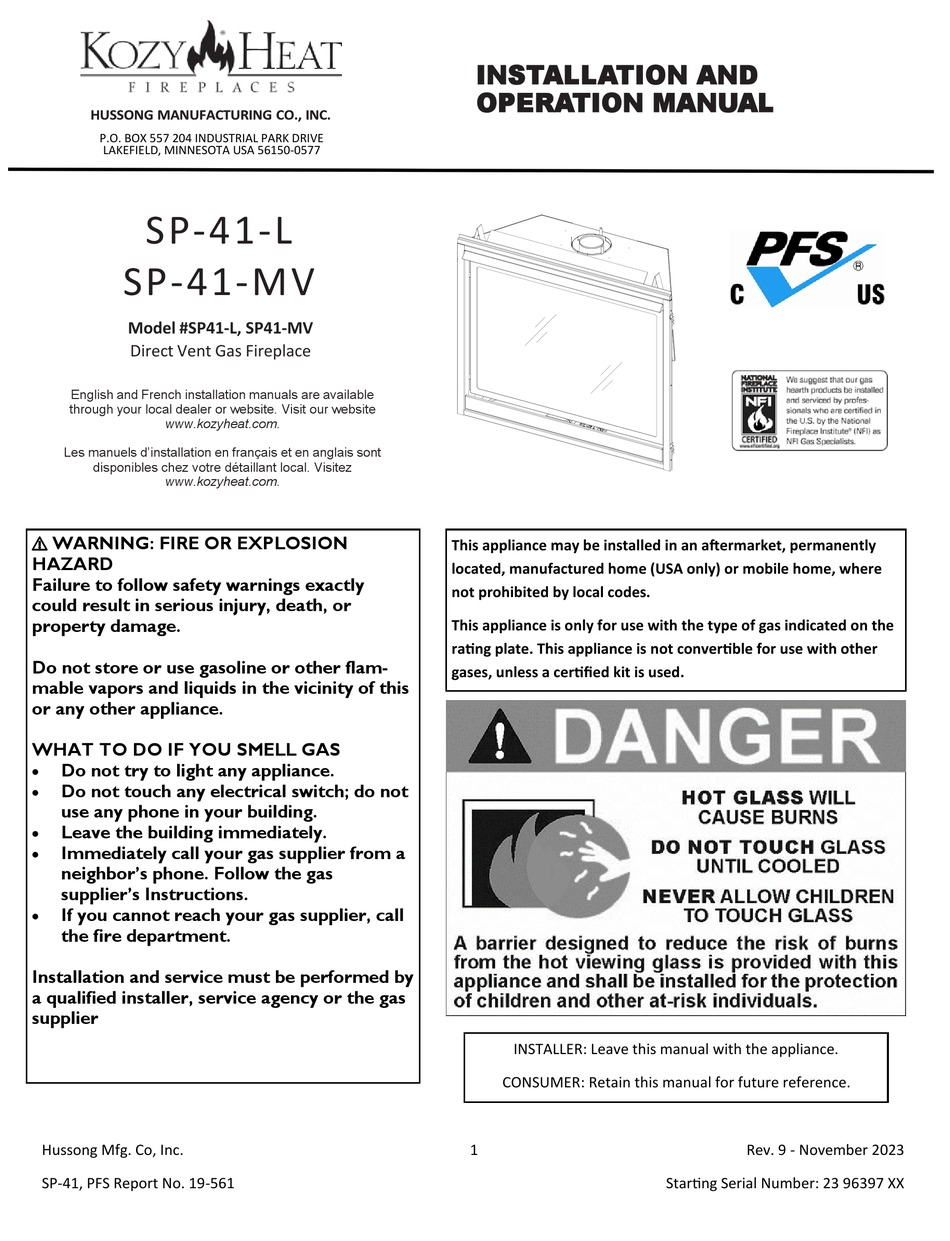

P.O. BOX 557 204 INDUSTRIAL PARK DRIVE
LAKEFIELD, MINNESOTA USA 56150-0577
SP-41-L
SP-41-MV
Model #SP41-L, SP41-MV
Direct Vent Gas Fireplace
English and French installation manuals are available
through your local dealer or website. Visit our website
www.kozyheat.com.
Les manuels d'installation en français et en anglais sont
disponibles chez votre détaillant local. Visitez
www.kozyheat.com.
⚠ WARNING: FIRE OR EXPLOSION
HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
Do not touch any electrical switch; do not
•
use any phone in your building.
Leave the building immediately.
•
•
Immediately call your gas supplier from a
neighbor's phone. Follow the gas
supplier's Instructions.
•
If you cannot reach your gas supplier, call
the fire department.
Installation and service must be performed by
a qualified installer, service agency or the gas
supplier
Hussong Mfg. Co, Inc.
SP-41, PFS Report No. 19-561
INSTALLATION AND
OPERATION MANUAL
This appliance may be installed in an aftermarket, permanently
located, manufactured home (USA only) or mobile home, where
not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the
rating plate. This appliance is not convertible for use with other
gases, unless a certified kit is used.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
1
Rev. 9 - November 2023
Starting Serial Number: 23 96397 XX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-41-L and is the answer not in the manual?

Questions and answers

Related Manuals for kozy heat SP-41-L

Summary of Contents for kozy heat SP-41-L

  • Page 1 INSTALLATION AND OPERATION MANUAL P.O. BOX 557 204 INDUSTRIAL PARK DRIVE LAKEFIELD, MINNESOTA USA 56150-0577 SP-41-L SP-41-MV Model #SP41-L, SP41-MV Direct Vent Gas Fireplace English and French installation manuals are available through your local dealer or website. Visit our website www.kozyheat.com.
  • Page 2 Hussong Mfg. Co, Inc. Rev. 9 - November 2023 SP-41, PFS Report No. 19-561 Starting Serial Number: 23 96397 XX...

  • Page 3: Homeowner Reference Information

    CONGRATULATIONS! Hussong Manufacturing welcomes you as a new owner of a Kozy Heat gas fireplace. Kozy Heat products are designed with superior components and materials, assembled with care by trained crafts- men who take pride in their work. To ensure you receive a quality product, the burner and valve as- sembly are 100 percent test-fired, and the complete fireplace is thoroughly inspected before packag- ing.
  • Page 4 Hussong Mfg. Co, Inc. Rev. 9 - November 2023 SP-41, PFS Report No. 19-561 Starting Serial Number: 23 96397 XX...

  • Page 5: Table Of Contents

    Electrical Specifications ..........49 2.4 Safety Barrier Information ........10 Wiring Requirements ..........49 3.0 Framing ..............11 10.0 Operating Instructions for SP-41-L ....... 52 3.1 Appliance Placement Considerations ....11 10.1 Setup Proflame 2 IFC Module ........53 3.2 Floor Support and Protection ......11 10.2 Initialize the Control System ........
  • Page 6 Hussong Mfg. Co, Inc. Rev. 9 - November 2023 SP-41, PFS Report No. 19-561 Starting Serial Number: 23 96397 XX...

  • Page 7: Introduction

    1.0 Introduction 1.1 Appliance Certification 1.3.2 Approved Carbon Monoxide Detectors Laboratory: PFS in Cottage Grove, Wisconsin Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be ANSI/UL Standards: 2034 listed and IAS certified. •...

  • Page 8: Specifications

    2.0 Specifications 2.1 Heating Specifications SP-41-L SP-41-MV Natural Gas Propane Natural Gas Propane Maximum Input Rating 28,000 Btu/h 28,000 Btu/h 28,000 Btu/h 28,000 Btu/h (8.2 kW) (8.2 kW) (8.2 kW) (8.2 kW) Orifice Size (DMS) #1.55mm #1.55mm Minimum Input Rating...

  • Page 9: Appliance Dimensions

    2.3 Appliance Dimensions Figure 2.1 - Appliance Dimensions Hussong Mfg. Co, Inc. Rev. 9 - November 2023 SP-41, PFS Report No. 19-561 Starting Serial Number: 23 96397 XX...

  • Page 10: Safety Barrier Information

    2.4 Safety Barrier Information NOTE: The appliance includes the standard screen barrier WARNING: A barrier designed to reduce the risk of (SP41-ES2) preinstalled. There are optional decorative overlays burns from the hot viewing glass is provided with this for the appliance which are installed on top of the provided appliance and shall be installed for the protection of screen barrier.

  • Page 11: Framing

    3.0 Framing 3.1 Appliance Placement Considerations 3.3 Setting the Appliance • Read all documentation for your specific installation and This section outlines information on setting the appliance in the design options prior to appliance installation. framed opening and starting the installation process. . WARNING: Due to high temperatures, the appliance General Procedure should be located out of traffic and away from furniture...

  • Page 12: Stand-Off Assembly And Installation

    3.4 Stand-Off Assembly and Installation WARNING: The top stand-offs provide the 3- 1/2” (89mm) minimum clearance to the header. The 1” (25mm) top stand-off flange accommodates 1/2” (12mm) combustible facing material (sheetrock). The clearance to hear must be maintained Top stand-off brackets must be formed and attached prior to positioning fireplace into framed opening.

  • Page 13: Nailing Flange Assembly And Installation

    3.5 Nailing Flange Installation Important Finishing Material Consideration: The nailing flange tabs on both sides of the appliance Combustible finishing material must butt up against and stop allow for different positions in the framed opening. You at the edge of the fireplace. See Figure 4.2 and 4.3. can attach the appliance to the framed opening: Noncombustible finishing material can overlap the appliance •...

  • Page 14: Clearance To Combustibles

    3.6 Clearances to Combustibles • See Table 3.1 below for minimum clearances for the standard installation option. • See Figure 3.3 on the following pages for typical standard installation options. • Unless otherwise noted all clearances / images in this manual are based off of nominal 2” x 4” framing being used. Table 3.1, Minimum Fireplace Clearances to Combustible Material Minimum height of fireplace enclosure 47-1/4”...
  • Page 15 Figure 3.3 - Typical Appliance Installation Hussong Mfg. Co, Inc. Rev. 9 - November 2023 SP-41, PFS Report No. 19-561 Starting Serial Number: 23 96397 XX...

  • Page 16: Wall Enclosure Rough Framing

    3.7 Wall Enclosure Rough Framing • Framing dimensions should allow for wall covering Note: Unless otherwise noted all clearances / images in this thickness and fireplace facing materials. manual are based off of nominal 2” x 4” framing being used. •...

  • Page 17: Vent Termination Framing

    Please consult the vent manufacturer’s instructions to determine the elbow dimen- Flexible pipe framing dimensions are tested with Kozy Heat #700 sion used for installation. Adjust the wall pass-through -2 Series Flexible Vent System. See the drawing below.

  • Page 18: Outdoor Covered Fireplace Installation

    3.9.2 Requirements 3.9 Outdoor Covered Fireplace Installation • The continuous insulated building envelope and weather- A outdoor covered fireplace installation allows a fireplace proof membrane are not to be interrupted by fireplace to be installed in an outdoor covered area, where the installation.
  • Page 19 Figure 3.8 - Outdoor Covered Installation Hussong Mfg. Co, Inc. Rev. 9 - November 2023 SP-41, PFS Report No. 19-561 Starting Serial Number: 23 96397 XX...

  • Page 20: Facing And Finishing

    Disclaimer: Kozy Heat does not guarantee any materials used 1/2” (1030mm) above the fireplace enclosure floor. around the fireplace. Kozy Heat disclaims any and all liability Mantel projections can increase 1” (25mm) of depth for any damage to finishing materials including warping, for every 1”...
  • Page 21 Figure 4.1 - Mantel Projections Hussong Mfg. Co, Inc. Rev. 9 - November 2023 SP-41, PFS Report No. 19-561 Starting Serial Number: 23 96397 XX...
  • Page 22 Note: Shown below (Figure 4.2) is where combustible finishing material is allowed. Combustible finishing materi- al is allowed to butt up against the appliance. Figure 4.3 shows a side profile of how the combustible finishing material butts up against the top finishing material standoff. Figure 4.2 - Combustible Finishing Material Hussong Mfg.
  • Page 23 Note: Figure 4.3 shows the facing material flush with the appliance. • The top of the appliance has a 1” standoff where the combustible facing material butts up against. Figure 4.3 - Combustible Finishing Material Hussong Mfg. Co, Inc. Rev. 9 - November 2023 SP-41, PFS Report No.

  • Page 24: Facing And Finishing Requirements

    Note: Shown below is where noncombustible finishing material is allowed. If you want the finishing material to overlap the front of the fireplace you are required to use noncombustible finishing material on top of the appli- ance. Finishing material cannot cover the glass frame assembly, upper hood, and component access panel. Figure 4.4 - Noncombustible Finishing Material Hussong Mfg.
  • Page 25 Note: Sidewall clearance of 4-1/2” (114mm) is shown from the side of the fireplace. Figure 4.5 - Combustible Sidewall Projection Hussong Mfg. Co, Inc. Rev. 9 - November 2023 SP-41, PFS Report No. 19-561 Starting Serial Number: 23 96397 XX...
  • Page 26 Refer to the manufacturer and supplier of your finishing material for use in high heat applications like around a fire- place. Ensure the material can be exposed to temperatures greater than 160°F. Kozy Heat does not assume any liabil- ity for discoloring, cracking, or other heat related damage.

  • Page 27: Sp41-081 Exterior Trim Installation

    4.2 SP41-081 Exterior Trim Installation Exterior Trim Kit (#SP41-081) is an optional trim kit for this appliance.. NOTE: The exterior trim kit is recommended to hide the finishing edge of the facing material when the facing material butts up against the appliance. IMPORTANT: This trim kit assembly must be attached before fireplace installation.

  • Page 28: Safety Barrier Installations

    4.3 Safety Barrier Installations 4.3.1 Safety Barrier Screen (#SP41-ES2) Locate the (4) slots located on each side of the fireplace frame. Align the notched tabs located on the back of the safety screen with the slots on the fireplace frame. Raise the safety screen front slightly into slots and allow the tabs to lower into position.

  • Page 29: Gas Line Connection

    5.0 Gas Line Connection 5.1 Gas Conversion SP-41-L: Stepper Motor sold separately to complete gas conversion ATTENTION: The conversion shall be carried out in accordance with the requirements of the provincial authorities having jurisdiction and in accordance with the requirements of the ANSI Z223.1 installation code.

  • Page 30: Termination Locations

    6.0 Termination Locations 6.1 Vertical Vent Cap Termination Note: Natural Draft Applications only. • Refer to Figure 6.1 below for vertical vent terminations clearances. • Refer to Figure 6.2 below for clearance between two vertical terminations. Figure 6.2 - Clearances Between Two Terminations Figure 6.1 - Vertical Vent Clearances Hussong Mfg.

  • Page 31: Minimum Termination Clearances

    6.2 Minimum Termination Clearances Refer to Figure 6.3 and the table below for natural draft vent termination clearance locations. Figure 6.3 - Termination Clearances Canadian Installations US Installations Clearance above grade, veranda, porch, desk, or balcony. 12” (30cm) 12” (30cm) Clearance to window or door that may be opened 12”...

  • Page 32: Venting

    This appliance can be adapted from co-axial to co-linear vent system. Refer to section 7.7 for more information. This appliance is approved for use with Kozy Heat 4” x 7” #700-2 series Flexible Direct Vent System (horizontal termination only). Refer to Section 7.8 for venting components and installation instructions.

  • Page 33: Venting Requirements

    7.2 Venting Requirements 7.3 Vent Restriction • NOTE: Consult the local and national installation codes to Burner flame appearance and characteristics are affected by assure adequate combustion and ventilation air is availa- altitude, fuel quality, venting configuration, and other fac- ble.

  • Page 34: Natural Draft Co-Axial Pipe Installations

    7.5 Natural Draft Co-Axial Pipe Installations 7.5.1 Vertical Terminations Note: Natural Gas and Propane Installations Minimum / Maximum Vertical Terminations: 3’ (914mm) minimum vertical length / 50’ (15.24m) maximum vertical length + termination cap Figure 7.2 - Vertical 4”x6-5/8” Vent Pipe Hussong Mfg.
  • Page 35 7.5.2 Horizontal Terminations (iii) Minimum 12” Vertical Vent Pipe / Minimum Horizontal: Note: Natural Gas and Propane Installations 12” (305mm) vertical vent pipe + 90° horizontal elbow + 6” (152mm) minimum horizontal vent pipe + termination Note: Figures shown in this section use rigid pipe. Venting requirements also apply to Section 7.8 #700-2 Flex Vent.
  • Page 36 Figure 7.4 - Horizontal 4”x 6-5/8” Vent Pipe Hussong Mfg. Co, Inc. Rev. 9 - November 2023 SP-41, PFS Report No. 19-561 Starting Serial Number: 23 96397 XX...
  • Page 37 7.5.3 Combination Venting • 25’ (7.62m) maximum vertical rise + 25’ (7.62m) maxi- mum horizontal run = 50’ (15.2m) of total length Note: Natural Gas and Propane Installations • Maximum of (5) 90° elbows. For each additional 90° el- Vent termination must be within the shaded area in bow used after the first elbow, 3’...

  • Page 38: Class A Chimney / Masonry Conversion

    7.6 Class A Chimney / Masonry Chimney Conversion This appliance is approved to be adapted for Class A/ Masonry Chimney conversion with kits utilizing a 4” (102mm) flexible exhaust by any vent manufactur- ers listed in section 7.1, APPROVED VENT SYSTEMS. Before conversion, have the existing installation inspected by a qualified chimney sweep or profes- sional installer.

  • Page 39: Co-Axial To Co-Linear Chimney Conversion

    7.7 Co-Axial to Co-Linear Chimney Conversion Before conversion, have the existing installa- tion inspected by a qualified chimney sweep or professional installer. The existing chim- ney system must be in serviceable condition, and functionally sound. Before proceeding with following installations, check with local building jurisdiction to verify this type of installation is allowed in your area.

  • Page 40: 700-2 Series Horizontal Flex Vent Termination Kit

    7.8 #700-2 Series Horizontal Flex Vent Termination Kit IMPORTANT: The flex pipe is permanently attached to the exterior plate. DO NOT ATTACH either #745-2 or #718-2 termina- tion kit to fireplace (or extension kit) until it has been passed through the framed opening. Install termination plates to the outside wall exterior.
  • Page 41 7.8.2 700-2 Series Flex Vent Installation  Attach vinyl siding protector (G) (not shown). 5. Gently pull 4” & 7” pipes down to the top of the fire- place, or if applicable, the extension kit.  Mount the required wall thimble (H) with 1” (25mm) PORTANT: DO NOT stretch extension kit beyond top and side clearances as referenced in Section 8.8.1.

  • Page 42: Fireplace Setup

    8.0 Fireplace Setup 8.1 Glass Frame Assembly WARNING: Do not operate this fireplace with the glass removed, cracked, or broken. Replacement of the glass assembly, should be done by a licensed or qualified service person. 8.1.1 Remove Glass Frame Assembly WARNING: Do not remove the glass assembly when hot.

  • Page 43: Sp41-50A Log Set Installation

    8.4 #SP41-50A Log Set Installation NOTE: Log numbers are located on the bottom or side of each log. Refer to the following instructions and illustration for proper placement. Your components may look different than the ones shown. CAUTION: Do not place logs directly over burner port holes. Improper log placement may affect flame appearance and may cause excessive soot to build upon the glass.
  • Page 44 Figure 8.4 - Log Set Hussong Mfg. Co, Inc. Rev. 9 - November 2023 SP-41, PFS Report No. 19-561 Starting Serial Number: 23 96397 XX...

  • Page 45: Control Board Removal And Installation

    8.5 Control Board Removal and Installation WARNING: If burner and/or pilot have been burning, use appropriate protection to avoid burns or damage to personal property before removing any compo- nents. DO NOT OPERATE THIS APPLIANCE WITHOUT THE SEALING GASKET (LOCATED UNDER THE CONTROL BOARD) IN PLACE.
  • Page 46 8.5.2 Control Board Installation Place control board in the firebox, aligning the holes in the control board with the holes in the firebox bottom. VERIFY SEALING GASKET IS IN PLACE. Secure the control board to the firebox with previous- ly removed screws. Reinstall the heat shield using (5) screws previously removed.

  • Page 47: Sp-028 Optional Fan Kit (Sp-41-Mv Only)

    8.6 #SP-028 Optional Fan Kit (SP-41-MV Only) WARNING - Electrical Grounding Instructions: This kit is equipped with a three-prong (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug. WANRING: Installation of this fan kit should be done by a qualified installer.
  • Page 48 TEMPERATURE CONTROL SWITCH POSITION Before adjusting temperature control switch, unplug 3-prong plug on fan cord from receptacle. Adjust position of temperature control switch to a warmer loca- tion under firebox to turn fan ON sooner or move it to a cooler location under firebox to turn fan ON later.

  • Page 49: Electrical Information

    This appliance, when installed, must be electrically grounded in accordance with local codes, or in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1. 9.2 Wiring Requirements 9.2.1 SP-41-L Wiring Requirements • The system requires 120 VAC of electricity and/or batteries to operate.
  • Page 50 Figure 9.1 - SP-41-L Electrical Diagram Hussong Mfg. Co, Inc. Rev. 9 - November 2023 SP-41, PFS Report No. 19-561 Starting Serial Number: 23 96397 XX...
  • Page 51 Figure 9.2 - SP41-MV Electrical Diagram Hussong Mfg. Co, Inc. Rev. 9 - November 2023 SP-41, PFS Report No. 19-561 Starting Serial Number: 23 96397 XX...

  • Page 52: Operating Instructions For Sp-41-L

    10.0 Operating Instructions - SP-41-L Hussong Mfg. Co, Inc. Rev. 9 - November 2023 SP-41, PFS Report No. 19-561 Starting Serial Number: 23 96397 XX...

  • Page 53: Setup Proflame

    10.1 Setup Proflame 2 IFC Module 10.3 Reset the System for Manual Operation Set the main ON/OFF rocker switch in the OFF posi- 1. Access the toggle switch and remote learn button on the tion. left side of the unit by removing the safety barrier screen by lifting up and out of its slots.

  • Page 54: Control System 7 Day Timeout

    10.7.1.2 Remote Control ON/OFF Key 10.6 Control System 7 Day Timeout 1. Press the remote control ON/OFF key to turn the sys- • If you have your Proflame 2 system set to CPI tem OFF. (continuous pilot ignition) with 7 consecutive days without ignition of the main burner, the pilot will turn 2.

  • Page 55: Remote Control Operation

    10.9 Remote Control Operation Figure 10.1 - Remote control overview 10.9.1 Temperature Display 10.9.2 Key Lock 1. With the system in the OFF position, simultaneously press This function locks the keys to avoid unsupervised opera- the thermostat key and the mode key to change degrees tion.
  • Page 56 10.9.3 Pilot Ignition Selection (IPI/CPI) 10.9.6 Remote Control Flame Adjustment This control system has (6) flame levels. If the smart thermo- This system has the option of a continuous (standing) stat operation is activated, then the manual adjustment of the pilot.
  • Page 57 10.9.6.1 Deactivate Flame Modulation 10.9.7.2 Smart Thermostat Verify all (3) AAA batteries are installed in the remote The smart thermostat function will adjust the flame height control battery bay. based on the set temperature and the actual room tempera- ture. The smart thermostat function automatically adjusts the Remove (1) AAA battery.
  • Page 58 10.9.8 Fan Speed Control 10.9.9 Remote Control Low Battery Detection Fan speed can be adjusted through (6) speeds. To activate Remote control battery lifespan depends on various fac- this function, tors including battery quality, number of ignitions, chang- es to room thermostat set point, etc. ...

  • Page 59: Operating Instructions For Sp-41-Mv

    11.0 Operating Instructions - SP-41-MV Hussong Mfg. Co, Inc. Rev. 9 - November 2023 SP-41, PFS Report No. 19-561 Starting Serial Number: 23 96397 XX...

  • Page 60: Flame Height And Heat Output Adjustment

    11.1 Flame Height and Heat Output Adjustment Model #SP-41-MV (millivolt system) is equipped with a manual HI/LO pressure modulator knob, located on the gas valve, for adjusting main burner flame height and the heat output of the fireplace. • Open the control compartment access panel to access the gas valve and the HI/LO pressure regulator knob. •...

  • Page 61: Pressure Testing And Burner Adjustments

    12.0 Pressure Testing and Burner Adjustments 12.1 Pressure Testing (SP-41-L) Table 12.1 Inlet Pressures NOTE: The appliance and its appliance main gas valve Fuel Natural Gas Propane must be disconnected from the gas supply piping system during any pressure testing of the system at test pres-...

  • Page 62: Pressure Testing - Mv System

    12.2 Pressure Testing (SP-41-MV) Table 12.3 Inlet Pressures IMPORTANT: Pressure check taps for manifold (outgoing) Fuel Natural Gas Propane and inlet (incoming) pressure have been incorporated into the valve. The pressure tap marked OUT measures out- Gas Supply Min-Max Min-Max going pressure.

  • Page 63: Flame Appearance Adjustment

    12.3 Flame Appearance Adjustment WARNING: To avoid property damage or personal injury, Table 12.6 Flame Appearance Venturi Adjustment allow the fireplace ample time to cool before making any adjustments. Flame Characteristics Cause Solution Burner flame appearance and characteristics are affected by altitude, fuel quality, venting configuration, and other fac- Dark, orange flame Venturi closed too far...
  • Page 64 12.3.3 Vent Restriction (after installation) Table 12.7 Restrictor Plate Adjustment Guidelines WARNING: To avoid property damage or personal injury, Flame Appearance Draft Problem Solution allow the fireplace ample time to cool before making any adjustments. WARNING: Improper vent installation may cause the burner Short, flickering Excessive draft and/or Add restrictor plate...

  • Page 65: Troubleshooting

    13.0 Troubleshooting 13.1 Electronic Ignition System (SP-41-L) ATTENTION: Troubleshooting must be performed by a qualified technician. Before proceeding with the steps in the following troubleshooting guide, • • Verify proper 120VAC power supply to the control Verify inlet pressure meets the recommended inlet pres- module.
  • Page 66 Issue Cause Solution Burner flame will not light ON/OFF rocker switch in OFF position Switch rocker switch to ON position. Gas supply turned off Check for multiple shut-offs in the supply line. Verify gas supply is turned on. Low gas supply Consult with plumber or gas supplier.
  • Page 67 Issue Cause Solution Flame burns blue and lifts off Improper venturi setting The venturi air shutter may need to be burner close slightly to allow less air into the gas mix. Refer to section 12.3.1, BURNER VEN- TURIS. Incorrect vent cap installation Adjust if necessary.

  • Page 68: Millivolt Ignition System (Sp-41-Mv)

    13.2 Millivolt Ignition System (SP-41-MV) ATTENTION: Troubleshooting must be performed by a qualified technician. Issue Cause Solution No spark from electrode to Piezo igniter wiring disconnection Verify piezo igniter is properly grounded. Tighten mounting pilot when piezo button is fastener, if required. triggered Check and repair, if necessary, the wire connections between the piezo igniter and igniter electrode.
  • Page 69 Issue Cause Solution Frequent pilot outages Pilot shield not installed Install pilot shield. Pilot safety dropout Pilot flame is too high or too low. Clean pilot hood and adjust pilot flame for maxi- mum flame impingement on thermopile. Burner will not light Light instructions not followed Turn gas control knob to ON position.
  • Page 70 Issue Cause Solution Pilot and burner extinguish No propane in tank Check propane tank. Refill if necessary. while in operation Incorrect glass frame assembly installation Refer to Section 8.1 Glass Frame Assembly. Improper pitch on horizontal venting 1/4” (6mm) rise per 12” (30mm) horizontal pipe is required.

  • Page 71: Maintenance

    14.0 Maintenance ATTENTION: Installation and repair should only done by a 14.3 Vent System qualified service person. The appliance should be inspect- ed before use and at least annually by a professional ser- NOTE: If the vent-air intake system is disassembled for any vice person.

  • Page 72: Burner And Pilot System

    14.5 Burner and Pilot System The burner assembly may be removed for easier access to the control compartment. See Section 8.5 Control Board Removal and Installation for instructions. Verify gas supply is turned on and filled. Consult with plumber or gas supplier as necessary. Performed by: Qualified Service Person Frequency: Annually Action:...

  • Page 73: Replacement Parts List

    [are] known to the State of California to cause cancer, birth defects P.O. BOX 557 204 INDUSTRIAL PARK DRIVE or other reproductive harm. For more information, visit LAKEFIELD, MINNESOTA USA 56150-0577 www.P65Warnings.ca.gov. SP-41-L Control Board and Parts S.I.T. Complete Board Assembly - SP41L-130 S.I.T. Conversion Kit - Natural Gas NCK-SP41L-S30 Natural Gas S.I.T.
  • Page 74 SP-41-MV Control Board and Parts S.I.T. Complete Board Assembly - SP41-770A Pilot Orifice - Natural Gas 700-165 Natural Gas S.I.T. Complete Board Assembly - SP41-771A Pilot Orifice - Propane 700-095 Propane S.I.T. MV Gas Valve - Natural Gas 700-086N SIT Millivolt Pilot Hood 700-098 S.I.T.
  • Page 75 Glass and Glass Parts Log Set Glass with Gasket - 36-1/2” x 26-1/8” 701-017T 6 Piece Log Set SP41-50A 1 1/8” Glass Gasket with Adhesive 900-006 Log #1 SP41-1A Replacement Valance SP41-005 Log #2 SP41-2A Log #3 SP41-3A Safety Barrier Log #4 SP41-4A 37.56”...

  • Page 76: Limited Lifetime Warranty

    Hussong Manufacturing Company, Inc. (Hussong Mfg.) All parts and material except the items listed in the 30 day warrants this Kozy Heat gas appliance from the date of warranty and any exclusions or limitations that may apply purchase to the original purchaser, that it is free of defects in materials and workmanship at the time of manufacture.
  • Page 77 Limited Lifetime Warranty EXCLUSIONS AND LIMITATIONS (continued) 10. It is expressly agreed and understood that this warranty is Hussong Mfg.’s sole obligation and purchaser’s exclusive reme- dy for defective fireplace equipment. Hussong Mfg. is free of liability for any damages caused by this appliance, as well as inconvenience expenses and materials.
  • Page 78 Hussong Mfg. Co, Inc. Rev. 9 - November 2023 SP-41, PFS Report No. 19-561 Starting Serial Number: 23 96397 XX...
