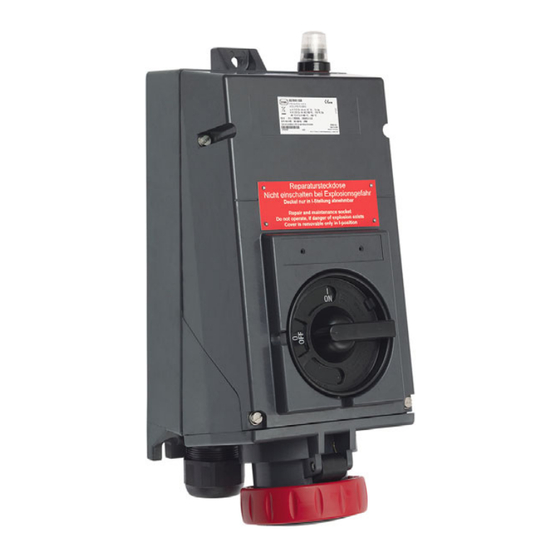

Stahl SolConeX 8579/61 Series Operating Instructions Manual

Maintenance socket
Hide thumbs Also See for SolConeX 8579/61 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
SolConeX
Maintenance socket
Series 8579/61
Operating instructions
Additional languages r-stahl.com
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SolConeX 8579/61 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stahl SolConeX 8579/61 Series

Summary of Contents for Stahl SolConeX 8579/61 Series

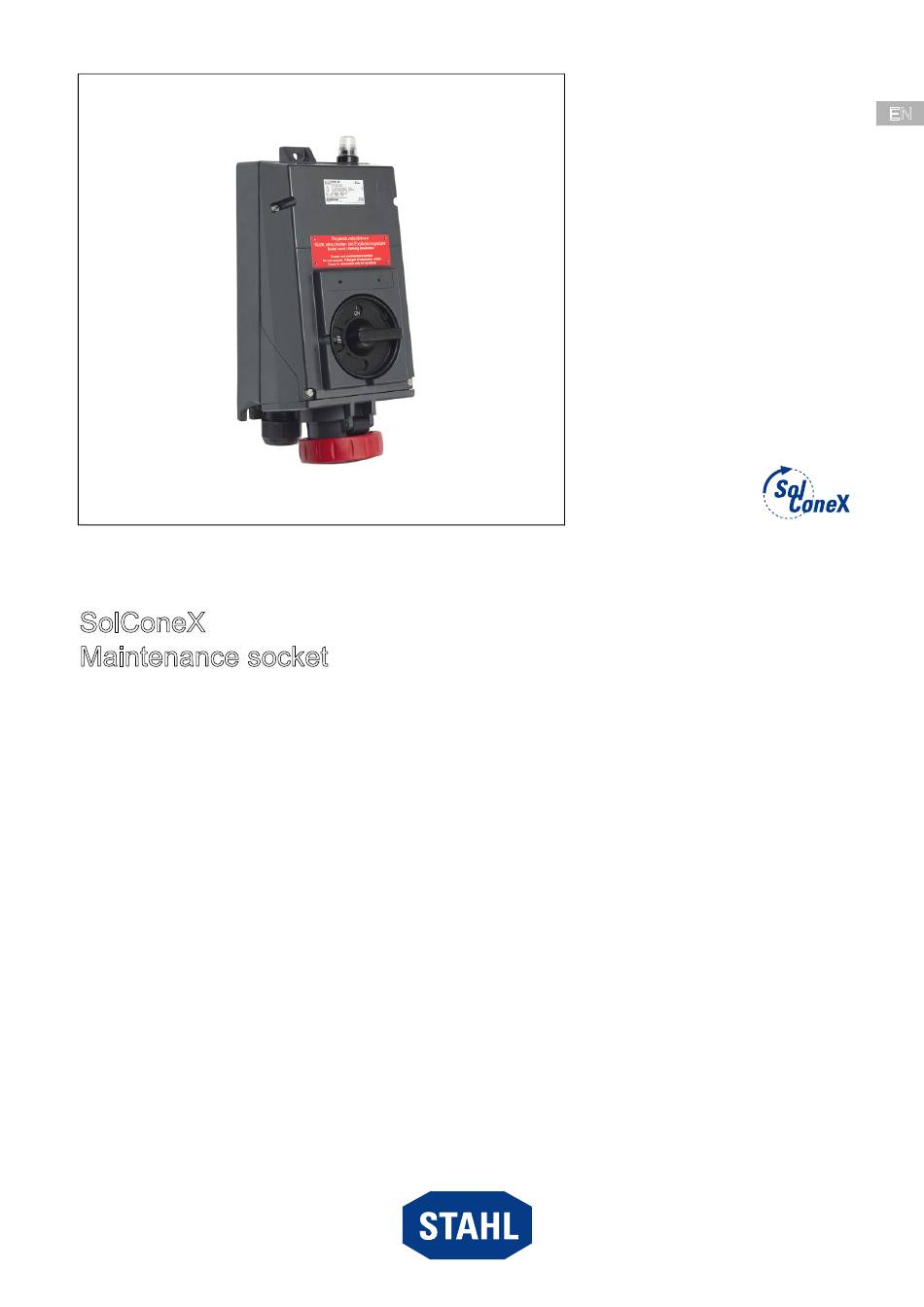

  • Page 1 Operating instructions Additional languages r-stahl.com SolConeX Maintenance socket Series 8579/61...

  • Page 2: Table Of Contents

    Contents General Information ....................3 Manufacturer .......................3 Information regarding the Operating Instructions ..........3 Further Documents .....................3 Conformity with Standards and Regulations ............3 Explanation of the Symbols ................4 Symbols in these Operating Instructions ............4 Warning Notes ....................4 Symbols on the Device ..................5 Safety Notes .......................5 Operating Instructions Storage ................5 Personnel Qualification ..................5...

  • Page 3: En En

    • SolConeX plug and socket devices data sheet For documents in additional languages, see r-stahl.com. Conformity with Standards and Regulations See certificates and EU Declaration of Conformity: r-stahl.com. The device has IECEx approval. For certificate please refer to the IECEx homepage: http://iecex.iec.ch/ Further national certificates can be downloaded via the following link: https://r-stahl.com/en/global/support/downloads/.

  • Page 4: Explanation Of The Symbols

    Explanation of the Symbols Explanation of the Symbols Symbols in these Operating Instructions Symbol Meaning Tips and recommendations on the use of the device General danger Danger due to explosive atmosphere Warning Notes Warnings must be observed under all circumstances, in order to minimize the risk due to construction and operation.

  • Page 5: Symbols On The Device

    Specialists who perform these tasks must have a level of knowledge that meets applicable national standards and regulations. Additional knowledge is required for tasks in hazardous areas! R. STAHL recommends having a level of knowledge equal to that described in the following standards: •...

  • Page 6: 3.3 Safe Use

    • Use the device in accordance with its intended and approved purpose only. • Always consult with R. STAHL Schaltgeräte GmbH if using the device under operating conditions which are not covered by the technical data. • Make sure that the device is not damaged.

  • Page 7: Function And Device Design

    Function and Device Design Function and Device Design DANGER Explosion hazard due to improper use! Non-compliance results in severe or fatal injuries. • Use the device only in accordance with the operating conditions described in these operating instructions. • Use the device only for the intended purpose specified in these operating instructions.

  • Page 8: 5 Technical Data

    Technical Data Technical Data Explosion Protection Global (IECEx) Gas and dust IECEx PTB 10.0047X Ex db eb IIC T6 ... T5 Gb Ex tb IIIC T60 °C ... T75 °C Db Europe (ATEX) Gas and dust PTB 02 ATEX 1137 X E II 2 G Ex db eb IIC T6 ...
  • Page 9 Technical Data Technical Data Mechanical data Number of poles 4-pole (3P + ¿)/5-pole (3P + N + ¿) (N-conductor connected) Auxiliary contacts Standard version 8080/1-1: 1 NC + 1 NO in the left installation slot NO contact ON delayed NO contact OFF leading (> 20 ms before opening of the main contacts) NC contacts synchronizing Possible auxiliary max.
  • Page 10 Technical Data Technical Data Weight 8579/61-4 7.9 kg 8579/61-5 8.3 kg Service life > 20,000 switching cycles (electric and mechanical) Tightening torque Terminals: Main contact: 6 Nm Auxiliary contact: 0.4 Nm Cover screws: 3.5 Nm Cable glands Cable gland 1 x M50 x 1.5 (positioning on the top or at the side, according to the order) Thread Clamping...
  • Page 11 Technical Data Arrangement of the earth contact sleeve Position: Time position, view: Front side of the socket 02395E00 Arrangement of socket contacts and terminal markings 4-pole (3P + ¿) 5-pole (3P + N + ¿) 06556E00 06555E00 8579/61-4.. 8579/61-5.. Arrangement of the socket contacts and terminal markings in the 6h position (view from the front side of the socket to the socket contacts) 201306 / 8579615300 SolConeX Maintenance socket...
  • Page 12 Not standardized but recommended preferred position Colour code corresponding to respective voltage colour code Frequencies ) 100 Hz lead to increased heating. This must be offset by reducing the current to 50 A. For further technical data, see r-stahl.com. SolConeX Maintenance socket 201306 / 8579615300 Series 8579/61 2020-11-10·BA00·III·en·03...

  • Page 13: Transport And Storage

    Transport and Storage Transport and Storage • Transport and store the device only in the original packaging. • Store the device in a dry place (no condensation) and vibration-free. • Do not drop the device. Mounting and Installation Dimensions / Fastening Dimensions Dimensional drawings (all dimensions in mm [inches]) –...

  • Page 14: 7.2 Mounting / Dismounting, Operating Position

    Mounting and Installation Mounting / Dismounting, Operating Position 7.2.1 Assembly This device is suitable for outdoor and indoor use. • Provide a protective roof or wall if the enclosure and explosion-protected electrical equipment are used outdoors. Operating position • Hinged cover preferably facing downwards, connection chamber facing upwards.
  • Page 15 Dismounting the auxiliary contacts • Insert the auxiliary contact key (Art. no. 201909) between the auxiliary contact and the switch cover with the Stahl logo pointing upwards (!). • Pull out the auxiliary contact along with the auxiliary contact key.

  • Page 16: 7.3 Installation

    Mounting and Installation Installation DANGER Explosion hazard due to insufficient protective measures! Non-compliance results in severe or fatal injuries. • Select suitable cables to ensure that the maximum permissible conductor temperatures are not exceeded. • When using core end sleeves, attach them using a suitable tool. •...
  • Page 17 Mounting and Installation Two conductors can be installed under one connection terminal. Material and cross section of both conductors must be identical. The conductors can be connected without any special preparations. Special conditions The maintenance socket has to be secured against unauthorised use by means of a padlock.
  • Page 18 Mounting and Installation • Open the enclosure. • Guide the conductors through the cable entry and into the connection chamber. • Strip the conductors. • Insert the conductors into the corresponding terminals and clamp them (for tightening torque, see chapter "Technical data"). 11201E00 Insert the stripped cable ends A [mm]...

  • Page 19: Commissioning

    The maintenance socket may only be operated when fully mounted. If the plug has been disconnected, lock the hinged cover with the bayonet ring. Only type 8579/12 plugs by R. STAHL or commercially available non-Ex plugs may be used. 201306 / 8579615300 SolConeX Maintenance socket 2020-11-10·BA00·III·en·03...

  • Page 20: Maintenance, Overhaul, Repair

    Explosion hazard due to improper repair! Non-compliance results in severe or fatal injuries. • Repair work on the devices must be performed only by R. STAHL Schaltgeräte GmbH. DANGER Explosion hazard due to improper repair! Non-compliance results in severe or fatal injuries.

  • Page 21: 10.4 Returning The Device

    • Only return or package the devices after consulting R. STAHL! Contact the responsible representative from R. STAHL. R. STAHL's customer service is available to handle returns if repair or service is required. • Contact customer service personally. • Go to the r-stahl.com website.
