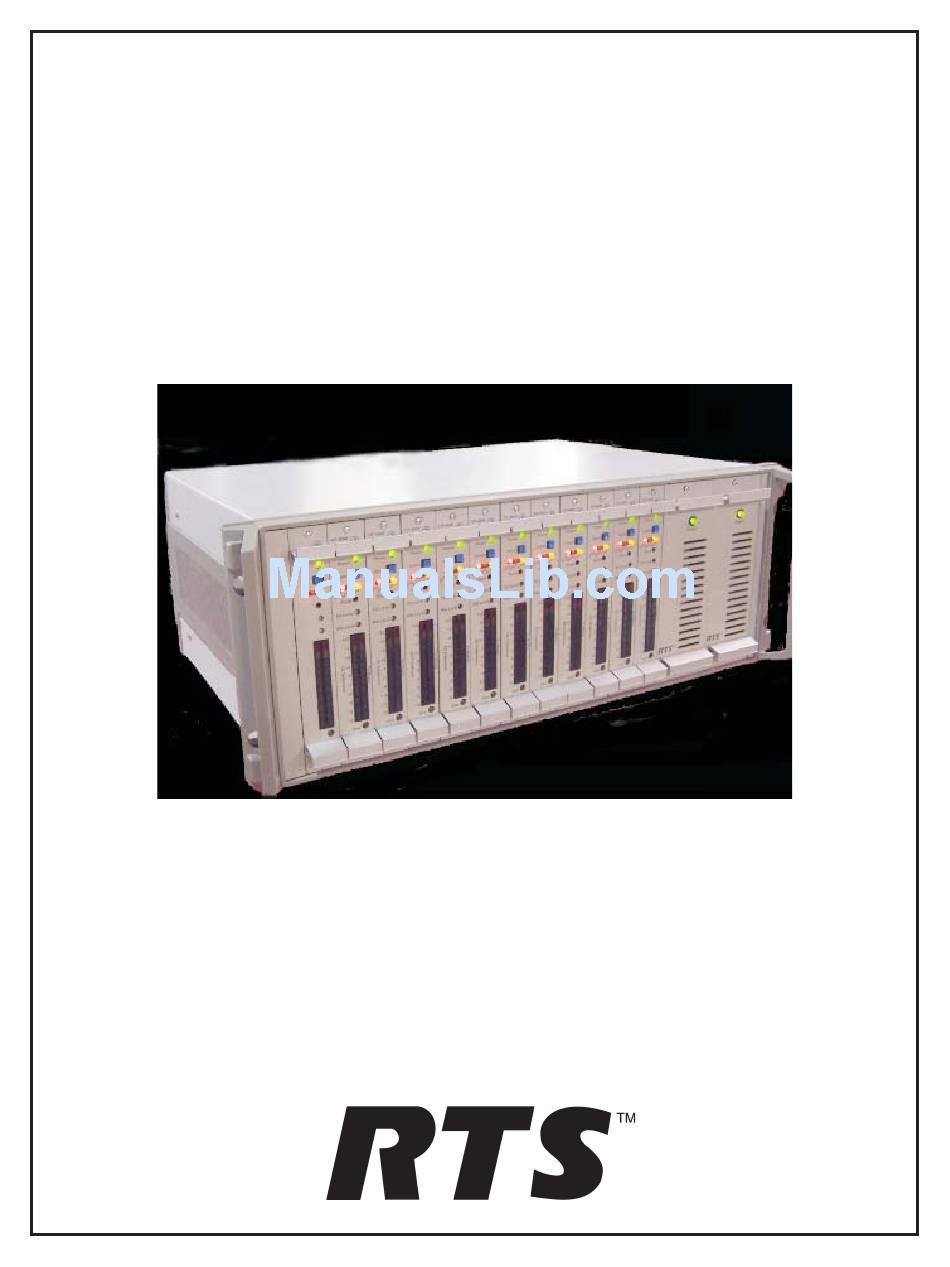

Page 1: User Manual
USER MANUAL TIF-4000 Frame & TIF-4000 Digital Hybrid Telephone Line 9350-7812-000 Rev B 10/2005... - Page 2 Proprietary Notice The product information and design disclosed herein were originated by and are the property of Telex Com- munications, Inc. Telex reserves all patent, proprietary design, manufacturing, reproduction, use and sales rights thereto, and to any article disclosed therein, except to the extent rights are expressly granted to others.
-
Page 3: Table Of Contents
Operation ... 9 Operation From A Keypanel ... 9 Re-dialing the Last Number ... 11 TIF-4000 System Setup to Receive Calls ... 11 Using the TIF-4000 From the Telephone ... 12 Specifications ... 14 TELEPHONE INTERFACE REQUIREMENTS FORM ... 17... -
Page 4: Introduction
Supple- ments are placed at the back of the manual. Description The TIF-4000 is a frame of up to 12 digital telephone interface cards (TIF-4000 front card), with a redundant power supply designed to be compatible with ADAM, ADAM CS, and Zeus intercom systems. - Page 5 Table 1- Correspondence between address numbers and intercom port numbers for ADAM, ADAM CS, and Zeus systems...
-
Page 6: Internal Dip Switch (S202)
When using full duplex mode, users may hear an increased amount of echo on the line. This may be more pronounced when the TIF-4000 is forced into full duplex mode all of the time (switch 8 open) rather only when audio is present (switch 8 closed). -
Page 7: Internal Dip Switch (S203)
Relay Simply put, a relay is a switch that is OPEN or CLOSED. In the case of the TIF-4000, when it is off- hook (a call is active), the switch is closed and an indicator, such as an external lamp, can be activated. -
Page 8: Setting Audio Levels
Table 5 - Password length DIP Switch Settings Setting Audio Levels Audio levels to the intercom matrix and to the tele- phone line can be adjust via the trim pots located on the front card. SETTING AUDIO LEVELS TO INTERCOM MATRIX Adjustments may be made via the front card pots (see Figure 1). -
Page 9: Configuring For Country's Telephone System
Any keypanel with a keypad may use a TIF-4000. All that is necessary is to program a key to talk to the TIF-4000, as if it were a keypanel. The alpha numeric display or tally LED for that key then provides information about the phone line. - Page 10 NOTE: The KP-32 can use either of these methods to dial using a TIF-4000. To dial a call on the TIF-4000 using a KP-96 or KP-32, do the following : Turn on the listen key for the line you wish to dial on.
-
Page 11: Re-Dialing The Last Number
TIF-4000 System Setup to Receive Calls To the intercom system, the TIF-4000 is similar to a keypanel. If the phone lines are to be used for outgo- ing calls only, then no programming in AZedit is necessary. -
Page 12: Using The Tif-4000 From The Telephone
TIF-4000 to convey to the user what to expect. If the user is not familiar with the operation of the TIF-4000, it is best to keep the operation as simple as possible. For this reason, it is suggested that you not use password required unless you have had problems with nuisance calls in the past. - Page 13 DTMF CODES Once programmed, the TIF-4000 may be operated via the DTMF keypad on the telephone. The DTMF keys have the following functions: Normal Mode : 1 thru 7 Toggle ON and OFF talk and listen #1 to #7. NOTE: Initially, #1 will be enabled if the unit auto answered the line.
-
Page 14: Specifications
RJ11 Female Power Requirements Universal Power Supply: 100-240 VAC, 50/60Hz, Card: Every card uses 1Amp of power Power Dissipation TIF-4000 Full Frame (12 TIF Cards) 750mA @ -15V 1A @ +15V 9A @ +5V TIF-4000 Individual Card 60mA @ -15V... - Page 15 (amber) Board Reset Level Adjustment Pot for Audio To the Line Level Adjustment Pot for Audio To the Matrix Data LED Indicator (amber) Figure 8. Front of TIF-4000 frame reference view. POWER POWER POWER POWER SELECT SELECT SELECT SELECT POWER...
-
Page 17: Telephone Interface Requirements Form
Additionally, some countries require governmental approval for connection of the TIF 4000 to the public telephone system. Telex handles these requirements on a case by case basis and may require a onetime engineering fee to adapt the TIF 4000 for a specific telephone system or to obtain governmental approval. Additionally, Telex may require the customer to initiate the government approval process of the TIF 4000 for their particular telephone system.
