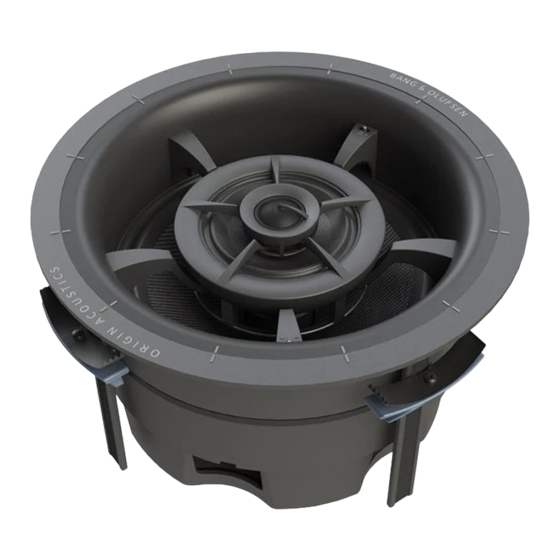

- Page 1 BOC80 Series Celestial Collection ™ Installation Manual BOC86, BOC82DT, BOC82...
-
Page 2: Table Of Contents
Table of Contents Introduction Specifications Dual Tweeter What’s Included Tools & Items Wire Recommendation Speaker Placement About Speaker Wire Installing the Wire Wire Routing Cutting the Hole Installing the Bayonet Ring Connecting the Wire Installing the Speaker Testing & Adjustments Installing the Grille Troubleshooting Technical Assistance... -
Page 3: Introduction
Introduction Thank you for purchasing the Celestial™ 8 In-Ceiling Speaker. Origin Acoustics and Bang & Olufsen take pride in providing you with high quality products. All of our speakers are designed to have excellent sound quality, longevity, and a simple installation process. -
Page 4: Specifications
Specifications Model BOC86 BOC82DT/SUR BOC82 Part Number SCBOC80600 SCBOC2T802 SCBOC80200 Woofer Cone Glass Fiber Woofer 8” (203mm) 8” (203mm) 8” (203mm) Diameter Mid-Range Glass Fiber Dome Mid-Range 4” (102mm) Diameter Tweeter Dome Silk DPSD Silk DPSD Silk DPSD Tweeter 1” (25mm) 1”... -
Page 5: Dual Tweeter
Dual Tweeters The Dual Tweeter models can be used for either one channel (surround) or two channels (stereo). A switch is located on the back of the speaker to select which mode to use. One of the inputs is labeled for surround. This is the input that should be used if you’re only using one channel. -
Page 6: What's Included
What’s Included Speaker Bayonet Ring Grille Template Tools & Items • Drywall Saw • Measuring Tape • Stud Finder • Speaker Wire • Drill • Fish Tape • Pencil • Drill Bit ⅛” (3mm) • Wire Stripper • Stiff Wire Wire Recommendation The gauge of wire used can have an impact on the performance of your speakers. -
Page 7: Speaker Placement
Auxiliary Room (2 Speaker Placement) Ideally, the two speakers should be placed an equal distance from the lis- tener. If the room has a lower ceiling, the speakers can be closer together. Also, if the speaker placement is in- tended for standing (as opposed to sitting) listeners, the speakers can be closer together. -
Page 8: About Speaker Wire
About Speaker Wire Use a two conductor wire that allows you to identify one conductor from the oth- er. This designation may be obvious or as subtle as a ridge on one conductor. It’s crucial that you keep track of which wire you use for positive (+) and negative (-). -
Page 9: Wire Routing
Wire Routing Plan how you’ll route the wire to the desired speaker location. There are several methods for routing the wire, and you may need to combine several of them. Behind the Baseboard Through Walls The wire can be routed behind the When running wires through a wall, be baseboard by cutting a groove out of sure to avoid all obstacles such as AC... -
Page 10: Cutting The Hole
2. Cutting the Hole When you’ve decided on the locations for all of the speakers, use the template to trace a circle lightly in pencil where the hole should be. (Refer to the Specifications section for cutout sizes.) If you’re unsure on whether there may be obstacles (such as pipes or wires) where you plan on installing the speaker, drill a ⅛... -
Page 11: Connecting The Wire
4. Connecting the Wire Push down to open the connector. Insert the wires into the connectors, making sure that the positive wire is being attached to the red connec- Connector tion and the negative wire is being attached to the black connection. If Speaker Wire the wires are switched, speaker perfor-... - Page 12 STEP 2: The bayonet ring also features a metal lock to ensure the correct installation of the loudspeaker. Out of the box, the lock will be in its closed position. Open the lock tab to its unlocked position to remove the speaker from the ring. Once the speaker is installed, close the lock tab by pushing it back into place, flush with the perime- ter of the bayonet ring.
-
Page 13: Testing & Adjustments
6. Testing & Adjustments The midrange (BOC86 only) and tweeter can be pivoted to direct the sound to- wards the listening area. Or for a more diffused surround sound experience, the rear speakers can be aimed towards the wall. To aim the tweeter, gently apply pressure to the rim with your thumbs to pivot the tweeter. -
Page 14: Troubleshooting
Troubleshooting If you have a problem, try isolating it first. For example, if you’re playing a DVD and there is no sound, try replacing the DVD with an MP3 player to see if you get sound. If it does work, then the problem is with the television, DVD player, or the cables connecting them. -
Page 15: Technical Assistance
If you are considering returning the product, it’s required that you contact Origin Acoustics prior to any return at- tempts. This way we can determine if the issue can be resolved without returning the product, or if needed we can provide instructions and support for the return process. -
Page 16: Warranty
Limited Lifetime Warranty Origin Acoustics warrants to the original retail purchaser only that this Origin Acoustics product will be free from defects in materials and workmanship, pro- vided the speaker was purchased from an Origin Acoustics authorized dealer. If the product is determined to be defective, it will be repaired or replaced at Ori- gin Acoustics’... -
Page 17: Return Process
Before making any return attempts, it is required that you first contact Origin Acoustics. Return product to Origin Acoustics or your dealer, either in person or by mail. It’s preferable if the product is returned in the original packaging. If this isn’t possible, the customer is responsible for insuring the shipment for the full value of the product. - Page 18 Revision B 3.28.2022 ©2022 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics. ©2022 Bang & Olufsen. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Bang & Olufsen.
