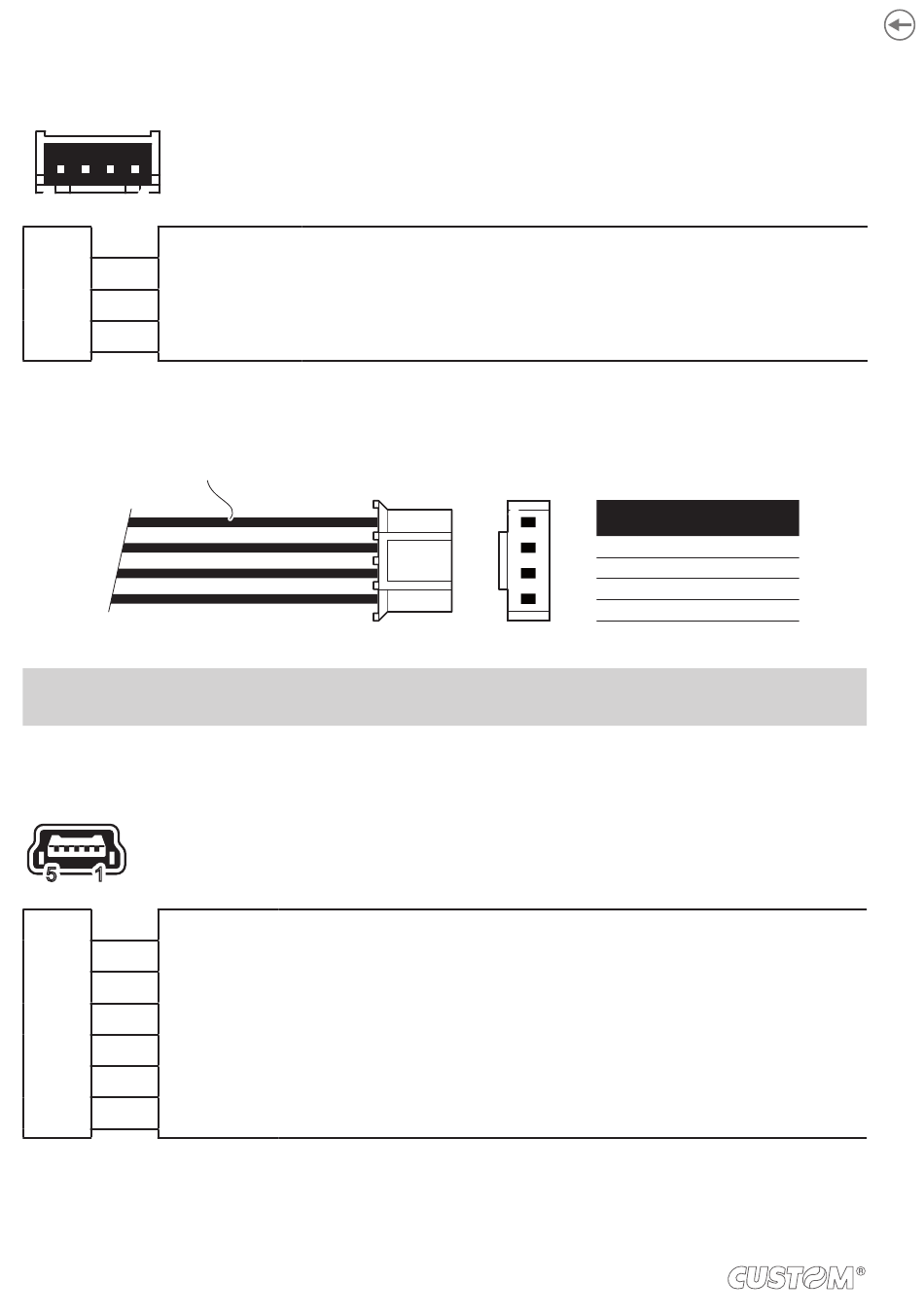

3.3 Pinout

POWER SUPPLY
JST male connector (S4B-PH-K-S)
1 4
1 GND
2 GND
J4
3 +VP
4 +VCC
The following igure shows the connector pinout of the power supply cable for the device:
Power supply cable
ATTENTION:
Respect power supply polarity.
MINI USB INTERFACE
Female MINI USB type B connector
5 1
1 USB0_VBUS
2 USB0_D-
3 USB0_D+
4 n.c.
J1
5 GND
SH1 GND
SH2 GND
20
Female JST connector
series PHR-4
4 PIN Cable
color
4 Black
3 Black
2 Orange
1
1 Red
Signal
GND
GND
+VP
+VCC
