Leica Q2 MONOCHROM - 47.3 MP Digital Camera Quick Start Guide

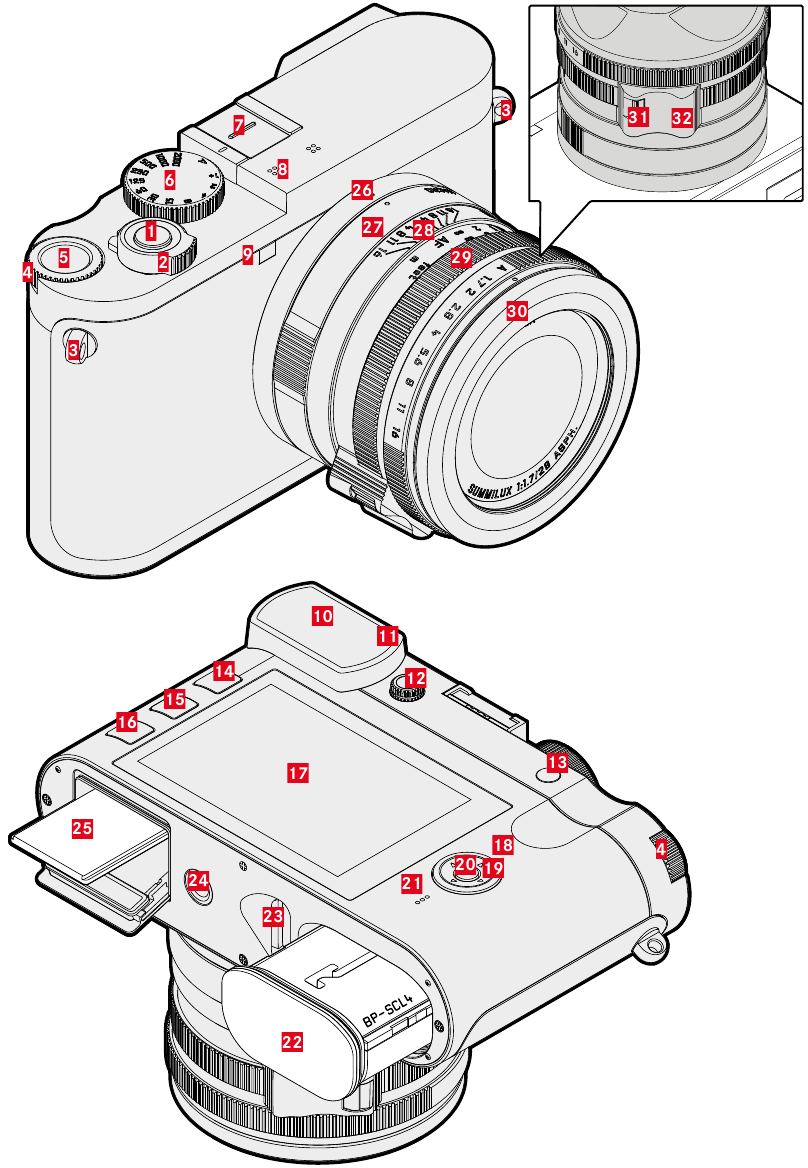

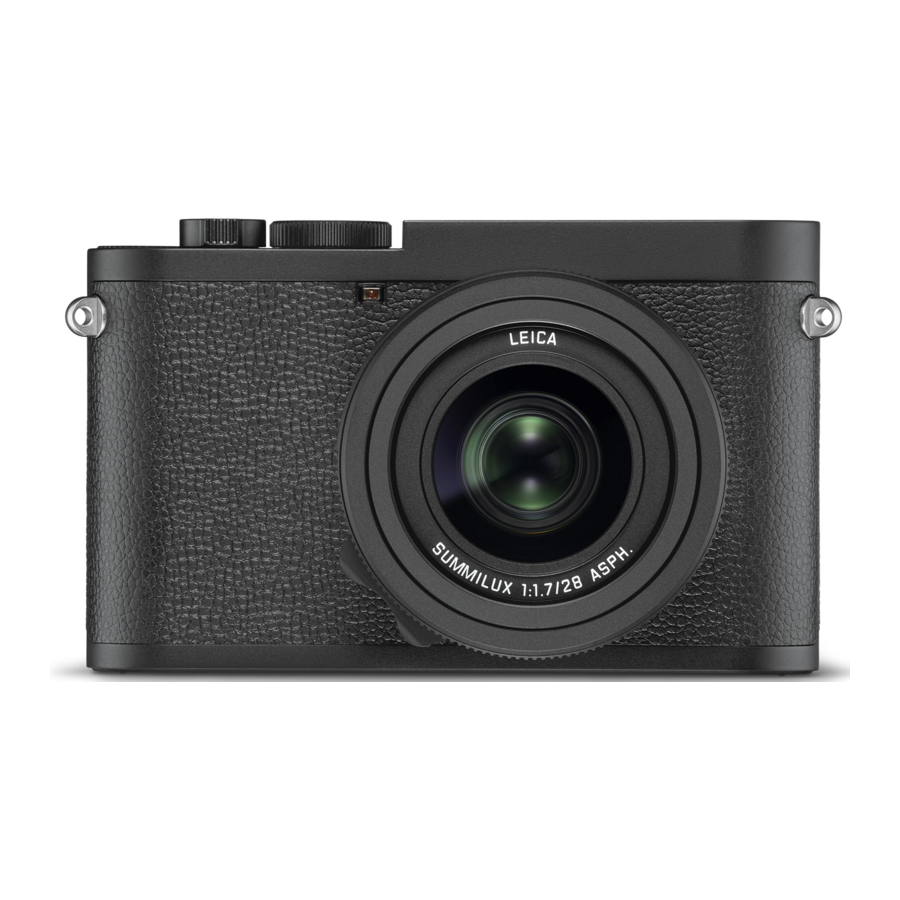

PART DESIGNATIONS

1. Shutter button
   Tap:

• Autofocusing
• Activating exposure metering and exposure control

Press down fully:

• Shutter release
• Video recording Start/Stop

in standby mode:

• The camera is reactivated

2. Main switch
   Switching the camera ON/OFF
3. Strap lugs

4. Thumbwheel
   in the menu:

• Scrolling within the menu

in recording mode:

• Exposure compensation value selection (depending on operating mode)
• Select the 2nd function of the thumbwheel (while pressing and holding the button 5)

in review mode:

• Zooming in/out of the frame

5. Thumbwheel button in the menu:
   • Confirming the selectionin recording mode:
   • Call-up of the 2nd function of the thumbwheel or FN menu and exposure mode
6. Shutter speed setting dial
   • A: Automatic shutter speed control
   • 2000 - 1+: Fixed shutter speeds
7. Accessory shoe
   Recommended flash units:
   Leica SF 40 and SF 60
8. Microphone
   Sound is recorded in stereo
9. Self-timer LED/AF assist light
10. Viewfinder eyepiece
11. Eye sensor
    Available settings: LCD panel only/EVF only/automatic switchover
12. Diopter setting wheel
    Setting range: -4/+3 diopter

13. Zoom/Lock button
    in recording mode:

• Digital zoom in review mode:
• Marking/rating a recording

14. PLAY button
    Switchover between picture and playback/ review mode
15. FN button
    in recording mode:

• Direct access to menu functions

in review mode:

• Delete function

16. MENU button
    in the menu:

• Scrolling through the menu screens

in recording mode:

• Accessing the menu

in review mode:

• Accessing the Playback/Review menu

17. LCD panel
    3" TFT LCD, 1,040,000 dots, touch panel

18. Status LED
    • for memory card access
    • for use of the WLAN function
    • for implementation of firmware updates
19. Directional pad
    in the menu:

• Scrolling within the menu
• Changing the settings

in recording mode:

• Moving the focal point (Field or Spot AF)

20. Center button
    in the menu:

• Confirming the settings
• Accessing submenus

in recording mode:

• Accessing the various info screens
• Call up of video function

in review mode:

• Accessing image information and confirming a deletion

21. Speaker

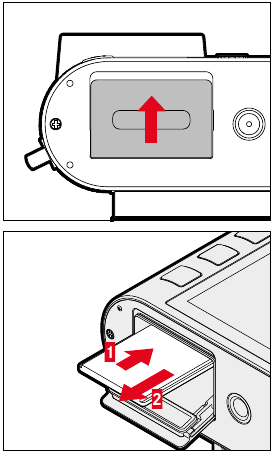

22. Battery compartment

23. Battery release lever
24. Tripod thread
    A 1⁄4 DIN 4503 (1⁄4")
25. Memory card slot

26. Alignment point for macro function
27. Macro setting ring
28. Focus ring
29. Aperture setting ring
30. Thread protection ring
31. AF/MF lock release
32. Focus tab

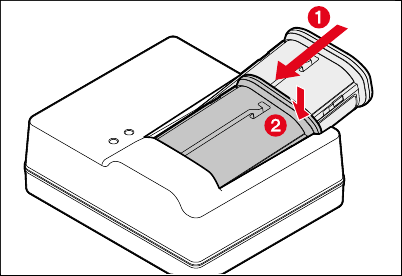

CHARGING THE BATTERY

*for a completely discharged battery

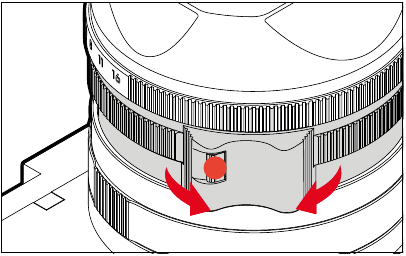

AF/MF LOCK RELEASE

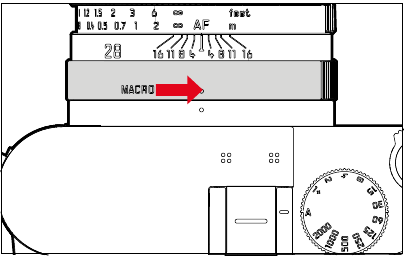

MACRO FUNCTION

STATUS SCREEN PHOTO

1. Focal length
2. Remaining memory capacity
3. Battery capacity
4. Menu section
5. Menu sections
6. Light balance
7. Exposure compensation scale
8. Exposure mode
9. Exposure value
10. Shutter speed
11. ISO Sensitivity
12. Exposure compensation value
13. Autofocus mode

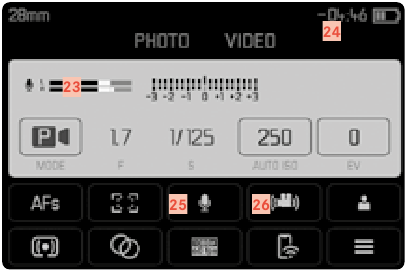

STATUS SCREEN VIDEO

14. Autofocus metering method
15. Picture mode ( )
16. Self-timer
17. User profile
18. Exposure metering method
19. Toning
20. File format/compression level/resolution
21. Leica FOTOS
22. Main menu
23. Microphone recording level
24. Recording time
25. Recording level
26. Video stabilization

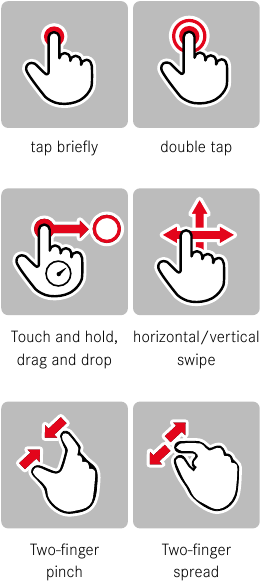

TOUCH CONTROL & FUNCTIONS

GESTURE CONTROL

TOUCH AF

allows moving the AF frame by touching the screen.

SWITCHOVER

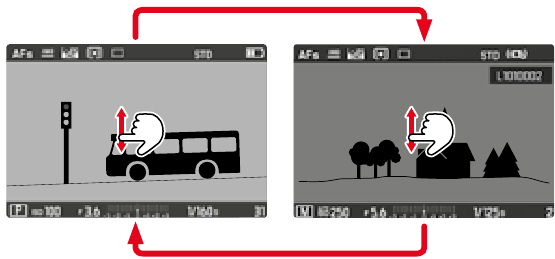

SWITCHOVER: PICTURE/RECORDING/PLAYBACK/REVIEW MODE

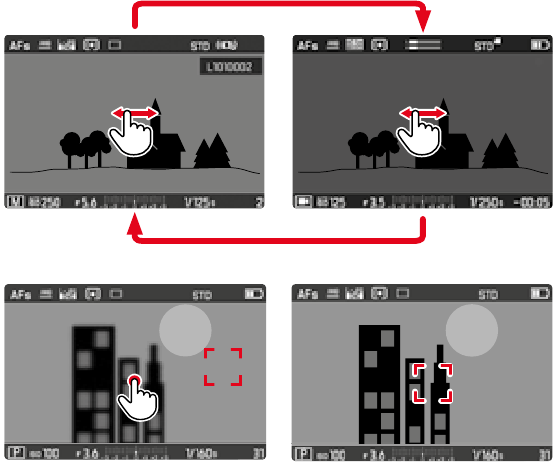

SWITCHOVER: PHOTO/VIDEO

LEICA FOTOS APP

Experience the new Leica FOTOS app. The Leica FOTOS app is a digital tool with plenty of exciting options and allows the photographer to get more out of his Leica camera than ever before. You can now link all your WLAN-capable Leica cameras via a single app to transfer images easily and instantly, capture the essence of unforgettable moments, manage, optimize and share your photos – anytime, anywhere.

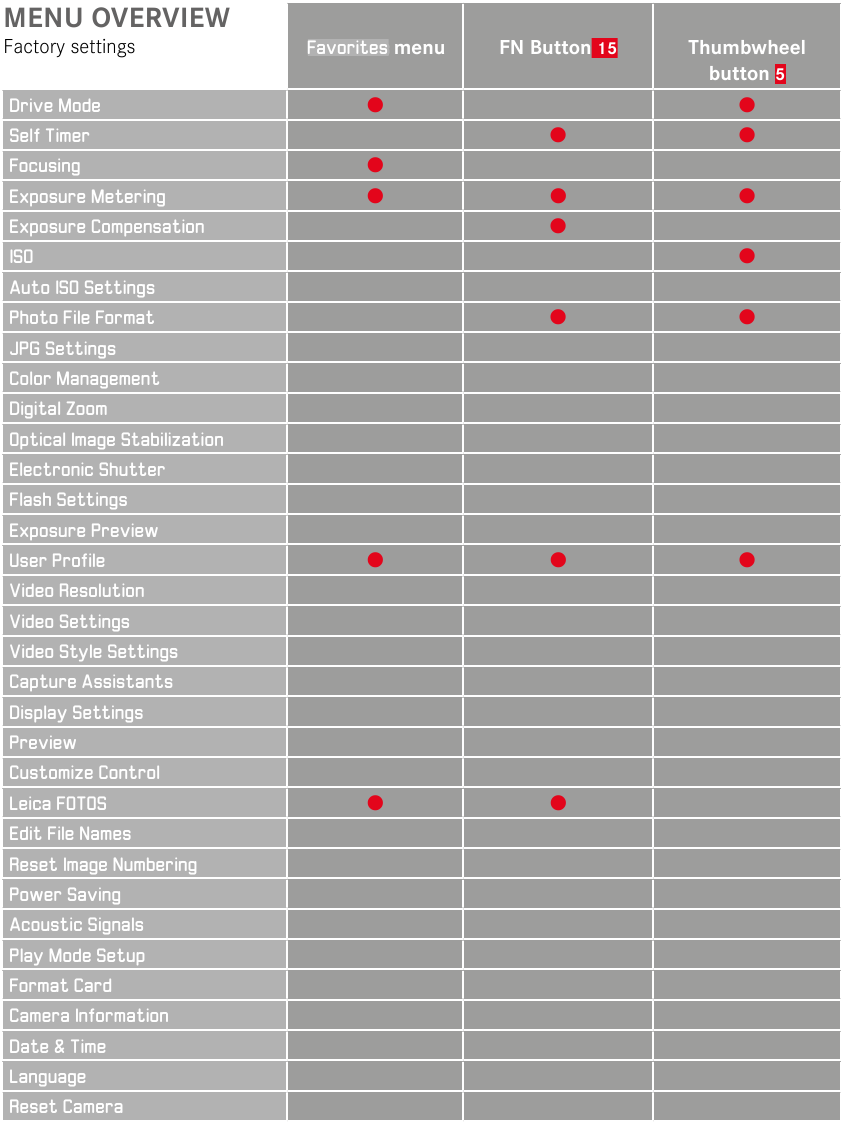

MENU OVERVIEW

SAFETY REMARKS

GENERAL INFORMATION

• Do not use your camera in the immediate vicinity of devices with powerful magnetic, electrostatic or electromagnetic fields (e.g. induction ovens, microwave ovens, television sets or computer monitors, video game consoles, cell phones, broadcasting equipment). Their electromagnetic fields can interfere with recordings.
• Strong magnetic fields, e.g. from speakers or large electric motors can damage the stored picture data or disrupt recording.
• Switch off the camera, remove the battery and switch the camera back on in case of a camera malfunction due to the effects of electromagnetic fields.
• Do not use the camera in the immediate vicinity of radio transmitters or high-voltage power lines. Their electromagnetic fields may interfere with recordings.
• Always store small parts e.g. the accessory shoe cover as follows:
  • out of the reach of children
  • in a safe location, where they will not get lost or stolen
• State-of-the-art electronic components are sensitive to static discharge. Since people can easily pick up charges of several 10,000 volts by walking on synthetic carpets, a discharge can occur when you touch the camera, and especially it is placed on a conductive surface. A static discharge on the camera housing poses no risk for the electronics. Despite built-in safety circuits, you should avoid direct contact with external camera contacts like those in the flash shoe.
• Take care not to soil or scratch the sensor for lens detection in the bayonet. You must similarly prevent direct contact of the bayonet with grains of sand or similar particles, as these could cause irreparable damage. This component must only be cleaned with a dry cloth (in system cameras).
• Use a cotton or linen cloth instead of a microfiber cloth from an optician's (synthetic) when cleaning the contacts. Make sure to discharge any electrostatic charge by deliberately touching a heating or water pipe (conductive, grounded material). Dirt deposits and oxidation on the contacts can be avoided by storing your camera in a dry location with the lens cap and the flash shoe/viewfinder cap (in system cameras) attached.
• Only use accessories specified for this model to prevent faults, short circuits or electric shock.
• Do not attempt to remove parts of the housing (covers) yourself. Repairs must be done at authorized service centers only.
• Protect the camera against contact with insect sprays and other aggressive chemicals. Petroleum spirit, thinner and alcohol must not be used for cleaning. Some chemicals and liquids can damage the camera housing or the surface finish.
• Rubber and plastics are known to expel aggressive chemicals and should therefore not be kept in contact with the camera for extended periods of time.
• Prevent any sand or dust or water penetration into the camera, e.g. during snowfall or rain or on the beach. Be extra careful when changing the lens (in system cameras) and when inserting or removing the memory card and rechargeable battery. Sand and dust can damage the camera, the lens, the memory card and the battery. Moisture can cause malfunctions and irreparable damage to the camera and memory card.

LENS

• A camera lens can have the effect of a magnifying glass when exposed to direct frontal sunlight. The camera must therefore be protected against extended exposure to direct sunlight.
• Attaching the lens cap and keeping the camera in the shade or ideally in its camera case, will help prevent damage to the interior of the camera.

RECHARGEABLE BATTERY

• Improper use of the batteries or the use of unapproved battery types may result in an explosion!
• Do not expose the rechargeable battery to sunlight, heat, humidity or moisture for prolonged periods of time. Likewise, the batteries must not be placed in a microwave oven or a high-pressure container as this would pose a fire or explosion hazard.
• Do not under any circumstances charge or insert a damp or wet battery into the camera!
• A safety valve in the battery ensures that any excess pressure caused by improper handling is discharged safely. It is nevertheless important to dispose of a bloated battery immediately. It may pose an explosion hazard!
•
  Keep the battery contacts clean and easily accessible. Although lithium-ion batteries are secured against short circuits, they should still be protected against contact with metal objects like paper clips or jewelry. A short-circuited battery can get very hot and cause severe burns.
• When a battery is accidentally dropped, make sure to check the housing and the contacts immediately for any damage. A damaged battery can damage the camera.
• The battery must be removed from the camera or charger and must be replaced immediately in case of a strange smell, discoloration, deformation, overheating or leakage. Continued use of the battery may result in overheating, which can cause fire and/ or explosion!
• Never throw batteries into a fire as they might explode!
• Keep the battery away from sources of heat in case of a leak or a smell of burning. Leaked fluid can catch fire!
• The use of other chargers not approved by Leica Camera AG can cause damage to the batteries – and in extreme cases – cause serious or life-threatening injuries.
• Make sure that the power socket is freely accessible at all times.
• Do not attempt to open the battery or the charger. Repairs must only be carried out by authorized service centers.
• Keep batteries out of the reach of children. Batteries can cause suffocation when swallowed.

CHARGER

• Using the charger in the vicinity of broadcasting receivers may interfere with reception. Ensure a distance of at least 1 m (3 ft) between the charger and the receiver.
• When the charger is in use, it may emit a buzzing sound – this is normal and not a malfunction.
• Disconnect the charger from the mains when it is not in use, because it consumes some a very small amount electricity, even when no battery is inserted.
• Always keep the charger contacts clean, and never short circuit them.

MEMORY CARD

• Never remove the memory card during a datasave or card reading process. The camera must not be switched off or be subjected to impact or vibrations while working.
• Do not open the compartment or remove the memory card or battery while the status LED is flashing to indicate camera memory access. Data on the card may otherwise be destroyed and camera malfunctions may occur.
• Do not drop or bend memory cards as this will cause damage and result in the loss of stored data.
• Do not touch the connections on the reverse of the memory card and keep them clean and dry.
• Keep memory cards out of the reach of children. Swallowing a memory card may cause suffocation.

SENSOR

• Cosmic radiation (e.g. during flights) may cause pixel defects.

CARRY STRAP

• Once you have attached the carry strap, please make sure that the clips are mounted correctly to prevent the camera from falling.
• Carry straps are usually made of very robust material. You should therefore keep it out of the reach of children. A carry strap is not a toy and poses a strangulation risk.
• Use the carry strap only for its intended purpose on a camera or on binoculars. Any other use poses the risk of injury and may possibly result in damage to the carry strap and is therefore not permitted.
• Carry straps should also not be used for cameras/binoculars during sports activities with a high risk of getting entangled in the carry strap (e.g. mountain climbing and similar outdoor activities).

TRIPOD

• When using a tripod, make sure it is standing securely and turn the camera only by turning the tripod, not the actual camera.
• Ensure that the tripod screw is hand-tightened only.
• Avoid transporting the camera while the tripod is attached. You might injure yourself or others and the camera could get damaged.

FLASH

• The use of incompatible flash units with your Leica Q2 Monochrom may result in irreparable damage to the camera and/or the flash unit.

REGULATORY INFORMATION

Specific regional approvals for this device can be found in the camera menu.

• Select in the main menu
• Select from the submenu

Alternating current (AC)	Class II devices (the product has a double-insulated design)
Direct current (DC)

DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT

(Applies within the EU and for other European countries with active waste separation policies)

This device contains electric and/or electronic components which must not be disposed of in general household waste. Instead, it should be disposed of at a recycling collection point provided by your local authority. This service is free of charge. Any standard or rechargeable batteries used in this device must be removed and disposed of separately in accordance with local regulations. Please contact your local authorities, waste disposal collection point or the retailer, from whom you purchased the device for more information on correct waste disposal.

WARRANTY

In addition to your statutory warranty rights regarding your dealer, you will receive an additional Leica Camera AG product warranty valid from the date of purchase at an authorized Leica retailer. Previously, the product warranty was included with the product in the packaging. From now on, the product warranty will only be available online as a new service. You will be able to review the warranty conditions for your product at any time, without having to search fr the document. Please note that this new policy applies only for products that are no longer delivered with a hardcopy product warranty included in the packaging. Any products still delivered with the warranty document in the packaging remain governed exclusively by that document. For more information regarding the warranty scope, services and limitations, please visit: warranty.leica-camera.com

Leica Q2 Monochrom comes with splash water and dust protection.
The camera was tested under controlled laboratory conditions and is classes as IP52 in accordance with DIN EN 60529. Please note: The splash water and dust protection coating is not permanent and will diminish over time. The user manual contains instructions on how to clean and dry the camera. The warranty does not cover liquid damage. Any attempt to open the camera casing by an unauthorized retailer or service partner will cause an immediate expiration of the splash water and dust warranty.

TECHNICAL DATA

CAMERA
Designation
Leica Q2 Monochrom
Camera type
Digital 35 mm compact camera
Type no.
4889
Order No.
19 055 EU/JP/US, 19 056 ROW (black)
Buffer memory
DNG™: 14 recordings
JPG: 25 recordings
Storage medium
UHS-II (recommended), UHS-I, SD/SDHC/SDXC memory card
Material
Full metal housing: Magnesium die-cast, leather covering
Operating conditions
0/+40°C
Dimensions (WxHxD)
130 x 80 x 87 mm
Weight
approx. 718 g/637 g (with/without battery)

SENSOR
Sensor size
CMOS sensor, 50.4/47.3 MP (total/actual)
Picture resolution
DNG™: 8368 x 5584 pixels (46.7 MP)
JPG: 8368 x 5584 pixels (46.7 MP), 6000 x 4000 pixels (24 MP), 4272 x 2848 pixels (12 MP)

LENS
Designation
Leica Summilux 28 f/1.7 ASPH., 11 lenses in 9 segments, 3 aspherical lens areas
Lens filter thread
E49

VIEWFINDER/LCD PANEL
Viewfinder (EVF)
Resolution: 3.68 MP, 120 fps, magnification: 0.76x, aspect ratio: 4:3, exit pupil position: 20 mm, setting range +3/-4 diopters, with eye sensor for automatic switchover between viewfinder and LCD panel
LCD panel
3" TFT LCD, 1,040,000 dots, touch panel

EQUIPMENT
WLAN
The Leica FOTOS app is required to use the WLAN function. The Leica app is available from the Apple App Store™ or the Google Play Store™. Complies with Wi-Fi IEEE802.11b/g/n, 2.4 GHz, channel 1-11 (2412-2462 MHz) and Wi-Fi IEEE802.11ac, 2.4 GHz & 5 GHz, channel 39-48 (5180-5240 MHz), channel 52-64 (5260-5320 MHz), channel 100-140 (5500-5700 MHz) (standard WLAN protocol), encryption method: WLAN-compatible WPA/WPA2
Bluetooth
Bluetooth v4.2 (Bluetooth Low Energy (BLE)), 2402 to 2480 MHz
Menu languages
English, German, French, Italian, Spanish, Russian, Japanese, Simplified Chinese, Traditional Chinese, Korean

POWER SUPPLY
Rechargeable battery (Leica BP-SCL4)
Lithium-ion rechargeable battery, rated voltage:
7.2 V (DC); capacity: 1860 mAh (min.), approx. 340/300 recordings (LCD/EVF, based on CIPA standard); charging time: approx. 140 min (after deep discharge); manufacturer: Panasonic Energy (Wuxi) Co. Ltd., Made in China
Charger (Leica BC-SCL4)
Input: AC 100–240 V, 50/60 Hz, 0.25 A, automatic switchover; Output: DC 8.4 V 0.85 A; Manufacturer: Salom Electric (Xiamen) Co., Ltd., Made in China

You will find the manufacturing date of your camera on the stickers in the Warranty Card and/or on the packaging. The date format is year/month/day. Subject to changes in design and production.
