Leviton 23004-LHG Manual

WARNINGS AND CAUTIONS
WARNING: TO AVOID FIRE, SHOCK OR DEATH, TURN OFF POWER at circuit breakeror fuse and test that the power is off before wiring!
WARNING: TO AVOID FIRE, SERIOUS INJURY OR DEATH, DO NOT COAT CONDUCTORS WITH TIN.
• Install and use in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult an electrician.
• Use the device with copper or wire only.
• Use only applicable flexible round cord and cables. In the US refer to NEC
• Devices to be used with 16-3 AWG to 10-3 AWG and the following cord types: SE, SEO, SJ, SJE,
SJEO, SJO, SJOO, SJT, SJTO, SJTOO, SO, SOO, SRD, SRDE, SRDT, ST, STO, STOO and W.

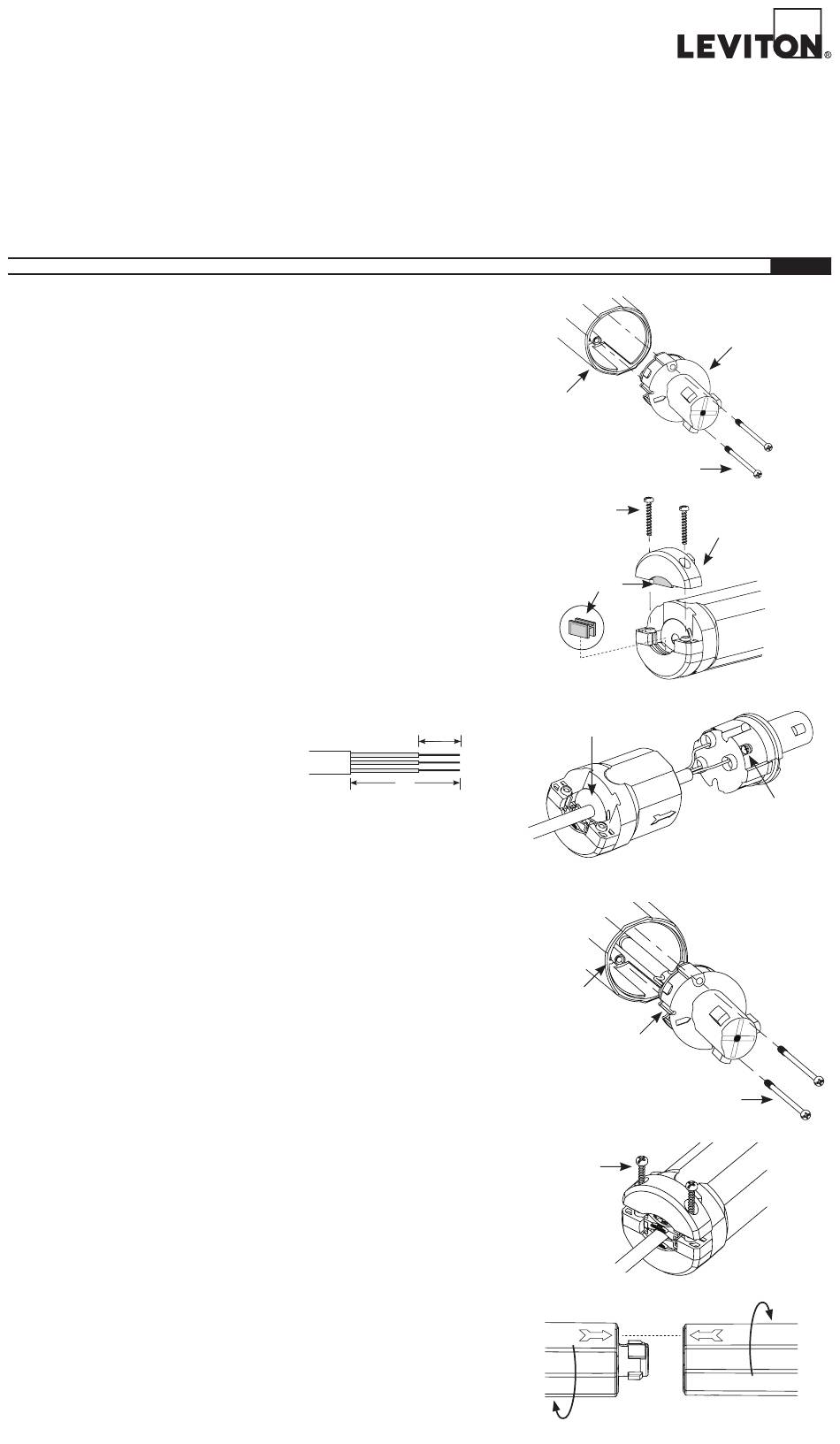

1. Disassemble plug
Loosen assembly screws and pull plug body from back shell.
2. Adjust plug for cord size
Loosen cord clamp screws and slide off one side of the clamp.
• For cord size 0.256 to 0.400 in (6.5-10.2mm) - use inserts
• For cord size 0.400 to 0.656 in (10.2-16.7mm) - remove both inserts
3. Install cord
Slide round cord through the dust shield and back shell.
NOTICE: Use care when inserting the cord so the dust shield does not get pushed out.
The dust shield can be used up to maximum cord diameter.
4. Terminate conductors
Strip each cord jacket and conductor as follows:
Cat. No. 23034-OLA - 2P3W application (for replacement purposes only):
WARNING: TO AVOID FIRE, SHOCK OR DEATH, connections must be made
in the same sequence as existing device connections.
• 20A 125V and 10A 480V: Insert hot conductor (black) to terminal Y, neutral conductor (white)
to terminal Z, and grounding conductor (green, green/yellow or bare wire) to terminal X.
Cat. No. 23004-LHG (Hospital use only) - 2P3W application:
• 20A 125V and 10A 250V: Hot conductor (black) to terminal Y, neutral conductor (white) to
terminal Z, and grounding conductor (green, green/yellow or bare wire) to terminal GR.
NOTICE: Tighten all terminal screws to 14-16 in-lbs (1.582-1.808 N-m).
5. Reassemble plug
Slide the plug body with cord assembled into the back shell aligning
the tongue and groove. Evenly tighten the assembly screws.
NOTICE: Tighten all assembly screws to 8-10 in-lbs (0.90-1.130 N-m).
6. Reassemble cord clamp
Slide the other side of the cord clamp onto the back shell of the plug.
Tighten the cord clamp screws.
NOTICE: Tighten all terminal screws to 14-16 in-lbs (1.582-1.808 N-m).
7. Connect plug to connector
Align the key guide on the back shell of plug and connector using the arrows and
push them firmly together. Turn in opposite directions to secure.
2-POLE 3-WIRE & 3-POLE 3-WIRE
POWER INTERRUPTING PLUGS
Cat. Nos. 23004-LHG, 23034-LA
Article 400.
®
INSTALLATION
.375 in
9.5mm
1 in
25.4mm
Back Shell
Assembly Screws
Clamp Screws
Inserts
Dust Shield
Tongue
Groove
Assembly Screws
Clamp Screws
PK-A3242-10-00-5A-X1
ENGLISH
Connector Body
Cord Clamp
Terminal Screw
