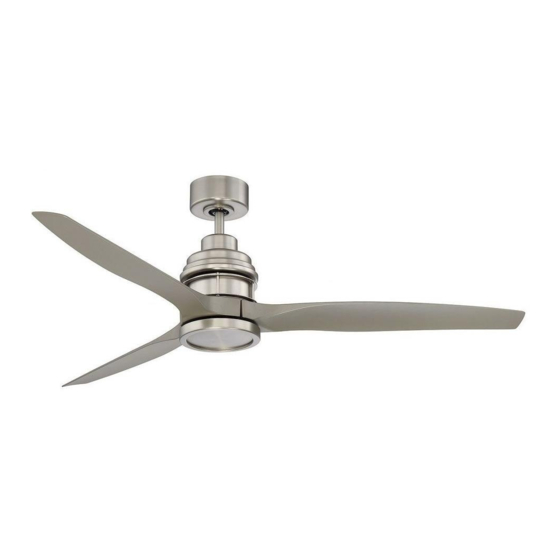

60" CEILING FAN
OWNER'S MANUAL
READ AND SAVE THESE INSTRUCTIONS
MODEL: M2023XX
FAN RATING AC 120V. 60Hz
ETL LISTED MODEL : LP8146(FN666)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M2023 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Savoy House M2023 Series

Summary of Contents for Savoy House M2023 Series

  • Page 1 60” CEILING FAN OWNER'S MANUAL READ AND SAVE THESE INSTRUCTIONS MODEL: M2023XX FAN RATING AC 120V. 60Hz ETL LISTED MODEL : LP8146(FN666)

  • Page 2: Tools And Materials Required

    1. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items; a. Set of blades assembly (3) b.

  • Page 3: Safety Rules

    3. SAFETY RULES 1. To reduce the risk of electric shock, insure 10. Do not use water or detergents when electricity has been turned off at the circuit cleaning the fan or fan blades. A dry dust breaker or fuse box before beginning. cloth or lightly dampened cloth will be suitable for most cleaning.

  • Page 4: Mounting Options

    4. MOUNTING OPTIONS If there isn't an existing CUL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the Outlet box building structure. Use appropriate fasteners and building materials.

  • Page 5: Hanging The Fan

    5. HANGING THE FAN Hanger REMEMBER to turn off the power. Follow bracket the steps below to hang your fan properly: Step 1. Remove the decorative canopy Ceiling canopy bottom cover from the canopy by turning the cover counter clockwise. (Fig. 5) Canopy Step 2.

  • Page 6: Make The Electrical Connections

    6. MAKE THE ELECTRICAL CONNECTIONS WARNING: To avoid possible electrical Outlet Box shock, be sure electricity is turned off at the main fuse box before wiring. Green or bare White (Neutral) copper (ground) Black (Hot) Step 1. Motor to House Supply Wires Electrical Connections: Connect the WHITE wire (Neutral) from the outlet box to the Black ("AC IN L")

  • Page 7: Finishing The Installation

    7. FINISHING THE INSTALLATION Outlet box Step 1. Tuck connections neatly into ceiling outlet box. Hanger bracket Step 2. Slide the canopy up to hanger Screws bracket and place the key hole on the canopy over the screw on the hanger bracket, turn canopy until it locks in place at the narrow section of the key holes.
  • Page 8 9. INSTALLATING THE LED Light kit MOUNTING PLATE assembly Step 1. Remove the light shade from the LED light kit assembly. (Fig. 12) Step 2. Remove the LED light kit from the Light shade mounting plate. (Fig. 13) Figure 12 Step 3.
  • Page 9 10. INSTALLING THE LED LIGHT KIT & LIGHT SHADE NOTE: Before starting installation, disconect the power by turning off the circuit breaker or removing the fuse at fuse box. Turning power off using the fan switch is not sufficient to prevent electric shock.
  • Page 10 11. OPERATING INSTRUCTIONS Insert the 23A/12V battery (included) and make sure they are seated correctly in recess. (Fig. 16) Your DC motor is equipped with an auto learning type of remote control. There are no frequency switches on the receiver unit, the receiver will automatically learn the frequency from the remote control during the pairing process.
  • Page 11 Pairing Process: The auto-learning process will only initiate This receiver provides the following protective within the first 60 seconds of supplying power function: to the fan. 1. Lock Rotor Position: The DC motor has a Beginning with the fans power off, restore built-in safety against a stalled or locked rotor power to the fan.

  • Page 12: Care Of Your Fan

    Speed settings for warm or cool weather depend on factors such as the room size. Ceiling height, number of fans and so on. NOTE: To operate the reverse function on this fan, press the reverse button while the fan is running. Warm weather - (Forward) A downward airflow creates a cooling effect as shown in Fig.

  • Page 13: Troubleshooting

    13. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. 3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
