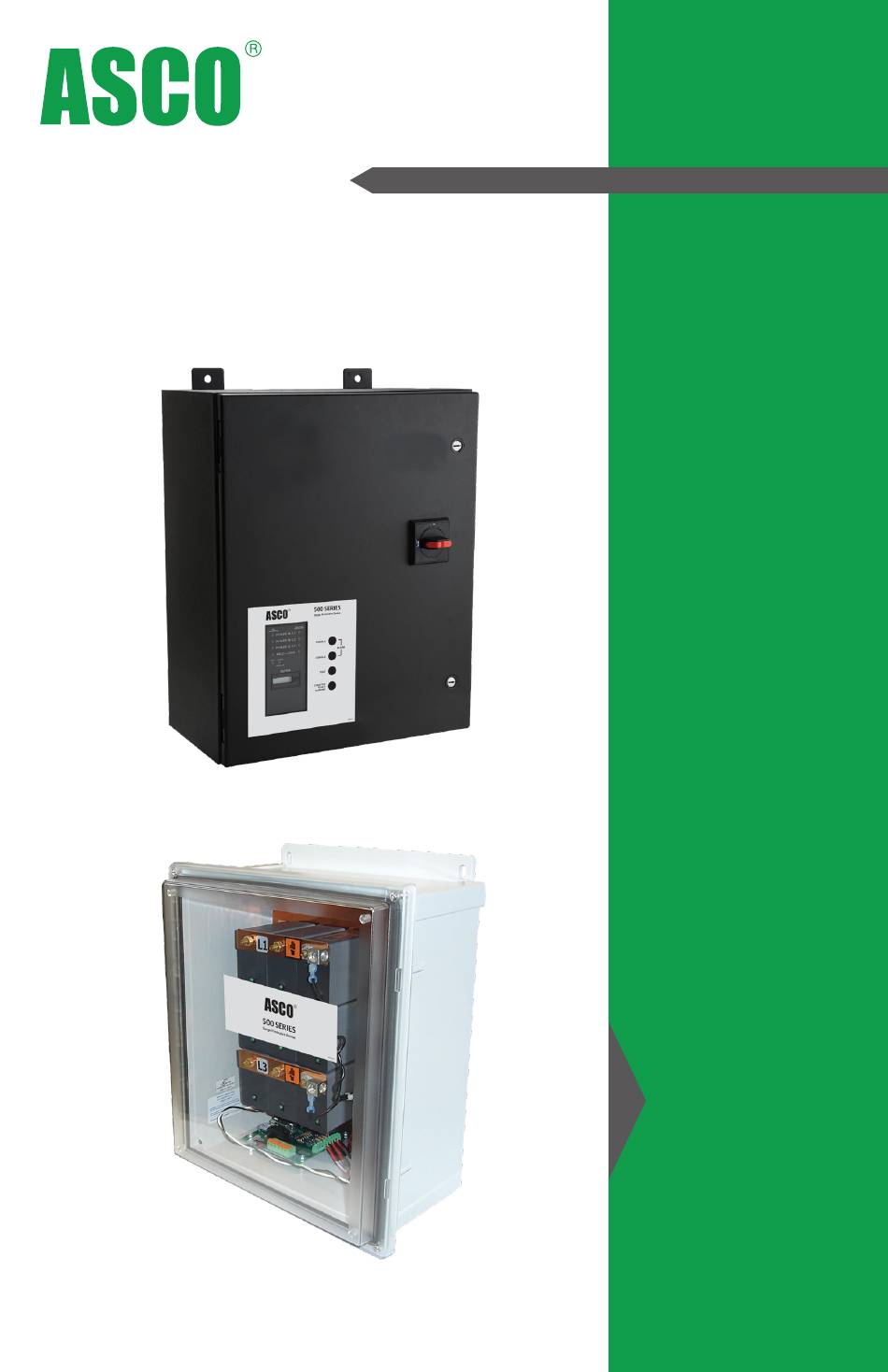

- Page 1 Surge Protective Devices Installation & Operation Manual Model 570/575 Model 575 Model 570 Model 565 Model 560 Model 560/565...
- Page 2 Installation, Operation and Maintenance Manual IO-70100 RevG 12-17...
-
Page 3: Table Of Contents
INSTALLATION INSTRUCTIONS Product Installation Suggested Circuit Breaker and Wire Size – Model 570/560 Dimensional Information – Model 570/560 Suggested Circuit Breaker and Wire Size – Model 575/565 Dimensional Information – Model 575/565 MONITORING FEATURES External Status Indicators (Standard) Summary Alarm Contact (Standard) -
Page 4: Unpacking And Installation
If any damage as a result of shipping is observed, immediately file a claim with the shipping agency and forward a copy to your local ASCO Surge Protection Sales Representative. Handling Considerations Larger units are bolted to a shipping pallet to facilitate handling by forklift or pallet jack. Check the size and weight. -
Page 5: Model Number Configuration
MODEL NUMBER CONFIGURATION Model # (1-3) Model (11) Modes of Protection (14) Enclosure 575 = Modular, SAD/MOV Hybrid, A = All Available Modes of Protection R56 Approved B = Remove L-G mode N = Caseless (open style) 570 = Modular, SAD/MOV Hybrid... - Page 6 CONFIGURATION & VOLTAGE CHART Installation, Operation and Maintenance Manual IO-70100 RevG 12-17...
-
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS All wiring must comply with the National Electrical Code (NEC®) and applicable local codes. DANGER! ONLY QUALIFIED PERSONNEL SHOULD INSTALL OR SERVICE THIS SYSTEM. ELECTRICAL SAFETY PRE-CAUTIONS MUST BE FOLLOWED WHEN INSTALLING OR SERVICING THIS EQUIPMENT. TO PREVENT RISK OF ELECTRICAL SHOCK, TURN OFF AND LOCK OUT ALL POWER SOURCES TO THE UNIT BEFORE MAKING ELECTRICAL CONNECTIONS OR SERVICING. -
Page 8: Circuit Ampacity Limitations
Edition, marked on this product, the wire size listed for each product must be utilized to connect the unit to your facilities’ power grid. Connections made with conductors other than the wire size listed may result in different VPR’s. Circuit Ampacity Limitations Representative samples of these products have been investigated by Underwriters Laboratories, Incorporated to withstand, without exposing live circuits or components at system voltages and fault currents up to 200,000 AIC, as described in the Standard for Safety, Surge Protective Devices (SPD’s),... -
Page 9: Neutral Connection
Insure that all power is removed before beginning installation. A qualified licensed electrician shall install all electrical connections. The standard SPD is provided in a NEMA 4 (570/560) or NEMA 4X (575/565) rated enclosures suitable for use in indoor or outdoor installations. -
Page 10: Product Installation
SPD. If an abnormal indication is present, remove power to the SPD and contact ASCO Surge Protection at 1-800-237-4567 or 1-727-535-6339. Periodically monitor the status of the LED’s. Reduced protection exists if the GREEN LED’s are extinguished or the RED LED is illuminated. -
Page 11: Suggested Circuit Breaker And Wire Size - Model 570/560
Model 570/560 Suggested Circuit Breaker And Wire Size – Model 570/560 Allowable Range Factory Suggested Size Circuit Breaker Size Connection Wire Size Surge Rating Circuit Breaker Connection Per Mode With With With With Size Wire Size Compression Compression Disconnect Disconnect Lugs Lugs 80kA-125kA... -
Page 12: Suggested Circuit Breaker And Wire Size - Model 575/565
Model 575 / Model 565 - Motorola R56 Approved Models Suggested Circuit Breaker And Wire Size – 575/565 Series Allowable Range Factory Suggested Size Surge Rating Per Mode Circuit Breaker Size Connection Wire Size Circuit Breaker Size Connection Wire Size... -
Page 13: Monitoring Features
MONITORING FEATURES External Status Indicators (Standard) These indicators provide a summary of the status of the surge SPD module. For normal conditions, the green “OK” LED is illuminated and the red “Service” LED is extinguished. If the surge SPD module requires replacement, the green “OK”... -
Page 14: Servicing
Servicing The ASCO Models 575/570/565/560 include a ten year parts and five year labor warranty. For servicing assistance, contact your local Sales Representative or ASCO, Surge Protection at 1-800-237-4567 or 1-727-535-6339. DANGER! ONLY QUALIFIED PERSONNEL SHOULD INSTALL OR SERVICE THIS SYSTEM. ELECTRICAL SAFETY PRE-CAUTIONS MUST BE FOLLOWED WHEN INSTALLING OR SERVICING THIS EQUIPMENT. - Page 15 Installation, Operation and Maintenance Manual IO-70100 RevG 12-17...
- Page 16 14550 58th Street North While every precaution has been taken to ensure accuracy and completeness in this literature, ASCO assumes no responsibility, and disclaims all liability for Clearwater, Florida 33760 damages resulting from use of this information or for any errors or omissions.
