OE-C2012B4-S Quick Start Guide

Click the link if you need to download the original hardcopy of the

OE-C2012B4-S Quick Start Guide

included with the

boxed contents.

Box Contents

OpenEye C2012B4-S cameras come with self-tapping screws and plastic anchors, mounting template, and a waterproof

cable connector. Identify the following components to make sure everything has been properly included with your new

recorder. If any of the following items are missing, contact the dealer to arrange a replacement.

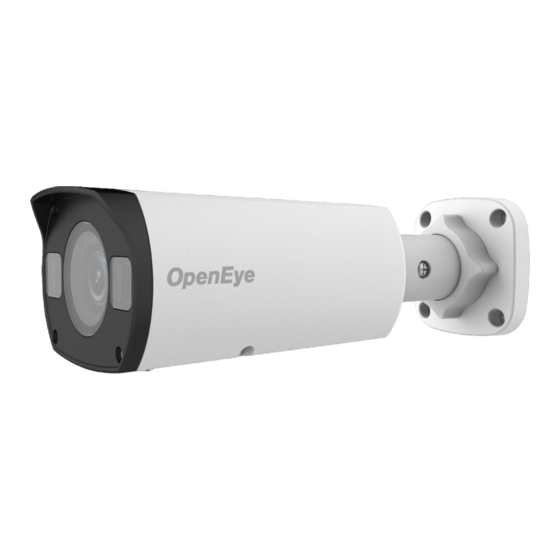

OE-C2012B4-S Bullet Camera

Self-Tapping Screws and Plastic Anchors x3

Mounting Template

Waterproof Cable Connector

Table of Contents

Do you have a question about the OE-C2012B4-S and is the answer not in the manual?

Page 1 Box Contents OpenEye C2012B4-S cameras come with self-tapping screws and plastic anchors, mounting template, and a waterproof cable connector. Identify the following components to make sure everything has been properly included with your new recorder. If any of the following items are missing, contact the dealer to arrange a replacement.
Page 2 Sourcing Equipment (PSE) switch is available. Ensure that the camera’s power cable is correctly and firmly connected. NOTE: OpenEye recommends against using more than one power source at a time. Do not use a PoE power source when providing the camera with 12vDC power.
Page 3 *OpenEye IP cameras ship without a default password. Username: admin The admin user password can be set using the following methods: 1. OpenEye recorders running Apex 2.6 or newer will automatically set a new unique password when added in Copyright © OpenEye 2023...
Page 4 Assigning an IP Address OpenEye IP cameras are set to DHCP by default. If a DHCP server is not detected after 2 minutes, the camera will default to IP address 192.168.51.2. If you are not using a DHCP server, NCM will allow you to batch configure a static IP address.
Page 5 Environmental and Power Power Consumption 8.5W Max Input Voltage 12vDC / PoE Operating Temperature -22°~140°F (-30°~60°C ) IP Rating IP67 Impact Rating IK10 Related Links Network Camera Manager Advanced Camera Management Adding Cameras and Camera Settings OE-C2012B4-S Copyright © OpenEye 2023...
