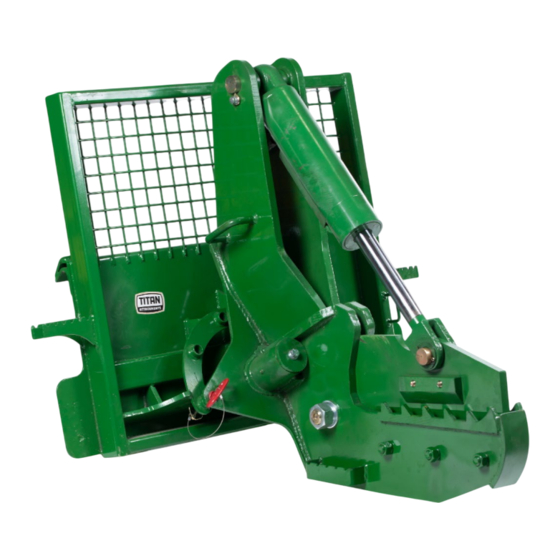

- Page 1 TREE SHEAR FITS JOHN DEER LOADERS V2 JDTS005V2 198107 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
-
Page 2: Safety Precautions
INTRODUCTION • This manual is made at the time of manufacturing of the Tree Shear that does not include subsequent modifications made afterward. • This manual is intended to provide information to operators and owners to operate the • • Tree Shear safely and effectively, as well as to perform suitable maintenance for the equipment. - Page 3 GENERAL SAFETY PRECAUTIONS READ MANUAL PRIOR TO INSTALLATION Improper installation, operation, or maintenance of this equipment could result in serious injury or death. Operators and maintenance personnel should read this manual, as well as manuals related to this equipment and the prime mover thoroughly before beginning the installation, operation, or maintenance.
-
Page 4: Safely Operate Equipment
SAFELY MAINTAIN AND REPAIR EQUIPMENT Do not wear loose clothing or any accessories that can catch in moving parts. If you have • long hair, cover, or secure it so that it does not become entangled in the equipment. Work on a level surface in a well-lit area •... -
Page 5: Before Cutting
causing serious personal injury or death. Do not operate in an environment that is not well-lite. • REMOVING THE TREE SHEAR FROM STEEL CRATE Engage the skid steer Quick Tach wedges to the Tree Shear or prime mover and tilt it •... - Page 6 to avoid uneven ground, slope, obstacles, bad weather, lighting conditions, etc. to avoid accidence. Use counterweight recommended by your skid steer or prime mover dealers to improve • stability and balance during operations. • CUTTING TREES Begin to cut trees only after taking all the precautions stated in the previous sections. •...
- Page 7 DIRECTING THE PROPER FELLING PATH To determine the desired direction that a tree is to fall is a vital step. There are many factors to consider. Think about the path of the fall and pinpoint potential hazards. When a tree is leaning, it is typically easier to fall the tree in the direction it is already leaning.
-
Page 8: Every 8 Hours Of Operation
The minimum torque for tightening hardware is shown below: M12: 67 lb. Ft (90 N.m) • M16: 163 lb. Ft (220 N.m) • M24: 518 lb. Ft (518 N.m) • M42: 2960 lb. Ft (4000 N.m) • Lubricate all moving parts. The 4 grease points (A/B/C/D) are shown below: When the Tree Shear is dry, check places where paint is scratched or worn and repaint. - Page 9 TS005 SPECIFICATIONS - Overall Dimensions (W x D x H): 55” x 44” x 49” - Product Weight: 868 lbs. - Maximum Cutting Diameter: 12” - Shear Force (at 2320 PSI): 26,400 lbs. - NM400 hardened Steel Blade - 3 Shear Angle: Horizontal, 45°, Vertical SKID STEER OR PRIME MOVER REQUIREMENTS - Horsepower ≥...
- Page 10 POTENTIAL HAZARD POTENTIAL HAZARDS: Determine the hazards that exist for the area and types of trees that you are working with and eliminate or minimize your exposure to these hazards.
-
Page 11: Troubleshooting
TROUBLESHOOTING... - Page 12 PARTS DIAGRAM/EXPLODED VIEW...
- Page 13 DESCRIPTION MAIN FRAME SHEAR BLADE BRACKET GREASE ZERK HEXA NUT M42x3 SPRING WASHER 42 FLAT WASHER M42 HEXA NUT M24 SPRING WASHER M24 COTTER PIN 3x60 (10) SHEAR BRACKET LOCK PIN (11) HEXA BOLT M16x40 (12) SPRING WASHER M16 (13) BIG WASHER (14) COUNTERSUNK COLUMN HEAD HEX BOLT M16x60...
- Page 14 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non- economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims,...
- Page 15 NEED HELP? CONTACT US FIRST. 1-800-605-7595 info@palletworks.com www.palletforks.com © 2021 Titan Brands...
