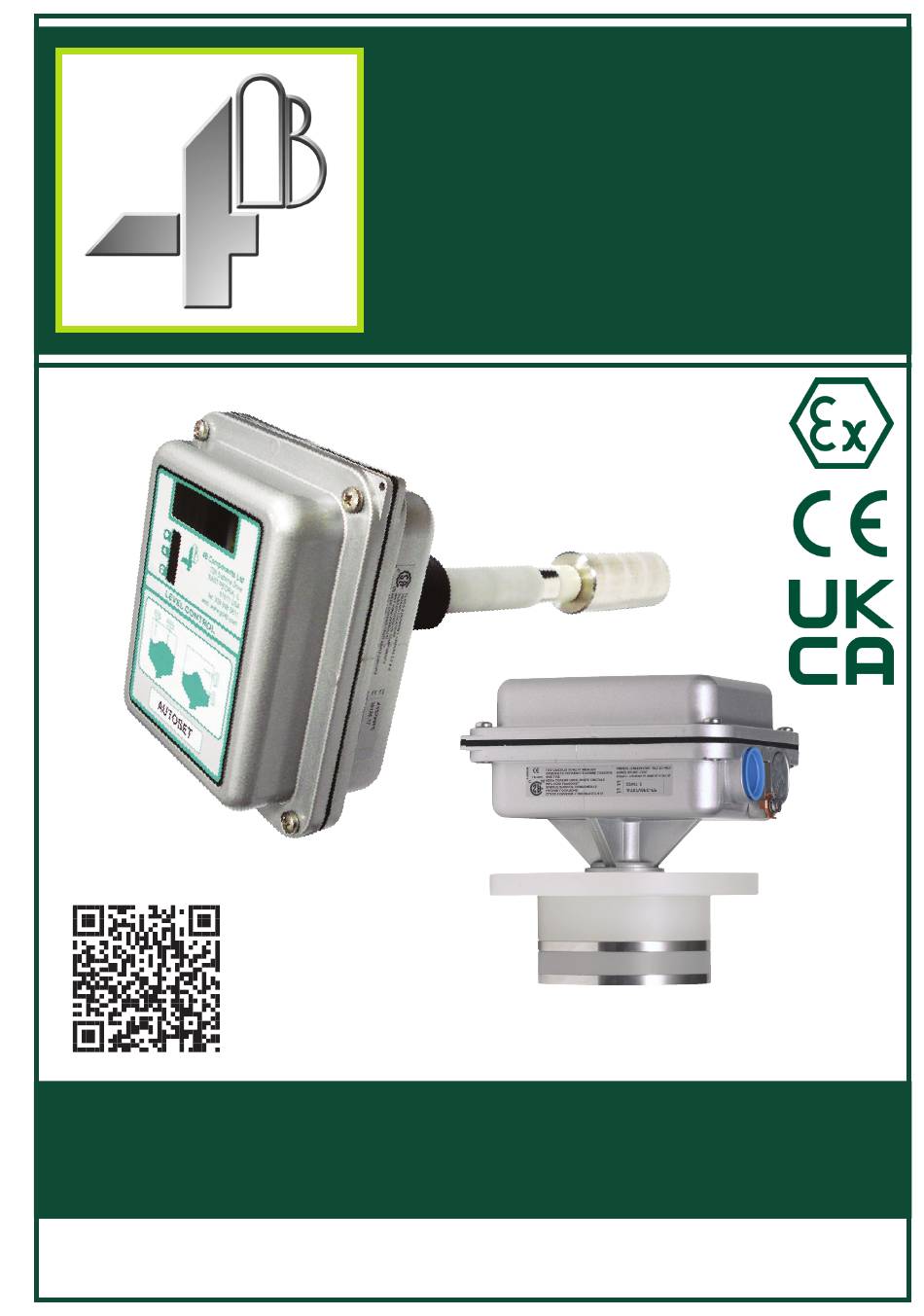

- Page 1 Auto-Set™ RADIO FREQUENCY (RF) CAPACITANCE POINT LEVEL INDICATOR ATS8V10AI ATS8V10AI-FP INSTALLATION INSTRUCTIONS OPERATION MANUAL Part No’s ATS8V10AI, ATS8V10AI-300, ATS8V10AI-400, ATS8V10AI-FP www.go4b.com...
-
Page 3: Table Of Contents
TABLE OF CONTENTS CUSTOMER SAFETY RESPONSIBILITIES Page 4 - 5 PRODUCT OVERVIEW Page 6 SPECIFICATIONS Page 6 APPROVALS Page 7 DIMENSIONS Page 7 - 8 INSTALLATION Page 9 - 10 STANDARD WIRING DIAGRAM Page 11 SENSOR OPERATION Page 12 - 13 SENSOR CALIBRATION Page 14 - 15 POWER SHIELD OVERVIEW... -
Page 4: Customer Safety Responsibilities
The proper installation and maintenance of all our products is the responsibility of the user unless you have asked 4B to perform these tasks. B. All installation and wiring must be in accordance with Local and National Electrical Codes and other standards applicable to your industry. - Page 5 3. SELECT A QUALIFIED AND COMPETENT INSTALLER Correct installation of the product is important for safety and performance. If you have not asked 4B to perform the installation of the unit on your behalf, it is critical for the safety of your operation and those who may perform work on your operation that you select a qualified and competent electrical installer to undertake the installation.
-
Page 6: Product Overview
20 mm (3/4 inch) thick. For container walls thinner than 20 mm (3/4 inch), the probe can be inserted farther. For high temperature and/or high vibration applications, a remote Auto-Set version is available. Contact 4B for more information. SPECIFICATIONS Power Supply - 120/240 VAC or 24 VDC (Universal Supply) Operating Temp. -
Page 7: Approvals
APPROVALS TRAC11ATEX11268X ATEX II 1(1)D Ex ta [ ia] IIIC T100°C Da Tamb -20°C to 50°C, IP65 IECEx TRC 12.0016X ta [ia] IIIC T100°C Da IECEx Tamb -20°C to 50°C DIMENSIONS ALL DIMENSIONS IN MM PAGE 7... - Page 8 DIMENSIONS ALL DIMENSIONS Power Shield 99 IN MM (Diameter 24) Dimensions are Shared with the Exceptions of the Power Shields (Show in Grey) and Overall Lengths. ATS8V0AI Power Shield (Diameter 24) ATS8V0AI-300 Power Shield 389 (Diameter 24) ATS8V0AI-400 1” BSP Mounting Thread 20 mm Conduit Entries 20 mm Conduit Entries ATS8V0AI-FP...
-
Page 9: Installation
INSTALLATION A thread locking compound is already applied to the probe fixing stud of the AUTOSET. This will prevent the probe rod from vibrating loose. Once fitted, the compound is fully hardened after 20 minutes. IMPORTANT: If the probe rod is removed from the unit for any reason, a thread locking compound must be applied before the rod is refitted. - Page 10 WARNING Proper spacing of the power shield is vital for correct operation. For questions regarding proper spacing of the power shield to the vessel wall, contact 4B. NOTE For high temperature and/or high vibration applications, a remote Auto-Set version is available. Contact 4B for more information.
-
Page 11: Standard Wiring Diagram
STANDARD WIRING DIAGRAM All wiring must be In accordance with local and national electrical codes and should be undertaken by an experienced and qualified electrician. AUTOSET will operate on 110V/230V ac 50/60Hz or 24V dc supplies (Um). The unit may be wired in ordinary un-screened cable of any length and need not be separated from other cables. -
Page 12: Sensor Operation
SENSOR OPERATION Park / Calibrate (SW3) 4 Digit LED Display Auto / Manual (SW1) High / Low (SW5) Probe Covered / Raise Probe Un-Covered / Lower Timer Power On LED Calibrating LED Output LED Image D - Inside View FAIL SAFE SETTING - The “High/Low”... - Page 13 CAL MODE (AUTO/MAN SWITCH SET TO AUTO) - In this mode, pressing and holding the “Probe Covered / Raise” button (E - Image D) with the probe covered, will cause the unit to measure and display the covered value, and recalibrate the relay operating point if necessary.
-
Page 14: Sensor Calibration
SENSOR CALIBRATION The Auto-Set can be calibrated automatically, manually or by a combination of the two methods. Usually, automatic calibration is the simplest method, particularly when the vessel can be filled to cover the probe. Manual calibration is useful when a number of probes in similar applications need to be set. Once the correct calibration has been determined and noted, on one system, the remainder can be set to the same setting. - Page 15 13. The timer can be altered to a longer or shorter delay by repeating the entire procedure from steps 10 to 12. NOTE For questions regarding non-standard Auto-Set probe lengths or diameters, contact 4B. Image F - Probe Types 1. Standard Power Shield with Wire Probe and Mounting Plate 2.
-
Page 16: Power Shield Overview
POWER SHIELD OVERVIEW The Auto-Set detects material by radiating a high frequency (RF) signal from the probe. The advanced electronics of the Auto-Set use this signal to measure the capacitance inside the vessel with respect to ground and thus indicate when material has reached the Auto-Set probe. The power shield creates a barrier and enables the unit to ignore a certain amount of material built up on the probe, helping to prevent false readings. -
Page 17: Testing And Commissioning
3. Introduce material to the Auto-Set. If calibrated correctly, the Auto-Set will activate when material has been detected. Machinery shut down will depend on your specific monitoring setup. 4B recommends an instant shutdown when maximum fill level or a plug condition has been detected. -
Page 18: Parts And Accessories
PARTS & ACCESSORIES STAINLESS STEEL PROBES/WIRE ATSP10 ATSP11 ATSP12 ATSP13 ATWP11 The Auto-Set™ is available with 303 solid stainless steel probes. For applications up to 10 meter 33 feet long (maximum), 303 stainless steel wire is used to extend the probe length. - Page 19 NOTES PAGE 19...
- Page 20 NOTES PAGE 20...
- Page 21 NOTES PAGE 21...
- Page 22 NOTES PAGE 22...
-
Page 23: Product Warranty
AS 4B TO THE ORIGINAL PURCHASER AGAINST DEFECTS IN WORKMANSHIP OR MATERIALS UNDER NORMAL USE FOR ONE (1) YEAR AFTER DATE OF PURCHASE FROM 4B. ANY PRODUCT DETERMINED BY 4B AT ITS SOLE DISCRETION TO BE DEFECTIVE IN MATERIAL OR WORKMANSHIP AND RETURNED TO A 4B BRANCH... - Page 24 Wujin High & New TDZ, Australia Samutprakarn 10540 Changzhou, Jiangsu, PRC Tel: +61 (0)7 3216 9365 Thailand Tel: +86-519-88556006 Email: 4b-australia@go4b.com Tel: +66 (0) 2 173-4339 Email: 4b-china@go4b.com Email: 4b-asiapacific@go4b.com www.go4b.com Copyright © 2022 4B Group - All Rights Reserved REV100719...
