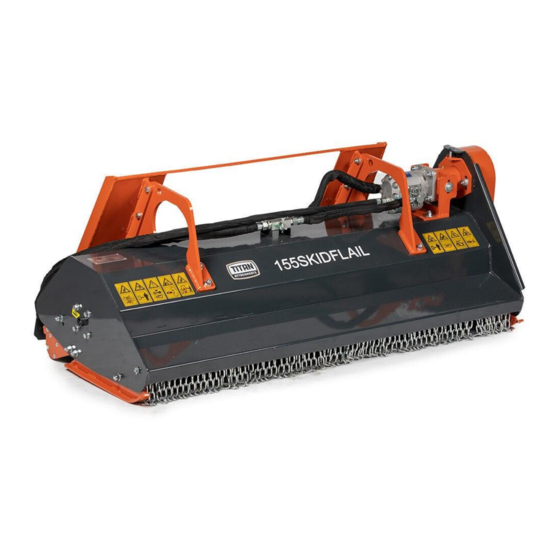

SKID STEER FLAIL MOWER
155SKIDFLAIL, 175SKIDFLAIL
191616, 191617
Operator's Manual
Read the Operator's Manual entirely. When you see this
symbol, the subsequent instructions and warnings are
serious follow without exception. Your life and the lives
of others depend on it!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 155SKIDFLAIL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Titan Attachments 155SKIDFLAIL

Summary of Contents for Titan Attachments 155SKIDFLAIL

  • Page 1 SKID STEER FLAIL MOWER 155SKIDFLAIL, 175SKIDFLAIL 191616, 191617 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
  • Page 2 IMPORTANT SAFETY INFORMATION THESE ARE STANDARD PRACTICES THAT MAY NOT APPLY TO THE PRODUCTS DESCRIBED IN THIS MANUAL. SAFETY AT ALL TIMES Thoroughly read and understand the instructions given in this manual before operation. Refer to the “Safety Label” section, read all instructions noted on them. Do not allow anyone to operate this equipment who has not thoroughly read and comprehended this manual.

  • Page 3: For Your Protection

    CAUTION: Indicates a potentially hazardous situation that may result in minor or moderate injury if not avoided. It may also be used to alert against unsafe practices. FOR YOUR PROTECTION Thoroughly read and understand the “Safety Label” section, read all instructions noted on them.

  • Page 4: Prepare For Emergencies

    Inspect all parts. Make sure details are in good condition and installed correctly. • Remove the buildup of grease, oil, or debris. • Remove all tools and unused parts from implementation before operation. • PREPARE FOR EMERGENCIES Be prepared if a fire starts. •...
  • Page 5 SAFETY LABELS Your Skid Flail Mower comes equipped with all safety labels in place. They were designed to help you safely operate your implement. Read and follow their directions. This shows the grease position.

  • Page 6: Section 1: Assembly And Set-Up

    INTRODUCTION APPLICATION The Skid Flail Mowers are designed for rippling, leveling, finishing grading, and backfilling applications at feedlots, outdoor arenas, building sites, and maintenance operations on farm and ranch lanes or roadways. SECTION 1: ASSEMBLY AND SET-UP Packing Description Remove and check Remove the packing, check goods without defects and omission.

  • Page 7: Mower Installation

    MOWER INSTALLATION NOTE: The illustrations and instructions provided explain how to install a bucket attachment on to a loader. Follow these same instructions if you are installing different attachments such as a grapple, tiller, mower, etc. The attachment mounting frame for the attachment has a top flange that is designed to receive the top edge of the Bob-Tach and the lower part of the frame is designed to receive the Bob-Tach wedges.
  • Page 8 e. Tilt the Bob-Tach backward until the attachment is slightly off the ground. This will cause the attachment mounting frame to fit up against the front of the Bob-Tach. Refer to Figure 1-5. Figure 1-5 NOTE: When leaving the operator’s seat to install an attachment, tilt the attachment until it is slightly off the ground.

  • Page 9: Mower Removal

    AVOID INJURY OR DEATH The Bob-Tach wedges must extend through the holes in the attachment mounting frame. Levers must be full down and locked. Failure to secure wedges can allow attachment to come off. h. The wedges must extend through the holes in the attachment mounting frame, securely fastening the attachment to the Bob-Tach.

  • Page 10: Section 2: Daily Inspection

    Figure 1-9 h. Tilt the Bob-Tach forward and drive the loader backward, away from the attachment. Refer to Figure 1-10. Figure 1-10 SECTION 2: DAILY INSPECTION Attachment Mount Frame Inspect the Bob-Tach wedge mounts (item1), mounting flange (item2) and all welds on the attachment mount for wear or damage each time the attachment is removed from the loader.
  • Page 11 Mower Inspection Check the following items every 25 hours of operation: • Check the blade for cracks or damage. Replace if necessary. • Check blade mounting hardware for proper torque 335N.m (245 ft-lb). • Check hood panel and shield. Repair if damaged or replace if necessary. •...

  • Page 12: Lifting The Attachment

    f. With engine at low RPM, lower the lift arm fully, until the mower skates are flat on the ground. g. Engage the auxiliary hydraulics. h. Increase engine speed to full rpm and drive the loader forward into the work area. i.

  • Page 13: Section 4: Adjustments

    SECTION 4: ADJUSTMENTS Belt Adjustment 1. Tool Required ½” Ratchet wrench with 19mm, 22mm sleeves 17-19 Spanner 2. Torque Application Refer to bolt torque in Section 8 Appendix. a. Remove mower from the loader. Refer to Mower Removal Section b. Remove pulley cover (item1). c.

  • Page 14: Cutting Height Adjustment

    Cutting Height Adjustment ATTACHMENT ROLLAWAY CAN CAUSE SERIOUS INJURY OR DEATH. • Always park attachment on flat level ground. • Block attachment before removing from machine. The cutting height of the skid flail mower depends upon the position of the rear roller and skate height. a.

  • Page 15: Belt Replacement

    Belt Replacement a. Remove mower from the loader. Refer to Mower Removal Section. Refer to Belt Adjustment Section as well. b. Remove pulley cover (item1). c. Loosen item5 to item11. d. Loosen item12 to disengage belt tension until belt can be removed. e.
  • Page 16 Storage At the end of the working season or when the mower will not be used for a long period. It is good practice to clean off any dirt or grease that may have accumulated on the mower and any of the moving parts.
  • Page 17 Lubrication Lubrication Points...
  • Page 18 SECTION 6: SPECIFICATION AND CAPACITIES...

  • Page 19: Section 7: Troubleshooting

    SECTION 7: TROUBLESHOOTING...

  • Page 20: Section 8: Appendix

    SECTION 8: APPENDIX Bolt Torque The tables shown below give correct torque values for various bolts and cap screws. Tighten all bolts to the torques specified unless otherwise noted. Check tightness of bolts periodically, using bolt torque chart as a guide. Replace hardware with the same strength bolt.
  • Page 21 PARTS DIAGRAM/EXPLODED VIEW Skid Flail Mower Part List...
  • Page 22 Skid Flail Mower Part List...
  • Page 23 Skid Flail Mower Part List...
  • Page 24 Hydraulic Motor Mount Assembly Part List...
  • Page 25 Hydraulic System Assembly Part List...
  • Page 26 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non- economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims,...
  • Page 27 NEED HELP? CONTACT US FIRST. 1-800-605-7595 info@palletworks.com www.palletforks.com © 2023 Titan Brands...
