Keera
32012B
mylevana.com
™
CAUTION: Keep small parts away from children.
ATTENTION: Gardez les petites pièces hors de la portée des enfants.
PRECAUCIÓN: Mantenga las piezas pequeñas fuera del alcance de los niños.

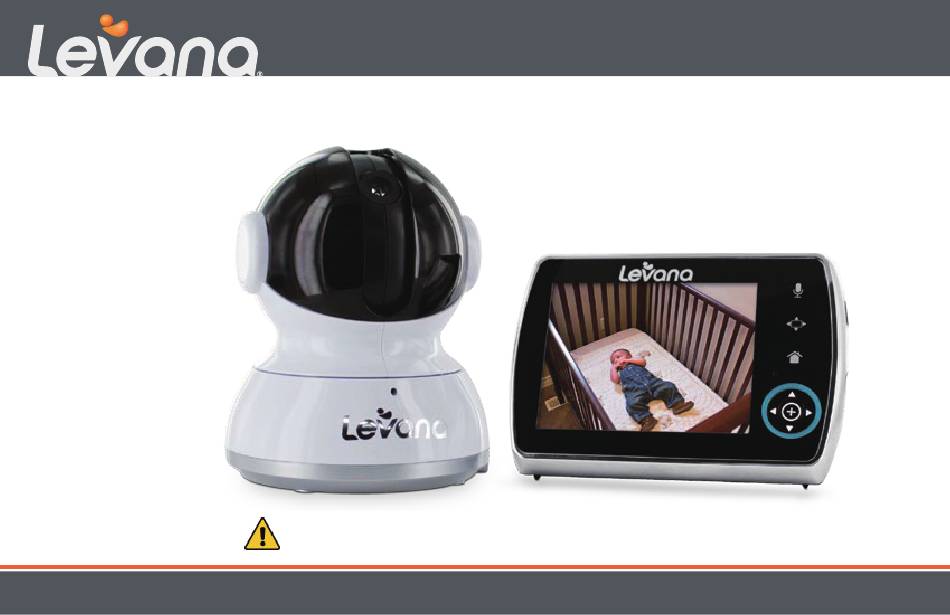

MANUAL / MANUEL / MANUAL
Digital Baby Video Monitor
Moniteur vidéo bébé numérique
Video Monitor Digital para Bebé
Advertisement
Table of Contents
Related Manuals for Levana Keera 32012B
Summary of Contents for Levana Keera 32012B
- Page 1 MANUAL / MANUEL / MANUAL Keera Digital Baby Video Monitor ™ Moniteur vidéo bébé numérique Video Monitor Digital para Bebé 32012B CAUTION: Keep small parts away from children. ATTENTION: Gardez les petites pièces hors de la portée des enfants. PRECAUCIÓN: Mantenga las piezas pequeñas fuera del alcance de los niños. mylevana.com...
-
Page 2: Safety Warnings
SaFeTY WaRnInGS This product cannot replace responsible adult supervision. CauTIOn: Keep small parts away from children. Strangulation Hazard: Children can become entangled in use only with provided power supply. cords. Power cords should be kept more than 3 feet away The socket-outlet shall be installed near the equipment and from the crib and baby’s reach at all times. -
Page 3: Fcc Statement
FCC Caution: IC Warning RSS(Category I Equipment): Any Changes or modifications not expressly approved This device complies with Industry Canada licence-exempt by the party responsible for compliance could void the RSS standard(s). Operation is subject to the following two user's authority to operate the equipment. conditions: This device complies with part 15 of the FCC Rules. -
Page 4: Warranty
This warranty does not cover the shipping cost, insurance or any other incidental charges. You MUST contact LEVANA before sending any product back for repair. You will be sent a Return Authorization form with return instructions. When returning the product for warranty service, please pack it carefully in the original box with all supplied accessories, and enclose your original receipt or copy, and a brief explanation of the problem (include RA #). -
Page 5: Table Of Contents
TaBle OF COnTenTS SAFETY WARNINGS ............................................. 2 FCC STATEMENT ............................................3 WARRANTY ..............................................4 WHAT’S INCLUDED ............................................. 7 BUTTONS AND CONNECTIONS - MONITOR ..................................8 BUTTONS AND CONNECTIONS - CAMERA ................................... 9 SETUP ................................................10 SD Card installation ........................................10 Battery installation ........................................ - Page 6 TaBle OF COnTenTS Capturing Video ......................................... 22 Viewing/Deleting Pictures - Monitor ..................................23 Viewing/Deleting Video - Monitor ..................................24 Viewing Saved Photos & Videos - Computer ............................... 25 Settings ............................................25 Checking SD card space ......................................26 Format SD card ...........................................26 Default Factory Settings ......................................
-
Page 7: What's Included
This product does not replace responsible adult supervision. Check on your child at regular intervals and make sure your monitor is always adequately charged. LEVANA does not endorse any LEVANA products for illegal activities. Levana is not responsible or liable in any way for any damage, vandalism, theft ® ® or any other action that may occur while a LEVANA ®... -
Page 8: Buttons And Connections - Monitor
MOnITOR lOCK / unlOCK BuTTOn Disables ALL function buttons in the LOCK position lCD SCReen POWeR & SCReen On/OFF POWeR InPuT TalK TO BaBY™ Press and hold to talk, release to listen Pan & TIlT BuTTOn Menu MICROPHOne COlOR-CHanGInG leD RInG Changes color with sound intensity/battery charge SELECTION / ZOOM BUTTON 10. -

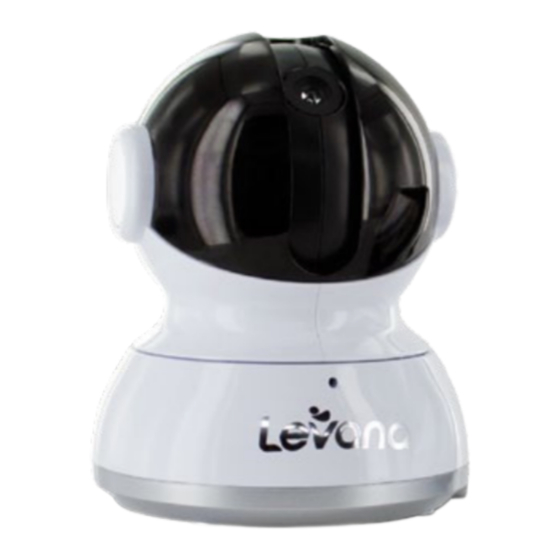

Page 9: Buttons And Connections - Camera
CaMeRa PTZ CAMERA anTenna MICROPHOne POWeR InPuT POWeR leD POWeR On/OFF nIGHT VISIOn lIGHT SenSOR SPeaKeR mylevana.com... -
Page 10: Setup
SeTuP leT’S GeT STaRTeD! SD Card Installation Gently remove the BATTERY COMPARTMENT COVER on the back of the monitor by sliding down. 2. Slide the silver bracket to the right to unlock the MicroSD card holder. Remove the MicroSD card from the SD card adapter and **PLEASE NOTE** The monitor can insert the MicroSD card in the bracket as shown - slide the silver... -
Page 11: Get The Most Out Of Your Rechargeable Battery
SeTuP Get the Most Out of Your Rechargeable Battery • Fully charge battery (4 hours) before first use. • To maximize battery life, charge battery before battery is fully drained. • Avoid extreme heat or cold as this will affect the life of the battery. •... -
Page 12: Connecting Power To The Monitor / Charging Battery
SeTuP Connecting Power to the Monitor / Charging Battery Power Connect the small end of power adapter marked MONITOR into the DC input on the side of the monitor as shown in the diagram. Connect the other end of the adapter into an available leD Ring wall outlet. -
Page 13: Screen Icons
SCReen ICOnS LULLABIES PICTURE VIDEO PLAY PEEP MODE ZOOM CAMERA LED / SOUND SENSITIVITY BRIGHTNESS PAIRING SUPPORT SETTINGS mylevana.com... -
Page 14: Operation
OPeRaTIOn Turn the MOnITOR On/OFF • Press and hold the POWER button on the side of the monitor to turn the monitor ON. • Press and hold the POWER button again to turn OFF the monitor. Pairing the Camera(s) and Monitor The camera and monitor come paired (connected) to each other automatically. -
Page 15: Placement Of The Monitor
OPeRaTIOn Placement of the Monitor This monitor can be placed on a tabletop. • You can place the monitor on a tabletop by using the retractable table stand on the back of the monitor. When not in use, simply tuck the table stand away into the back of the monitor until you hear a "click". -
Page 16: Mounting The Camera On A Wall Safely
OPeRaTIOn Mounting the Camera on a Wall Safely: Before drilling the holes, it is important to check the reception and camera positioning in the intended location on the wall. Ensure you are hanging the camera no less than 3 feet away from baby’s crib. note: Baby monitors and cameras with power cords should never be hung on or near the crib as it is a strangulation hazard. -
Page 17: Night Vision
OPeRaTIOn night Vision InVISIBle The camera is equipped with NEW Invisible IR (infrared) LEDs which keep the nursery leDs dark. The LEDs are located on the front of the camera and allow you to see up to 12 feet in complete darkness so you can check on your baby at any time of night. The night vision LEDs will activate automatically when the Light Sensor on the side of the camera detects that the light levels are too low. -
Page 18: Volume Control
OPeRaTIOn Volume Control (MUTE) VOluMe note: Placing the monitor and camera too close together will create feedback. DeCReaSe or MuTe the volume and move the camera away from the monitor. Decrease / Increase Using the ZOOM Function Select Zoom in/out mylevana.com... -
Page 19: Using The Talk To Baby™ Two-Way Intercom
OPeRaTIOn using the Talk to Baby™ Two-Way Intercom With the simple press of a button you can talk to your child at any time without entering the nursery. 1. To talk, press and hold the button on the front of the monitor and release to listen. 2. -
Page 20: Using Peep Mode
OPeRaTIOn using PeeP Mode When in PEEP Mode, the monitor enters standby/sleep mode after 45 seconds of inactivity. When sound is detected, the screen changes to live view. In Quad Screen mode, use the to select the camera that will be triggered by sound. •... -
Page 21: Setting The Brightness
OPeRaTIOn Setting the Brightness Brightness Mode sets the brightness of the the screen. Brightness Mode also extends the battery life. Select Sound Sensitivity Settings Sensitivity Mode allows you to adjust the sensitivity of the sound the that the camera picks up. The leD Ring on the front of the monitor also indicates how loud the sound in the room is with colors. -
Page 22: Taking A Picture
OPeRaTIOn Record Video & Snap Photos Instantly Capture precious moments as they are happening with your choice of recorded video or still photos on the included 2GB micro SD card. No need to scramble for a camera! Taking a picture Appears when picture is snapped Select icon / Take picture... -
Page 23: Viewing/Deleting Pictures - Monitor
OPeRaTIOn Viewing Saved Photos & Videos - Monitor You can view your saved photos and videos that are on the included SD card from the monitor or on your computer using the included SD Card Adapter. Viewing/Deleting pictures - Monitor Select To navigate To Select... -
Page 24: Viewing/Deleting Video - Monitor
OPeRaTIOn Viewing/Deleting video - Monitor Select To navigate To Select V01.SNX 00:04:00 Press to delete & Go back to Go back to previous screen previous screen To Select/Delete; press to Deselect mylevana.com... -
Page 25: Viewing Saved Photos & Videos - Computer
OPeRaTIOn Viewing Saved Photos & Videos - Computer You can view your saved photos and videos that are on the included SD card from your computer using the included SD Card Adapter. **If you do not have an SD card slot on your computer, an SD Card Reader (not included) will be required. Turn the monitor off and remove the battery cover on the back of the monitor. -
Page 26: Checking Sd Card Space
OPeRaTIOn Checking SD card space Select Go back to previous screen Format SD card Cancels / Exits function Go back to Select LAST CHANCE to previous screen NOTE: ONCE YOU HAVE Cancel / Exit function FORMATTED YOUR SD CARD, ALL OF YOUR SAVED PICTURES/ VIDEO WILL BE ERASED. -
Page 27: Default Factory Settings
OPeRaTIOn Default Factory Settings Cancels / Exits function Select Go back to previous screen Contacting Customer Support Customer Support is just a click away whenever you need it! Our customer support team can be reached by live web chat or on our website at www.mylevana.com/support. -
Page 28: Troubleshooting
TROuBleSHOOTInG ISSue POSSIBle SOluTIOn Equipment does not function • Confirm that the camera and monitor are ON • The battery may be depleted; charge battery • The power adapters may not be properly connected No reception • Camera and monitor may not be properly paired; follow PAIRING instructions •... -
Page 29: Specifications
SPeCIFICaTIOnS MOnITOR MOnITOR Monitor Type TFT LCD Microphone Screen Size 3.5” Talk to Baby Resolution 320x240 lullabies Frame Rate 25 FPS Battery Type Li-Ion lCD Brightness Adjustable: 0,1,2,3,4 Battery Capacity 1700 mAH Frequency 2.4GHz Battery Connection Charging Contact Private Signal Battery life (video + audio on) 6 hours Technology... - Page 30 SPeCIFICaTIOnS CaMeRa CaMeRa Image sensor CMOS Housing Material ABS Plastic Resolution 640 x 480 Wall Mountable Viewing angle 50 Degree Power adapter Input 100~240VAC, 50/60Hz 150mA Focal length 2.8mm Power adapter 6V 800mA DC Optimal Focal Distance 2-10ft Operating Temperature 0 to 50 Degree Celsius Dimensions 31/2 “x 4”...
- Page 31 POWeR Adapter: BLJ5W059100P—U ; Input: 100– 240VAC 50/60Hz 150mA; Output: 6V 800mA; WaRnInG 1. Use only with provided power supply; 2. The socket-outlet shall be installed near the equipment and shall be easily accessible; Battery: Model: 464854P, Li-ion battery, 3.7V 1700mAh 6.290Wh, Limited charge voltage: 4.2V. Battery: Model: 495255AR;...
