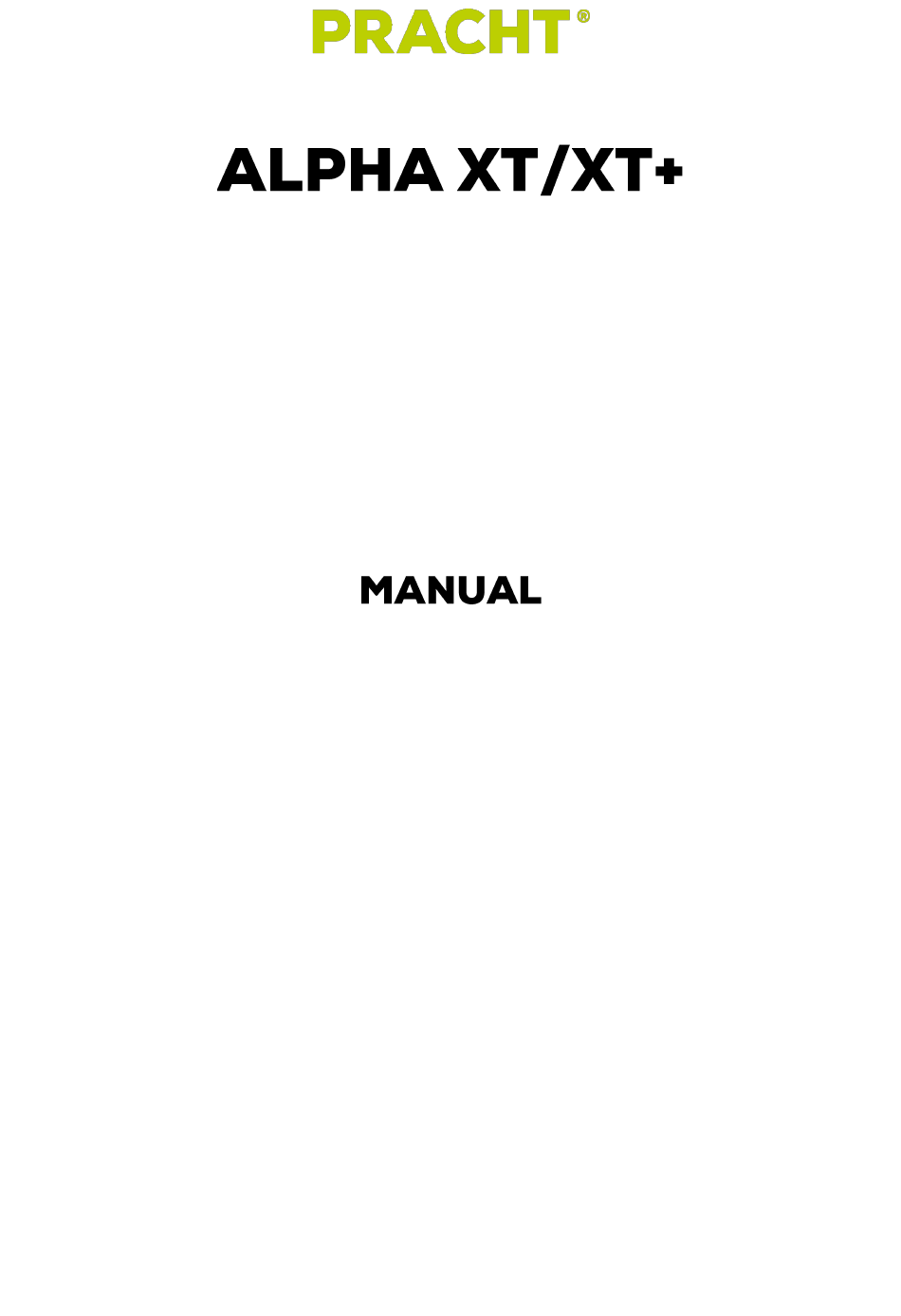

- Page 1 (NRG1002 / NRG1012) State: März 2023...
- Page 2 NOTES ON THIS DOCUMENT ......................Fehler! Textmarke nicht definiert. SAFETY, INSTALLATION AND USE....................... Fehler! Textmarke nicht definiert. OTHER USE INSTRUCTIONS................................2 SCOPE OF DELIVERY ....................................3 TECHNICAL DATA ..........................Fehler! Textmarke nicht definiert. ASSEMBLY............................Fehler! Textmarke nicht definiert. REQUIREMENTS ....................................5 WALL MOUNTING ....................................
- Page 3 Before installing and using the wallbox, the instructions must be read and understood in full by the installer and each user. Please keep the manual for the entire service life of the wallbox in order to be able to access it later. Also observe the operating instructions for your electric vehicle.

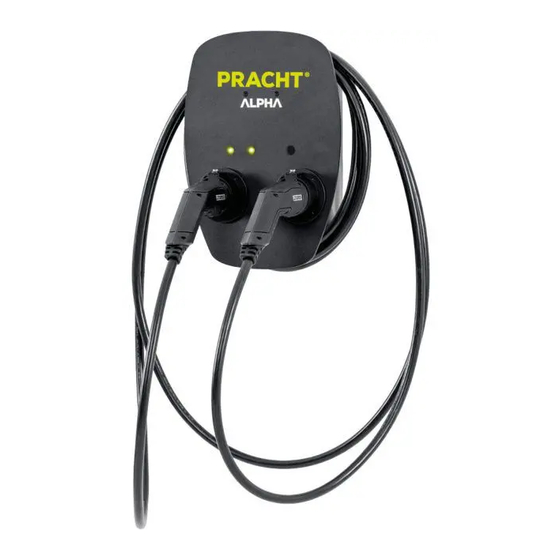

- Page 4 Please contact the manufacturer of the defibrillator or pacemaker for further information. Improper use may result in serious injury or death, and may destroy the vehicle or the charging station. • Wallbox ALPHA XT with RFID module and RS 485 interface • •...
- Page 5 ALPHA – NRG1002 ALPHA – NRG1012 Charging power mode 3 [kW] per 7.4 (1-phase) / 22 (3-phase) 3.7 (1-phase) / 11 (3-phase) output 7.4 (1-phase) / 22 (3-phase) 7.4 (1-phase) / 22 (3-phase) Charging power mode 3 [kW] total Rated voltage UN [V] 50Hz 230 (1-phase) / 400 (3-phase) max.
- Page 6 The wallbox may only be installed by a trained electrician. Before installation, the device must be thoroughly checked for damage. The wallbox is only suitable for vertical installation. The box may be mounted indoors or in protected outdoor areas, such as under canopies. The ambient temperature at the installation site must be in the range of -20°C to +40°C.
- Page 7 The supply line of the wallbox must be disconnected from the power supply during installation work. The supply line must be correctly fused. 1. pull the supply line into the box. 2. Connect the supply line as shown in Figure 2 and then relieve the strain and seal it using the cable gland. Figure 2 Connection position of the supply line Check the electrical connection and voltages using a measuring device.
- Page 8 When using RS485, a double cable with a characteristic impedance of 120 Ohm must be used. Since this is a data bus, it must be terminated with a resistor at the end or beginning. This can be done with the resistor pre-mounted in the interface or with the termination functions of other Modbus accessories.
- Page 9 1-PHASE LOADING 2-PHASE LOADING 3-PHASE LOADING 1 Car 2 Cars 1 Car 2 Cars 1 Car 2 Cars Position Min. cross Current (1 Ph supply line or only (3Ph supply line, (3Ph supply line, (3 Ph supply line, (3 Ph supply line, (1Ph supply line, 1Ph car) connector section...
- Page 10 1. before commissioning the wallbox, all vehicles must be disconnected from the system. 2. turn on the fuse in your house power box. 3. turn on the RCD switch located in the box. The microcontroller now starts automatically. Within 2 seconds, the box reports the preselected settings by flashing all LEDs.
- Page 11 Die LED-Anzeigeleuchten zeigen außerdem bei jedem Neustart der Box den eingestellten Stromverbrauch an. To use the RFID module, it is necessary to teach in at least one RFID card. RFID cards are taught as follows: 1. open the wallbox with the key provided for this purpose. 2.
- Page 12 Option 2 1. First connect the wallbox to the vehicle to be charged. 2. Then unlock the wallbox by placing the RFID card on the right-hand side of the wallbox. In this case, too, the blue LED indicator signals that the wallbox has been successfully unlocked. In both cases, the charging process starts automatically.
- Page 13 The RS 485 interface communicates with Modbus RTU, 9600 baud, 8 DATA bits, 1 stop bit, parity none, slave ID 1, unsigned integer 16bit (UINT16, internal values 8 bit). The timeout is less than 2000ms. Register type 40XXX read and write, register type 30XXX read only. Modbus Modbus Initial value...
- Page 14 Both charging points locked (0b11) Information about RFID cards can be requested depending on the software version at support@pracht.com. In the event of a defect, please contact the manufacturer directly. Before cleaning, the wallbox must be disconnected from the power supply for safety reasons.
- Page 15 The loading process was canceled. Restart the charging process. To do this, disconnect the • connection between the wallbox and the vehicle for 10 seconds. PRACHT Industry GmbH Am Seerain 3, 35232 Dautphetal-Buchenau, Germany Tel. +49 6466 9140-900 info@prachtenergy.com, www.prachtenergy.com...
