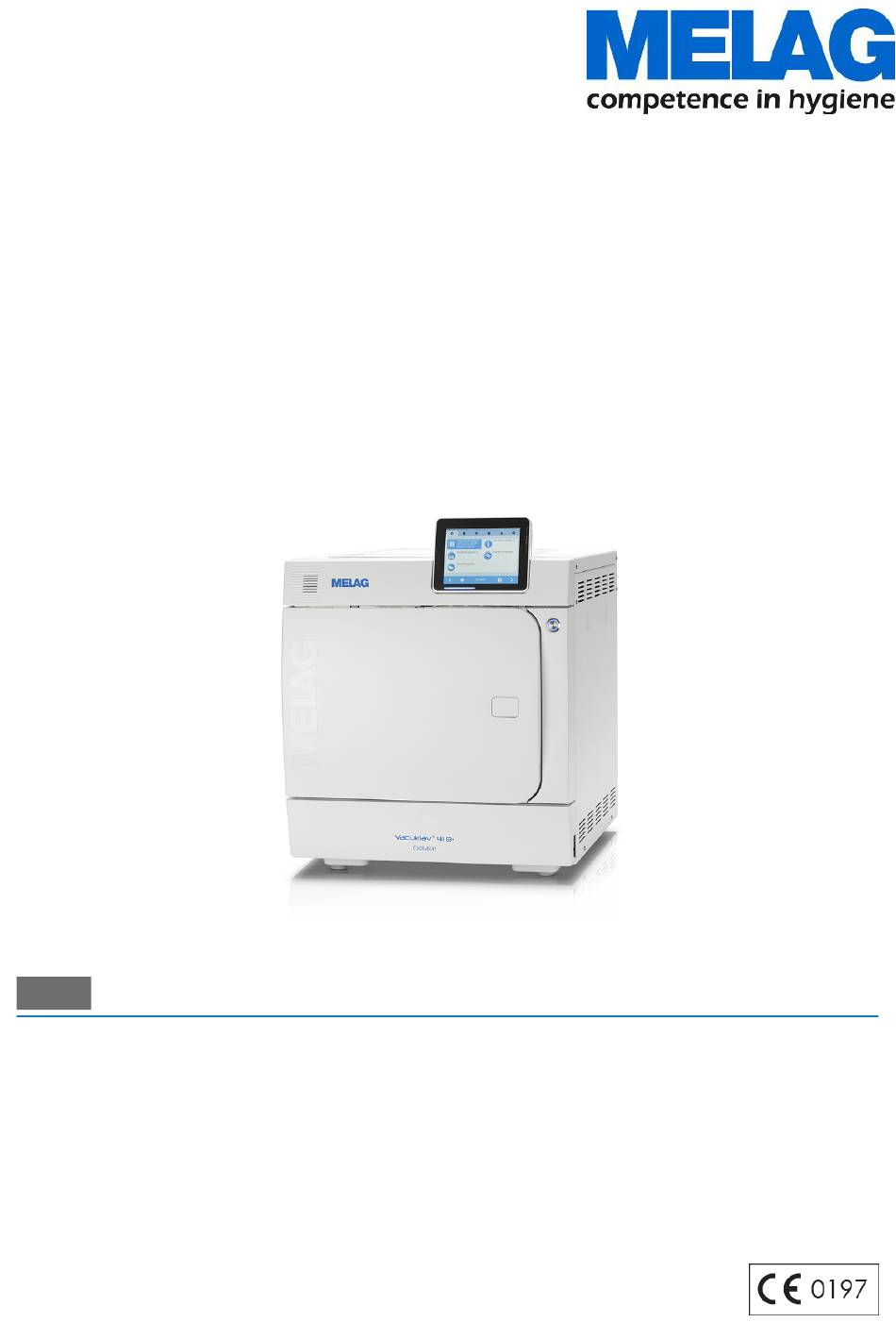

User Manual

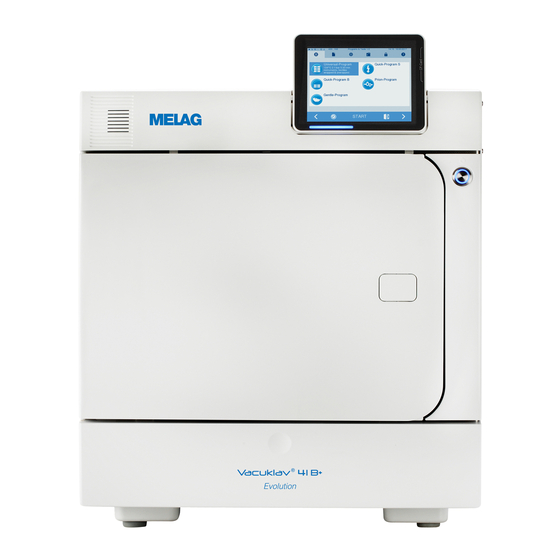

Vacuklav 41 B+ Evolution
Vacuklav 43 B+ Evolution
Steam sterilizer
as of software version v3.218
EN
Dear doctor,
We thank you for your confidence demonstrated by the purchase of this MELAG product. As an owner-run and operated
family concern founded in 1951, we have a long history of successful specialization in hygiene products for practice-
based use. Our focus on innovation, quality and the highest standards of operational reliability has established MELAG
as the world's leading manufacturer in the instrument treatment and hygiene field.
You, our customer are justified in your demand for the best products, quality and reliability. Providing
hygiene"
and
"Quality – made in
management system in accordance with ISO 13485 and ISO 9001 is subject to close monitoring e.g. through our annual
multi-day audit conducted conducted by a specified independent certification agency. This guarantees that all MELAG
products are manufactured and tested in accordance with strict quality criteria.
The MELAG management and team.
Germany", we guarantee that these demands will be met. Our certified quality
"competence in
