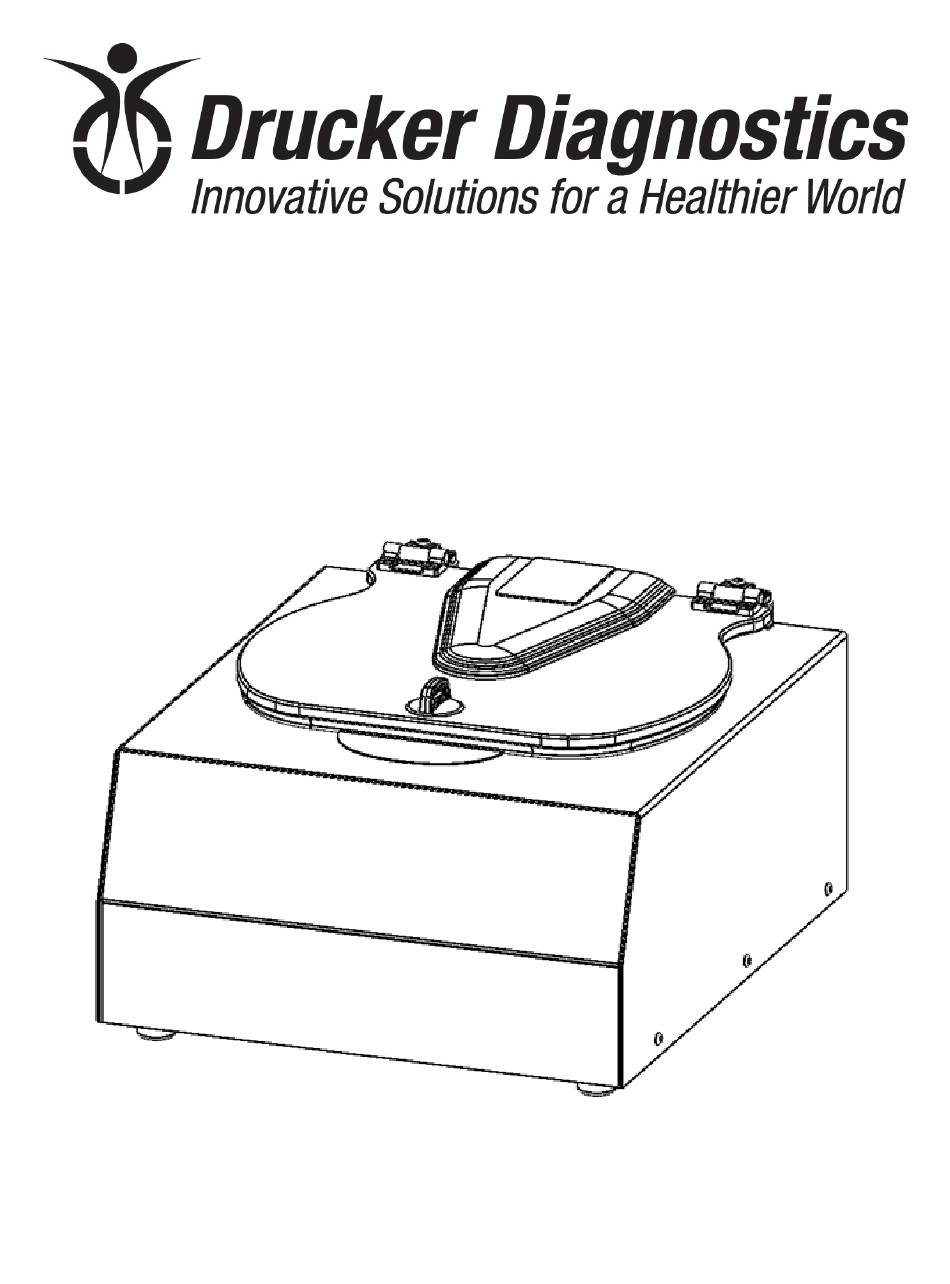

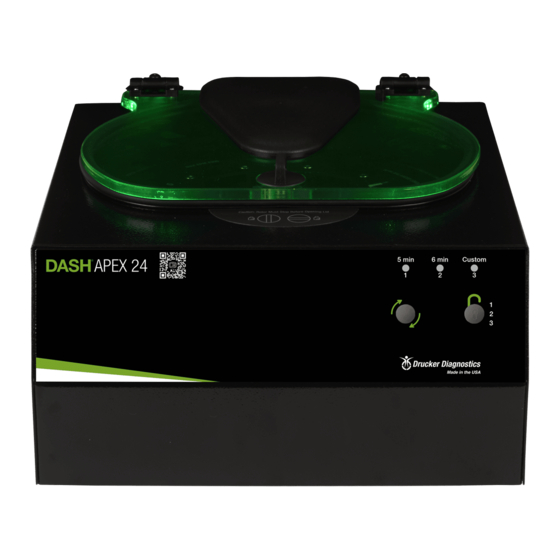

- Page 1 200 Shadylane Drive Philipsburg, PA 16866 www.druckerdiagnostics.com Service Manual DASH Apex 24 Centrifuge DRUCKER DIAGNOSTICS SM019 DASH Apex 24 SERVICE MANUAL REV B...
-
Page 2: Table Of Contents
Contents PREFACE GENERAL DESCRIPTION OF MAJOR COMPONENTS WARRANTY INFORMATION SPECIFICATIONS TROUBLESHOOTING SERVICE INSTRUCTIONS WIRING DIAGRAM SPARE PARTS LIST DRUCKER DIAGNOSTICS SM019 DASH Apex 24 SERVICE MANUAL REV B... -
Page 3: Preface
Failure to follow the procedures in this document may result in personal injury or instrument damage. Drucker Diagnostics will not be held liable for any injury or damage because of improper servicing. -
Page 4: Troubleshooting
Tighten rotor screw per section 7-2 PROBLEM POSSIBLE CAUSE SOLUTION Debris in air intake / exhaust ports Remove power before clearing debris. Whistling noise while running Gasket failure Requires service DRUCKER DIAGNOSTICS SM019 DASH Apex 24 SERVICE MANUAL REV B... -
Page 5: Service Instructions
Remove the rotor from service if any of the following are found: cracks, deep scratches, corrosion or discoloring. 6.4. Rotor Screw • If the rotor screw needs to be tightened, use a 1/8” hex key and tighten to 3.5 Nm. DRUCKER DIAGNOSTICS SM019 DASH Apex 24 SERVICE MANUAL REV B... - Page 6 The six nuts should be tightened only until the buttons on the control panel click when pressed – do not over tighten. Each nut sets the height of a separate control DRUCKER DIAGNOSTICS SM019 DASH Apex 24 SERVICE MANUAL REV B...
- Page 7 Attach the motor to the motor mount plate with four #8 SCREWS and torque to 18 • in-lbs (Fig 2). Secure the motor wire harness with a zip tie as shown. Snip the tag end of the zip • tie flush when complete. DRUCKER DIAGNOSTICS SM019 DASH Apex 24 SERVICE MANUAL REV B...
- Page 8 (fig 7). • Install one fender washer onto each stud (fig 8). Finish the assembly with one Nylok nut on each stud, and tighten to 13 in-lbs • DRUCKER DIAGNOSTICS SM019 DASH Apex 24 SERVICE MANUAL REV B...
- Page 9 Secure the base with six #8 screws torqued to 10 in-lbs. (fig 11). • • Install the exhaust cover and secure with three #8 screws torqued to 10 in-lbs. (fig 12). DRUCKER DIAGNOSTICS SM019 DASH Apex 24 SERVICE MANUAL REV B...
- Page 10 Carefully place the cabinet onto the base taking care not to pinch any wires between the two. • Complete the assembly by replacing the eight #8 screws, with a 3/32 hex key. DRUCKER DIAGNOSTICS SM019 DASH Apex 24 SERVICE MANUAL REV B...
-
Page 11: Wiring Diagram
7. WIRING DIAGRAM DRUCKER DIAGNOSTICS SM019 DASH Apex 24 SERVICE MANUAL REV B... -
Page 12: Spare Parts List
8. SPARE PARTS LIST DRUCKER DIAGNOSTICS SM019 DASH Apex 24 SERVICE MANUAL REV B...
