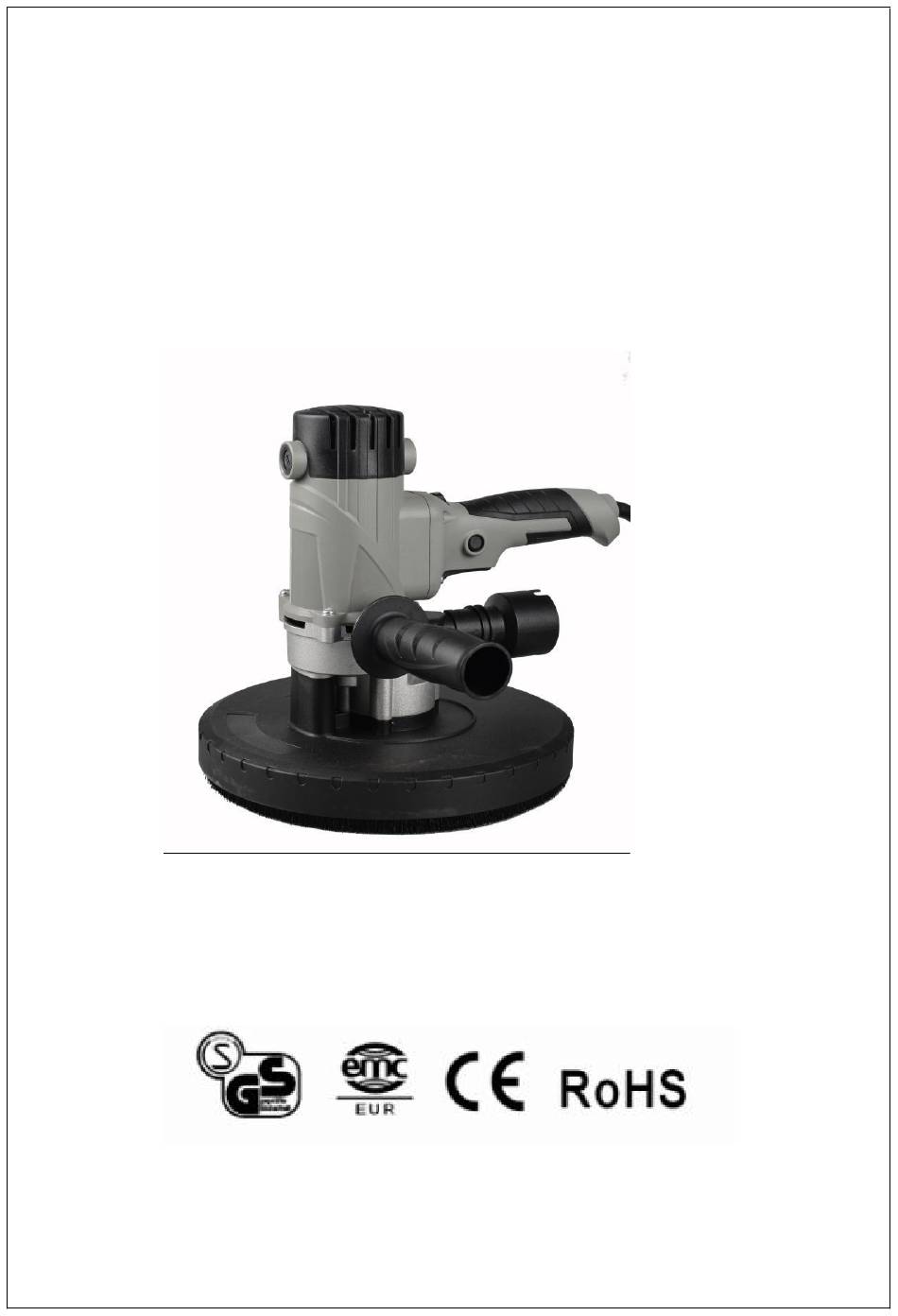

  • Page 1 DRYWALL SANDER FG-S1200 INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    Contents 1. Warning & Statements。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 2. Voltage。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 3.

  • Page 3: Warning & Statements

    10. Application Diagram。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 14-16 11. Cleaning。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 12.
  • Page 4 not use the electric tools in places exposed to damp/moisture, or leave them outside in rainy days. Make sure to keep the operational site bright enough. 6． Keep the children away from the devices. Certain distance shall be guaranteed as for the children in search of on-site operational experience.
  • Page 5 Single-hand operations and any intentions to touch the disk are strictly prohibited. 16．Before switching on, the disk shall be away from any contact of other objects. 17．Prior to application, the device shall be powered and switched on to make the disk twist at full speed. Avoid waver arising from installation error and misplaced disk.

  • Page 6: Voltage

    25． In case of maintenance or replacement, adopt specified spare parts only. 2． Voltage Before connecting electric tool to the socket, make sure that the supply voltage be in accordance with rated voltage. If the former is greater than latter and the device is powered on by mistake, it may result in damage of devices and injuries of people.

  • Page 7: Technical Specifications

    4. Technical Specifications Model FG-S1200 Rated Voltage 230/110（V） Frequency 50/60（Hz） Rated Power 1200 （ W） No-load Speed 1500-3300(R/min) Sandpaper Dimensions Ф225 （ mm） Safety Standard II / Net/Gross Weight 2.7/4.1（kg） Machine size 300*258*258 （mm） Packing Dimensions 27.5*27.5*28（cm/pc） 5．Structure Overview (See following pictures)
  • Page 8 sandpaper plastic disc component brush Speed control Handle Dust Outlet Switch Standard Accessories Sandpaper: 6 pc Allen Wrench: 1 pc Carbon Brush: 2 pc Telescopic Dust hose: 2 m/1 pc Dust bag:1pc...

  • Page 9: Installation & Sandpaper Replacement

    6. Installation & Sandpaper Replacement (See following picture ) Note: Prior to installation or removing the sandpaper, make sure to not only switch off the device, but also cut off the power supply. ——Installation Guide To ensure the replacement procedures, place the device on the smooth ground prior to installation.

  • Page 10: Installation & Viscid Disc Replacement

    socket. Then, remove the previous sandpaper entirely from the disk, so as to lay new sandpaper neatly as well as facilitate future replacement. At last, fix new sandpaper in position. ——Sandpaper Overview Grinding towards the target wall and object is possible with abrasive grains and sandpaper twisting upon operations.

  • Page 11: Connection Set For Dust Outlet

    Viscid disc Remove the sandpaper, put the Allen wrench into the hexagon hole in the center of the viscid disc and then rotate clockwise to take off the damaged viscid disc. Install the new viscid disc (see the picture). 8．Connection Set for Dust Outlet (See following pictures) Dust outlet Lock button...
  • Page 12 picture-1...
  • Page 13 picture-2 As its name implies, it is used for connecting the device to Dust Outlet (accessory). The dust will come out from the wall upon operating the grinder. The device is connected to Dust Collector at back via Connection Set for Dust Outlet, making it possible for the operator to reduce the amount of dust.

  • Page 14: Switch& Speed Governor Operation

    picture-3 picture-4 ——Installation Guide&Dismantling Process (picture 3&4) Figure（ picture 1 & 2）。 9.Switch& Speed Governor Operation(See following picture ) The switch of this machine has self-lock button.As shown in following picture, press the main switch button to power on.After pressing main switch button then press the self-lock button the...
  • Page 15 switch button will be locked no need press the button all the time.Press the main switch button (no need press self-lock button) to power off. The Speed Governor, as shown in the following picture, may be used to regulate the speed, so as to facilitate the operations of workers and improve work quality simultaneously.
  • Page 17 As shown on the picture the operator can sanding the different position of the wall. 11．Cleaning Regular cleaning shall be conducted after grinding. ● Cleaning the devices frequently may help to extend operating life and reduce repair rate. It is recommended to clean the connection sets and components of electric motor without application of water.
  • Page 18 Brush holder cover Brush holder Carbon Brush...
  • Page 19 Manufacturer：NINGBO FEIGE TOOLS;TLD. Add： No.78 Central Shipoqiao Road,Yuyao Ningbo City, Zhejiang Province, China...
