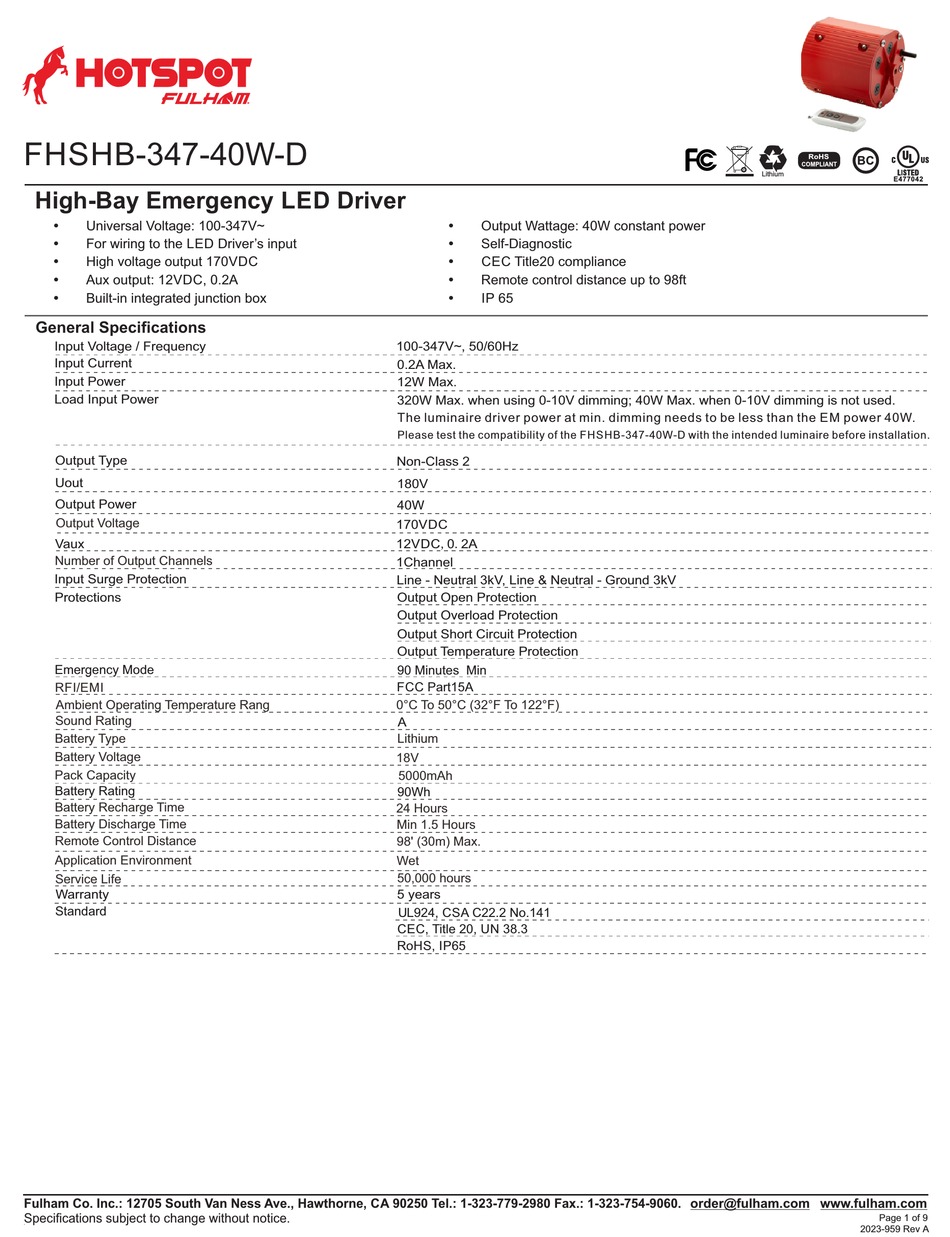

Fulham HOTSPOT FHSHB-347-40W-D Manual

FHSHB-347-40W-D
High-Bay Emergency LED Driver
Universal Voltage: 100-347V~
For wiring to the LED Driver's input
High voltage output 170VDC
Aux output: 12VDC, 0.2A
Built-in integrated junction box
General Specifications
Input Voltage / Frequency
Input Current
Input Power
Load Input Power
Output Type
Uout
Output Power
Output Voltage
Vaux
Number of Output Channels
Input Surge Protection
Protections
Emergency Mode
RFI/EMI
Ambient Operating Temperature Rang
Sound Rating
Battery Type
Battery Voltage
Pack Capacity
Battery Rating
Battery Recharge Time
Battery Discharge Time
Remote Control Distance
Application Environment
Service Life
Warranty
Standard
Fulham Co. Inc.: 12705 South Van Ness Ave., Hawthorne, CA 90250 Tel.: 1-323-779-2980 Fax.: 1-323-754-9060.
Specifications subject to change without notice.
Output Wattage: 40W constant power
Self-Diagnostic
CEC Title20 compliance
Remote control distance up to 98ft
IP 65
100-347V~, 50/60Hz
0.2A Max.
12W Max.
320W Max. when using 0-10V dimming; 40W Max. when 0-10V dimming is not used.
The luminaire driver power at min. dimming needs to be less than the EM power 40W.
Please test the compatibility of the FHSHB-347-40W-D with the intended luminaire before installation.
Non-Class 2
180V
40W
170VDC
12VDC,0.2A
1Channel
Line - Neutral 3kV, Line & Neutral - Ground 3kV
Output Open Protection
Output Overload Protection
Output Short Circuit Protection
Output Temperature Protection
90 Minutes Min
FCC Part15A
0°C To 50°C (32°F To 122°F)
A
Lithium
18V
5000mAh
90Wh
24 Hours
Min 1.5 Hours
98' (30m) Max.
Wet
50,000 hours
5 years
U L924, CSA C22.2 No.141
CEC, Title 20, UN 38.3
RoHS, IP65
Lithium
order@fulham.com www.fulham.com
2023-959 Rev A
E477042
Page 1 of 9
