304602332/112302/23MM30514-PO83
304602468/112289/23MM30514-PC72
304602334/112296/23MM30514-PT01

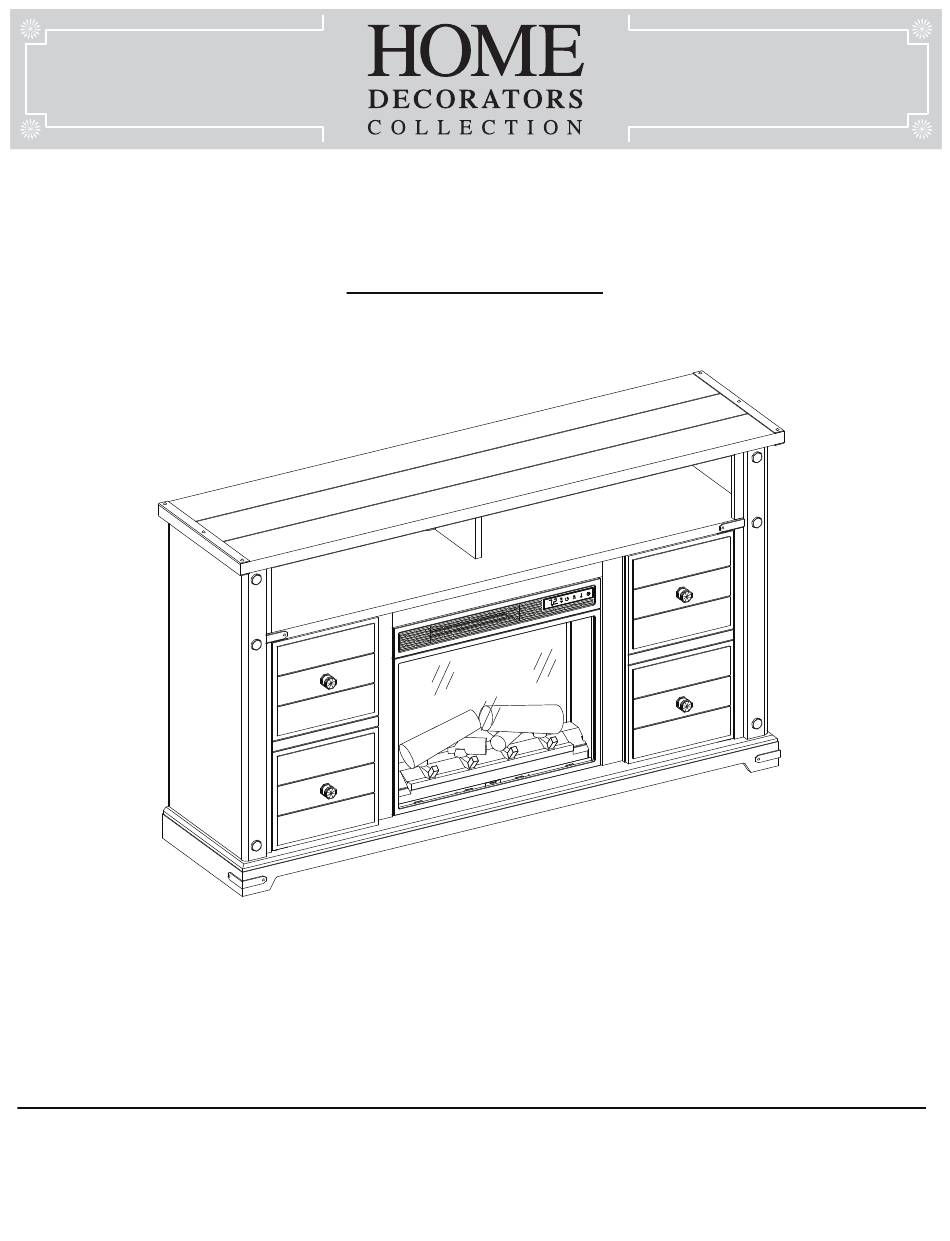

USE AND CARE GUIDE
BRANNEN ELECTRIC FIREPLACE MEDIA MANTEL
QUESTIONS, PROBLEMS, MISSING PARTS? BEFORE RETURNING TO THE STORE,
CALL HOME DECORATORS COLLECTION CUSTOMER SERVICE
8 A.M. - 7 P.M., EST, MONDAY - FRIDAY, 9 A.M. - 6 P.M., EST, SATURDAY
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators through the purchase of this electric fireplace. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators!
Advertisement
Table of Contents
Related Manuals for Home Decorators Collection BRANNEN 304602332/112302/23MM30514-PO83
Summary of Contents for Home Decorators Collection BRANNEN 304602332/112302/23MM30514-PO83
- Page 1 USE AND CARE GUIDE BRANNEN ELECTRIC FIREPLACE MEDIA MANTEL QUESTIONS, PROBLEMS, MISSING PARTS? BEFORE RETURNING TO THE STORE, CALL HOME DECORATORS COLLECTION CUSTOMER SERVICE 8 A.M. - 7 P.M., EST, MONDAY - FRIDAY, 9 A.M. - 6 P.M., EST, SATURDAY 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS...
-
Page 2: Table Of Contents
Table of Contents Maximum Load Warning ........... 2 Package Contents .............. 7 Safety Information ............. 3 Assembly ..............8 Warranty ..............5 Operation ..............19 Pre-Assembly ............. 6 FCC/IC Information ............21 Hardware Included ........... 6 Care & Cleaning ............21 Product Specifications ............ -
Page 3: Safety Information
Safety Information Please read and understand this entire manual before attempting to assemble, operate or install the product. If you have any question regarding the product, please call customer service at 1-800-986-3460, 8 a.m.-7 p.m., EST, Monday-Friday, WARNING: Under no circumstances should this fireplace be 9 a.m. - Page 4 Safety Information (continued) NOTE: Use care in assembling your new fireplace. Take your time and use the hardware provided and a quality Phillips head screwdriver. Never overtighten bolts. • Do not sit on any part of the mantel. NOTE: To avoid injury from unexpected starting or electrical shock, do not plug the power cord into a source of power during unpacking and assembly.
-
Page 5: Warranty
Warranty Warranty 1 Year Limited Warranty: The manufacturer warrants that your new Electric Fireplace is free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations. Install and operate this appliance in accordance with the installation and operating instructions furnished with the product at all times. -
Page 6: Pre-Assembly
Pre-Assembly HARDWARE INCLUDED Part Description Part Number Quantity Wood Dowel PH-DWLNTL001 Shelf Pin PH-SPNPCSPLB2 Knob (with Screw) Bolt 6.3 x 12 mm PH-BLTBK002 2 Hole Plastic Connector Block PH-PCBBLK001 3 Hole Plastic Connector Block PH-PCBBLK002 Magnetic Catch PH-MCHBRW001 Screw 3 x 15 mm PH-SCRBLK010 Screw 4 x 50 mm PH-SCRBLK006... -
Page 7: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS NOTE: All panels are labeled left and right as viewed from the front of unit. Part Description Quantity Bottom Base Panel Center Shelf Front Panel Left Front Panel Right Front Panel Left Center Panel Right Center Panel Top Assembly Center Shelf Left Side Panel... -
Page 8: Assembly
Assembly Preparing the center panels Preparing the front panels Place the Center Shelf Front Panel (B), Left Front Panel Place the Left Center Panel (E) and Right Center Panel (C) and Right Front Panel (D) on a flat surface. (F) on a flat surface. Insert Wood Dowels (AA) into the pre-drilled holes as Attach the 2 Hole Plastic Connector Block (EE) to both shown. - Page 9 Assembly (continued) Preparing the center shelf Preparing the center shelf Put the Center Shelf (H) upside down on a flat surface. Using the Phillips Screwdriver, attach the 2 Hole Plastic Secure the Magnetic Catch (GG) using the Screws (HH). Connector Block (EE) to the Center Shelf (H) with Bolts (DD).
- Page 10 Assembly (continued) Securing the center panels Preparing the side panels Using the Phillips screwdriver, insert screws (II) through Put the Left Side Panel (I) on a flat surface. the pre-drilled holes on the Center Shelf Front Panel (B) Insert the Bolts (DD) through the 2 Hole Plastic and tighten the Screws (II).
- Page 11 Assembly (continued) Attaching the side panels Align the Left Side Panel (I) with the Center Shelf (H). To secure, insert the Screws (DD) through the previously attached 2 Hole Plastic Connector Block (EE). Tighten Bolts (DD) with the Phillips screwdriver. Repeat step to attach the Right Side Panel (J).
- Page 12 Assembly (continued) Attaching the foot Attaching the base To secure the Foot (M) to the Bottom Base Panel (A), Align the Bottom Base Panel (A) with previously insert the Screws (JJ) through the pre-drilled holes. assembled Panels (I,E,F,J). Tighten the Screws (JJ) with the Phillips screwdriver. Secure together using the Screws (II) and the Phillips screwdriver.
- Page 13 Assembly (continued) Attaching the divider Preparing the center shelf Stand the assembled section up right. Align the Divider (N) to the Center Shelf (H) and Insert a Wood Dowel (AA) into the pre-drilled hole secure together using the Screws (II) and a in the Center Shelf (H).
- Page 14 Assembly (continued) Preparing for the top of Attaching the top assembly the assembly Insert Wood Dowels (AA) into the pre-drilled holes in Place the Top Assembly (G) on top of the main the Top Apron (O). assembly. From underneath, insert the Bolts (DD) through the Plastic Connectors (EE,FF).
- Page 15 Assembly (continued) Installing the back panels Insert the Screws (LL) through the pre-drilled holes in the Center Back Panel (Q) and the Side Back Panels (P). Tighten using a Phillips Screwdriver. Attaching the knobs Insert the screws through the pre-drilled holes in the Right Door (S), to attach the Knob (CC).
- Page 16 Assembly (continued) Attaching the doors Attaching the adjustable shelves Insert the Pin Hinge (NN) into the pre-drilled holes in Insert the Shelf Pins (BB) into the pre-drilled holes the Bottom Base Panel (A) and the Center Shelf (H). on the inside of the Left Side Panel (I) and the Left Align the Left Side Door (R) with the Pin Hinge (NN).
- Page 17 Assembly (continued) Securing the fireplace insert Insert the Screws (MM) through the Bracket (OO) into the pre-drilled holes in the Bottom Base Panel (A). Leveling the assemebled unit To level your assembled media unit, turn the Leveler (RR), as needed. The pre-attached Leveler (RR) is located under the Foot (M).
- Page 18 Assembly (continued) Installing the tipping restraint hardware When the Tipping Restraint Hardware (PP) is properly installed, it can provide protection against unexpected tipping of the Unit due to small tremors, bumps or climbing. Wall Your Unit comes with two Tipping Restraint Hardware (PP).
-
Page 19: Operation
Operation Operation NOTE: The control panel can be accessed at the upper-right corner of the insert. Powering the fireplace Adjusting the flame Push the Power button to supply power to all There are 6 brightness levels that can be selected: functions of the fireplace and put the insert in a standby mode. - Page 20 Operation (continued) Replacing the remote control battery Disposing of used batteries The battery may contain hazardous substances that When the remote control stops operating or its range could endanger the environment and human health. seems reduced, it is time to replace the battery with new ones.
-
Page 21: Fcc/Ic Information
FCC/IC Information WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 22: Troubleshooting
Troubleshooting PROBLEM ROOT CAUSE CORRECTIVE ACTION Unplug the fireplace, remove the back panel of the fireplace and check that the The thermostat sensor is thermostat is plugged into the main circuit Display shows " " broken or disconnected. board. If this does not solve the problem contact customer service for a replacement thermostat sensor. - Page 23 Troubleshooting (continued) PROBLEM ROOT CAUSE CORRECTIVE ACTION Flame effect works but heater With the power on press and hold the POWER function does not and the emberbed button on the control panel for 10 seconds. The heater is disabled. flashes when the Heater button is Once re-enabled the emberbed lights will pressed.
-
Page 24: Replacement Parts
Replacement Parts For replacement parts, call our customer service department at 1-800-986-3460, 8 a.m.-7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday. Part Description Qty. Remote Control Flame Circuit Board Blue LED Circuit Board Flame Generator Drive Motor Thermostat Sensor Blower/ Heater Assembly Control Panel Circuit Board... - Page 25 HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance.
- Page 26 Questions, problems, missing parts? Before returning to the store call Home Decorators Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS RETAIN THIS MANUAL FOR FUTURE USE.
