Summary of Contents for Southern Enterprises FA4723
Page 1

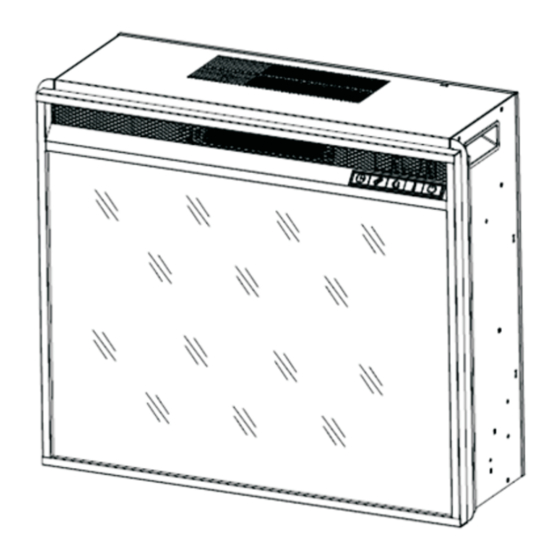

ITEM NO. FA4723 ELECTRIC FIREBOX INSERT For assistance with assembly, contact: Southern Enterprises Inc. Customer Service 1-800-633-5096 OPERATION MANUAL service@seidal.com www.seidal.com...
Page 2
Electric Firebox Insert User’s Operating Manual Consumer safety information: Please read this manual before installing and operating this appliance. WARNING!!! If the information in this manual is not followed correctly, an electric shock or fire may result in property damage, personal injury, or loss of life.
Important Operating And Safety Information: When using electrical appliances, the following basic precautions should always be followed to reduce the risk of fire, electric shock, and injury. Read all instructions before using this heater. Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury.
Page 4
Helpful Advice For Installing Firebox Into Mantel: 1. These instructions are provided in an easy to follow format. Simply follow the instructions to properly install unit. 2. Please retain all packaging until you have checked that there is no damage and your unit is working properly. 3.
Operating Instructions: Control Panel on the Front of Unit Main Display 1. On/Off Main power button 2. On/Off Heater button 3. Adjustable Flame Brightness 4. Adjustable Log Brightness 5. Adjustable Timer Control panel Introduction: (1)Power (2)Heater (3)Flame (4)Log (5)Timer (1) Power: A.
Page 6
ELECTRICAL SPECIFICATIONS Voltage: 120VAC, 60 Hz Amps: 12.5Amps Watts: 1500 Watts Lighting: REMOTE CONTROL OPERATING PROCEDURES (1)Power: Press to turn the unit ON/OFF (2) Heater: Press to turn the heater ON/OFF. Adjust the temperature rating as follows: 62° F -- 82 ° F (17 ° C --- 27 ° C) Note: ℉ for the default units.
TROUBLESHOOTING Problem Cause Solution Turn on the main power supply Main power supply switch is off. switch. Too many appliances on this circuit. Be sure that the electrical Circuit breaker has tripped. supply for this unit is an individual circuit. Heater is unplugged from wall Plug the cord into an outlet.
Page 8
Problem Cause Solution Flame adjusting knob is at low Turn the knob to maximum setting. setting. Heater is on but no flame or low flame intensity. Loose wiring at the wall power Contact a qualified electrician. outlet. Check all wiring for loose Loose wiring at the wall power connections.
GROUNDING INSTRUCTIONS This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. Please contact Southern Enterprises at 800-633-5096 or in Dallas 972-869-0111/ 9am – 4pm Mon-Fri Central time if you have product issues or email us at service@seidal.com. Please ask for customer service...
Page 11
Please contact the retailer that you purchased from for returns Customer Service 1-800-633-5096 service@seidal.com Southern Enterprises, Inc. 600 Freeport Parkway, Suite 200 Coppell, Texas 75019...
