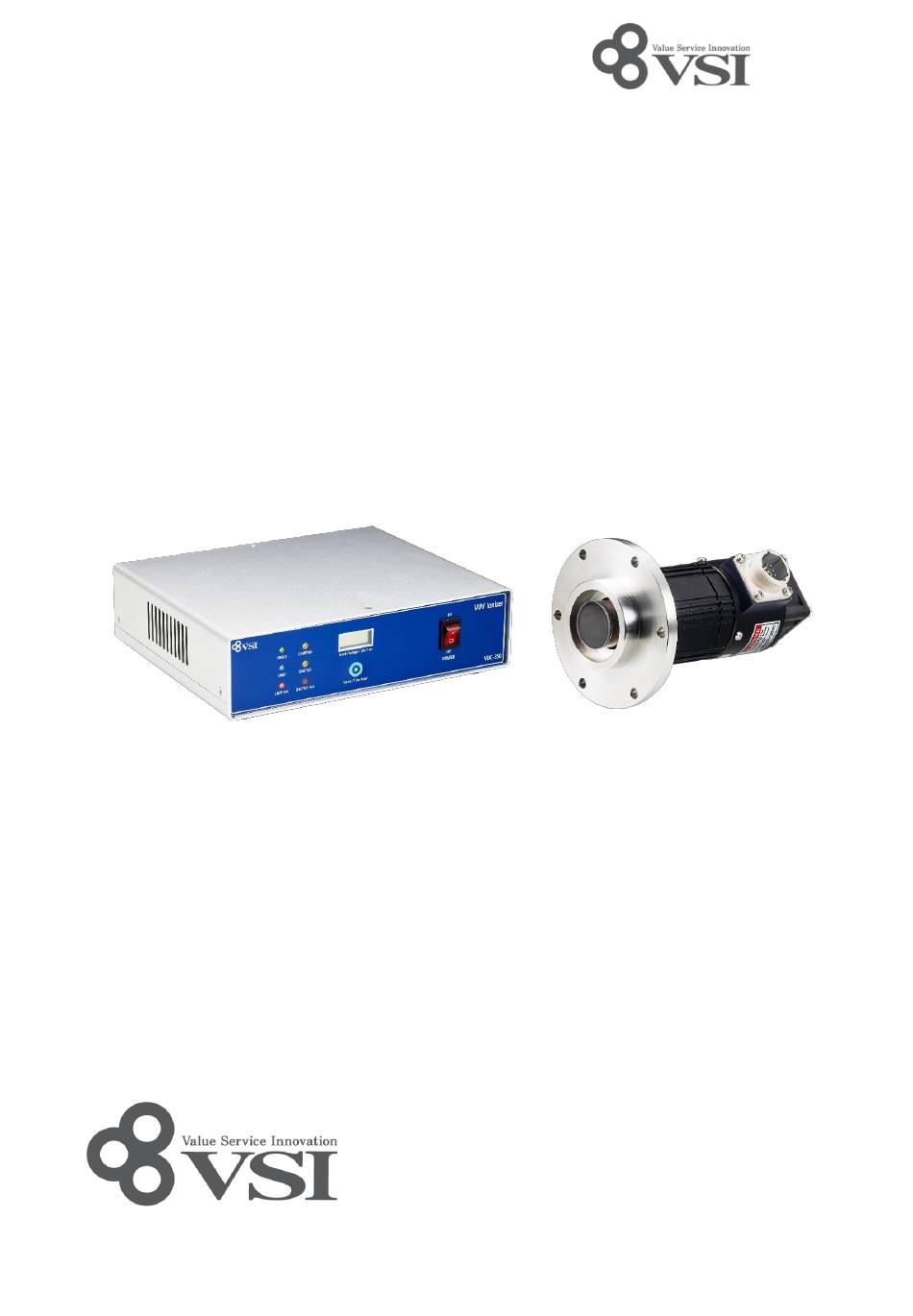

- Page 1 V-VUV-H INSTRUCTION MANUAL VUV: V-VUV-H Controller : V-VUC 350 Contents of this publication may not be reproduced in any form without the written permission of VSI Co., Ltd. 페이지 1 / 21...
-
Page 2: Table Of Contents
Table of Contents 1. Part Names and Functions ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ Page 3 2. Installation and Operation ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ Page 6 3. Performance (Ion current) ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ Page 16 4. Product Specifications ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ Page 17 5. Components Included∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ Page 18 6. External Dimensions ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ Page 19 페이지... -
Page 3: Part Names And Functions
1. Part Names and Functions ■ VUV (V-VUV-H) ① VUV Lamp irradiation hole : Window irradiating UV (Ultra Violet) ② VUV Lamp Flange : Flange for installing VUV head ③ VUV Body: Built-in VUV Lamp ④ Output Connector : Connector connecting VUV head with controller ⑤... - Page 4 ■ Controller ( V-VUC 350) Front Back ① Power switch: C ontroller power switch. ② LCD: Displays Anode Voltage and VUV lamp operation time. ③ Push Button: This button is for changing the LCD display status and resetting the operation time. ④...
- Page 5 ⑩ Signal Output Connector : This connector is used when connecting to an external device. ⑪ Ground Terminal : Controller ground bolt ⑫ Cooling FAN : Fan cooling the inside of controller ⑬ VUV Connector : Connects VUV head with 10pin connector cable. ⑭...
-
Page 6: Installation And Operation
2. Installation and Operation ■ VUV installation ① Install the VUV head in desired position by fixing the screws of the installation flange. ② Install the controller at a place accessible to users, and connect the power and ground cable. ③... - Page 7 ■ How to use the controller (Operating VUV head after activating the controller) ① Before turning on the power switch, connect the VUV head to the controller by using a connecting cable. (Output cable) ② Turn on the power switch of the controller located on the front. ③...
- Page 8 ⑥ [VUV OFF] Turn off the power switch of the controller located on the front (To turn off VUV during remote operation, close pins 1 and 2 of the SIGNAL IN/OUT terminals on the rear of the controller.) 페이지 8 / 21...
- Page 9 ■ How to check the operation time ① After turning on the controller , press the Select/Time Reset button once. ② Controller LCD display shows operation time. The unit of numbers is time. ▷ Basically LCD display shows default Anode Voltage, and other options can be shown on LCD display when the user presses Select switch.
- Page 10 ○ When operation hours of VUV head is 2,000 hours or above ▷ How to reset the operation time when changing into a new VUV tube (head) Press Select / Time Reset switch for about 10 seconds to reset the operation time Please be noted that the operation time should be reset after changing into a new VUV tube (head).
- Page 11 ■ Communication setting protocol ➔ Displayed messages after turning on VUV controller * [ ] : Actual message that appears on LCD display of VUV controller ① Firmware version information : [ 1-315 ] → Indicates that firmware version is V3.1.5 ②...
- Page 12 Once selecting the menu press select switch for 3 ~4 seconds to save the settings. ➔ Menu tree for setting ① [1-adr] → [Adr01] ~ [Adr15] (Can set the address from 1~15) ② [2-ond] → [2-000] ~ [2-020] (Can set loading time from 0 ~ 20 sec) ③...
- Page 13 ■ Controller rear side Signal Input / Output connection DSUB 15Pin Female PIN MAP Connector Pin Name Details Contact signal input from external equipment to the controller LAMP OFF (When pin 5 is ON) - VUV LAMP ON when pins 1 and 2 are closed LAMP OFF-COM - VUV LAMP OFF when pins 1 and 2 are open N/A (Not used any more)
- Page 14 1) VUV LAMP ON/OFF operation signal input VUV LAMP ON (When pin 5 is ON) ▷ When D-SUB pin 1 and 2 are closed, VUV Lamp is turned on. VUV LAMP OFF ▷ When D-SUB pin 1 and 2 are open, VUV Lamp is turned on off. VUV head is turned on after 25 seconds of preheating time.
- Page 15 ■ Signal Input / Output internal circuit 페이지 15 / 21...
- Page 16 ■ Signal Input / Output operation example - Example of operating relay input & LED input ※ Input 1,2,3,4 terminals should be used with relay output. If external power is applied, internal parts might be damaged. ※ Output voltage/current can stand maximum 60V/100mA. So user should consider this maximum capacity when operating.
-
Page 17: Performance (Ion Current)
3. Performance (Ion current) 페이지 17 / 21... -
Page 18: Product Specifications
4. Product specifications Dimensions 147 x 72 mm 54 Ø Ion method Vacuum ultraviolet light Weight 470 g VUC-350 Dimensions 215 x 63 x 192 mm Fuse 250V, 3.15A, 1Ø, Glass type Weight 1.24 kg Power MAX. 100W consumption Operating 0 ~ 50℃... -
Page 19: Included
5. Components included V-VUV-H / 1ea V-VUC(controller) / 1ea Output Cable / VUV-OC-0010 Signal Cable / 15Pin D-Sub 10m / 1ea 5m / 1ea Power Cable / PC-110-0018 AC 100V / 50,60Hz / 1.8m / 1ea 페이지 19 / 21... -
Page 20: External Dimensions
6. External dimensions ■ VUV head 페이지 20 / 21... - Page 21 ■ Controller 페이지 21 / 21...
