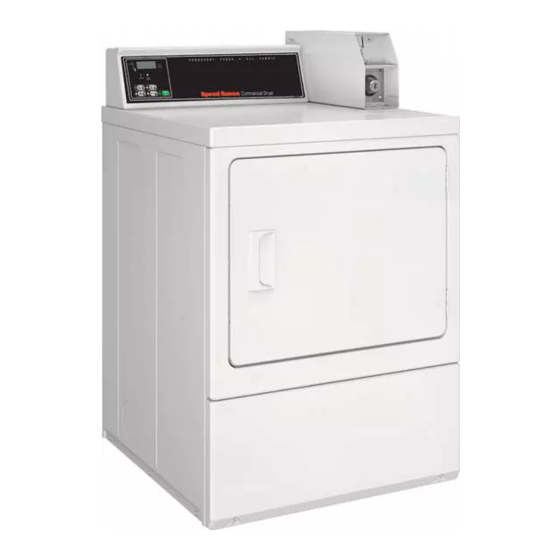

Summary of Contents for Alliance Laundry Systems SDE907

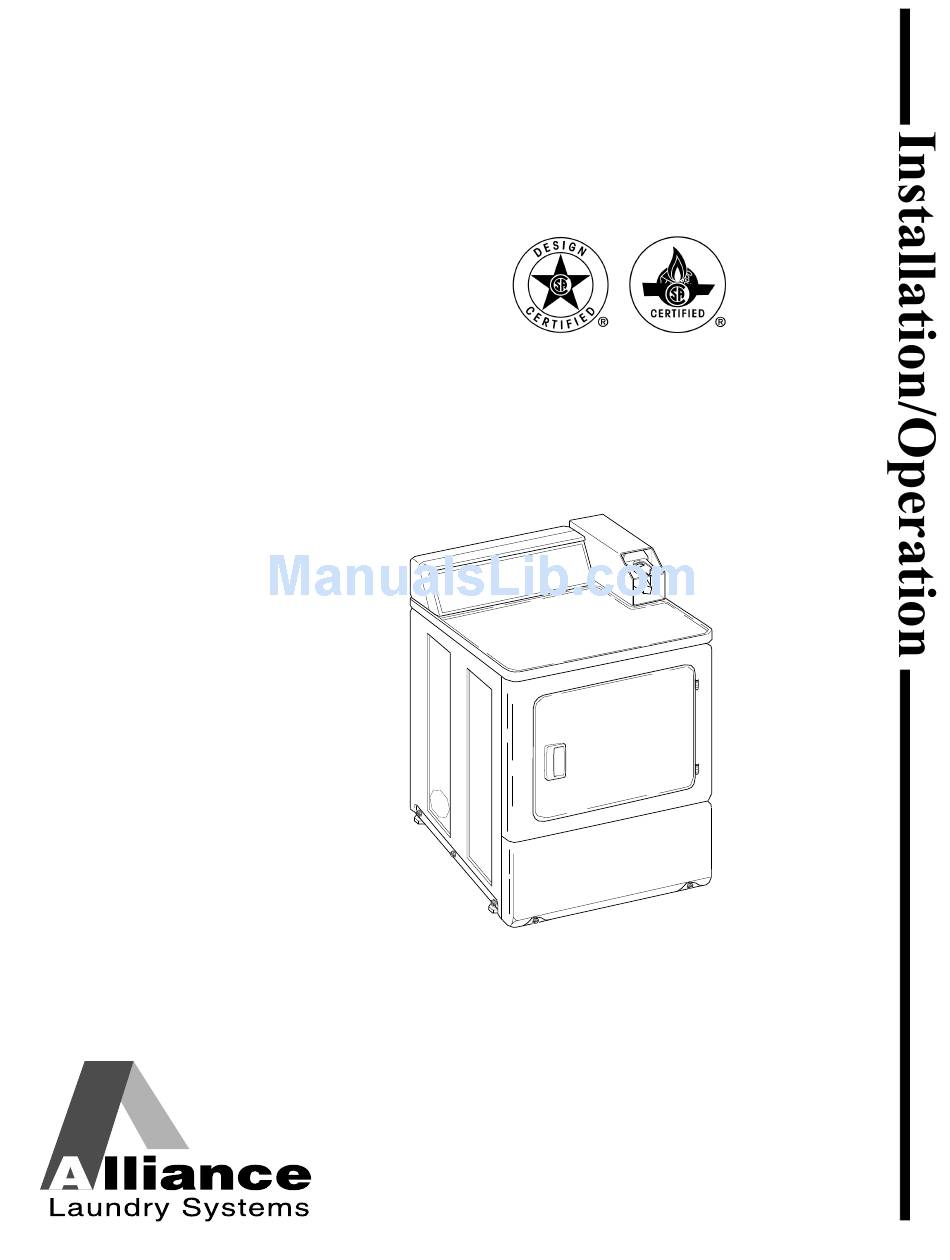

- Page 1 Clothes Dryer Nonmetered and Metered Electric and Gas Models D677I Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 512680R5 www.comlaundry.com September 2009...
- Page 3 • Install clothes dryer according to manufacturer’s instructions and local codes. • DO NOT install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type) duct is installed, it must be of a specific type identified by the appliance manufacturer as suitable for use with clothes dryers.
-
Page 4: Table Of Contents
Exhaust Direction... 12 Exhaust System ... 13 Multi-Dryer Installation Exhaust Requirements ... 14 Step 3: (Gas Dryer Only) Connect Gas Supply Pipe ... 16 Step 4: (Electric Dryer Only) Connect Electrical Plug ... 17 Step 5: Reverse Door, if Desired ... 23 Step 6: Wipe Out Inside of Dryer ... - Page 5 Step 2: Load Laundry... 35 Step 3: Close Loading Door... 35 Step 4: Set Fabric Selector ... 36 Step 5: Start Dryer ... 36 Operation Instructions for Electronic Display Control Dryers... 37 Step 1: Clean Lint Filter... 37 Step 2: Load Laundry... 37 Step 3: Close Loading Door...
-
Page 6: Safety Information
4. Do not allow children to play on or in the dryer. Close supervision of children is necessary when the dryer is used near children. This is a safety rule for all appliances. - Page 7 The dryer will stop tumbling when the door is opened. Do not use the dryer if it does not stop tumbling when the door is opened or starts tumbling without pressing the START mechanism.
-
Page 8: Installation
Dimensions Nonmetered Models 21.56 in. (54.8 cm) 8.0 in. (20.3 cm) 23.5 in. 28 in. (59.7 cm) (71.1 cm) *With leveling legs turned into base. 21.56 in. (54.8 cm) 8.0 in. (20.3 cm) 23.5 in. 28 in. (59.7 cm) (71.1 cm) *With leveling legs turned into base. -
Page 9: Metered Models
IMPORTANT: The dryer should have sufficient clearance around it for needed ventilation and for the ease of installation and servicing. For maximum drying performance, we recommend that more clearance be allowed around the dryer than the clearances that are listed throughout this manual. Installation DRY2096N... -
Page 10: Before You Start
Installation Before You Start Tools For most installations, the basic tools you will need are: Wrench Screwdrivers Level Teflon Tape Duct Tape Figure 1 NOTE: An 8 in. (20.32 cm) coin drawer is required for coin operated MDC and NetMaster models with standard capacity meter case. -
Page 11: Installing The Dryer
No other fuel burning appliance should be installed in the same closet with the dryer. The dryer must not be installed or stored in an area where it will be exposed to water and/or weather. The dryer needs sufficient clearance and an adequate air supply for proper operation and ventilation, and for easier installation and servicing. - Page 12 Installation FRONT VIEW (W/O CLOSET DOOR) Area Description Dryer sides and rear clearance Dryer top clearance Dryer front clearance Exhaust duct clearance to combustible material Weather hood to ground clearance Distance from floor or ceiling to hole edge Area of centered air openings in closet door *Louvered door with equivalent air openings is acceptable.
-
Page 13: Step 2: Connect Dryer Exhaust System
W604 W045 D333I D333I Locate dryer so exhaust duct is as short as possible. Be certain old ducts are cleaned before installing your new dryer. Use 4 inch (102 mm) diameter rigid or flexible metal duct. -
Page 14: Exhaust Direction
Blockage will decrease airflow through the dryer, thus reducing the efficiency of the dryer. Exhaust Direction The dryer can be exhausted to the outdoors through the back, left, right or bottom of the dryer. EXCEPTION: Gas dryers cannot be vented out the left side because of the burner housing. -
Page 15: Exhaust System
Exhaust System For best drying results, recommended maximum length of exhaust system is shown in Table 1. To prevent backdraft when dryer is not in operation, outer end of exhaust pipe must have a weather hood with hinged dampers (obtain locally). -
Page 16: Multi-Dryer Installation Exhaust Requirements
Installation Multi-Dryer Installation Exhaust Requirements Figure 6 shows a typical example of a multiple dryer installation. Note how each dryer has its own exhaust system vented to the central exhaust duct. 24 IN. (61 CM) MINIMUM CLEARANCE TO ROOF/GROUND 58786 Backdraft Damper (Available through your local authorized parts source) Clean Out Cover (Must be provided). - Page 17 Figure 7 To reduce the risk of fire and the accumulation of combustion gases, DO NOT exhaust dryer air into a window well, gas vent, chimney or enclosed, unventilated area, such as an attic, wall, ceiling, crawl space under a building or concealed space of a building.
-
Page 18: Step 3: (Gas Dryer Only) Connect Gas Supply Pipe
4 inch (10.2 cm) diameter VERTICAL duct system. This will prevent a backdraft when dryer is not in use, and will keep the exhaust air in balance within the central exhaust system. Step 3: (Gas Dryer Only) Connect Gas... -
Page 19: Step 4: (Electric Dryer Only) Connect Electrical Plug
NOTE: When connecting to a gas line, an equipment shut-off valve must be installed within 6 feet (1.8 m) of the dryer. An 1/8 in. NPT pipe plug must be installed as shown for checking inlet pressure. Refer to Figure 9. -
Page 20: Grounding Information
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT The dryer has its own terminal block that must be connected to a separate branch, 60 Hertz, single phase circuit, AC (alternating current) circuit, fused at 30 Amperes (the circuit must be fused on both sides of the line). - Page 21 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512680 D275I D006I FOUR-WIRE CONNECTION NOTE: DRYER IS SHOWN WITH ACCESS COVER REMOVED FOR ILLUSTRATION PURPOSES ONLY. NEVER OPERATE THE DRYER WITH ACCESS COVER REMOVED. Ground Wire Ground to Neutral Wire Neutral Terminal “L2”...
-
Page 22: Connecting Power Cord With Three-Wire Plug
NOTE: THE POWER CORD IS NOT SUPPLIED WITH THE ELECTRIC DRYER. TYPE OF POWER CORD AND GAUGE OF WIRE MUST CONFORM TO LOCAL CODES AND INSTRUCTIONS. THE METHOD OF WIRING THE DRYER IS OPTIONAL AND SUBJECT TO LOCAL CODE REQUIREMENTS. -
Page 23: Connecting Power Cord With Four-Wire Plug
6. Secure the strain relief to the power cord, or wires, where they enter the dryer cabinet. 7. Check the continuity of the ground connection before plugging the cord into an outlet. Use an... - Page 24 Installation 1. Disconnect power to dryer. 2. Remove access cover from rear of dryer. Figure 17 3. Remove ground screw and save for use in Step 5. Remove wire and use in Step 6. D697I Ground Screw Figure 18 4. Use a strain relief and insert end of power cord through power supply hole.
-
Page 25: Step 5: Reverse Door, If Desired
Step 5: Reverse Door, if Desired The door on this dryer is completely reversible. To reverse door proceed as follows: 1. Remove four hinge attaching screws. D675I Figure 21 2. Remove all nine screws. Figure 22 3. Pull bottom of door liner out, then pull down, removing door liner from door panel. -
Page 26: Step 6: Wipe Out Inside Of Dryer
When plugging in the dryer: Do not overload circuits. Do not use an adapter. Do not use an extension cord. Do not operate both a washer and gas dryer on D604I the same circuit. Use separetely fused 15 amp D604I circuits. - Page 27 Do not modify the plug provided with the dryer – if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
-
Page 28: Step 8: Recheck Steps 1-7
Step 9: Check Heat Source Electric Dryers Close the loading door and start the dryer in a heat setting (refer to the Operation section). After the dryer has operated for three minutes, the exhaust air or exhaust pipe should be warm. -
Page 29: Vending
Coin Slide Control (Coin Slide Models Only) Power-Up Mode When power is applied to the dryer, the control will enter the Ready Mode. If the control was powered down during a running a cycle, the IN USE LED will flash once and the control will enter Start Mode. If the dry time dipswitch settings have not been changed from factory default, the IN USE LED will flash once. -
Page 30: Error Display Mode
To reset the time, unplug the dryer and set dipswitch 8 to ON position. Restore power to the dryer for 10 seconds and once again unplug dryer. Set dipswitch 8 to OFF position and restore power to the dryer. -
Page 31: Dipswitch Settings
Dipswitch Settings Heat Time Per Coin Pulse (in minutes) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512680 Heat Switch Number Table 4 (continued) Vending... -
Page 32: Models Through Serial No. 0908
Vending Heat Time Per Coin Pulse (in minutes) 42 (preset at factory) Models Through Serial No. 0908 Cool Down Per Cycle (in minutes) 3 (preset at factory) Total Cycle Time = Heat Time + Cool Down Time © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Table 4 (continued) Heat Switch Number Cool Down Switch Number... -
Page 33: Models Through Serial No. 0909
Models Starting Serial No. 0909 Cool Down Per Cycle (in minutes) 3 (preset at factory) Total Cycle Time = Heat Time + Cool Down Time Test Setting When testing coin slide operation or other troubleshooting, set dipswitch with this shorter cycle: 1. -
Page 34: Slide Extension
Vending Slide Extension (Coin Slide Models with Standard Capacity Metercase Only) NOTE: Models with high capacity metercase require a coin slide with a switch installed on it. 1. Remove slide extension parts from parts accessories bag included in unit. 2. If installing a Greenwald coin slide, position extension lever (to be installed on extension bracket) with arm that has one star facing down. - Page 35 Installing Extension Onto Coin Slide: Option 1 1. Install slide extension onto top of coin slide using two remaining screws and lockwashers. Refer to Figure 37. Lockwashers Coin Slide Figure 37 2. Insert coins and partially extend coin slide. 3. Insert coin slide on its side through meter case opening.
-
Page 36: Copyright, Alliance Laundry Systems Llc – Do Not Copy Or Transmit
Vending Additional Dryer Security Located on the service door of the dryer is a flat Phillips head screw. During shipment, this screw is used to attach the service door to the meter case. For additional security, this screw can be reinstalled inside the control hood of your dryer. -
Page 37: Operation
IMPORTANT: To avoid damage to dryer, do not use more than one fabric softener sheet per load. W727 Step 3: Close Loading Door Close loading door. Dryer will not operate with the door open. D608I D609I D609I... -
Page 38: Step 4: Set Fabric Selector
Remove knits when slightly damp because overdrying may cause shrinkage. Do not tumble dry knit woolens. DRY2185N Should dryer stop before cycle is completed, the motor overload protector may have cycled. Refer to Maintenance section. NOTE: This machine includes an extended tumble feature. -
Page 39: Operation Instructions For Electronic Display Control Dryers
IMPORTANT: To avoid damage to dryer, do not use more than one fabric softener sheet per load. W727 Step 3: Close Loading Door Close loading door. Dryer will not operate with the door open. D608I D608I Operation... -
Page 40: Step 4: Set Fabric Selector
DO NOT REMOVE THE CARD UNTIL DISPLAY READS “Remove Card.” If Additional Time Feature is turned on, additional dryer time may be purchased at cycle start or while dryer is running. Remove knits when slightly damp because overdyring may cause shrinkage. Do not tumble dry knit woolens. -
Page 41: Step 6: Start Dryer
Step 6: Start Dryer To start dryer, push START pad. To stop dryer at any time, open the door. To restart the dryer, close door and push START pad. Cycle is completed when time remaining reaches 00 minutes. Figure 52... -
Page 42: Operation Instructions For Mdc Dryers
IMPORTANT: To avoid damage to dryer, do not use more than one fabric softener sheet per load. W727 Figure 54 Step 3: Close Loading Door Close loading door. Dryer will not operate with the door open. D608I Figure 55 D609I... -
Page 43: Step 4: Set Fabric Selector
Do not tumble dry knit woolens. Step 6: Start Dryer To start dryer, push START pad. To stop dryer at any time, open the door. To restart the dryer, close door and push START pad. Cycle is completed when time remaining reaches 00 minutes. -
Page 44: Operation Instructions For Netmaster Dryers
IMPORTANT: To avoid damage to dryer, do not use more than one fabric softener sheet per load. W727 Step 3: Close Loading Door Close loading door. Dryer will not operate with the door open. D608I D608I D609I... -
Page 45: Step 4: Set Fabric Selector
Insert card into opening. Do not remove the card until the REMOVE CARD LED is lit. If Additional Time Feature is turned on, additional dryer time may be purchased at cycle start or while dryer is running. Remove knits when slightly damp because overdrying may cause shrinkage. -
Page 46: Step 6: Start Dryer
Operation Step 6: Start Dryer To start dryer, push START pad. To stop dryer at any time, open the door. To restart the dryer, close door and push START pad. Cycle is completed when time remaining reaches 00 minutes. Figure 66 ©... -
Page 47: Maintenance
To remove crayon or ball point ink off the dryer drum, put the heat on high and use old rags in the dryer to absorb the crayon or ink. If unsuccessful, contact the appliance dealer. DO NOT use any chemicals in the dryer. -
Page 48: Lint Filter
Use the correct temperature FABRIC SELECTOR setting for the type of fabric being dried. Locate your dryer so the exhaust duct is as short and straight as possible. Do not open the door during the drying cycle. -
Page 49: Troubleshooting
Make sure controls are in a HEAT setting. Gas dryer only – Make sure equipment and main gas line valve is turned on. Check exhaust duct to outside to see if it is kinked, blocked or needs cleaning. -
Page 50: Contact Information
If replacement parts are required, contact the source from which you purchased your dryer or contact us at (920) 748-3950 for the name and address of the nearest authorized parts distributor. -
Page 52: Fast Track For Installing The Dryer
Installer Checklist Fast Track for Installing the Dryer (Refer to the manual for more detailed information) • Position and Level the Dryer. LEVEL D255I D255I CHECK • Connect Dryer Exhaust System. D333I D333I CHECK GAS ONLY • Connect Gas Supply Pipe Hoses.
