Speco VM-2001B Specifications

Specifications subject to change
Speco Technologies 200 New Highway, Amityville, NY 11701 Web: www.specotech.com
Toll Free: 1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880

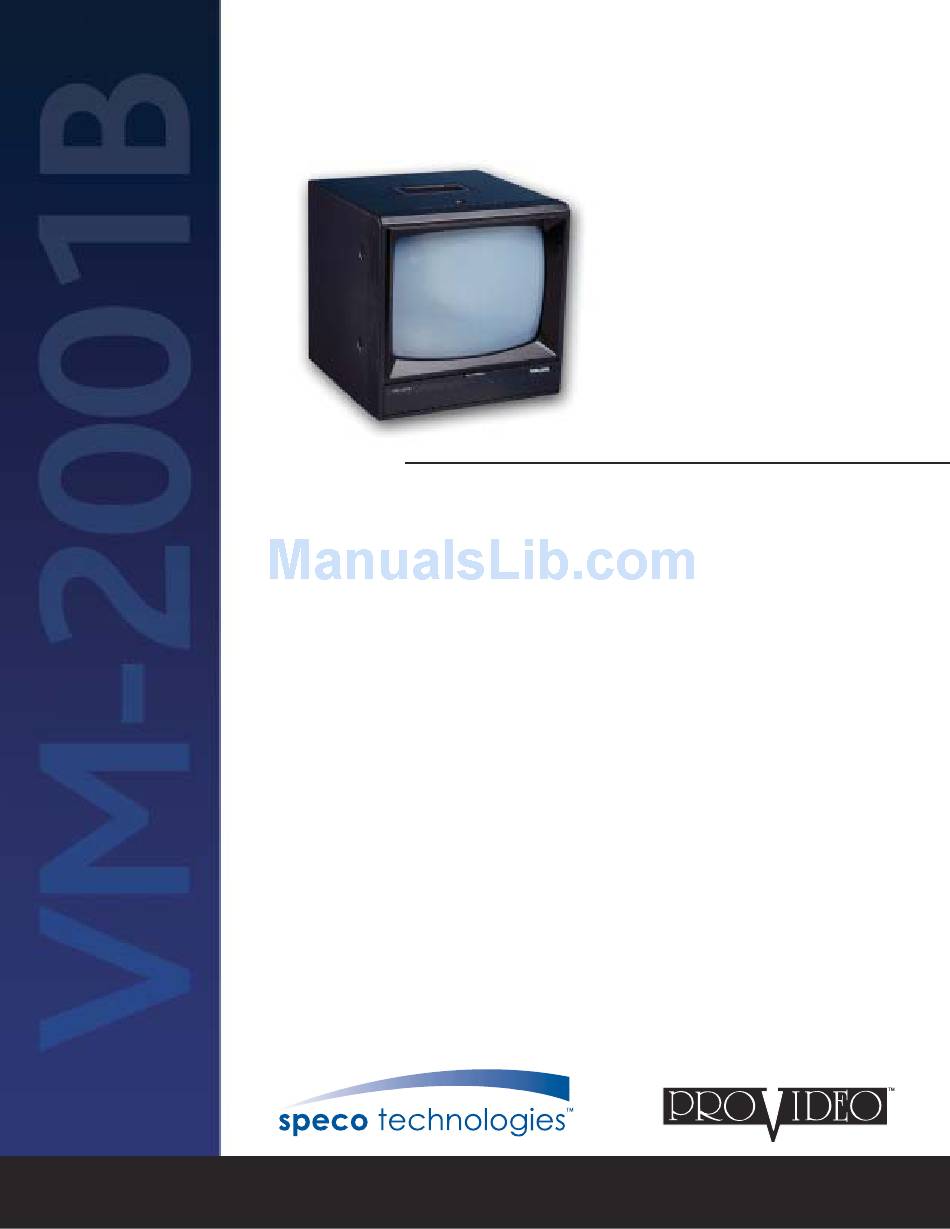

VM-2001B
20" High Resolution B/W Monitor

Specifications

General Construction
Weight
Electrical Input Voltage
Power Consumption
Input Signal
Input Impedance
Bandwidth
Video Gain
Center Resolution
Corner Resolution
Horizontal Linearity
Vertical Linearity
Overscan
Operation System
Horizontal EIA
Vertical EIA
Horizontal CCIR
Vertical CCIR
Video (In/Out) Connections
Audio (In/Out)
Audio Input Signal
Audio Amplifier
Environmental
Operation Temperature
Storage Temperature
Humidity
Dimensions
Front Control
Certifications
For more information contact us at:
The VM-2001B is a high resolution monochrome
video monitor perfect for security and
surveillance applications. It is intended for use in
CCTV applications requiring a large screen display
and the resolution of fine image detail. This
monitor provides crisp, clear, large-screen images
that allow you to observe the details in smaller
video inset boxes common on quad and
multiplexer displays. The cabinet is made of steel
for ruggedness and durability. The VM2001B also
features looping video input/output. Controls for
brightness, contrast, horizontal hold, vertical hold
and AC power on/off are conveniently located
behind a protective front panel door.
Steel cabinet with plastic front panel
N.W./G.W.: 19.5kg/22kg
96~256 Vac 50/60Hz
48w
0.5 to 2.0 Vp-p composite video,
negative synchronization
75 ohms or high (switchable)
100 Hz to 10 MHz
30 db
1,000 lines
800 lines
15% maximum
10% Maximum
<10%
15,750 Hz ± 400 Hz
60 Hz
15,625 ± 400 Hz
50 Hz
BNC x 2
RCA Jack x 2
10 ~ 150mVp-p
1W/8 ohm (Inc. a speaker)
14 to 122˚F
-4 to 158˚F
30-90%RH
18.6" (W) x 18.7" (H) x 14.2" (D)
Power On/Off push button switch
H-Hold/V-Hold/Contrast/Bright: rotary control
Volume: rotary control
UL, CE, CSA, FDA, FCC, CUL, TUV
