Using the appliance
3

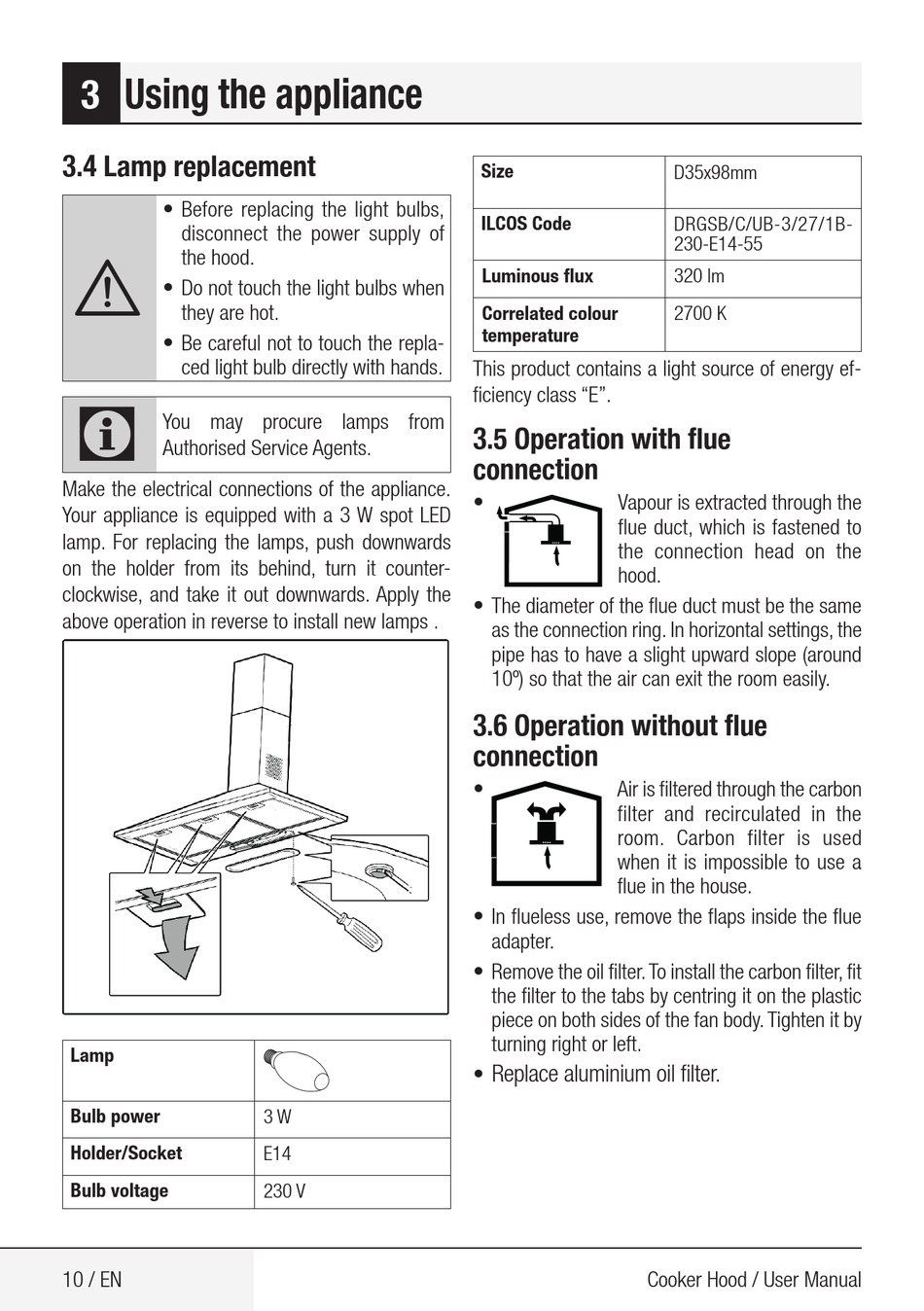

3.4 Lamp replacement

• Before replacing the light bulbs,
disconnect the power supply of
the hood.
A
• Do not touch the light bulbs when
they are hot.
• Be careful not to touch the repla-
ced light bulb directly with hands.
C
You may procure lamps from
Authorised Service Agents.
Make the electrical connections of the appliance.
Your appliance is equipped with a 3 W spot LED
lamp. For replacing the lamps, push downwards
on the holder from its behind, turn it counter-
clockwise, and take it out downwards. Apply the
above operation in reverse to install new lamps .
Lamp
Bulb power
Holder/Socket
Bulb voltage
10 / EN
3 W
E14
230 V
Size
ILCOS Code
Luminous flux
Correlated colour
temperature
This product contains a light source of energy ef-
ficiency class "E".
3.5 Operation with flue
connection
•
Vapour is extracted through the
flue duct, which is fastened to
the connection head on the
hood.
• The diameter of the flue duct must be the same
as the connection ring. In horizontal settings, the
pipe has to have a slight upward slope (around
10º) so that the air can exit the room easily.
3.6 Operation without flue
connection
•
Air is filtered through the carbon
filter and recirculated in the
room. Carbon filter is used
when it is impossible to use a
flue in the house.
• In flueless use, remove the flaps inside the flue
adapter.
• Remove the oil filter. To install the carbon filter, fit
the filter to the tabs by centring it on the plastic
piece on both sides of the fan body. Tighten it by
turning right or left.
Replace aluminium oil filter.
•
Cooker Hood / User Manual
D35x98mm
DRGSB/C/UB-3/27/1B-
230-E14-55
320 lm
2700 K
