WESTERSTRAND AUREA III Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
WESTERSTRAND URFABRIK AB
P.O. Box 133
SE-545 23 TÖREBODA
WESTERSTRAND
Instructions
AUREA III
Tel. +46 506 48000
Fax. +46 506 48051
Internet::
http://www.westerstrand.se
E-mail:
info@westerstrand.se
Document: DOK11071en05
Author: TAn
Date: 2022-04-20
Page: 1 of 16

Advertisement

loading
Need help?

Need help?

Do you have a question about the AUREA III and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WESTERSTRAND AUREA III

Summary of Contents for WESTERSTRAND AUREA III

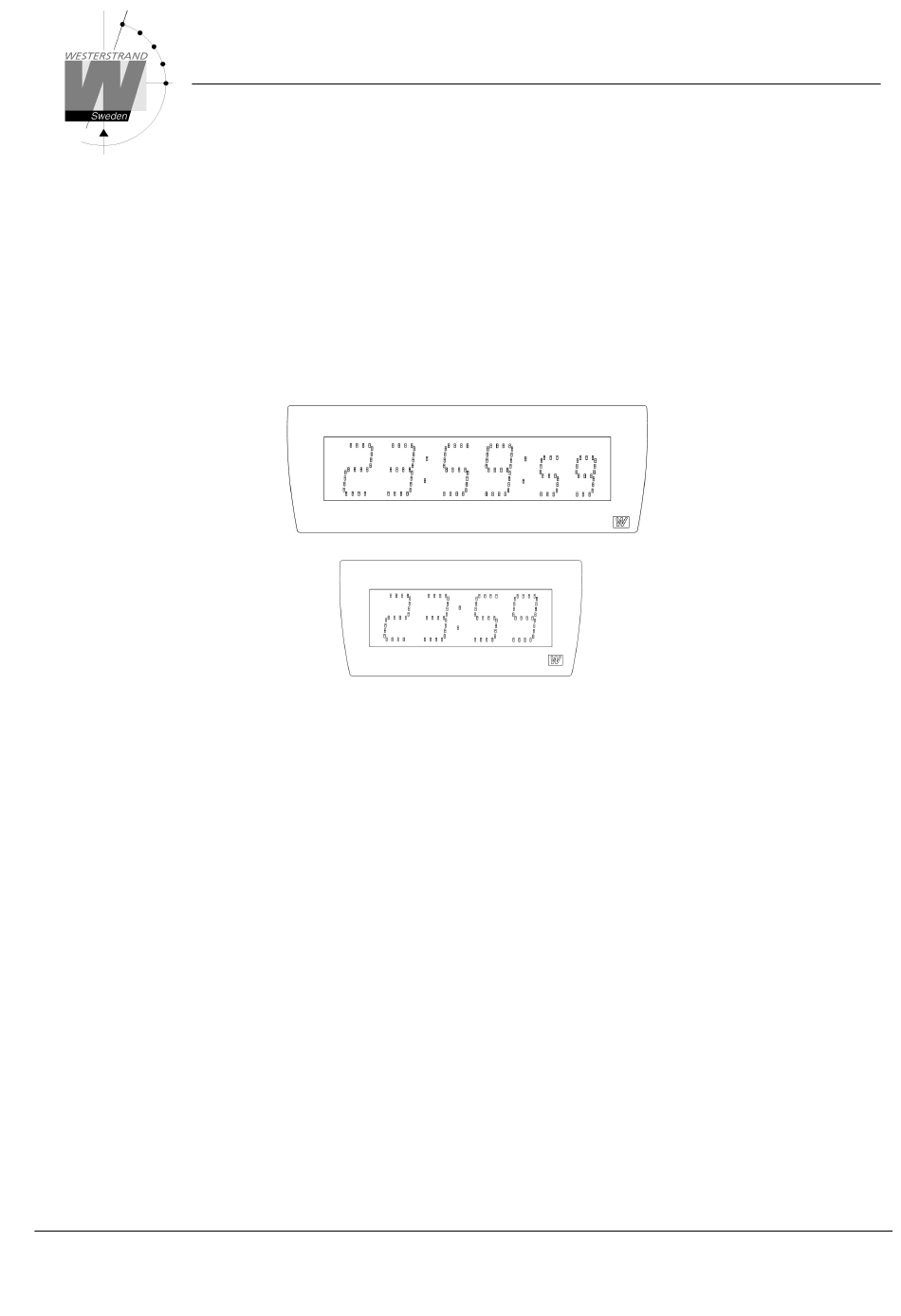

  • Page 1 Document: DOK11071en05 WESTERSTRAND Author: TAn Date: 2022-04-20 Page: 1 of 16 Instructions AUREA III WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA Fax. +46 506 48051 E-mail: info@westerstrand.se...
  • Page 2 48 hours. After power failure the display is turned on and correct time is shown. If not specified in order the clocks are preset from factory in impulse Synchronisation mode. WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se...

  • Page 3: Installation Wall Mounted

     Unscrew 4 screws, 2 pieces at each side.  Remove the back plate from the casing and mount it on the wall using 4 screws suitable for the wall material. AUREA III with second AUREA III without second WESTERSTRAND URFABRIK AB P.O.
  • Page 4 (2-polar, 3mm contact gap).  Connect the flat ribbon cable and assemble the front.  Set the digital clock. See Programming. WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se...
  • Page 5 Author: TAn Date: 2022-04-20 Page: 5 of 16 Connection The connections are made on the inside of the back plate (see below.) AUREA III with second Connection Synchronisation wire TC/MIN-imp 3,4 DCF 2-line 3 – V+, 5 – GND DCF 3-line 3 –...
  • Page 6 Document: DOK11071en05 WESTERSTRAND Author: TAn Date: 2022-04-20 Page: 6 of 16 AUREA III without second Connection Synchronisation wire TC/MIN-imp 3,4 DCF 2-line 3 – V+, 5 – GND DCF 3-line 3 – V+,4- DCF, 5 – GND WESTERSTRAND URFABRIK AB P.O.
  • Page 7 Author: TAn Date: 2022-04-20 Page: 7 of 16 Strapping/DIP switch setting for TC / MIN-impulse (default) Strapping/DIP switch setting for DCF-radio (2 –wire) computer board WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA Fax.
  • Page 8 ½ Min impulse synchronisation. TC/Min impulse synchronisation or DCF synchronisation. (default) Dip 7: OFF always OFF Dip 8: OFF always OFF WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA Fax. +46 506 48051 E-mail: info@westerstrand.se...
  • Page 9 Set the clock for synchronisation, function DCF See programming page 11. When a correct time message appears, the clock sets the time. The clock will blink colon when it is in sync and accepts transmitted code. WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se...
  • Page 10 Document: DOK11071en05 WESTERSTRAND Author: TAn Date: 2022-04-20 Page: 10 of 16 Connection temperature sensor (this is an option). AUREA III with second AUREA III without second Temperature sensor connection 1. Brown 2. Black 5. Screen WESTERSTRAND URFABRIK AB P.O. Box 133 Tel.
  • Page 11 The programming is made by push buttons (see below). R (Return) Enter the base mode (display time) F (Function) Next function / Accept displayed value P (Program) Enter the displayed function / Increase displayed value. WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se...

  • Page 12: Programming Time

    Push [P] until desired minute (00-59). Push [F] for synchronisation and the clock starts Display shows: ti ne Push [R]. The Programming is finished. 12 : 07 Display shows: WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA Fax.
  • Page 13 TC or DCF Impulse synchronisation InSy Impulse slave InSL Push [R] for entering base mode or push [F] for next function. WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA Fax. +46 506 48051 E-mail: info@westerstrand.se...
  • Page 14 C1 0 Display shows: Push [P] for desired correction value ( 9 ˚C). Accept with [F]. Push [R] for entering base mode or push [F] for next function. WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA...
  • Page 15 Display shows: 12 hour format 24 hour format Push [P] for desired format. Push [R] for entering base mode or push [F] for next function. WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA Fax.

  • Page 16: Technical Specification

    Measure range temperature –30 ˚ - +60˚ sensor  1 ˚ C Accuracy temperature sensor Temperature measurement Once per minute WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA Fax. +46 506 48051 E-mail:...
