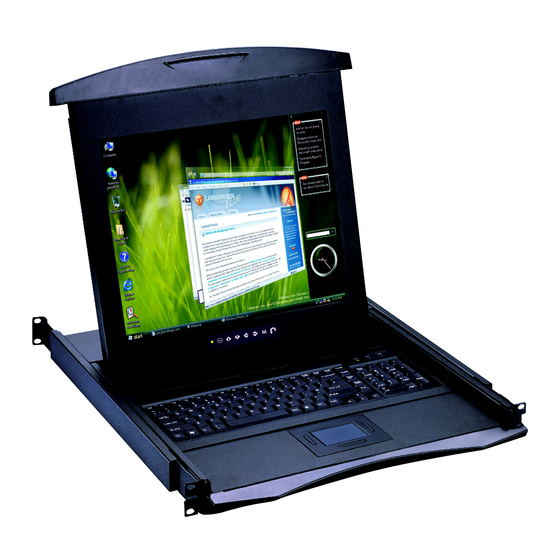

- Page 1 User Manual N Series 1U LCD Keyboard Drawer 17", 19" screen size Models N117 / 119 Series - With KVM options Models N1417 / 1419 Series - Short depth version - Without KVM options...
-
Page 3: Table Of Contents
Contents Chapter 1 Getting Started Important Safeguards............1 Regulatory Notice..............2 Package Contents...............3 Before Installation..............4 Unpacking................4 Optional Accessories............4 Peripheral Products.............5 Structure Diagram...............5 Installation................6 1.10 How to Use "N" Series LCD Keyboard Drawer....7 1.11 How to Use the Slides............8 1.12 How to Use "One Man" Installation Slides ....9-11 1.13 Connect to Server via USB Interface........12 1.14... -
Page 4: Important Safeguards
Chapter 1 1.1 Important Safeguards Please read all of these instructions carefully before you use the device. Save this manual for future reference. What the warranty does not cover ■ Any product, on which the serial number has been defaced, modifi ed or removed. ■... -
Page 5: Regulatory Notice
Chapter 1 1.2 Regulatory Notice Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment. -
Page 6: Package Contents
Chapter 1 1.3 Package Contents LCD keyboard drawer x 1 pc Fasteners for rear L-bracket x 4 pcs 330mm rear mounting L-bracket x 1 pair * N117 / 119 series mounting depth-adjustable from 315 to 880mm * N1417 / 1419 series mounting depth-adjustable from 140 to 710mm CB-6 2-in-1 USB KVM cable x 1 pc CD-6 3-in-1 PS/2 KVM cable x 1 pc User manual x 1 pc... -
Page 7: Before Installation
Chapter 1 1.4 Before Installation ■ It is very important to locate the LCD Keyboard Drawer in a suitable environment. ■ The surface for placing and fi xing the LCD Keyboard Drawer should be stable and level or mounted into a suitable cabinet. -
Page 8: Peripheral Products
Chapter 1 1.7 Peripheral Products Item Model No. Description IP-802 / IP-1602 8 / 16-port IP PS/2 KVM CV-802 / CV-1602 8 / 16-port two console PS/2 KVM DB-15 KVM CV-401 / CV-801 / CV-1601 4 / 8 / 16-port PS/2 KVM CV-S801 / CV-S1601 8 / 16-port USB KVM UIP-1602 / UIP-3202... -
Page 9: Installation
Chapter 1 1.9 Installation ■ Install each rear L-bracket using two fasteners shown in Figure 1. ■ Leaving the fasteners slightly loose. Figure 1. Installing the rear L-bracket to the LCD keyboard drawer. ■ Measure the front and rear mounting depth of the rack. -
Page 10: How To Use "N" Series Lcd Keyboard Drawer
Chapter 1 1.10 How to Use "N" Series LCD Keyboard Drawer ■ Gently pull the tab toward the front of the LCD shown in Figure 4. Figure 4. Pulling the tab toward the front of LCD. ■ Flip up the LCD to a suitable angle shown in Figure 5. Figure 5. -
Page 11: How To Use The Slides
Chapter 1 1.11 How to Use the Slides ■ A white arrow release button is located on the outside of each slide (shown in Figure 7). Figure 7. White arrow button. ■ Push the white arrow button on either side of the LCD keyboard drawer to unlock (shown in Figure 8). -
Page 12: How To Use "One Man" Installation Slides
Chapter 1 1.12 How to Install "One Man" Installation Slides Package Contents Model No : NBK-01 Mounting bracket x 2 pcs Front mounting ear (left & right) x 2 pcs Support bracket x 4 pcs M6 cage nut x 6 pcs M6 washer x 8 pcs M6*15mm screw x 8 pcs M3.2*4.5mm screw x 14 pcs... - Page 13 Chapter 1 1.12 How to Install "One Man" Installation Slides Install into rack Model No : NBK-01 ■ Attach the mounting bracket to vertical mounting rails. ■ Adjust the rear mouting bracket to fi t your rack. ■ Repeat the above steps for the other side Leaving the screws slightly Caution : loose (Not release).
- Page 14 Chapter 1 1.12 How to Install "One Man" Installation Slides Install into rack Model No : NBK-01 ■ Hold down the white arrow button and push the chassis to the end. ■ Attach left and right mounting ears to vertical mounting rails. ■...
-
Page 15: Connect To Server Via Usb Interface
Chapter 1 1.13 Connect to Server via USB Interface Figure 10. Example of connecting CB-6 2-in-1 USB KVM cable to server via USB interface 1.14 Connect to KVM via USB Interface Figure 11. Example of connecting CB-6 2-in-1 USB KVM cable to KVM via USB interface Remarks : ■... -
Page 16: Connect To Server Via Ps/2 Interface
Chapter 1 1.15 Connect to Server via PS/2 Interface Figure 12. Example of connecting CD-6 3-in-1 PS/2 KVM cable to server via PS/2 interface 1.16 Connect to KVM via PS/2 Interface Figure 13. Example of connecting CD-6 3-in-1 PS/2 KVM cable to KVM via PS/2 interface Remarks : ■... -
Page 17: On-Screen Display Operation
Chapter 2 2.1 On-screen Display Operation 17" & 19" LCD membrane Membrane Switch Function Power light Green = On Orange = Power saving Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control Exit the OSD screen Shortcut key to auto adjustment by pressing the button for 5 seconds Toggle analog, digital &... -
Page 18: On-Screen Menu
Chapter 2 2.2 On-screen Menu MAIN MENU BRIGHTNESS/CONTRAST AUTO ADJUST PHASE/CLOCK H/V POSITION MISC RESET BRIGHTNESS / CONTRAST Brightness: Adjust background black level of the screen image. Contrast: Adjust the difference between the image background (black level) and the foreground (white level). AUTO ADJUST Auto Adjust: Fine tunes the video signal to eliminate waviness and distortion. -
Page 19: Specifi Cations
Chapter 3 3.1 Specifi cations Item Description 1U rack mounting on slide-out rails Form Factor LCD Manufacturer 17" TFT 19" TFT Diagonal Size 1280 x 1024 1280 x 1024 Max. Resolution Brightness (cd/m²) 16.7 Mil. 16.7 Mil. Color Support 1000:1 1000:1 Contrast Ratio (typ.) 160˚... - Page 20 Chapter 3 3.2 Keyboard & Mouse Supporting layouts N keyboard integrated with N keyboard integrated with touchpad trackball P.17...
-
Page 21: Kvm Options
Chapter 4 4.1 KVM Options Our KVM is designed to seamlessly integrate into the rear of our full range of LCD drawer solutions: ■ For KVM operation, please refer to "Integrated LCD KVM Switch" user manual ■ Option with high density Cat5 KVM with either 16 or 32 ports ■... -
Page 22: S-Video + Bnc Input Option
Chapter 4 4.4 S-Video + BNC Input Option 3-in-1 VGA KB mouse Internal power version S-Video BNC console port External power version Remarks : ■ Package includes an extra 6ft S-Video cable P.19... -
Page 23: On-Screen Menu For Dvi, Bnc, S-Video & Rca Input
Chapter 4 4.5 On-screen Menu for DVI, BNC, S-Video & RCA Input Image Brightness: Adjust background black level of the screen image Contrast: Adjust the difference between the image background (black level) and the foreground (white level) Sharpness: Adjust the image from weak to sharp Saturation: Adjust the saturation of the image color Hue:... - Page 24 Chapter 4 4.5 On-screen Menu for DVI, BNC, S-Video & RCA Input Display mode Main menu Sub menu S-Video √ √ √ √ Brightness √ √ √ √ Contrast √ √ √ √ Image Sharpness √ √ Saturation √ √ √...
-
Page 25: Dc Power Options
Chapter 4 4.6 DC Power Options Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA Output rating... -
Page 26: Chapter 5 Troubleshooting
Chapter 5 5.1 Troubleshooting 1. How do I adjust the resolution? To change monitor resolution, click Start -> Control Panel -> Display. Select Setting tab to adjust the monitor resolution in Desktop Area. The available resolutions, "640 x 480", "800 x 600", "1024 x 768", "1152 x 864", "1280 x 1024", are deter- mined by the display card in your computer. -
Page 27: Chapter 6 Dimensions
51 lb 442 x 480 x 44 mm 581 x 705 x 175 mm 15 kg 19 kg N1417 series 17.4 x 18.9 x 1.73" 22.9 x 27.8 x 6.9" 33 lb 42 lb 442 x 480 x 44 mm... - Page 28 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2008 Austin Hughes Electronics Ltd. All rights reserved. CV-N6-0308V5...
