Operation & Installation Instructions
GEN5-8R12
GEN4-8R1
SYSTEM
GEN5-8R1
Rated Flow
1st Filter
Sediment 10" Sediment 10"
2nd Filter
N/A
3rd Filter
N/A
OWNER'S MANUAL
GENH4-13R22
AQUA FLO - Rack-Mount Systems
GEN4-8R12
GENH4-13R2
GEN5-8R12
GENH5-13R2
8.0 GPM
Sediment 20"
Carbon 20"
N/A
GENH4-13R22
GENH5-13R22
15.0 GPM
Sediment 20"
N/A
Carbon 20"
N/A
N/A
GENH5-13R122
GENH4-13R122
GENH4-13R222
GENH5-13R122
GENH5-13R222
Mesh strainer
Sediment 20"
10"
Scale reduction
Sediment 20"
20"
Carbon 20"
Carbon 20"
Advertisement
Table of Contents
Related Manuals for Aqua Flo GENH4-13R122
Summary of Contents for Aqua Flo GENH4-13R122

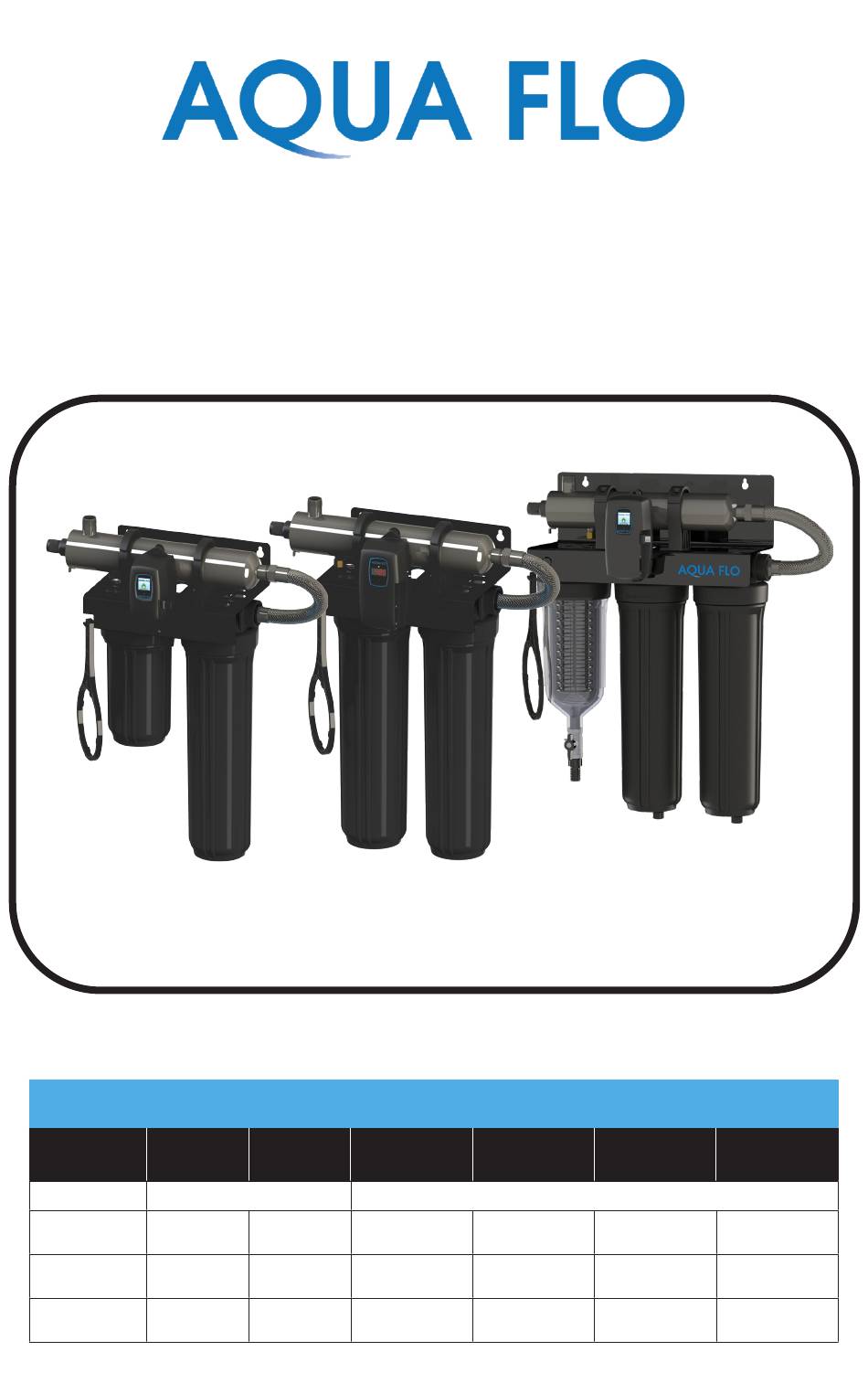

- Page 1 OWNER’S MANUAL Operation & Installation Instructions GEN5-8R12 GENH4-13R22 GENH5-13R122 AQUA FLO - Rack-Mount Systems GEN4-8R1 GEN4-8R12 GENH4-13R2 GENH4-13R22 GENH4-13R122 GENH4-13R222 SYSTEM GEN5-8R1 GEN5-8R12 GENH5-13R2 GENH5-13R22 GENH5-13R122 GENH5-13R222 Rated Flow 8.0 GPM 15.0 GPM Mesh strainer 1st Filter Sediment 10” Sediment 10”...
- Page 2 Congratulations on purchasing this AQUA FLO® UV Disinfection system P a g e |...
-
Page 3: Table Of Contents
Lamp Replacement (GEN4 systems) ........19 Lamp Replacement (GEN5 & GEN6 systems) .......19 QR Codes ................19 System Troubleshooting............20 Temperature Management Devices ..........21 Expansion Modules ................22 AQUA FLO Rack-Mount UV System Specifications ......23 Limited Warranty Statement: ............24 Warranty Registration ..............25 P a g e |... -
Page 4: Safety Considerations
Safety Considerations It is important that care is taken when operating and/or maintaining your system. Please read the instructions • The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. -
Page 5: Before You Begin
80% for pre-treatment recommendations) You can have your water tested at a private analytical laboratory or by your local dealer. It is always recommended to install pre-filtration of at least 5 microns prior to a AQUA FLO UV disin- fection system. -
Page 6: Assembly
Assembly Unpack the system and ensure all the components are included with the system. Your system is shipped with the following components: AQUA FLO (Standard/High output lamp systems) P a g e |... -
Page 7: System Sizing
System Sizing The AQUA FLO rack-mount UV system is designed as a do-it-yourself (DIY) system with a single inlet and outlet port. This system comes fully assembled with the exception of a single stainless steel hose connection that comes unattached, yet fully taped for easy installation. PLEASE NOTE that increasing the flow above this rating or disinfecting water that does not meet the quality parameters will decrease the dose and therefore compromise the efficacy of the system. -
Page 8: Orientation
Orientation This system has the ambidextrous capability of being able to have the main water inlet enter from either the left hand side or right hand side of the unit. The units comes pre plumbed from the factory for a left hand water inlet. To change to a right hand water inlet follow these simple steps (See Figure 2): Step 1: Remove the blue filter sump housings (either one or two housings depending on the... -
Page 9: Installation
For water supplies where the maximum flow rate is unknown, a flow restrictor is rec- ommended so that the rated flow of your particular AQUA FLO system is not exceeded. The flow restrictor should be installed on the inlet port of the reactor. - Page 10 Step 9: Install the filter cartridges in their appropriate housings. For the AQUA FLO branded products, please refer to the chart located on page 12 of this manual. PLEASE NOTE: This chart indicates the correct cartridge position for the default “left-hand” orientation with the water inlet located on the left side of the rack system.
- Page 11 while the system is filling up with water, it is a good idea to physically depress the red pressure relief button located on the top of the filter head. Simply depress the button down, venting the air, until water appears at the button. If the system has two filters, perform this function on the housing closest to the water inlet first and then on the next filter in sequence.
-
Page 12: System Preparation
Step 4: Reinstall the filter cartridge into the sump and flush the chlorine solution by opening all faucets until chlorine can no longer be detected. Your AQUA FLO system is ready to use. Cleaning the Quartz Sleeve Depending on the water quality, the quartz sleeve may require periodic cleaning. At a minimum, the quartz sleeve should be cleaned on an annual basis. -
Page 13: Cleaning The Uv Sensor
Step 5: Remove the lamp connector from the reactor (gland nut) by pushing the lamp connec- tor in and turning it ¼ turn counter-clockwise. Disconnect the lamp connector from the lamp. CAUTION: the lamp may be hot! Step 6: Being careful to touch only the ceramic ends, remove the lamp out of the reactor. Step 7: Unscrew the gland nut from the reactor exposing the end of the quartz sleeve. - Page 14 Step 1: Ensure that an appropriate drain line or bucket is below the system. The drain line should be no more than 2m (6ft) in length. Step 2: Open the drain valve for 15-20 seconds. This generates a pressure-drop in the filter that pushes the cartridge downward, automatically reversing water flow from the inside (counter- current) out of the cartridge.
-
Page 15: Operation
(ballast) and control features in one water-tight case. Four main controllers are available for the AQUA FLO systems (depending on your model). All four models feature a power factor corrected, constant current lamp driver with a universal power input. -
Page 16: Gen4 Controllers
When the UV lamp is not on or the lamp life has expired, the LED will be illuminated red and an audible buzzer will be sounding. To remedy this condition, the UV lamp must be replaced with a new genuine AQUA FLO UV lamp. GENH4 GEN4... -
Page 17: Gen5 Operational Screens
On systems without the UV monitor, the default screen shows the AQUA FLO Home Screen. At any point during operation the user is able to scroll through the AQUA FLO Home Screen, Lamp life remaining, QR Code, Contact Info and Maintenance Parts screens by pressing the button located on the front of the controller. -
Page 18: Lamp Countdown Sequence
audible chirp every audible chirp every constant audible cycles with red low 15 seconds 15 seconds alarm uv screen Lamp Countdown Sequence The system counts down the number of days until a lamp change is required. GEN5 / GEN6 GEN4 At thirty days remaining, the LED or display screen will change to a yellow caution indicator. -
Page 19: Lamp Replacement (Gen4 Systems)
(i.e. How to change a UV lamp or quartz sleeve). To access the QR code on the AQUA FLO controller, press the control button until the QR code screen appears. -
Page 20: System Troubleshooting
System Troubleshooting Hard Alarms: The following give a constant audible alarm. If present, the solenoid valve is closed, and the 4-20, remote alarm and WiFi modules transmit the alarm. System Display Problem Resolution Reset lamp protection circuit -unplug unit for 10 seconds. The system has detected Replace the lamp with the a problem with the... -
Page 21: Temperature Management Devices
Warning: After any hard alarm, the home or facility should be disinfected. Follow the steps un- der the “System Disinfection” heading. Boil Water Advisory: If any failure occurs on an AQUA FLO UV system, the water must not be used for human consumption until the system is returned to a safe operational mode. -
Page 22: Expansion Modules
“daisy chain” configuration. The following optional expansion modules are available for use on AQUA FLO UV controllers. Contact your authorized distributor for purchasing information. -
Page 23: Aqua Flo Rack-Mount Uv System Specifications
AQUA FLO Rack-Mount UV System Specifications AQUA FLO EQUIPMENT SPECIFICATIONS RACK-MOUNT UV SYSTEMS GEN4-8R1 GEN4-8R12 GENH4-13R2 GENH4-13R22 (40030061N) (40030062N) (40030063N) (40030064N) GENH4-13R122 GENH4-13R222 MODEL GEN5-8R1 GEN5-8R12 GENH5-13R2 GENH5-13R22 GENH5-13R122 GENH5-13R222 (40030050N) (40030051N) (40030052N) (40030053N) 8.0 gpm 15.0 gpm Flow Rate 30.3 lpm... -
Page 24: Limited Warranty Statement
AQUA FLO are subject to the warranty provided by the manufacturer of said products and not by AQUA FLO’s warranty. AQUA FLO will not be liable for damage or wear to products caused by abnormal operating conditions, accident, abuse, misuse, unauthorized alteration or repair, or if the product was not installed in accordance with AQUA FLO’s printed... -
Page 25: Warranty Registration
TO GET WARRANTY SERVICE Please contact the Dealer or Distributor where the product was originally purchased to obtain service under this warranty. Your Dealer / Distributor will obtain a Warranty Return Authoriza- tion and will then need to return the product to Canature, together with proof of purchase and installation date, failure date, and supporting installation data. - Page 26 P a g e |...
- Page 27 P a g e |...
- Page 28 Canature WaterGroup Canada Inc. Canature WaterGroup U.S.A. Inc. 855 Park St. Unit 1 9760 Mayflower Park Drive Regina, SK, S4N 6M1 Suite 110 CANADA Carmel, IN 46032 USA Toll Free: (877) 288-9888 Toll Free: (877) 288-9888 PN: 910195 Version Date: 09-2023...
