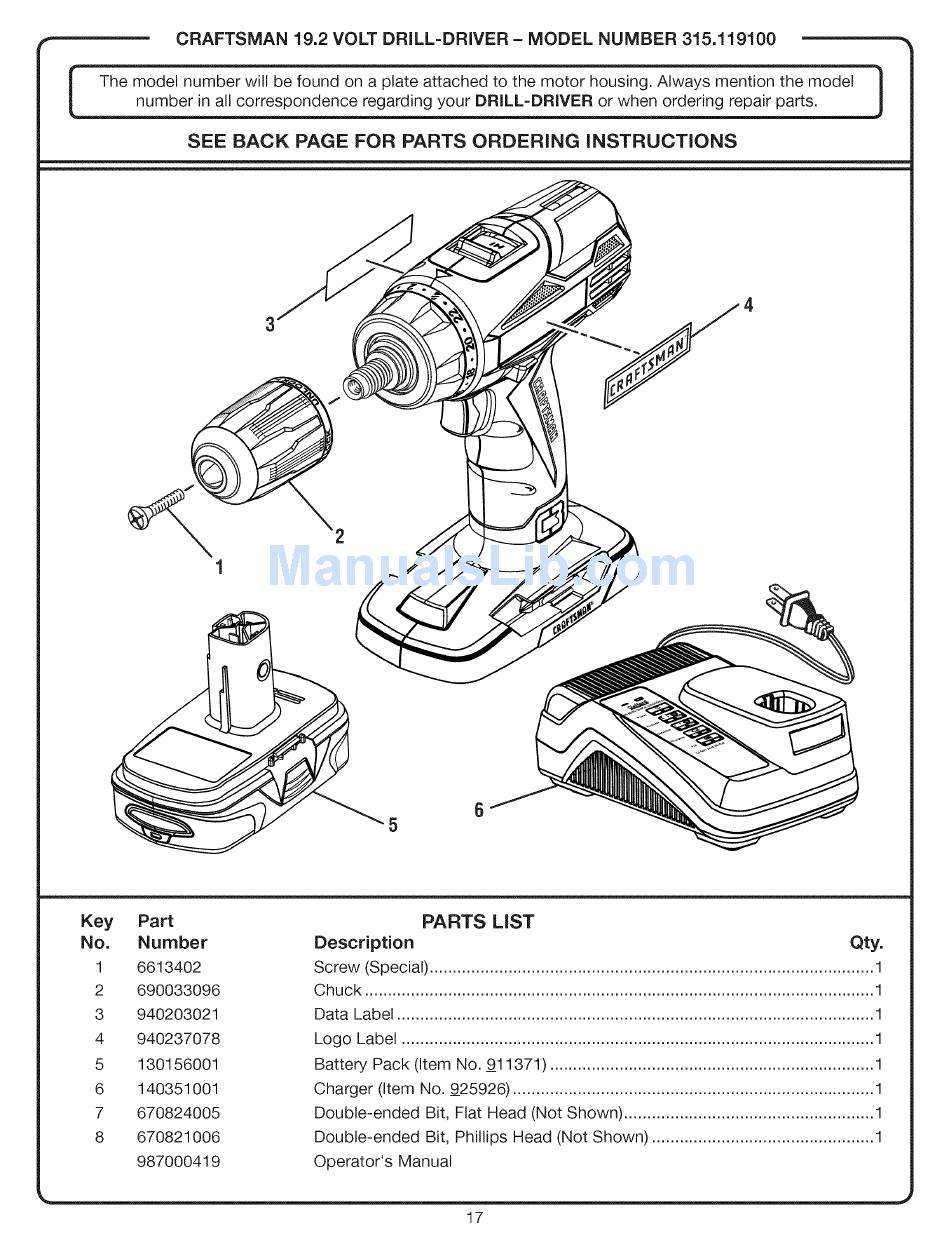

CRAFTSMAN
19.2 VOLT DRILL-DRIVER-
MODEL
NUMBER
315.119100
The model number will be found on a plate attached to the motor housing, Always mention the model
]
number in all correspondence
regarding your DRILL-DRIVER
or when ordering repair parts.
]
SEE BACK
PAGE FOR PARTS ORDERING
INSTRUCTIONS
2
1
6
5
Key
Part
No.
Number
1
6613402
2
690033096
3
940203021
4
940237078
5
130156001
6
140351001
7
670824005
8
670821006
987000419
PARTS LiST
Description
Qty.
Screw (Special) ................................................................................................
1
Chuck ..............................................................................................................
1
Data Label .......................................................................................................
1
Logo Label ......................................................................................................
1
Battery Pack (Item No. 911371) ......................................................................
1
Charger (Item No. 925926) ..............................................................................
1
Double-ended
Bit, Flat Head (Not Shown) ......................................................
1
Double-ended
Bit, Phillips Head (Not Shown) ................................................
1
Operator's
Manual
17
