MA425 (中_英)
安装说明
EvoTrak lite
EvoTrak lite
目录
安全须知2
已交付的部件4
可能的组合方式5
建议工具6
壳体结构准备
- 编码 8
将插芯装配到绝缘体中
- 电缆格兰头安装 10
电缆准备
- 非屏蔽电缆 10
- 屏蔽电缆 11
将压接的插芯插入绝缘体内14
- 电缆格兰头紧固 15
- 电缆端子或铜排安装 15
- IP2X 母端安装 16
固定部件安装17
安装固定侧直型连接器19
金属部件接地19
连接和断开 20- 22
LITE-S-M-Px; LITE-X-Px
取出插芯24
注意25
EvoTrak lite
两极连接器模型概览
MA425 (cn_en)
Assembly instructions
EvoTrak lite
EvoTrak lite
Content
Safety Instructions �����������������������������������������������������������������������2
Delivery state of components �������������������������������������������������������4
Possible combinations �����������������������������������������������������������������5
Suggested tools ��������������������������������������������������������������������������6
- Coding ��������������������������������������������������������������������������������������8
- Positioning of cable gland ��������������������������������������������������������10
- Unshielded cables �������������������������������������������������������������������10
- Shielded cables �����������������������������������������������������������������������11
Inserting the crimped contact into the insulator ��������������������������14
- Cable gland tightening �������������������������������������������������������������15
- Cable lug or busbar mounting �������������������������������������������������15
- Assembling the female IP2X protection ������������������������������������16
Mounting the fixed connector part ���������������������������������������������17
Mounting the straight fixed connector ����������������������������������������19
Grounding the metal parts of straight connectors ����������������������19
Connecting and disconnecting ������������������������������������������20 - 22
LITE-S-M-Px; LITE-S-F-Px
Extracting contacts ��������������������������������������������������������������������24
Notes ����������������������������������������������������������������������������������������25
EvoTrak lite

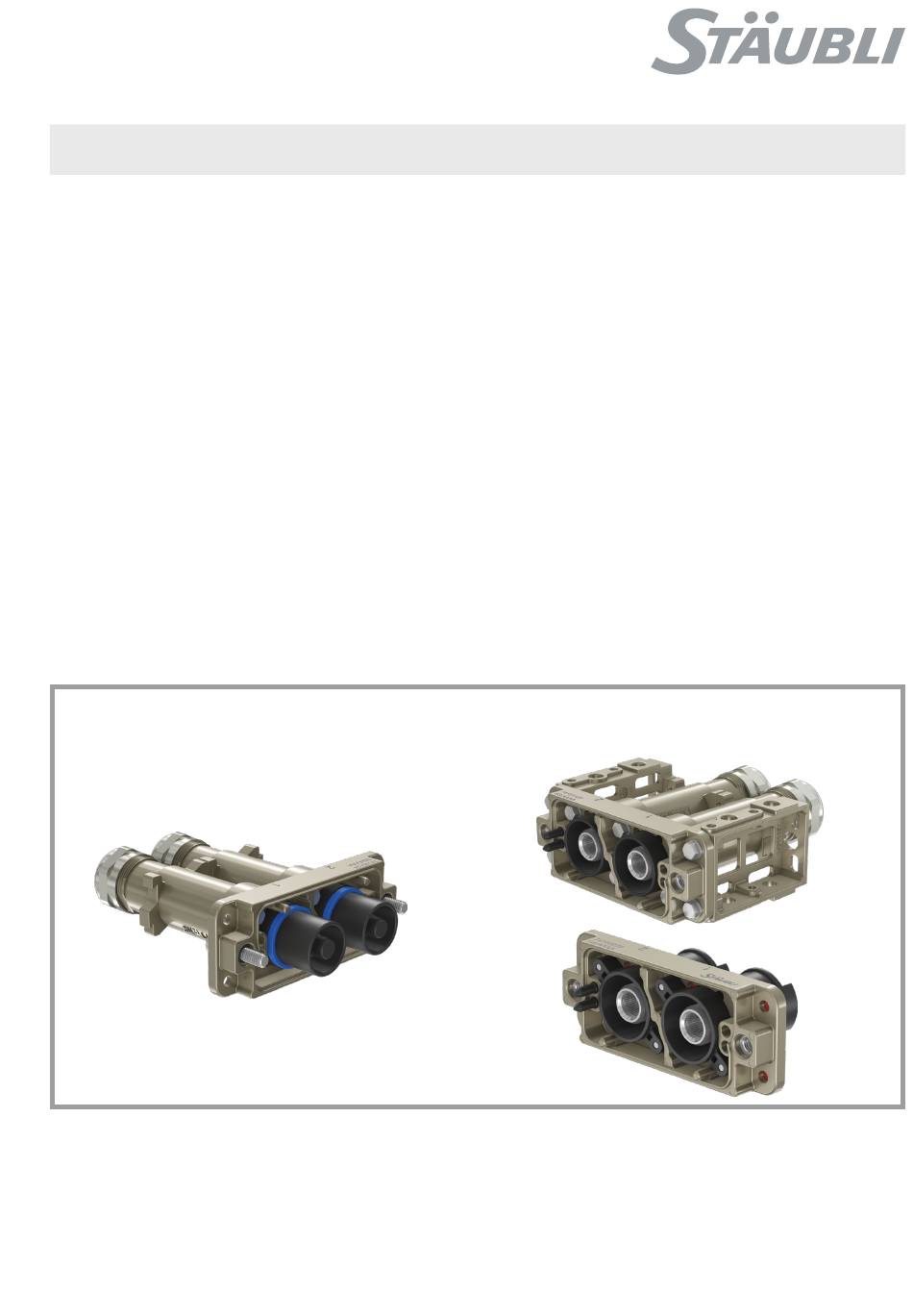

Model overview of two-pole solutions
