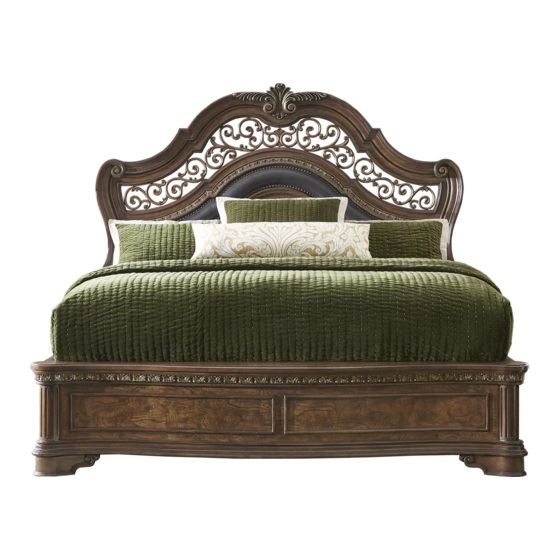

ROOMS TO GO KG HDBD HMIS B9500-04 Assembly Instructions

This product is manufactured by HMIS
***Caution: Please read all instructions carefully before starting the assembly process. These parts are cumbersome and heavy. Therefore, two
people are recommended in order to prevent personal injury and ensure the parts are not damaged during the assembly.
Parts List
Code
Headboard
1
Left Headboard Leg
2
Right Headboard Leg
3
4
Stretcher Rail
5 Rails
6 Slats
Support Legs
7
8 Footboard
1
A
NOTE: The Headboard and Footboard bolts are already pre-installed.
STEP 1 : Assembly Stretcher rail (4) with HB legs using allen key (A).
Do not tighten all bolts until HB is fully assembly.
STEP 2 : Assembly the left legs(2) with the left HB(1) using allen key
(A). Do not tighten all bolts until HB is fully assembly.
STEP 3 : Assembly the right legs(3) with the right HB(1) using allen
key (A).
Do not tighten all bolts until HB is fully assembly.
STEP 1
4
A
Hardware Pack Location(S):
HMIS B9500-04 &03/06 KG HDBD & QNKG RAILS
MADE IN VIETNAM
Assembly Instructions
HMIS B9500-04 KG HDBD
HMIS B9500-05 KG FTBD
HMIS B9500-03/06 QNKG RAILS
1Pc
1Pc
1Pc
1Pc 1Pc
1Set
4Pcs
8Pcs
1Pc
2
STEP 2
for
Step Code
Allen Key - 4mm
1-2-3-4 A
6 B Screw - #8x32mm
TOOLS REQUIRED (NOT PROVIDED)
Description
Phillips screwdriver
STEP 3
2
SKU # 32495031
SKU # 32495031
SKU # 32895039
SKU # 32995031
Hardware List
Sketch
1
3
1
4
32995031
/
1Pc
8Pcs
A
3
1 OF 2
