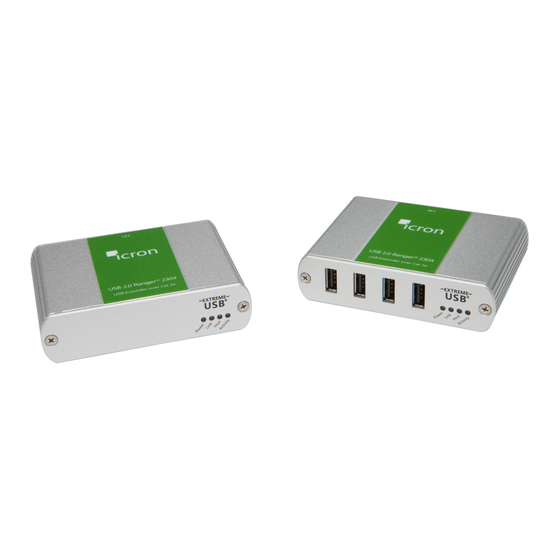

USB 2.0 Ranger® 2304
4-Port USB 2.0 100m Cat 5e
Extender System
Quick
Start
Guide
For additional details on configuration and
operation of your USB 2.0 Ranger 2304,
refer to the complete user guide
available online at:
icron.com/2304
For technical support with your
USB 2.0 Ranger 2304 product, contact:
icron.com/support
icron.com
Icron's USB and Video
Extension Solutions
Pro AV
KVM Extension
Digital Signage
Medical Imaging
Industrial Automation
Digital Projection

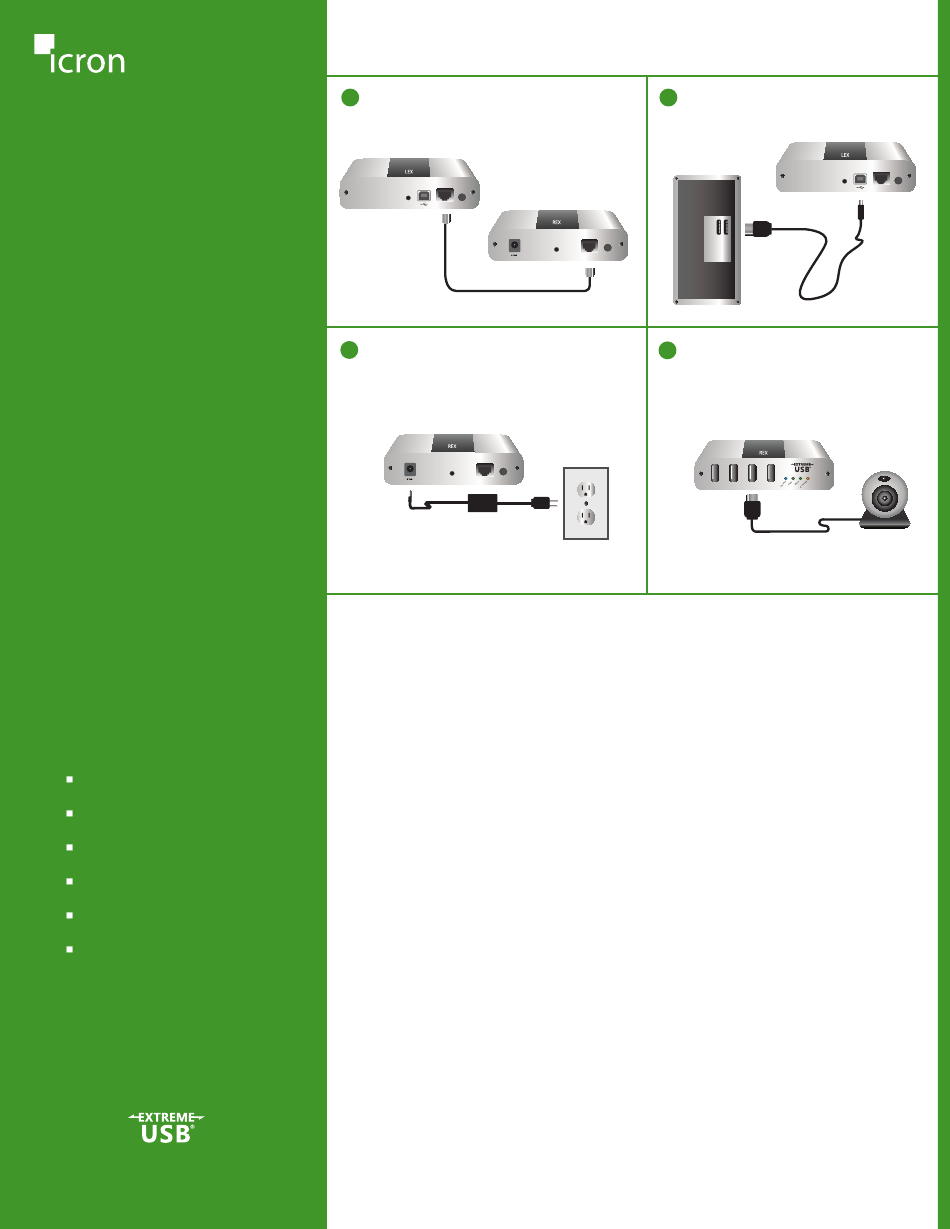

Before you get started, ensure that all the drivers required for your USB device(s) are installed.
LEX = Local Extender, REX = Remote Extender
Place extenders where desired and connect
1
1
the Cat 5e extension link cabling to the
Link ports (RJ45) on the LEX and REX.
Pair
Link
Config
DC IN 24V@1A
Max 100m
(Cat 5e cable not included)
Connect the REX to the AC adapter
3
and plug it into a power source.
Pair
Link
Config
DC IN 24V@1A
Extending USB over Cat 5, Wireless, Fiber and Powerline
Icron's ExtremeUSB® high performance USB 2.0 extension technology enables users
to connect any USB device over any transport media. ExtremeUSB is used in most
applications where USB devices need to be more than five meters away from a host
computer. The ExtremeUSB protocol preserves standard USB functionality while
accommodating the increased cable delay inherent in extended range transmissions.
This technology is available in consumer ready extension products and various form
factors for OEM and embedded applications.
icron.com
Connect the LEX to the computer
2
using the included USB cable.
Computer
Pair
Link
Config
Attach USB device(s) to the REX.
4
Pair
Link
Config
90-01095-A02
