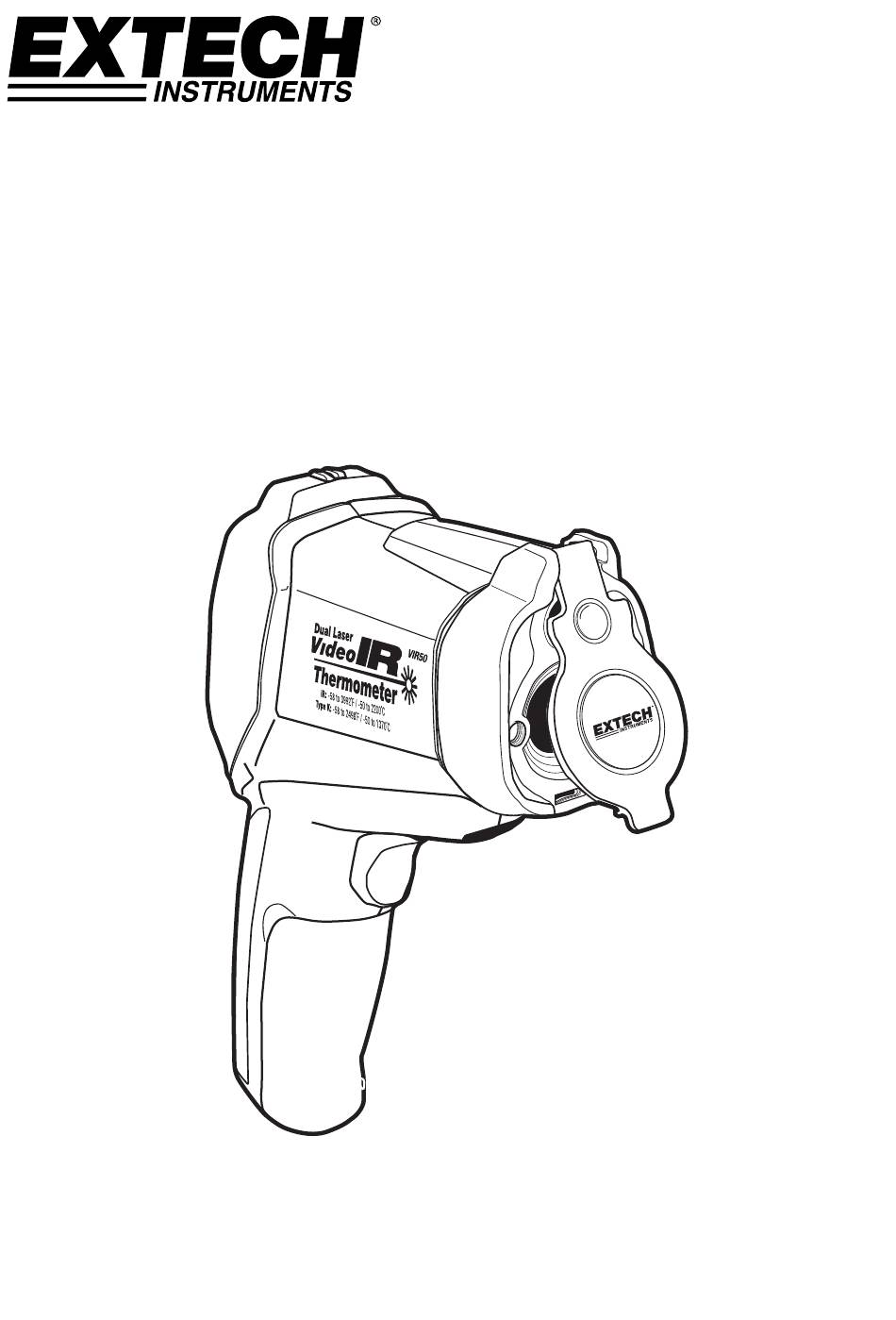

  • Page 1 User’s Manual Dual Laser Video IR Video Thermometer MODEL VIR50...
  • Page 2 Introduction Congratulations on your purchase of the Video IR Thermometer. This meter is capable of making non-contact (infrared) and contact (thermocouple) temperature measurements. The built-in camera offers still image and video capturing functionality for documenting measurement locations. The meter includes a micro SD card slot for offloading still images and video. The built-in laser pointer increases target accuracy while the backlit LCD and handy push-buttons combine for convenient, ergonomic operation.

  • Page 3: Meter Description

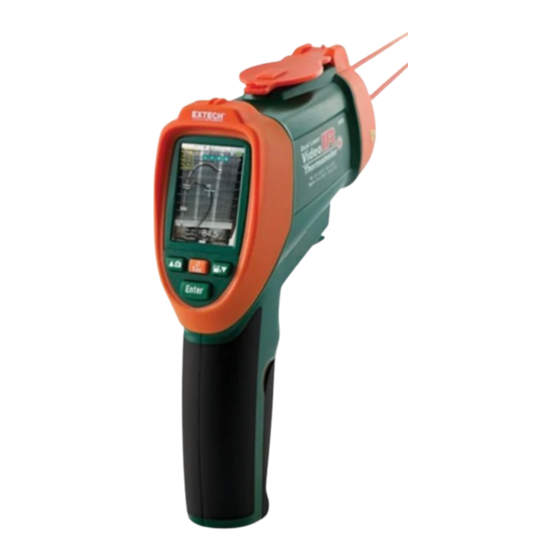

    Meter Description 1. LCD Display 2. Push-buttons (UP/Picture, ESC, and DOWN/VIDEO) 3. Measurement Trigger 4. Retractable Lens Cover 5. Camera, Lasers, and IR sensor 6. Compartment for Type-K jack, USB jack, Reset button 7. Handle Grip and cover for Micro SD memory card slot and Rechargeable Battery Rear Panel Display...

  • Page 4: Operation

    Operation Power ON and OFF 1. The instrument is powered by one (1) rechargeable battery (3.7V). The battery is housed in the compartment in the meter’s handle. 2. The supplied battery charger connects to the USB port on the instrument (in the compartment above the measurement trigger).
  • Page 5 Video + IR mode In the Video + IR Mode the meter can measure IR temperature, air temperature, humidity, dew-point temperature, and wet bulb temperature, along with full use of the video camera capabilities. The IR Maximum (MAX) Temperature, IR Minimum (MIN) Temperature, IR Differential (DIF) Temperature, and the IR Average (AVG) Temperature can also be displayed.

  • Page 6: Dew Point Temperature Mode

    IR-only mode In the IR-only Mode the meter can measure IR temperature, air temperature, air humidity, dew-point temperature, and wet bulb temperature but without the video camera capabilities. The IR Maximum (MAX) Temperature, IR Minimum (MIN) Temperature, IR Differential (DIF) Temperature, and the IR Average (AVG) Temperature can also be displayed.

  • Page 7: Datalogging Mode

    Datalogging Mode The datalogger automatically records readings to memory at a programmed interval. In the Datalogging mode, the high/low alarm values, low alarm value, datalogging interval sampling rate (time), can be configured. Once configured, press the trigger to start logging. The unit will automatically record data at the specified sampling time.
  • Page 8 System Tools Settings From the Video + IR, IR-only, or Dew Point modes, press the ENTER button to access the soft-key screen. The System Tools is the icon on the left. Use the arrow buttons to scroll over to the System Tools icon if it is not already highlighted.
  • Page 9 Setting the Language Use the ▲ and ▼ buttons to select the desired language, and press the ENTER button to confirm. Setting the Date Use the ▲ and ▼ buttons to select the desired format for the date, and press the ENTER button to confirm. Once the format has been chosen, use the ▲...
  • Page 10 Setting the temperature units (C/F) Use the ▲ and ▼ buttons to select the desired unit of measure, press the ESC button to exit and save. Memory Use the ▲ and ▼ buttons to select either FLASH or SD CARD, and press the ENTER button to confirm.
  • Page 11 Setting the Buzzer ON or OFF Use the ▲ and ▼ buttons to select either ON or OFF, and press the ENTER button to confirm. Setting the Auto Power off time Use the ▲ and ▼ buttons to disable or select an auto-power-off time, press the ESC button to exit and save.

  • Page 12: System Upgrade

    Selecting the Memory Type If there is no SD card present in the VIR50, then only a single blue icon will be displayed on the LCD screen in the top left corner. If there is an SD card present, but the memory is being used by the device, then there will be two icons, a chip (blue i.e.

  • Page 13: Measurement Settings

    Measurement Settings From the Video + IR, IR-only, or Dew Point modes, press the ENTER button to access the soft-key screen. The Measurement Settings mode is represented by the middle icon. Use the arrow buttons to scroll over to the middle icon (if it is not already highlighted.) Press the ENTER button again when the middle icon is highlighted to access the Measurement Settings mode as shown below.
  • Page 14 Emissivity setting Use the arrow buttons to highlight an emissivity setting and then press ENTER to choose it. Select emissivity by description (concrete, glass, etc.) or select ε=0.94 to set the emissivity manually using the arrow buttons. Press the ESC button to exit and save. Alarm High Use the ▲...
  • Page 15 Alarm Low Use the ▲ and ▼ buttons enable or disable the alarm. If the low alarm is enabled, press the ENTER button to adjust its value; use the ▲ and ▼ buttons to adjust the value. Press the ENTER button to confirm and then press the ESC button to exit and save.
  • Page 16 Type k Press the ENTER button to enable or disable the Type k contact thermocouple input.. NOTE: If a Type-k probe is inserted into the meter’s thermocouple jack (in the compartment over the measurement trigger), ‘Enable’ will be selected by default. Select the Disable setting to prohibit the LCD from displaying Type-k temperature.
  • Page 17 Item Description Picture Display saved images Video Playback saved videos Logs Display datalogger data VIR50-EU-EN v2.3 5/14...

  • Page 18: Transfer Files To A Pc

    Transfer files to a PC Connect the USB cable from the thermometer to a USB port on the pc or insert the microSD card into the SD port on the pc.. If the USB cable is used, the USB symbol will appear in the display and the PC will recognize the unit as a removable drive.

  • Page 19: Ir Measurement Notes

    IR Measurement Notes 1. The object under test should be larger than the spot (target) size calculated by the field of view diagram (printed on the side of the meter and in this guide). 2. Before measuring, be sure to clean surfaces that are covered with frost, oil, grime, etc. 3.

  • Page 20: Emissivity And Ir Measurement Theory

    Emissivity and IR Measurement Theory IR Thermometers measure the surface temperature of an object. The thermometer’s optics sense emitted, reflected, and transmitted energy. The thermometer’s electronics translate the information into a temperature reading which is then displayed on the LCD. The amount of IR energy emitted by an object is proportional to an object's temperature and its ability to emit energy.

  • Page 21: Specifications

    Specifications Infrared Thermometer Specifications Range -58 to 3992 F (-50 to 2200 Resolution C/F < 1000; 1 C/F > 1000 Accuracy -50°C to -20°C (-58°F to -4°F) Not specified -19.9°C to -1°C (-3.9°F to 30°F) ± (2% rdg + 6°F/3.3°C) -0.9°C to 100°C (30.1°F to 212°F) ±...

  • Page 22: General Specifications

    General Specifications Display 2.2” Color TFT LCD (320 x 240 pixels) Digital Camera 640 x 480 pixels Operating Temperature 32°F to 122°F (0°C to 50°C) Memory Internal flash: 49Mbyte, Micro SD card: Max 8Gbytes Operating Humidity Max. 90% RH (non-condensing) Power Supply 3.7V Lithium ion rechargeable battery Battery life...
