® To attachthe bag,placethe openingof the bag
overthechutedeflector s o it completely c oversthe
chuteopeningDepress the plungeron thedraw-
string,andputtonthedrawstring untiltile bagis tight
aroundthechuteopening.. Release plunger t o lockit
intopositionSeefigure5.
...................................
ii, i ,lllllll,lll ,IIIIHIIII
OPERATION
i iii
ii ii ,i ii ,i

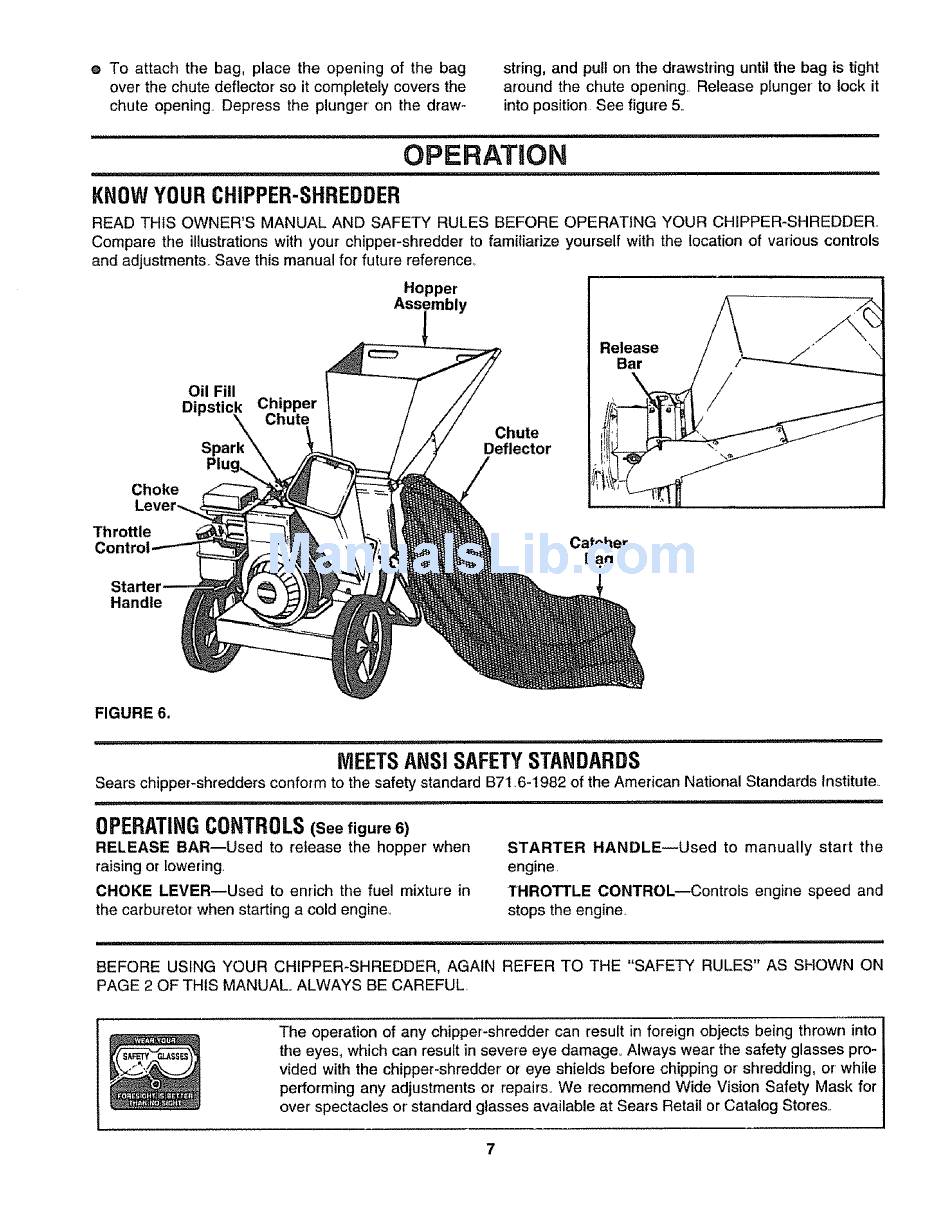

KNOW YOUR CHIPPER-SHREDDER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR CHIPPER-SHREDDER.
Compare the illustrations with your chipper-shredder
to familiarize yourself with the location of various controls
and adjustments. Save this manual for future reference_
Hopper
Assembly
Oil Fill
Dipstick
Chipper
Chute
Choke
Release
Bar
Chute
Deflector
Throttle
Catcher
Bag
Handle
FIGURE 6.
MEETS ANSI SAFETYSTANDARDS
Sears chipper-shredders
conform to the safety standard B71.6-1982 of the American National Standards Institute..
ii i ii,i1,1i1,111111
iiii i
OPERATING CONTROLS
(See figure 6)
RELEASE
BAR--Used
to release the hopper when
raising or lowering,
CHOKE LEVER--Used
to enrich the fuel mixture in
the carburetor when starting a cold engine._
STARTER
HANDLE--Used
to manually
start the
engine,
THROTTLE
CONTROLmControls
engine speed and
stops the engine.
iiiii1!
,
, i 'IIM "11'1"
IIIIIl'l'll'lll
BEFORE USING YOUR CHIPPER-SHREDDER,
AGAIN REFER TO THE "SAFETY
RULES" AS SHOWN ON
PAGE 2 OF THIS MANUAL° ALWAYS BE CAREFUL.
The operation of any chipper-shredder
can result in foreign objects being thrown into
tile eyes, which can result in severe eye damage° Always wear the safety glasses pro-
vided with the chipper-shredder
or eye shields before chipping or shredding, or' while
performing any adjustments or repairs. We recommend Wide Vision Safety Mask for
over spectacles or standard glasses available at Sears Retail or Catalog Stores..
