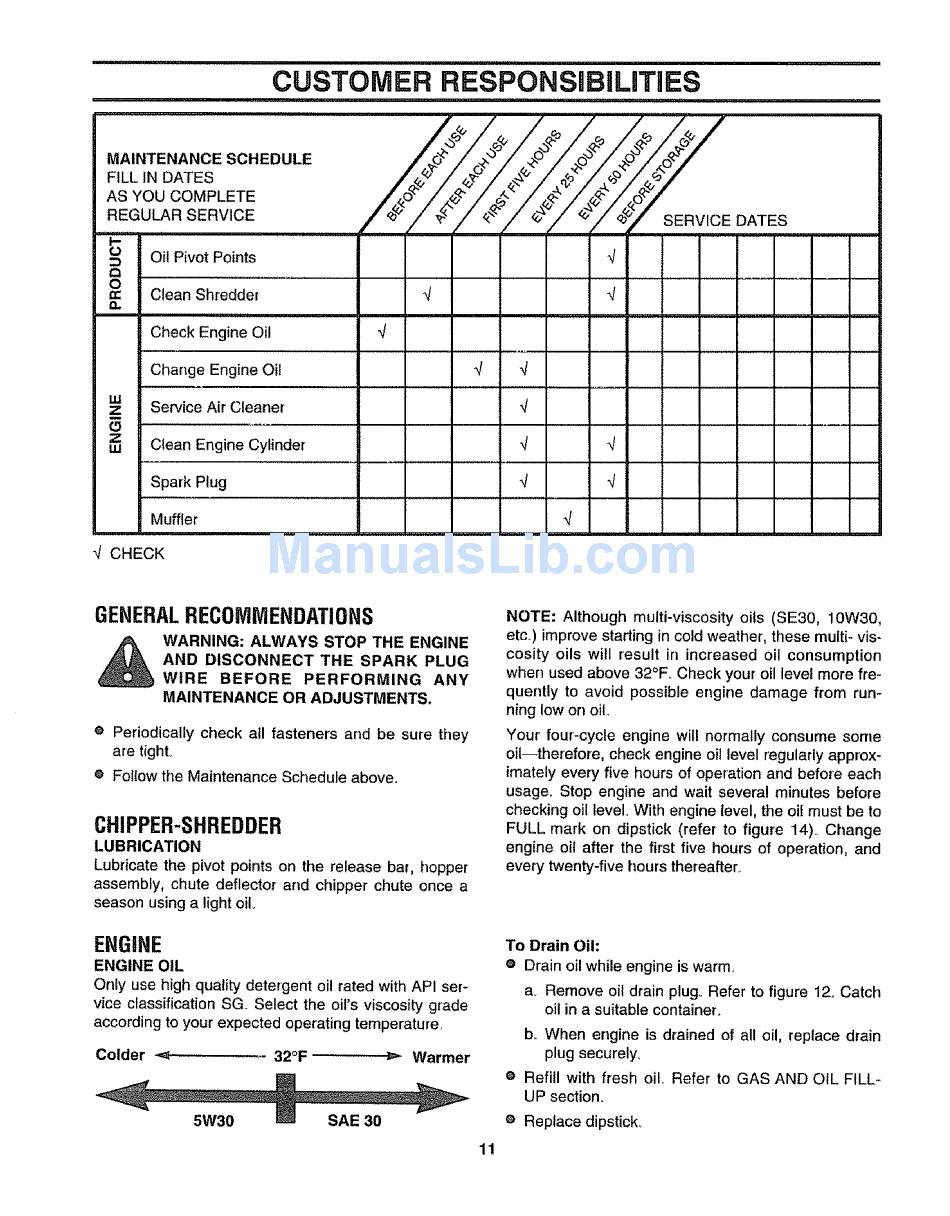

CUSTOMER RESPONSIBILHTHES
1,1,11,1
M
iiii
MAINTENANCE
SCHEDULE
FILL IN DATES
AS YOU COMPLETE
REGULAR SERVICE
,ul
i,i,
I--
o
Oil Pivot Points
",J
O
rr
Clean Shredder
.,/
_/
a.
Check Engine Oil
q
Change Engine Oil
4
4
Service Air Cleaner
z
Clean Engine Cylinder
Spark Plug
Muffler
4
,/
4
4
,7
4
,,/ CHECK
GENERAL RECOMMENDATIONS
WARNING: ALWAYS STOP THE ENGINE
AND DISCONNECT
THE SPARK
PLUG
WIRE
BEFORE
PERFORMING
ANY
MAINTENANCE
OR ADJUSTMENTS,
e Periodically
check all fasteners
and be sure they
are tight°
® Follow the Maintenance Schedule abover.
CHIPPER-SHREDDER
LUBRICATION
Lubricate the pivot points on the release bar, hopper
assembly, chute deflector arid chipper chute once a
season using a light oil
ENGINE
ENGINE OIL
Only use high quality detergent oil rated with API ser-
vice classification
SG Select the oil's viscosity grade
according to your expected operating temperature
Colder
_
32°F
_" Warmer
5W30
SAE 30
NOTE: Although
multi-viscosity
oils (SE30,
10W30,
etc,) improve starting in cold weather, these multi- vis-
cosity oils will result in increased
oil consumption
when used above 32_F. Check your oil level more fre-
quently to avoid possible engine damage from run-
ning low on oit.
Your four-cycle
engine will normally consume
some
oil--therefore,
check engine oil level regularly approx-
imately every five hours of operation arid before each
usage. Stop engine and wait several minutes before
checking oil level. With engine level, the oif must be to
FULL mark on dipstick (refer to figure 14). Change
engine oil after the first five hours of operation,
arid
every twenty-five hours thereafter_
11
To Drain Oil:
e Drain oil while engine is warm.
a. Remove oil drain plug.. Refer to figure 12. Catch
oil in a suitable container.
br. When engine is drained of all oil, replace drain
plug securely.
e Refill with fresh oil.. Refer to GAS AND OIL FILL-
UP section.
e Replace dipstick..
