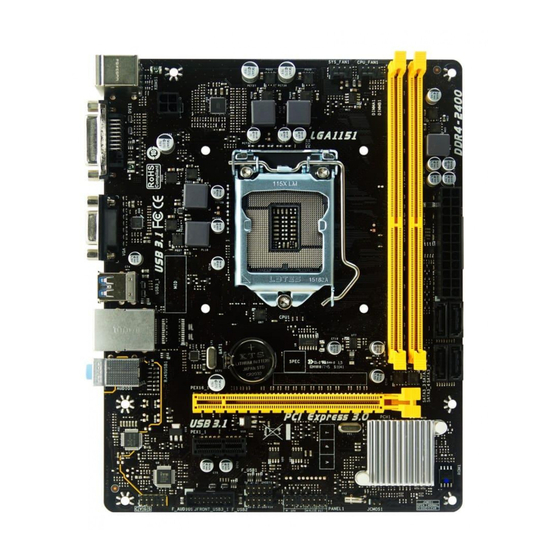

Biostar H110MDE User Manual

Biostar H110MDE User Manual

Bios
Hide thumbs Also See for H110MDE:

Advertisement

Quick Links

BIOS User Guide
H110MDE
BIOS Update ������������������������������������������������������������������������������������� 2
UEFI BIOS Setup �������������������������������������������������������������������������������� 6
1� Main Menu ����������������������������������������������������������������������������������� 7
2� Advanced Menu ���������������������������������������������������������������������������� 8
3� Chipset Menu �������������������������������������������������������������������������������17
4� Boot Menu �����������������������������������������������������������������������������������21
5� Security Menu ������������������������������������������������������������������������������24
6� O�N�E Menu����������������������������������������������������������������������������������27
7� Exit Menu�������������������������������������������������������������������������������������34

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H110MDE and is the answer not in the manual?

Questions and answers

Summary of Contents for Biostar H110MDE

  • Page 1: Table Of Contents

    BIOS User Guide H110MDE BIOS Update ������������������������������������������������������������������������������������� 2 UEFI BIOS Setup �������������������������������������������������������������������������������� 6 1� Main Menu ����������������������������������������������������������������������������������� 7 2� Advanced Menu ���������������������������������������������������������������������������� 8 3� Chipset Menu �������������������������������������������������������������������������������17 4� Boot Menu �����������������������������������������������������������������������������������21 5� Security Menu ������������������������������������������������������������������������������24 6� O�N�E Menu����������������������������������������������������������������������������������27 7� Exit Menu�������������������������������������������������������������������������������������34...
  • Page 2: Bios Update

    The BIOS can be updated using either of the following utilities: •  BIOSTAR BIOS Flasher: Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM.
  • Page 3 H110MDE 7. A dialog pops out after BIOS flash is completed, asking you to restart the system. Press the <Y> key to restart system. 8. While the system boots up and the full screen logo shows up, press <DEL> key to enter BIOS setup.
  • Page 4 Then, the BIOS Update is completed. BIOS Update Utility (through a BIOS file) 1. Installing BIOS Update Utility from the DVD Driver. 2. Download the proper BIOS from http://www.biostar.com.tw/ 3. Launch BIOS Update Utility and click the “Update BIOS” button on the main screen.
  • Page 5 H110MDE 6. After the BIOS Update process is finished, click on “OK” to reboot the system. 7. While the system boots up and the full screen logo shows up, press <DEL> key to enter BIOS setup. After entering the BIOS setup, please go to the <Save & Exit>, using the <Restore Defaults>...
  • Page 6: Uefi Bios Setup

    UEFI BIOS Setup Introduction The purpose of this manual is to describe the settings in the AMI UEFI BIOS Setup program on this motherboard. The Setup program allows users to modify the basic system configuration and save these settings to NVRAM. UEFI BIOS determines what a computer can do without accessing programs from a disk.
  • Page 7: 1� Main Menu

    H110MDE 1� Main Menu Once you enter AMI UEFI BIOS Setup Utility, the Main Menu will appear on the screen providing an overview of the basic system information. BIOS Information It shows system information including UEFI BIOS version, Project Code, Model Name, Build Date and etc.
  • Page 8: 2� Advanced Menu

    2� Advanced Menu The Advanced Menu allows you to configure the settings of CPU, Super I/O, Power Management, and other system devices. Note   » Beware of that setting inappropriate values in items of this menu may cause system to malfunction. ACPI Settings Enable ACPI Auto Configuration This item enables or disables BIOS ACPI auto configuration function.
  • Page 9 H110MDE Enable Hibernation This item enables or disables system ability to hibernate (0S/S4 sleep state). This option may not be effective with some OSs. Options: Enabled (Default) / Disabled Lock Legacy Resources The item enables or disables Lock of Legacy Resources.
  • Page 10 Note   » The following items appear only when you set the Smart Fan function to [Auto]. CPU Fan Calibrate Press [ENTER] to calibrate CPU Fan speed. Control Mode This item provides several operation modes of the fan. Options: Manual / Quiet / Aggressive Fan Ctrl OFF(°C) When CPU temperature is lower than this value, the CPU fan will keep lowest RPM.
  • Page 11 H110MDE H/W Monitor Shutdown Temperature This item allows you to set up the CPU shutdown Temperature. Options: Disabled (Default) / 70°C/158°F / 75°C/167°F / 80°C/176°F / 85°C/185°F / 90°C/194°F Network Stack Configuration Network Stack This item enables or disables UEFI network stack...
  • Page 12 IPv4 PXE Support This item enables or disables IPv4 PXE Boot Support. If disabled IPv4 PXE boot option will not be created. Options: Disabled (Default) / Enabled IPv4 HTTP Support This item enables or disables IPv4 HTTP Boot Support. If disabled IPv4 HTTP boot option will not be created.
  • Page 13 H110MDE Offboard PCIe SATA Controller USB Configuration Legacy USB Support The item allows you to enable Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.
  • Page 14 USB Mass Storage Driver Support The item allows you to enable or disable USB Mass Storage Driver Support. Options: Enabled (Default) / Disabled Port 60/64 Emulation The item allows you to enable or disable I/O port 60h/64h emulation support. This should be enabled for the complete USB keyboard legacy support for non-USB aware OSes.
  • Page 15 H110MDE CPU Configuration This item shows CPU Information C6DRAM This item enables or disableds moving of DRAM contents to PRM memory when CPU is in C6 state. Options: Disabled (Default) / Enabled SW Guard Extensions (SGX) This item enables or disableds Software Guard Extensions (SGX).
  • Page 16 Active Processor Cores This item sets number of cores to enable in each processor package. Options: All (Default) / 1 / 2 / 3 Hyper-Threading This item enables for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and disables for other OS(OS not optimized for Hyper-Threading Technology). Options: Enabled (Default) / Disabled This item sets CPU Advanced Encryption Standard instructions.
  • Page 17: 3� Chipset Menu

    H110MDE 3� Chipset Menu This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed of the CPU itself uses when communicating with its own special components.
  • Page 18 Onboard LAN1 Option ROM This item enables or disables Onboard LAN1 Option ROM. Options: Disabled (Default) / Enabled PCH-IO Configuration PCI Express Configuration PEX1_1 Options: Auto(Default) / Gen1 / Gen2 / Gen3 HD Audio Control Detection of the HD-Audio device. Disabled = HDA will be unconditionally disabled. Enabled = HDA will be unconditionally enabled.
  • Page 19 H110MDE ErP Control When ErP is enabled, the system will meet ErP requirement. Options: Disabled (Default) / Enabled in S4-S5 System Agent (SA) Configuration Internal Graphics This item keeps IGFX enabled based on the setup options. Options: Auto (Default) / Disabled / Enabled...
  • Page 20 PAVP Enable This item enables or disables PAVP. Options: Enabled (Default) / Disabled Max TOLUD Maximum Value of TOLUD. Dynamic assignment would adjust TOLUD automatically based on largest MMIO length of installed graphic controller. Options: Dynamic (Default) / 1 GB / 1.25 GB / 1.5 GB / 1.75 GB / 2 GB / 2.25 GB / 2.5 GB / 2.75 GB / 3 GB / 3.25 GB / 3.5GB VT-d This item enables or disables VT-d capability.
  • Page 21: 4� Boot Menu

    H110MDE 4� Boot Menu This menu allows you to setup the system boot options. Setup Prompt Timeout This item sets number of seconds to wait for setup activation key. 65535 (0xFFFF) means indefinite waiting. Options: 1 (Default) Bootup NumLock State This item selects the keyboard NumLock state.
  • Page 22 Fast Boot This item enables or disables boot with initialization of a minimal set of devices required to launch active boot option. Has no effect for BBS boot options. Options: Disabled (Default) / Enabled Note   » The following items appear only when you set the Fast Boot function to [Enabled] SATA Support If Last Boot HDD Only, Only last boot HDD device will be available in post.
  • Page 23 H110MDE Network This option controls the execution of UEFI and Legacy PXE OpROM Options: Legacy (Default) / UEFI / Do not launch Storage This option controls the execution of UEFI and Legacy Storage OpROM Options: Legacy (Default) / UEFI / Do not launch...
  • Page 24: 5� Security Menu

    5� Security Menu Administrator Password This item sets Administrator Password. User Password This item sets User Password. Secure Boot Menu 24 | 5. Security Menu...
  • Page 25 H110MDE Attempt Secure Boot Secure Boot activated when Platform Key (PK) is enrolled, System mode is User/Deployed, and CSM function is disabled. Options: Disabled (Default) / Enabled Secure Boot Mode Secure Boot mode selector : Standard/Custom. In Custom mode Secure Boot Variables can be configured without authentication.
  • Page 26 Key Exchange Keys Save to File – Allows you save to KEK file. Set new Key – Allows you set new KEK file. Append Key – Allows you append Var to KEK. Erase Key – Allows you to erase the KEK file from your system. Authorized Signatures Save to File –...
  • Page 27: 6� O�N�E Menu

    H110MDE 6� O�N�E Menu This submenu allows you to change voltage and clock of various devices. Note   » We suggest you use the default setting. Changing the voltage and clock improperly may damage the device.   » The options and default settings might be different by RAM or CPU models.
  • Page 28 Core Max OC Ratio This item sets the maximum OC Ratio for the CPU Core and Ring. Options: 45 (Default) Note   » The following items appear only when you set the CPU Ratio Mode function to [Per Core] 1-Core Ratio Limit Override This limit is for 1 cores active.
  • Page 29 H110MDE Memory Timing Configuration This item allows you to select CAS Latency, 0: AUTO, max: 31 Options: Auto (Default) tRCD/tRP This item allows you to select RAS to CAS delay time and Row Prechrge delay time, 0: AUTO, max: 63...
  • Page 30 This item allows you to select Min Write Recovery Time, 0: AUTO, legal values: 5, 6, 7, 8, 10, 12, 14, 16, 18, 20, 24 Options: Auto (Default) tRRD_S This item allows you to select Min Row Active to Row Active Delay Time, Different Bank Group 0: AUTO, max: 16 Options: Auto (Default) tRRD_L...
  • Page 31 H110MDE Dimm ODT Training* Dimm On-Die Termination Training Options: Disabled (Default) / Enabled Read ODT Training* Read On-Die Termination Training Options: Disabled (Default) / Enabled Turn Around Timing Training Turn Around Timing Training Options: Disabled (Default) / Enabled Voltage Configuration DRAM Voltage This item sets DRAM Over Voltage.
  • Page 32 CPU Power Management Intel(R) SpeedStep(tm) This item allows more than two frequency ranges to be supported. Options: Enabled (Default) / Disabled Power Limit 1 Override This item enables or disables Power Limit 1 Override. If this option is disabled, BIOS will program the default values for Power Limit 1 and Power Limit 1 Time Window.
  • Page 33 H110MDE C-state Auto Demotion This item sets C-State Auto Demotion. Options: C1 and C3 (Default) / C1 / C3/ Disabled C-states Un-demotion This item sets C-State Un-demotion. Options: C1 and C3 (Default) / C1 / C3/ Disabled Package C-state Demotion This item sets Package C-state Demotion.
  • Page 34: 7� Exit Menu

    7� Exit Menu This menu allows you to load the optimal default settings, and save or discard the changes to the BIOS items. Discard Changes and Exit Abandon all changes made during the current session and exit setup. Save Changes and Reset Reset the system after saving the changes.
