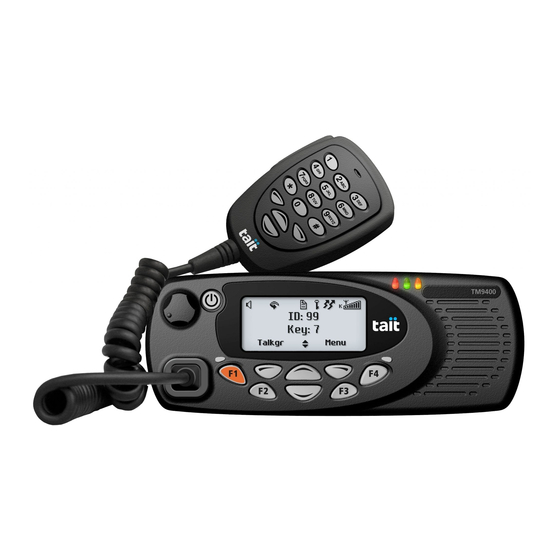

- Page 1 TM9400 P25 Mobile Radios Specifications Manual MMB-00009-05 · Issue 5· November 2016...
- Page 2 5,715,365, 5,649,050, 5,630,011, 5,581,656, 5,517,511, without prior written permission from Tait Limited. 5,491,772, 5,247,579, 5,226,084 and 5,195,166. The word TAIT and the TAIT logo are trademarks of Tait Limited. Environmental Responsibilities All trade names referenced are the service mark,...
-
Page 3: Table Of Contents
Control Head Only ..........36 TM9400 Specifications Manual Contents © Tait Limited November 2016... -
Page 4: Introduction
Tait office. Notice For known issues and limitations that may cause a radio to perform outside the specifications listed here, see the software release notes for the TM9400. Software release notes are on the Tait support website, http://support.taitradio.com. Introduction TM9400 Specifications Manual ©... -
Page 5: Regulatory Requirements And Industry Standards
■ A regulatory requirement issued by ETSI. ETSI requirements do not apply to radios operating in the 700/800/900MHz frequency bands. TM9400 radios also meet and exceed industry standards that include: Industry Standards Relevant sections of TIA-102-CAAB-D (Land Mobile Radio ■... -
Page 6: Performance Figures
25kHz/30kHz ±5kHz Frequency Bands Tait uses a unique alpha-numeric code to represent each frequency band. The frequency codes currently used with the TM9400 series of radios are listed below. These codes are used throughout this manual. Frequency code Frequency band... -
Page 7: Australia And New Zealand Citizens Band
Except in an emergency, a CB transmitter must not be operated on UHF ■ channels 5 and 35. Channel 11 is the customary calling channel for establishing ■ communications. Channel 40 is the customary road vehicle channel. ■ TM9400 Specifications Manual Introduction © Tait Limited November 2016... -
Page 8: Fcc Narrowbanding Regulations
If your network is in the 700MHz band and falls under the jurisdiction of the FCC, you may be required to move to P25 Phase 2 operation so as to obtain a spectrum efficiency equivalent to 6.25kHz per channel. Introduction TM9400 Specifications Manual © Tait Limited November 2016... -
Page 9: Rf Output Power
RF Output Power TM9400 mobile radios are available with >25W and 25W RF output power. These RF output power options are implemented by different main boards in the radio body and mechanically different radio bodies. For information on which control head is currently available with each radio model, contact your regional Tait office. -
Page 10: Associated Documentation
TM9300/TM9400 Service Manual MMB-00004-xx Always get the latest issue of a manual from the Tait support website. Also available on the website are software release notes, and technical notes (TNs) which provide technical details not yet in the manuals, or solve any problems that may have arisen. -
Page 11: Publication Record
Information added for supply voltage ripple and noise. November 2016 Information added regarding the transmit band receiver frequency ranges. These have been updated: Transmit frequency range: 757-870MHz Receiver frequency range: 757-776MHz; 850- 870MHz. TM9400 Specifications Manual Introduction © Tait Limited November 2016... -
Page 12: Receiver Specifications
Receiver Specifications This chapter compares the performance of the receiver in a TM9400 radio with receiver requirements specified by ETSI and TIA. Where an ANSI/TIA or ETSI EN 300 113 test method was used to measure TM9400 performance, this is indicated in parentheses. Where the ETSI test method EN 300 086-1 was used, no test method is named. -
Page 13: Analog
Audio response +1dB, –3dB +0.5dB, –2.5dB Blocking > 84dB > 110dB Co-channel rejection NB channel > –12dB > –7dB WB channel > –8dB > –2.5dB Frequency stability (TIA-603-D) ±2.5ppm ±0.5ppm TM9400 Specifications Manual Receiver Specifications © Tait Limited November 2016... - Page 14 WB channel (0.35μV) Sensitivity NB channel < –107dBm –116dBm –118dBm WB channel < –107dBm –118dBm –119dBm Signal displacement bandwidth (TIA-603-D) NB channel > 40% 120% ––– WB channel > 40% Receiver Specifications TM9400 Specifications Manual © Tait Limited November 2016...
- Page 15 Unavailable at time of publication. h. 1/2-IF spurious response degrades at the edges of the band. Sensitivity, distortion, and signal-to-noise figures are for standard oper- ating conditions that include audio de-emphasis. TM9400 Specifications Manual Receiver Specifications © Tait Limited November 2016...
-
Page 16: Digital
P25 Phase 1 C4FM receiver and Phase 2 H-DQPSK receiver. c. Unavailable at time of publication. d. Not applicable. e. 1/2-IF spurious response degrades at the edges of the band. Receiver Specifications TM9400 Specifications Manual © Tait Limited November 2016... -
Page 17: Transmitter Specifications
Transmitter Specifications This chapter compares the performance of the transmitter in a TM9400 radio with transmitter requirements specified by ETSI and TIA. Where an ANSI/TIA or ETSI EN 300 113 test method was used to measure TM9400 performance, this is indicated in parentheses. Where the ETSI test method EN 300 086-1 was used, no test method is named. -
Page 18: Analog
1.5MHz offset – 149dBc/Hz 4MHz offset (Tait in-house – 147dBc/Hz – 145dBc/Hz 12MHz offset test only) 10MHz offset – 154dBc/Hz – 148dBc/Hz – 146dBc/Hz 45MHz offset Modulation Analog FM Transmitter Specifications TM9400 Specifications Manual © Tait Limited November 2016... - Page 19 These figures are typical across the frequency band and can vary ±6dB with frequency. f. 30W for 757–806MHz, 35W for 806–870MHz. g. At 16V. h. 2min Tx, 4min Rx. i. At 13.8V. j. Continuous Tx. k. 1min Tx, 4min Rx. TM9400 Specifications Manual Transmitter Specifications © Tait Limited November 2016...
-
Page 20: Digital
47ms intentionally < 125ms 55ms 50ms 55ms left blank Modulation fidelity (TIA-102) intentionally < 5% 0.5% 0.5% 0.6% 0.6% left blank a. See "Frequency Bands" on page b. Not applicable. Transmitter Specifications TM9400 Specifications Manual © Tait Limited November 2016... -
Page 21: General Specifications
General Specifications This chapter provides general specifications for the TM9400 mobile radios. For radio compliance specifications, see "Regulatory Requirements and ■ Industry Standards" on page For receiver performance specifications, see Chapter 2 Receiver ■ Specifications. For transmitter performance specifications, see Chapter 3 Transmitter ■... -
Page 22: Radio Controls, Connectors And Dimensions
2 function key 3 display press-to-talk right selection key (PTT) key left selection key scroll keys volume up function keys 4 to 6 volume down alphanumeric keys Hand-held control head General Specifications TM9400 Specifications Manual © Tait Limited November 2016... - Page 23 Connectors of the radio body (25W radio shown) front view control-head connector provision for provision for external options additional connector connector rear view auxiliary power connector connector connector internal options connector top view TM9400 Specifications Manual General Specifications © Tait Limited November 2016...
- Page 24 0.79 in. (20 mm) longer due to a larger heatsink 7.08 in. (179.8 mm) / 7.87 in (199.8 mm)* Other dimensions are as shown in Figure 4.5 on page 25 General Specifications TM9400 Specifications Manual © Tait Limited November 2016...
- Page 25 0.79 in. (20 mm) longer due to a larger heatsink 0.2 in. (5 mm) 1.48 in. (37.5 mm) 3.65 in. (100.3 mm) / 4.73 in (120.3 mm)* (dimension varies when radio is tilted) TM9400 Specifications Manual General Specifications © Tait Limited November 2016...
- Page 26 5.35 in. (136.0 mm) Figure 4.7 Dimensions of hand-held control head 2.59 in (65.7 mm) 1.43 in (36.4 mm) 2.22 in (56.3 mm) 1.39 in (35.2 mm) 10.76 in (273.3 mm) General Specifications TM9400 Specifications Manual © Tait Limited November 2016...
-
Page 27: User Interface
Included with microphone Included with control head Speaker Internal, 16Ω impedance, >3W None Microphone Via connected microphone; Internal covert microphone (internal) Volume Rotary control Volume keys On-off On-off key On-off key TM9400 Specifications Manual General Specifications © Tait Limited November 2016... -
Page 28: Radio Body
Includes 1 serial, 3 input, 4 I/O, 1 audio tap in, 1 audio tap out. b. Includes 1 serial, 7 I/O, 1 audio tap in, 1 audio tap out. General Specifications TM9400 Specifications Manual © Tait Limited November 2016... -
Page 29: Radio Size, Weight, And Finish
Plastic: black, with coarse texture. Keys and keypads: silicone rubber. Aluminium: diecast a. 2in (52mm) across the chassis flange. b. Including the control knob. c. Height measured to top of curly cord connector. TM9400 Specifications Manual General Specifications © Tait Limited November 2016... -
Page 30: Environmental
Vibration 514.6 Shock 516.6 1, 5 and 6 a. The TM9400 also meets the equivalent superseded standards MIL-STD-810C, D, E, and F. See also "Regulatory Requirements and Industry Standards" on page General Specifications TM9400 Specifications Manual © Tait Limited November 2016... -
Page 31: Frequencies And Channels
Chapter 2 Receiver Specifications IF bandwidth NB channel 7.5kHz WB channel 15kHz RF power output High 30/35W Medium intentionally left blank Very low a. 30W for –870MHz, 35W for 806–870MHz. TM9400 Specifications Manual General Specifications © Tait Limited November 2016... -
Page 32: Number Of Networks, Zones, Channels And Groups
Conventional networks Zones Channels (simplex or semi-duplex) 1000 2000 Talk groups Total talk group members 1000 2000 Scan/vote groups Members per group Total scan/vote group members 2000 2000 General Specifications TM9400 Specifications Manual © Tait Limited November 2016... -
Page 33: Operational Features
DTMF signaling format Encode only ✔ ✘ MDC1200 signaling format Security/Encryption voice inversion scrambler DES (optional) (standard) FIPS certified AES (optional) ✔ ✔ Emergency: Lone Worker inactivity detection a. P25 conventional only. TM9400 Specifications Manual General Specifications © Tait Limited November 2016... -
Page 34: P25 Phase 1 And Phase 2 Features
✔ Group call ✔ ✔ Emergency ✔ Pre-emption limited ✔ ✔ Encryption ✔ ✔ Motorola-specific Dynamic regrouping ✔ ✔ Supergroup a. Available but not field-tested at the time of publication. General Specifications TM9400 Specifications Manual © Tait Limited November 2016... -
Page 35: Current Consumption
H5/H7 30/35W Power output High 4.7A 4.0A 5.5A 7.2A 8.8A Medium 3.2A 5.5A 2.7A 3.2A 4.8A 6.6A 2.3A 4.5A 1.9A 2.2A 4.1A 4.2A Very low 1.5A 3.6A 1.1A 1.7A 3.3A TM9400 Specifications Manual General Specifications © Tait Limited November 2016... -
Page 36: Control Head Only
The remote configuration has the hand-held control head connected Hand-held Control Head - Remote directly to the remote body interface. The remote interface kit is not used. Configuration Backlighting off 30mA Backlighting on high 50mA General Specifications TM9400 Specifications Manual © Tait Limited November 2016...
