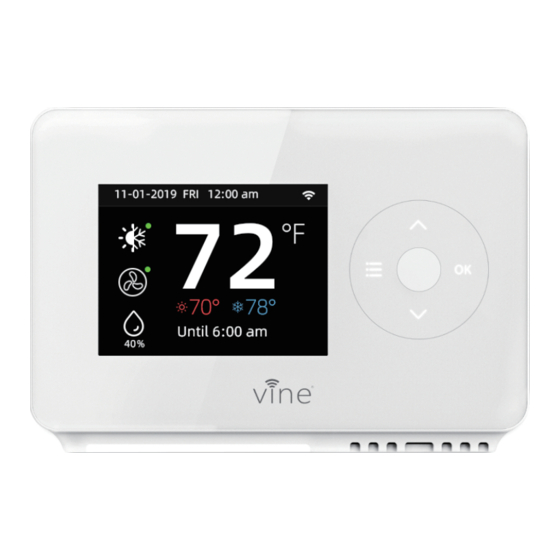

Vine TJ-225 User Manual

Smart wi-fi thermostat with nightlight
Hide thumbs Also See for TJ-225:
Table of Contents

Advertisement

Quick Links

Download this manual
TJ-225
Smart Wi-Fi Thermostat
with Nightlight
User Manual
R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TJ-225 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vine TJ-225

Summary of Contents for Vine TJ-225

  • Page 1 TJ-225 Smart Wi-Fi Thermostat with Nightlight User Manual...
  • Page 2 Electronic manual and installation video 1. This user manual only includes installation and simple setup instructions. For the more detailed operating instructions and user guide, scan the QR code. 2. Watch installation video by scanning the QR code. Installation Video Electronic manual WE ARE HERE TO HELP, 24/7 ! WEBSITE：...
  • Page 3 Google Play APP Store App Download 2. Open the "Vine Smart Control" app. If you already have an account, tap Sign In. To create a new account, tap Sign Up. Note: You must create your own Vine account to use third-party services and products. These will not work with a guest account.
  • Page 4 Installation Guide TJ-225 Smart Wi-Fi Thermostat with Nightlight Vine Thermostat - A Smart Choice for Smart Life! Vine Wi-Fi Thermostat Screw sets Flathead screwdriver Wire labels Jumper wire User Manual...
  • Page 5 You may also need these tools: Phillips screwdriver Level Pencil Home Wi-Fi Password Compatibility Section ·Conventionnal (2H/2C) ·Heat Pump (3H/2C) incl. 1-stage Auxiliary heat or Emergency Heat ·Gas, Oil, Electric ·Dual Fuel support Require C-Wire to power the thermostat (24V-AC) Note: If you’...
  • Page 6 Incompatible wiring and voltage Please check the wall plate of your old thermostat to see if there's any indication as follows: • Does not work with electric baseboard heat ( 110VAC~240VAC ) • Does not work with millivolt systems • Does not support S terminals for indoors and outdoors sensors. 110 VAC 120 VAC 240 VAC...

  • Page 7: Create An Account

    Installation Installation This TJ-225 thermostat is designed to work on most 24V-AC low voltage heating and cooling systems This TJ-225 thermostat is designed to work on most 24V-AC low voltage heating and cooling systems such as gas and oil furnaces, heat pumps, and single or dual-stage systems.
  • Page 8 Check that your system is off Step 2 Confirm your system is off by turning on your heat ( during winter ) or your AC ( during summer ). Wait a few minutes—you should not feel air coming from your vents. NOTE : If you have a digital thermostat that has a...
  • Page 9 Take a picture of the wiring Step 4 Take a picture of your existing wall plate’ s wiring and save it for reference. Make sure you can read the wire terminal labels. Label the wires Step 5 Label the old wall plate wires with labels from our new thermostat box.

  • Page 10: Mount The New Wall Plate

    Disconnect the wires and remove the old wall plate Step 6 Disconnect the wires from the old thermostat one by one, you may need a screwdriver to release wires from terminals. NOTE : Wrap the wires around a pen or pencil so they don’...
  • Page 11 Use the picture you took before as reference to wire, the following chart is a wiring diagram for common systems, please make sure that a C-wire exists in your old thermostat system. Terminal Conventional System Heat Pump System Power for cooling, 24V Power for cooling, 24V Power for heating, 24V Power for heating, 24V...
  • Page 12 Single Stage Heat / Two Stage Heat- Furnace / Boiler with C-wire O/B/W2 Thermostat 1st Stage Heat 2nd Stage Heat Combined Single Stage Heat and Single Cool Stage with C-wire （ Remove Pre-installed Jumper ） Cool Furnace and Air Conditioner O/B/W2 Thermostat...
  • Page 13 Single Stage / Two Stage Heat Pump with Emergency Heat and Auxiliary Heat with C-wire O/B/W2 Thermostat 1st Stage Emerg./AUX 2nd Stage Heating Heat Heat Single Stage Cool / Two Stage Cool‒Air conditioner O/B/W2 Thermostat 1st Stage Cool 2nd Stage Cool...
  • Page 14 Dual Fuel System-Combined Single Stage Heat Pump and Single Stage Furnace with C-wire O/B/W2 Thermostat...
  • Page 15 If C-wire does not exist in your system, check the instruction below: Do you have a spare wire? Yes. Check for the spare wire behind your wall plate or old thermostat, if there's one, connect it to the C-terminal of the new wall plate. Remove the cover of the furnace or heating system, open the cover of the heating/cooling system to find the control board where you should find the same terminal labels as of the thermostat.
  • Page 16 Connect the wires to the new wall plate Step 8 Refer to the above wiring diagram, insert all wires vertically from the open socket into the proper terminal. Ensure each wire is inserted into the matching terminal (refer to the photo taken previously if needed).
  • Page 17 Power on and Enjoy Step 10 Turn on the switch that controls your heating and cooling system, the thermostat will be powered on and prompt you to start the setup. If you have any trouble installing the device or app, check the below information for help, or simply visit our websites for installation videos.

  • Page 18: Device Initial Setup

    User Manual TJ-225 Wi-Fi Thermostat with Nightlight Initial Setup Device Initial Setup Step 1 For a quick and easy way to begin using your new smart thermostat, the device will automatically direct you to the Initialization Setup process once it’ s turned on for the first time.
  • Page 19 Below is a list of possible examples which may help you to select correctly: NOTE : If you are unsure of which option to select, contact 1-800-264-3457 If you have a furnace or boiler： 1. Select Gas/Oil/Furnace. 2. Touch OK button to continue. 3.
  • Page 20 If you have a Dual fuel system： 1. Select Dual Fuel and tap OK. 2. Then follow the on-screen instructions to configure the fossil fuel heating appliance settings, 3. Click Next at the button of the screen to continue to configure the heat pump heating appliance settings.
  • Page 21 Date & Time Schedule ON DEVICE: Follow the screen Select the schedule you would like to run instruction to set date and time of in your thermostat. Only 2 schedules thermostat; once the device is registered (Home & Vacation) will be available during or linked to a user account, the date and offline operation.
  • Page 22 After signing into your account, click the plus(+)in the top right-hand corner to add new device, click the device you like to add, if your thermostat model is TJ-225, please tap TJ-225 button to add it. if it is TJ-225B please tap TJ-225B button.
  • Page 23 Return to your thermostat to select the “Set by your phone” to start Wi-Fi setup. c. Return to your app, and follow the on-screen instructions to connect the TJ-225 Thermostat to your Home’ s Wi-Fi network, tap "Connected to Wi-Fi" to go on.Then enter your home Wi-Fi password.
  • Page 24 Add Device to your Account Step 2 Mobile App, you will be asked to enter the MAC-ID and the Temporary Verification Code. The Temporary Verification Code (TVC) is a 4-digit code randomly generated each time you enter this screen, it expires after 180 seconds (3 minutes).

  • Page 25: Main Screen

    User Manual How to use your TJ-225 Thermostat Main Screen Indoor Temperature Current Date & Time Current Mode Current Fan Mode Down Indoor Humidity Menu & Back button Heating Setpoint Cooling Setpoint Next Schedule Nightlight Period...

  • Page 26: Mode Setup

    Mode Setup The HVAC system settings depends on the type of system you use, common options are shown below: Turn on cooling when the current Turn on cooling when the current temperature rises above the setpoint. temperature drops below the setpoint. Cool Heat Use only the Emergency Heat or backup...
  • Page 27 On Thermostat : Select Main Menu > System, use the “ ” and “ ” to change the system mode of your thermostat between : Cool, Heat, Auto, Emergency Heat or Off. Emergency Heat (Em Heat) mode is only available if you have selected Heat Pump as your Heat Type and enabled the Emergency Heat function in the setup menu.

  • Page 28: Fan Setup

    Fan Setup On Thermostat : The Fan menu displays the current furnace fan setting. Depending on your Select Main Menu > Fan, tap the “ ” and “ ” system, one or more of the following to change the fan mode of your thermostat options are shown: between: On, Auto or Circulation.

  • Page 29: Adjusting The Temperature

    Adjusting the Temperature : You can override the scheduled temperature by tapping the “ ” and “ ” to change the blue number represents the cool setpoint; the red number represents the heat setpoint. When the thermostat is in Auto mode, you must first select either your heating or cooling setpoint depending on which setpoint you would like to modify.
  • Page 30 Schedule : Tap the “ ” and “ ” . to change the active schedule or select No schedule. NOTE : There are only two default programs available for selection, please follow instructions on App to create new programs.
  • Page 31 Wi-Fi Settings Your Thermostat supports 2.4G Wi-Fi 802.11 b/g/n. Wi-Fi is normally configured during initial setup. You may be required to reconfigure the settings if your Wi-Fi network settings change. Wi-Fi Connect Use the up and down arrow to Connect, Reconnect or Disconnect from your home’...

  • Page 32: Advanced Setting

    Advanced Setting: To access the Equipment Setup, click on a setting and use the scroll wheel to modify the default value by following steps: Menu- Setting- Advanced setting. Terminal Default Description A temperature range between the current Deadband 1° F 2°...
  • Page 33 User Manual How to use App to control your TJ-225 Wi-Fi Thermstat Main Screen Key pad lock Menu Refresh Current Date & Time Heat Setpoint Cool Setpoint Indoor Temperature Heating /Cooling Next Schedule Period Setpoint Indoor Humidity Current Mode Current Fan Mode...
  • Page 34 Programming your Schedule Adjusting Schedule To add a new Schedule, click the plus (+) in the top right-hand corner, name your schedule and click OK. To modify an existing Schedule, select a Schedule from the list it will change to programming screen.
  • Page 35 Setting a period Touch the day of the week you want to adjust. Select an existing period activity to edit. You can also create a new activity by touching +. Select Start time, Heat setpoint and Cool setpoint. Swipe to select the new time value. Touch Save Note: You can only select time values that are at least 15 min after the previous activity to 15 min...

  • Page 36: Copy A Schedule

    Copy a Schedule To copy the entire schedule from one day to another day ( for example, if all your week days follow the same schedule ) : Click Copy View Select the days that will use the copied schedule ( you can select more than one ).

  • Page 37: Advanced Features

    IMPORTANT step - link Skill. Tap "Skills" in Alexa app menu. Type and search "Vine Control", then choose and tap "enable" to enable the skill. Enter ... Control account to Alexa Skill. Now you can control your thermostat over Amazon Alexa.
  • Page 38 Common commands Common commands for Alexa to control Vine Thermostat: Alexa, turn (Device Name) on. Alexa, turn (Device Name) off. Alexa, Change (Device Name) Mode to Cool/Heat/Auto. Alexa, Increase (Device Name) by __ degrees. Alexa, Decrease (Device Name) by __ degrees.
  • Page 39 Tap the sidebar menu on the upper left corner of the main page of Google Home, select "Home Control". Tap the "+" button on the lower right corner and search for "Vine Control" Top open "Vine Control" and select country, then enter app account/password and tap "Link Now"...
  • Page 40 5 . Control your smart device with Google Home Common commands for Google Home to control Vine Thermostat: Hey Google, what’ s the __ temperature? Hey Google, make it warmer (or cooler) Ok Google, set the temperature to __ degrees Ok Google, raise (or lower) the temperature __ degrees “Ok Google, what is the current temperature in the Bedroom?

  • Page 41: Limited Warranty

    1. WHAT THIS LIMITED WARRANTY ENTAILS; DURATION OF COVERAGE VINE CONNECTED, Pleasanton, California USA, warrants to the owner of the enclosed product that the product contained in this box will be free from defects in materials and workmanship for a period of two years from the date of delivery following the original retail purchase. If the Product fails to conform to this Limited Warranty during the Warranty Period, VINE CONNECTED will, at its sole discretion, either (a) repair or replace any defective Product or component;...
  • Page 42 HOW TO RECEIVE SERVICE IF YOU WANT TO CLAIM UNDER THIS LIMITED WARRANTY Before making a claim under this Limited Warranty, the owner of the Product must (a) notify VINE CONNECTED of the intention to claim by visiting vineconnected.com/support during the Warranty Period and providing a description of the alleged failure, and (b) comply with VINE CONNECTED’...
  • Page 43 PERIPHERALS THAT MAY BE CONNECTED TO YOUR PRODUCT MAY CHANGE FROM TIME TO TIME. WITHOUT LIMITING THE GENERALITY OF THE DISCLAIMERS ABOVE, ALL PRODUCT INFORMATION IS PROVIDED FOR YOUR CONVENIENCE, “AS IS” , AND “AS AVAILABLE” . VINE CONNECTED DOES NOT REPRESENT, WARRANT, OR GUARANTEE THAT PRODUCT INFORMATION WILL BE AVAILABLE, ACCURATE, OR RELIABLE OR THAT PRODUCT INFORMATION OR USE OF THE SERVICES OR PRODUCT WILL PROVIDE SAFETY IN YOUR HOME.
  • Page 44 www.vineconnected.com...
