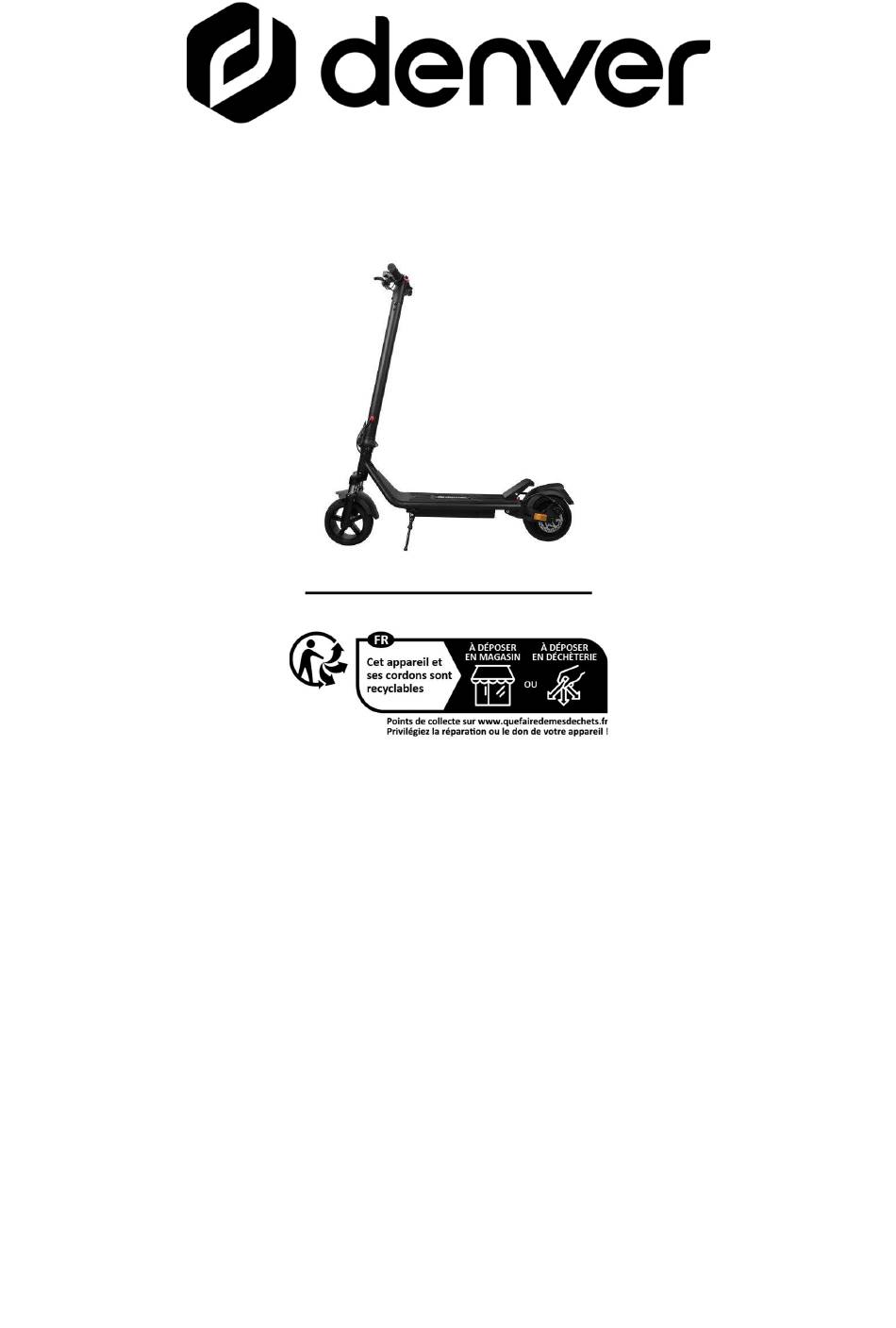

Original manual
SEL-90100F
facebook.com/denver.eu
March/2023
IMPORTANT! Read carefully and keep for future reference.
Before operating this vehicle, read all the instructions for safe assembly and
operations. User's manual can guide you through the functions and usage of Electric
scooter. Before using this Electric scooter, familiarize yourself with how to operate, so
that you can keep the Electric scooter in the best condition possible.
This appliance can be used by children aged from 14 years and above and persons
with reduced physical, sensory, or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
The appliance is only to be used with the power supply unit provided with the
appliance. This appliance contains batteries that are not replaceable.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SEL-90100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Denver SEL-90100

Summary of Contents for Denver SEL-90100

  • Page 1 Original manual SEL-90100F facebook.com/denver.eu March/2023 IMPORTANT! Read carefully and keep for future reference. Before operating this vehicle, read all the instructions for safe assembly and operations. User’s manual can guide you through the functions and usage of Electric scooter. Before using this Electric scooter, familiarize yourself with how to operate, so that you can keep the Electric scooter in the best condition possible.

  • Page 2: Table Of Contents

    Table of Contents 1. Important information before use ......................3 2. Product overview ............................4 3. Unfolding and folding the scooter ......................6 4. Assembling the device ..........................9 5. Charging the scooter ..........................10 6. Intended Use ............................10 7.

  • Page 3: Important Information Before Use

    1. Important information before use We urge owners of this Scooter to charged and store it in a safe way. For safety reason and protect battery life, never charge the electric scooter in temperatures below 5 °C or above 45 °C. Equally, always disconnect the electric scooter with the power cable once fully charged.

  • Page 4: Product Overview

    2. Product overview 1. Front light 11. Charging port 2. Folding mechanism 12. Disc brake 3. Front suspension 4. Brake lever for disc braker 5. Bell 6. Display 7. Throttle - ON/OFF button 8. Electronic brake 9. Rear light 10. Foldable stand...
  • Page 5 Accessories: Power charger Screws for mounting handlebar (4 pcs) Allen key...

  • Page 6: Unfolding And Folding The Scooter

    3. Unfolding and folding the scooter Unfolding the scooter Place the electric scooter on its wheels like below. 1） Unlock the hook on the handlebar. 2) Pull up the handle in a gentle way. Raise the handle slowly.
  • Page 7 3) Close the lock lever located on the lower part of the handlebar support tube. 4) The electric scooter is unfolded as soon as you hear the rod clicks into place. Folding the scooter Release the release lever located on the lower part of the support tube of the handlebars.
  • Page 8 3. Open the scooter by accompanying the handlebar tube downwards. 4. Hook the folded tube onto the appropriate support.

  • Page 9: Assembling The Device

    4. Assembling the device Before using the scooter, it is necessary to install the handlebar on the frame main vehicle. 1). Insert the handlebar into the vehicle frame. After matching the holes in the handlebar with those of the frame, insert the screws and tighten them well.

  • Page 10: Charging The Scooter

    5. Charging the scooter Connect the supplied power adapter to the charging port of the electric scooter. Please make sure only to use the original power adapter when charging. 6. Intended Use The Electric scooter is to be used by a person aged at least 14 with a maximum weight of 120 kg.
  • Page 11 It is your responsibility to be aware of and comply with all regulations. If there are no regulations for this Electric scooter in your country, please take care of your own safety and the safety of others. Also pay attention to other people. Always ride safely and only at a speed that allows you to brake safely at any time.
  • Page 12 Ride the electric scooter only on a dry surface since otherwise the riding safety and braking performance may be impaired and the motor or bearings may be damaged. Please do not ride up or down long and steep slopes. Stop riding when you receive the "Low Battery Warning". The electric scooter then moves only slowly and does not have the same traction as normal, and the electric brake does not work.

  • Page 13: Maintenance

    8. Maintenance WARNING As with any mechanical component, a vehicle is subject to high stresses and wear. The various materials and components may react differently to wear or fatigue. If the expected service life for a component has been exceeded, it may break suddenly, therefore risking causing injuries to the user.
  • Page 14 days in off mode, before it is fully discharged. If only partially charged, this period is lower. Please make sure the battery does not get above 50° Celsius, or below minus 10° Celsius for a longer period. (e.g., don’t leave the electric scooter in a hot car in summer, do not put battery into fire etc.) Low temperature (e.g., subzero temperature) can damage the battery cells.
  • Page 15 Electric scooter with disc brake will require adjustment over time and in the end will need to be replaced, when worm down. Avoid using electric scooter when brakes are worn down, as this is unsafe and will also damage the brake system. Wheels: Check the wheels for wear at regular intervals to avoid unsafe riding.

  • Page 16: Operational Control

    9. Operational control 9.1 Control and display 1. Lights activated symbol 2. Battery level 3. Speedometer 4. Gear modes  ECO mode – This is the pedestrian mode. 6 km/h speed and front light and rear light is flashing. This is on purpose and according to the EU regulation.
  • Page 17 9.2 Button and speed transfer Power on / Power off Press and hold power button few seconds. When scooter display is on you press one time on power button and light is on or off. Quick press power button 2 times and you change scooter gear. You can see in display what gear mode you are in.
  • Page 18 9.3 Brakes The scooter is built with 2 separate brakes. 1. Disc brake 2. Electronic brake Breaking techniques: If needing to brake, then we recommend doing it this way. First release the throttle and then press the electronic brake. If harder braking is needed, then use the disc brake. WARNING The braking distances will be extended during wet weather.

  • Page 19: Specification

    Max Speed: 25 km/h Weight: 23,6 kg Year Of manufacture: 2022 Max Vehicle Payload: 120kg Battery: 48V/12.5Ah Power Consumption: ≤ 500W Always charge the electric scooter with the supplied power adapter: HLT-180I-5462000 DENVER A/S Omega 5A Soeften DK-8382 Hinnerup Denmark www.denver.eu...

  • Page 20: Warnings

    11. Warnings Risks of riding WARNING First, learn safe riding before you ride the Electric scooter fast. Failure to observe, loss of control, falls, and violations of the rules can cause injuries. Speed and range depend on the rider's weight, terrain, temperature, and riding style. Wear a helmet and protective clothing when riding the Electric scooter.
  • Page 21 Do not try to make a turn too fast. WARNING Lithium battery inside. WARNING If the Electric scooter switches off, the system will block the vehicle automatically. It can be released again by pressing On/Off. Use the device only at temperatures between -10 °C and +45 °C. ●...
  • Page 22 The Electric scooter can accommodate only one person. ● Do not start or stop abruptly. ● Avoid riding on steep slopes. ● Do not ride in dimly lit or dark places. ● Ride the Electric scooter at your own risk, we assume no liability for accidents or ●...
  • Page 23 Now you can stop the charging cycle and unplug the power cable. Overcharge ● shortens the battery life. The charging process takes up to 7 hours. Do not charge the battery for more than 7 ● hours. After 7 hours, disconnect the charger from the device and the power supply. Overcharge reduces the battery life.
  • Page 24 WARNING Make sure that neither water nor other liquids penetrate the inner components of the Electric scooter. Otherwise, the electronics/batteries of the device could be permanently damaged. There is a risk of injury. CAUTION Do not open the electric scooter casing, otherwise the warranty is void. ●...
  • Page 25 In all cases, take care of yourself and others. Do not divert the use of the vehicle. This vehicle is not intended for acrobatic use. Power-off the vehicle during charging. Self-tightening nuts as well as the other self-tightening fastenings may lose their efficiency and that they may need to be retightened.
  • Page 26 Please notice - All products are subject to change without any notice. We take reservations for errors and omissions in the manual. ALL RIGHTS RESERVED, COPYRIGHT DENVER A/S Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.
  • Page 27 The engine in the front wheel will this way help to activate the charging function and it will charge normally. (fully charge takes 7 hours if using this way) Please enter: www.denver.eu to obtain the electronic version of the manual.
  • Page 28 (20-50% charged). Not fully charged. • When shipped from the factory, the product has often been partially charged. Keep the product in a partially charged state, until it is going to be used. DENVER A/S Omega 5A, Soeften, DK-8382 Hinnerup, Denmark www.denver.eu...
  • Page 29 Torben Balmer Position: Company: DENVER A/S Address: Omega 5A, Soeften, DK-8382 Hinnerup, Denmark Date: of April 2023 DENVER A/S | Omega 5A | 8382 Hinnerup | Denmark Phone: +45 86 22 61 00 | E-Mail: contact@denver.eu | Web: www.denver.eu VAT.NO: DK18831678...
