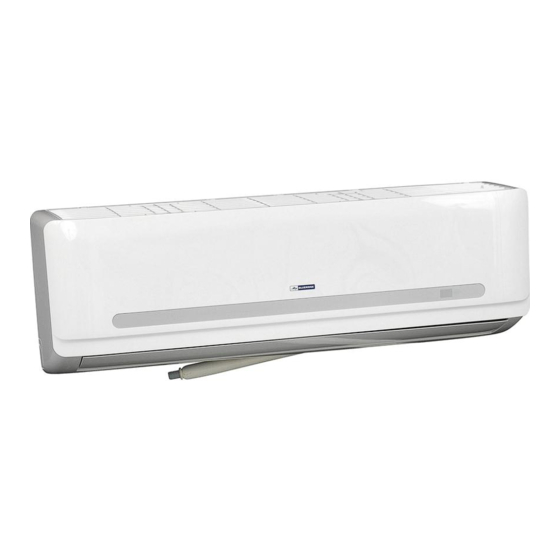

SPLIT-TYPE ROOM AIR CONDITIONER
Owner's Manual &
Installation Manual
IMPORTANT NOTE:
Read this manual carefully before installing
or operating your new air conditioning
unit. Make sure to save this manual for
future reference.
Please check the applicable models, technical
data, F-GAS(if any) and manufacturer information
from the "Owner's Manual - Product Fiche "
in the packaging of the outdoor unit.
(European Union products only)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Blueridge BMX9DIY20WM
Summary of Contents for Blueridge BMX9DIY20WM
- Page 1 SPLIT-TYPE ROOM AIR CONDITIONER Owner’s Manual & Installation Manual IMPORTANT NOTE: Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference. Please check the applicable models, technical data, F-GAS(if any) and manufacturer information from the “Owner's Manual - Product Fiche ”...
-
Page 2: Table Of Contents
Table of Contents Safety Precautions..................03 Owner’s Manual Unit Specifications and Features..............07 1. Indoor unit display.........................07 2. Operating temperature........................08 3. Other features ..........................09 4. Setting angle of airflow.........................10 5. Manual operation(without Remote)....................10 Care and Maintenance..............11 Troubleshooting................13 Installation Manual Accessories..................16 Installation Summary - Indoor Unit..........17 Unit Parts....................18 Indoor Unit Installation..............19 1. -
Page 3: Safety Precautions
Safety Precautions Read Safety Precautions Before Operation and Installation Incorrect installation due to ignoring instructions can cause serious damage or injury. The seriousness of potential damage or injuries is classified as either a WARNING or CAUTION. CAUTION WARNING This symbol indicates the possibility of This symbol indicates the possibility property damage or serious consequences. - Page 4 CAUTION Turn off the air conditioner and disconnect the power if you are not going to use it for a long time. • Turn off and unplug the unit during storms. • Make sure that water condensation can drain unhindered from the unit. •...
-
Page 5: Owner's Manual
Before opening doors and access panels bearing the ULTRAVIOLET RADIATION hazard symbol for the conducting USER MAINTENANCE, it is recommended to disconnect the power. 5. The UV-C lamp can not be cleaned, repaired and replaced. 6. UV-C BARRIERS bearing the ULTRAVIOLET RADIATION hazard symbol should not be removed. WARNING This appliance contains an UV emitter. - Page 6 WARNING for Using R32/R290 Refrigerant When flammable refrigerant are employed, appliance shall be stored in a well -ventilated area where the room size corresponds to the room area as specifiec for operation. For R32 frigerant models: Appliance shall be installed, operated and stored in a room with a floor area larger than 4m . For R290 refrigerant models, appliance shall be installed, operated and stored in a room with a floor area larger than: <=9000Btu/h units: 13m...
-
Page 7: Unit Specifications And Features
Unit Specifications and Features Indoor unit display NOTE: Different models have different front panels and display windows. Not all the display codes describing below are available for the air conditioner you purchased. Please check the indoor display window of the unit you purchased. Illustrations in this manual are for explanatory purposes. -
Page 8: Operating Temperature
Operating temperature When your air conditioner is used outside of the following temperature ranges, certain safety protection features may activate and cause the unit to disable. Inverter Split Type FOR OUTDOOR UNITS COOL mode HEAT mode DRY mode WITH AUXILIARY 16°C - 32°C 0°C - 30°C 10°C - 32°C... -
Page 9: Other Features
Breeze Away (some units) • A guide on using the infrared remote is not This feature avoids direct air flow blowing on included in this literature package. Not all the body and make you feel indulging in the functions are available for the air silky coolness. -
Page 10: Setting Angle Of Airflow
Setting Angle of Air Flow • Setting vertical angle of air flow While the unit is on, use the SWING/DIRECT button on remote control to set the direction (vertical angle) of airflow. Please refer to the Remote Control Manual for details. NOTE ON LOUVER ANGLES When using COOL or DRY mode, do not set louver at too vertical an angle for long periods... -
Page 11: Care And Maintenance
Care and Maintenance Rinse the filter with fresh water, then shake Cleaning Your Indoor Unit off excess water. BEFORE CLEANING OR Dry it in a cool, dry place, and refrain from MAINTENANCE exposing it to direct sunlight. When dry, re-clip the air freshening filter to ALWAYS TURN OFF YOUR AIR CONDITIONER the larger filter, then slide it back into the SYSTEM AND DISCONNECT ITS POWER SUPPLY... - Page 12 Maintenance – CAUTION Long Periods of Non-Use Before changing the filter or cleaning, • If you plan not to use your air conditioner for an turn off the unit and disconnect its power extended period of time, do the following: supply.
-
Page 13: Troubleshooting
Troubleshooting SAFETY PRECAUTIONS If ANY of the following conditions occurs, turn off your unit immediately! The power cord is damaged or abnormally warm • You smell a burning odor • The unit emits loud or abnormal sounds • A power fuse blows or the circuit breaker frequently trips •... - Page 14 Issue Possible Causes The outdoor unit The unit will make different sounds based on its current operating mode. makes noises Dust is emitted from The unit may accumulate dust during extended periods of non-use, which will be either the indoor or emitted when the unit is turned on.
- Page 15 Problem Possible Causes Solution Wait for the power to be restored Power failure The power is turned off Turn on the power The unit is not The fuse is burned out Replace the fuse working Replace batteries Remote control batteries are dead The Unit’s 3-minute protection Wait three minutes after restarting has been activated...
-
Page 16: Accessories
Accessories The air conditioning system comes with the following accessories. Use all of the installation parts and accessories to install the air conditioner. Improper installation may result in water leakage, electrical shock and fire, or cause the equipment to fail. The items are not included with the air conditioner must be purchased separately. -
Page 17: Installation Summary - Indoor Unit
Installation Summary - Indoor Unit 15cm (5.9in) 12cm 12cm (4.75in) (4.75in) 2.3m (90.55in) Attach Mounting Plate Select Installation Location Determine Wall Hole Position Drill Wall Hole Connect Piping Connect Wiring (not applicable for some locations in the US ) Wrap Piping and Cable Prepare Drain Hose (not applicable for some locations in the US ) STEP... -
Page 18: Unit Parts
Unit Parts NOTE: The installation must be performed in accordance with the requirement of local and national standards. The installation may be slightly different in different areas. Air-break switch （1） （2） Functional Filter (On Back of Remote Controller Wall Mounting Plate Main Filter - Some Units) Remote controller Holder Front Panel... -
Page 19: Indoor Unit Installation
Indoor Unit Installation NOTE ABOUT WALL HOLE: Installation Instructions – Indoor unit If there is no fixed refrigerant piping: PRIOR TO INSTALLATION While choosing a location, be aware that you Before installing the indoor unit, refer to the should leave ample room for a wall hole (see label on the product box to make sure that the Drill wall hole for connective piping step) model number of the indoor unit matches the... -
Page 20: Drill Wall Hole For Connective Piping
348.4mm(13.7in) Step 3: Drill wall hole for connective piping 179mm(7.1in) 101mm(4.0in) 136mm(5.4in) Determine the location of the wall hole based on the position of the mounting plate. Refer Indoor unit outline to Mounting Plate Dimensions. Using a 65mm (2.5in) or 90mm(3.54in) (depending on models )core drill, drill a Left rear wall Right rear wall... -
Page 21: Prepare Refrigerant Piping
Step 4: Prepare refrigerant piping Please make sure that refrigerant is never allowed to enter the environment. The refrigerant piping is inside an insulating Improper handling of refrigerant may sleeve attached to the back of the unit. You must be harmful to health. Always wear work prepare the piping before passing it through the gloves and goggles when handling hole in the wall. - Page 22 4.3 Connecting the refrigerant pipes to indoor unit 1. Do not remove the plastic seals from the indoor equipment and the appro- priate refrigerant pipe until immediately before you connect them. 2. Align the refrigerant pipes correctly, make sure the dimensions of the connecting refrigerant pipe are the same.
- Page 23 6. After finishing connecting the couple of the 9. Then wrap up the connectors with the quick connectors, pass drain hose and black insulation material, for the top refrigerant pipes through the wall hole as exposed part, use the white insulation shown in Fig.4.10.
-
Page 24: Connect Drain Hose
Step 5: Connect drain hose BEFORE PERFORMING ANY By default, the drain hose is attached to the left- hand side of unit (when you’re facing the back ELECTRICAL WORK, READ THESE of the unit). However, it can also be attached to REGULATIONS the right-hand side. -
Page 25: Connect Signal Cable
pen front panel of the indoor unit. 1. O WARNING Using a screwdriver, open the wire box cover BEFORE PERFORMING ANY ELECTRICAL on the right side of the unit. This will reveal the terminal block. OR WIRING WORK, TURN OFF THE MAIN POWER TO THE SYSTEM. -
Page 26: Wrap Piping And Cables
In North America DO NOT INTERTWINE SIGNAL CABLE WITH OTHER WIRES For the units with conduit tube to connect the While bundling these items together, do not cable: intertwine or cross the signal cable with any Facing the back of the unit, remove the plastic other wiring. -
Page 27: Outdoor Unit Installation
Outdoor Unit Installation Install the unit by following local codes and install unit in the following locations: DO NOT regulations , there may be differ slightly between different regions. Near an obstacle that will block air inlets and outlets Near a public street, crowded areas, or where noise from the unit will disturb others Near animals or plants that will be harmed by hot air discharge... -
Page 28: Install Drain Joint
Step 2: Install drain joint(Heat pump unit only) Step 3: Anchor outdoor unit Before bolting the outdoor unit in place, you must The outdoor unit can be anchored to the install the drain joint at the bottom of the unit. ground or to a wall-mounted bracket with Note that there are two different types of drain bolt(M10). - Page 29 Outdoor Unit Dimensions (mm) Mounting Dimensions Distance A (mm) Distance B (mm) W x H x D 681x434x285 (26.8”x17.1”x11.2”) 460 (18.1”) 292 (11.5”) 700x550x270 (27.5”x21.6”x10.6”) 450 (17.7”) 260 (10.2”) 450 (17.7”) 260 (10.2”) 700x550x275 (27.5”x21.6”x10.8”) 720x495x270 (28.3”x19.5”x10.6”) 255 (10.0”) 452 (17.8”) 302(11.9”) 452 (17.8”) 728x555x300 (28.7”x21.8”x11.8”)
-
Page 30: Connect Signal And Power Cables
8. Replace the wire cover on the side of the unit, Step 4: Connect signal and power cables and screw it in place. The outside unit’s terminal block is protected by an electrical wiring cover on the side of the unit. Cover A comprehensive wiring diagram is printed on the inside of the wiring cover. -
Page 31: Refrigerant Piping Connection
Refrigerant Piping Connection Connecting the refrigerant pipe to outdoor unit 3. Align the refrigerant pipes correctly so CAUTION: For your safety, always wear that they line up with the valves and are goggles and work gloves when connecting not stressed. Place the screw connector the pipes. - Page 32 Coup ling size (last 2 part numb ers) Poun d-forc e foot(1 bf-ft) Newt on meter (N-m) Kilogr am-fo rce meter (kgf-m ) -06(9.5mm dash size) 18 - 20 24.4 - 27.1 2.4 - 2.7 -09(12.7mm dash size) 40.6 - 47.4 4.1 - 4.8 30 - 35 61.0 - 67.7...
-
Page 33: Electrical And Gas Leak Checks
Electrical and Gas Leak Checks Before Test Run WARNING – RISK OF ELECTRIC SHOCK Only perform test run after you have completed ALL WIRING MUST COMPLY WITH LOCAL the following steps: AND NATIONAL ELECTRICAL CODES, Electrical Safety Checks – Confirm that •... -
Page 34: Test Run
Test Run DOUBLE-CHECK PIPE CONNECTIONS Test Run Instructions During operation, the pressure of the You should perform the Test Run for at least 30 refrigerant circuit will increase. This may minutes. reveal leaks that were not present during your Connect power to the unit. initial leak check. - Page 36 The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. Any updates to the manual will be uploaded to the service website, please check for the latest version. AlpineHomeAir.com...
