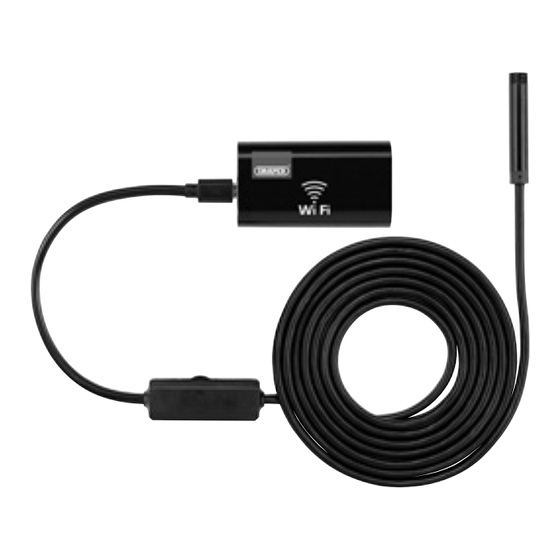

Draper WIFIENDO Original Instructions

WIFI
ENDOSCOPE
91648
Read this manual in full before using this product and
retain it for future use. Always use the latest version of
the manual. Please visit drapertools.com/manuals for
the latest version.
1. Intended Use
This product is designed for viewing inside wall cavities,
piping and other tight spaces and for close inspection of
engines and other obscured machine parts. Images and
video are transmitted wirelessly via Wi-Fi connection to
an app on your iOS or Android device and can be saved
to local storage.
Any other application will be considered misuse. Draper
Tools accepts no responsibility for improper use of this
product.
Important: The focal length of this device is 40–100mm.
It is not suitable for use as surveillance equipment or to
monitor large areas.
Important: Strictly not for medical use.
2. Specification
Stock No.
Part No.
Camera size
Resolution
Focal length
Light
Mirror angle (accessory)
Cable length
Max. wireless range
Wireless frequency
Battery
Battery life (full charge)
Compatible operating system iOS, Android
IP rating
3. Health and Safety Information
• Always ensure that the cables are connected to the
correct ports of the battery pack; DO NOT apply a power
supply to the video input port.
• If condensation has formed inside the camera lens,
DO NOT use the camera until the moisture has fully
evaporated.
• While the camera elements are rated IP67 and are
suitable for use underwater or in dusty environments,
the Wi-Fi unit and brightness control should not be
exposed to liquids or heavy dust.
• DO NOT handle the battery pack with wet hands.
• DO NOT direct the LED lamp at your own or another
person's eyes.
• DO NOT open or damage the battery pack or expose it
to high temperatures.
• Store the product in a cool, clean and dry environment,
out of direct sunlight and out of reach of children.
• Strictly NOT for medical use.
EN
Original Instructions
Version 2
91648
WIFIENDO
Ø8mm
2MP (640x480, 1280x720)
40–100mm
6 x adjustable LEDs
70°
3.5m
30m
2.4GHz
800mA rechargeable
Up to 90mins (approx.)
IP67 (camera and cable only)
