OWNER'S MANUAL
INSTALLATION INSTRUCTIONS

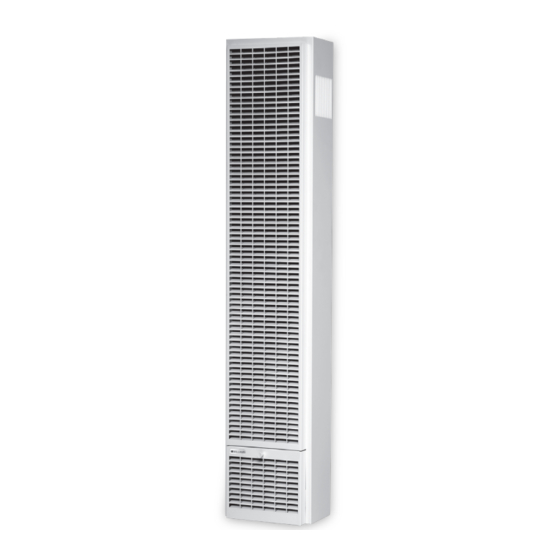

CARMEL
TOP VENT GAS WALL HEATER
SINGLE SIDED MODEL NUMBER:
AC2030TNA (natural gas)
SAVE THIS MANUAL FOR FUTURE REFERENCE.
READ THIS OWNER'S MANUAL CAREFULLY BEFORE YOU
INSTALL YOUR NEW WILLIAMS WALL FURNACE.
WARNING: INSTALLATION IN MANUFACTURED
HOMES Williams Top-Vent Furnaces are allowed in
manufactured homes when the following conditions are met:
- The manufactured home is permanently sited per local codes.
- The manufactured home is manufactured after
6/15/1976 and is HUD approved with a red certification
label (US only). These models are allowed only in
the USA. This applies to aftermarket manufactured
home installations where the home is sold, installed
and permanently sited. Not for manufactured home
manufacturer (factory) installation. These units may not be
installed in trailers or recreational vehicles.
WARNING: This product can expose you to
chemicals including epichlorohydrin which is known to
the State of California to cause cancer and birth defects
and/or other reproductive harm. For information go to
www.p65warnings.ca.gov
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause injury or
property damage. Refer to this manual. For assistance or
for additional information consult a qualified installer,
service agency or the gas supplier.
250 West Laurel Street, Colton CA 92324 • WWW.WFC-FC.COM • 1-888-444-1212
AC2030TNA
TM
VISITEZ NOTRE SITE WEB POUR LA VERSION FRANÇAISE DE CE MANUEL
VISITE NUESTRA PÁGINA WEB PARA LA VERSIÓN EN ESPAÑOL DE ESTE MANUAL
https://www.williamscomfortprod.com/products/furnaces/
20,000 - 30,000
WARNING: If the information in these instructions
is not followed exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
- Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
• Open all windows.
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone or cell phone in your building.
• Extinguish any open flame.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach the gas supplier, call the fire
department.
– Installation and service must be performed by a
qualified installer, service agency or the gas supplier.
BTU/hr.
