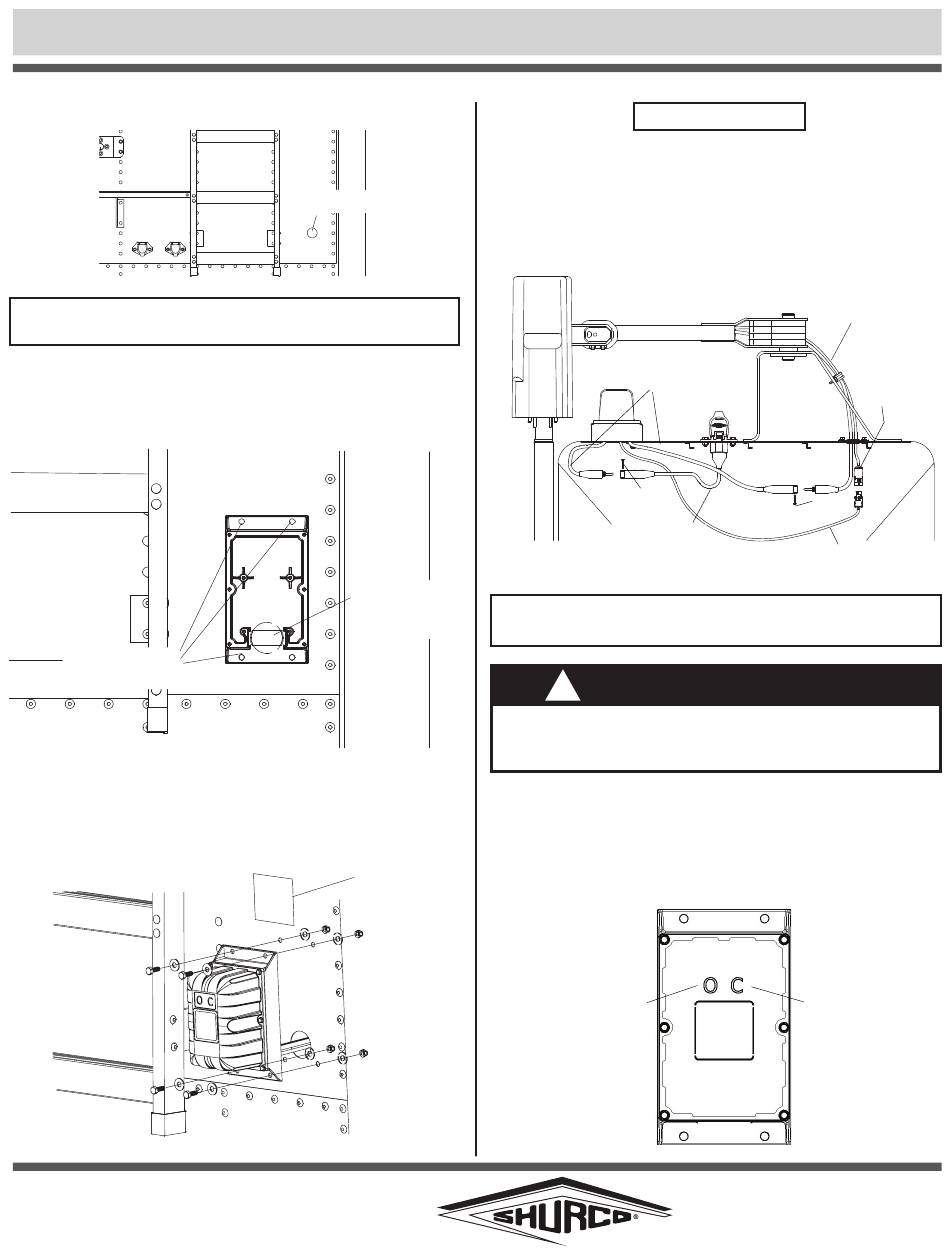

Shurco 4500 HD Series Installation Instructions

Installation Instructions - 4500 HD Series Express Mode
STEP 1: Determine location and drill 2" hole through trailer skin.
NOTE: In order to clear travel area of front arm, locate Shur-
Co wireless receiver as low as possible on front of trailer.
®
STEP 2: Align hole in wireless receiver over 2" hole in trailer as
shown below. Using holes in fl anges on receiver base as guide,
mark and drill four 5/16" holes as shown.
&
MARK DRILL FOUR
5/16"
HOLES
STEP 3: Align holes on wireless receiver with holes on trailer. Fasten
receiver to trailer with 5/16" x 7/8" cap screws, lock washers and
nylon lock nuts. Adhere warning decal P/N 1705546 above receiver
in location shown.
2309 SHUR-LOK STREET
YANKTON, SOUTH DAKOTA 57078-0713
PH. 800-474-8756 • FAX 605-665-0501
2"
DRILL HOLE
ALIGN HOLES
IN WIRELESS
/
RECEIVER W HOLE
IN TRAILER
APPLY WARNING
1705546
DECAL
WIRING SCHEMATIC
STEP 1: Connect SMARTwire™ from wireless receiver to SMART-
wire™ from electric motor. Connect SMARTwire™ plug from wire-
less receiver to SMARTwire™ from dual-conductor socket. Secure
connections with lock pins. If you have a ShurLink™ system, con-
nect encoder wire from receiver to encoder wire from motor. Secure
wires to trailer with cable clips and screws. If needed, use cable ties.
SMARTWIRE
WIRELESS RECEIVER
LOCK PIN
™
SMARTWIRE
CONDUCTOR SOCKET
NOTE: Coat each connection with dielectric grease
(P/N 1704378) to prevent corrosion.
CAUTION
!
Check all hardware for complete assembly before
operating. Inspect system at this time and adjust as
required.
STEP 2: Check motor direction by pressing either button. If button
is released and operation continues, system is in Express Mode.
To stop operation, press button again. If switch is running system
backwards, program remote to wireless receiver and rewire as
directed in troubleshooting guide in remote instructions.
O
PRESS TO
OPEN TARP
P/N 1131573 Rev. A
SMARTWIRE
FROM MOTOR
™
FROM
LOCK PIN
FROM
ENCODER WIRE FOR
™
SHURLINK
C
PRESS
CLOSE TARP
®
