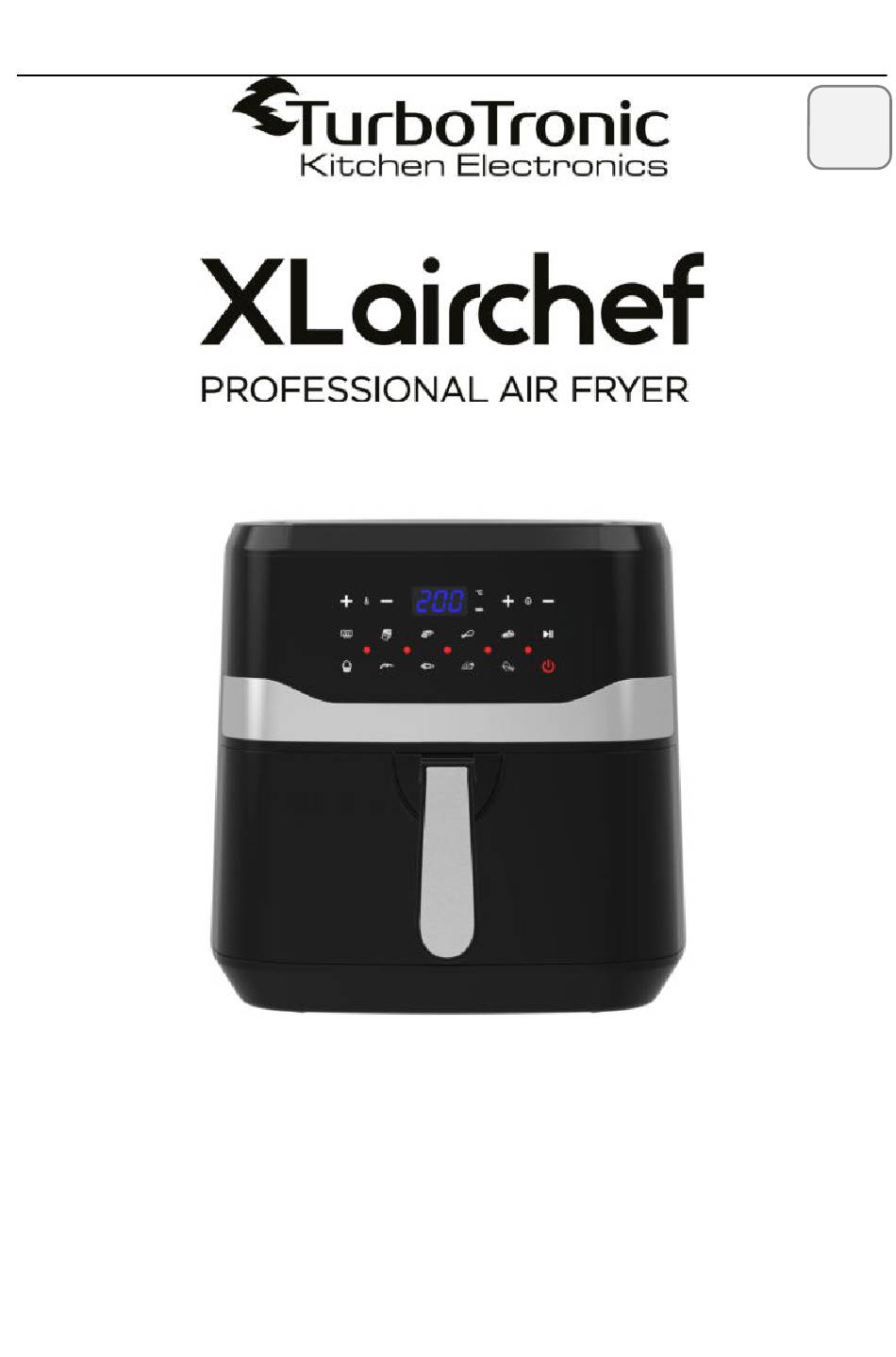

  • Page 1 ® INSTRUCTION MANUAL DIGITAL AIR FRYER TT-AF7D www.zline-world.com...

  • Page 2: General Description

    ® Thank you for buying XLairchef - Digital air fryer by TurboTronic You will now be able to cook a wide assortment of food in a healthier manner – with little or no oil! The air fryer uses hot air, in combination with high-speed air circulation, and a top grill to prepare your dishes quickly and easily.

  • Page 3: Important Safeguards

    A: PRE-HEAT I: PAUSE B: TEMPERATURE +/- J: START FRENCH FRIES VEGETABLES MEAT CHICKEN E: TIME/TEMPERATURE FISH DRUMSTICKS SHRIMP STEAK CAKE H: TIME PLUS/MINUS IMPORTANT SAFEGUARDS HOUSEHOLD USE ONLY. READ ALL INSTRUCTIONS. When using electrical appliance, basic safety precautions should always be followed, including the following: Read this user manual carefully, before you use the appliance, and keep it safely for future reference.
  • Page 4 with the heating elements. - Do not cover the air inlet and the air exhaust openings while the appliance is operating. - Do not fill the frying tray with oil as this may cause a fire hazard. - Never touch the inside of the appliance while it is operating. - Check whether the voltage indicated on the appliance corresponds to the local mains voltage in your country before you connect the appliance.

  • Page 5: Before First Use

    - If the appliance is used improperly or if it is not used according to the instructions in the user manual, the warranty becomes invalid and seller refuses any liability for any damage that may be caused. Always unplug the appliance after use. - Let the appliance cool down for approx.
  • Page 6 temperature freely by using Time +/- and Temperature +/- button. (1). The temperature control range is 180-200°C, every click on the + / - temperature will increase or reduce 10°C. At 200°C, ， press the "+", will loop back to a temperature of In the process of 50°C, press the "-"...

  • Page 7: Menu Table

    MENU TABLE program logistics menu Default Default temperature （°C ） time(min) Pre-heat French fries Meat Drumsticks Steak function Cake Shrimp Fish Chicken Vegetables Caution: Do not touch the pan during and about 30mins after use, as it gets very hot. Only hold the pan by the handle.
  • Page 8 The function we have selected is flicker 5.Some ingredients require shaking halfway through the preparation time (see section 'Settings' in this chapter). To shake the ingredients, pull the frying tray out of the appliance by the handle and shake it. Then slide the frying tray back into the air fryer. Caution: Do not press the basket release button during shaking.
  • Page 9 Tips: - Smaller ingredients usually require a slightly shorter preparation time than larger ingredients. - A larger amount of ingredients only requires a slightly longer preparation time, a smaller amount of ingredients only requires a slightly shorter preparation time. - Shaking smaller ingredients halfway through the preparation time optimized the end result and can help prevent unevenly fried ingredients.

  • Page 10: Making Home-Made Fries

    Meat & Poultry Steak 8-12 Pork chops 10-14 Hamburger 7-14 Sausage roll 13-15 Drumsticks 18-22 Chicken breast 10-15 Snacks Spring rolls 8-10 Shake Use oven-ready Frozen chicken 6-10 Shake Use oven-ready Nuggets Frozen fish 6-10 Use oven-ready fingers Frozen Bread- crumbed cheese Use oven-ready snacks...
  • Page 11 CLEANING Clean the appliance after every use. The frying tray, basket and the inside of the appliance have a non-stick coating. Do not use metal kitchen utensils or abrasive cleaning materials to clean them, as this may damage the non-stick coating. 1.

  • Page 12: Troubleshooting

    TROUBLESHOOTING Problem Possible cause Solution The air fryer does The appliance is not plugged Put the mains plug in an earthed wall not work into the mains. socket. You have not set the timer. Turn the timer knob to the required Preparation time to switch on the appliance.

  • Page 13: Disposal Of Old Electrical Appliances

    Problem Possible cause Solution The pan still contains greasy White smoke is caused by grease residues from previous use. heating up in the pan. Make sure you clean the pan properly after each use. Fresh potato You did not soak the potato Soak the potato sticks in a bowl of fries are fried...

  • Page 14: Limited Warranty

    (e.g., failure to keep the well of the motor base clear of food spills and other debris), or damage due to mishandling in transit. 4. Consequential and incidental damages. 5. Defects caused by repair persons not authorized by TurboTronic . These ®...
