Summary of Contents for Sartorius MA150

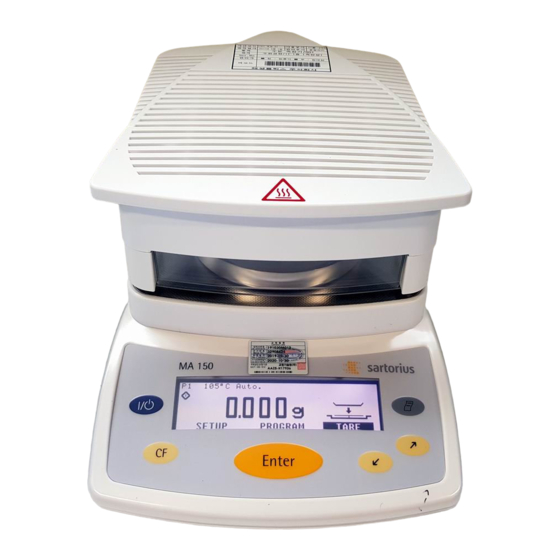

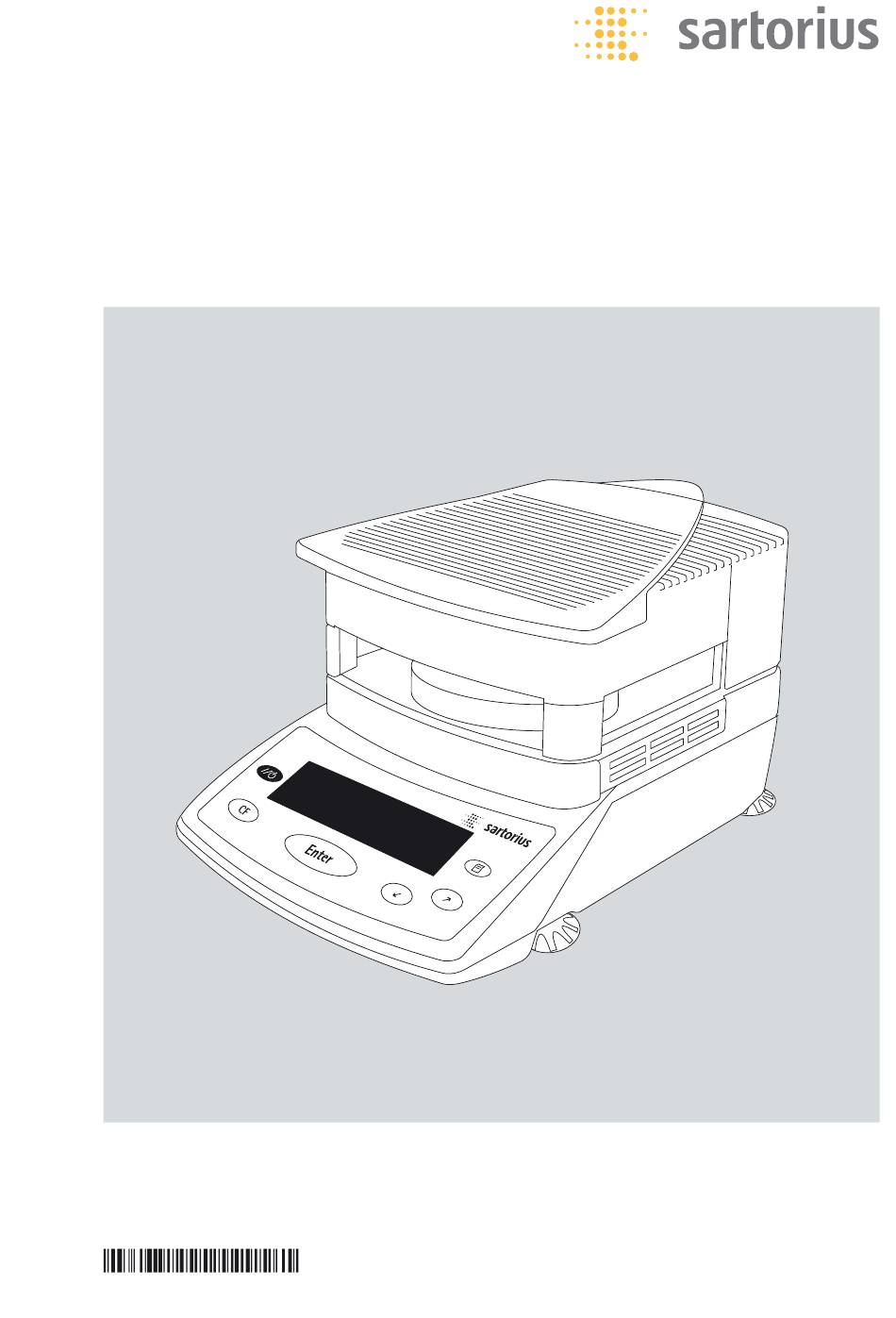

- Page 1 Operating Instructions Sartorius Moisture Analyzer Model MA150 Electronic Moisture Analyzer 98648-014-64 98648-014-64...
-
Page 2: Intended Use
Intended Use Symbols The MA moisture analyzer can be used The following features make the for quick and reliable deter-mination of moisture analyzer ideal for use as The following symbols are used in moisture content of materials of liquid, an inspection, measuring and these instructions: pasty and solid substances using the test instrument in process control § indicates required steps thermogravimetric method. and goods-in inspection: $ indicates steps required only under The moisture analyzer speeds up routine – compact design; requires little space procedures with the following features: c ertain conditions – hinged sample chamber cover with – fast analysis time, high repeatability, wide-angle opening for easy access > describes what happens after you have and gentle and uniform sample performed a particular step drying due to the round ceramic or – convenient and reliable control of quartz-rod IR heating element. the accuracy of the moisture analyzer – indicates an item in a list according to the DIN/ISO standards – choice of fully automatic, by using an external calibration weight... -
Page 3: Table Of Contents
Contents Intended Use .... 2 Operating the Moisture Analyzer . . . 24 Appendix Setting the Drying Parameters ..24 Entering General Password Safety and Warning Information . -
Page 4: Safety And Warning Information
Warning and Safety Information Potential risk of damage and injury to This moisture analyzer complies with – Disconnecting the ground conductor persons with certain samples: the European Council Directives as well is not permitted as international regulations and standards for electrical equipment, – Use only Sartorius accessories and electromagnetic compatibility, and the options as these are optimally designed stipulated safety requirements. for use with your moisture analyzer Fire Explosion Improper use or handling, however, can result in damage and/or injury. Note on installation: The operator shall be responsible – Flammable or explosive substances To prevent damage to the equipment, for any modifications to Sartorius read these operating instructions equipment and must check and, – Substances that contain solvents... -
Page 5: Getting Started
Getting Started Equipment Supplied Conditioning the Moisture Analyzer The moisture analyzer comprises a heater unit, weighing system and The equipment supplied includes Moisture in the air can condense on operating unit. In addition to the socket the following: the surfaces of a cold moisture analyzer for AC power (mains supply), it also whenever it is brought into a substan- has an interface port for connecting – Moisture analyzer tially warmer place. On transfering peripheral devices (such as PC, printer, – Power cord the moisture analyzer to a warmer area, etc.). – Pan support make sure to condition it for about – Pan draft shield 2 hours at room temperature (un- Storage and Shipping Conditions – Dust cover for keypad plugged from power). Afterwards, if you Permissible storage temperature: – 80 disposable aluminum sample pans keep the moisture analyzer connected 0 to +40°C... -
Page 6: General View Of The Moisture Analyzer
Pos. Description Order no. for replacement No. Designation Order no. for replacement Hinged cover with heating element “Down/Back” key Disposable sample pan 6965542 (80 pcs.) “Up/Forward” key Pan support 69MA0092 Print key Pan draft shield 69MA0093 Leveling foot Display Interface port Keypad Power socket On/off key CF key (clear function) Not shown: Enter key (confirm) Dust cover for keypad 6960MA02 1 pair of forceps 69MA0072... -
Page 7: Connecting The Moisture Analyzer To Ac Power
Connecting the Moisture Analyzer to AC Power § Check the voltage rating and plug design $ The heating unit of the moisture analyzer has been factory-set to either 230 V or 115 V for technical reasons. The voltage has been set to the rating specified on your order. The voltage setting is shown on the manufacturer’s label (see the bottom of the analyzer), for example: – 230 volts: MA150–…230.. – 115 volts: MA150–…115.. If they do not match: Do not operate your moisture analyzer; contact your local Sartorius office or dealer. Use only – Original power cords – Power cords approved by a certified electrician – If you need to connect an extension cord: Use only a cable with a protective grounding conductor § Connecting the moisture analyzer, rated to Class 1, to power supply (mains supply): The moisture analyzer must be plugged into a properly installed wall outlet which has a protective grounding conductor (PE) Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Changes or modifications not expressly approved by Sartorius could void the user’s authority to operate the equipment. Safety Precautions... -
Page 8: Leveling The Moisture Analyzer
Leveling the Moisture Analyzer Purpose: – To compensate for unevenness at the place of installation – This is necessary especially for testing liquid samples that need to be at a uniform level in the disposable sample pan Always re-level the moisture analyzer after it has been moved to a different location. § Extend or retract the front and/or rear leveling feet as needed to adjust the moisture analyzer MA150 Installing the Aluminum Panels (Optional) To prevent burns, allow the glass panels to cool sufficiently before removing them Do not handle the aluminum panels with oily or greasy fingers Do not scratch the aluminum panels; do not use abrasive or corrosive substances to clean the aluminum panels § Unscrew the 2 retainers using the included open-jawed wrench § Remove the glass panels § Position the aluminum panels in the guide § Re-secure the aluminum panels by re-tightening the retainers Turning on the Analyzer; Opening and Closing the Sample Chamber § To turn on the analyzer, press the e key... -
Page 9: Operating Design
Operating Design Operation of the moisture analyzer conforms to a consistent approach, described below. Keys The keys have the following functions: e On/off key y Down/back Entering letters, special characters T urns the moisture analyzer on/off. and numbers: W hen the operating menu is active: The moisture analyzer remains in When the character at the cursor position Shows the next menu item standby mode on the current menu level is blinking, you can use the y and x keys to change the character. The When entering alphanumeric charac- c Clear Function ters: Moves the cursor back to cursor “moves” through the available C ancels application functions, inter- the previous character (see the next c haracters in the following sequence: rupts calibration/adjustment routines column for character sequence) When the operating menu is active: 0 1 2 3 4 5 6 7 8 9 . - + / * = x Up/forward Closes active submenu and returns <... -
Page 10: Operation
Operation Bar graph: Function line: There are two fundamentally different The bar graph is shown during moisture This line indicates the functions that can types of display: analysis if the “Initial Weight” option in the be activated by pressing u (inverse dis- drying program is set to play), such as Setup menu, Program menu, – display for analysis and test functions “Tare”, “Start”, or “Cal” (calibration). The following symbols may appear: – display for menu operation (such as C Auto. Setup or Program) Bar graph with separator tags 0092 g Analysis and Test Functions Target value – 20% SETUP PROGRAM TARE This display is divided into 9 sections. Target value This line is also used to output error text, overwriting the complete line. Info/Drying program status/Test function Bar graph Target value +20% Measured value/result Unit... -
Page 11: Menu Operation
Menu Operation Parameter Settings Data Output This display is divided into two sections. An interface port is provided for Parameters are summarized in menus connecting: Line for Operating Status that have several levels. – printer Input and Output Window Example: – status display § Select parameter: Use the x and – programmable logic controller (PLC) y keys to select in the – computer SETUP function line and confirm with u Printer Status line: § Use x and y to scroll within The status line indicates the function The data format for output to of the current screen page. In the Setup a menu level an external printer can be selected;... -
Page 12: Error Codes
Error Codes Saving Data If a key is pressed that has no function Storing Parameter Settings or is blocked, the error is indicated as follows: The most recent Setup menu parameter and drying program settings are active – a double-beep is sounded as when you switch on the moisture ana- an acoustic signal if the key has no lyzer. Factory settings may be restored function at any time. Storing Settings – an error message indicates invalid input Access to the following can be – an error code or error message indicates password-protected: incorrect operation – user-defined drying programs The response to operator errors is identical for all operating modes. – the device parameter menu See the chapter entitled “Error Codes” for a detailed explanation of error – isoTEST functions messages. If no password is assigned, all users can access the SETUP device parameters and drying program settings without entering a password. -
Page 13: Configuring The Moisture Analyzer
Configuring the Moisture Analyzer Purpose Setting the Language You can configure your moisture ana- 5 languages are available for the lyzer to meet individual requirements by display: entering user data and setting selected menu parameters in the Setup menu. – German The Setup menu is divided into: – English (factory setting) – Language – U .S. mode (English with U.S. date/time) – Device parameters – French – isoTEST – Italian – Device information – Spanish Example: Selecting “U.S.-Mode” as the Language Step Key (or instruction) Display/Printout... -
Page 14: Setting Device Parameters
Setting Device Parameters ( DEVICE ) Preparation Drying report: – Select one of three display options for Display existing device parameters Purpose the drying report: § Select the Setup menu: Device configuration, i.e. to meet – results only individual requirements by selecting – with GLP/drying parameters Use x or y to select SETUP in predefined menu parameters in the – a s per configuration: define the function line and confirm with Setup menu. Access to the menu may which parameters are to be output (GLP head, program identifier, be password-protected. header line 1, header line 2, heater > SETUP is displayed: Features parameters, start criteria, shutoff criteria, start weight, intermediate Device parameters are combined into result, end weight, end result and the following groups (1st menu level): name field). -
Page 15: Entering And Changing Password
Entering or Changing Password Additional Functions Reset device parameters to factory – Password for access to the following Print out parameter setting: settings: functions (up to 8 characters): § Select the Setup menu: § When device parameters are displayed: – SETUP device parameters – Drying programs Press the r key Use the x or y keys to select – isoTEST setup SETUP in the function line and press u to confirm > Printout (example) § Display device parameters Lines with more than 20 characters (see “Display existing device parameters” are truncated > SETUP is displayed: in “Preparation” section) -------------------- § Record the password here: 14.07.2006 12:40 ... - Page 16 Example: Set display contrast to “3" Step Key (or instruction) Display/Printout C Auto. x or y 1. Select SETUP in the function line 0092 g SETUP PROGRAM TARE 2. Confirm SETUP 3. Select Device parameters 4. Confirm Device parameters 5 + y 5. Select Display contrast 6. Confirm Display contrast SETUP DEVICE CONTRAST x or y (repeatedly) 7. Select contrast setting 3 SETUP...
-
Page 17: Device Parameters (Overview)
Device Parameters (Overview) ο Factory settings √ User-defined setting Setup – Password blank Enter max. 8 characters Device parameters User ID blank Enter max. 20 characters ο SBI Interface Baud rate 150 baud 300 baud ο 1200 baud 2400 baud 4800 baud 9600 baud 19200 baud ο 7 (not if parity=“none") Number of data bits 8 Parity none (only with 8 data bits) ο Odd Even ο 1 Number of stop bits Handshake mode Software handshake ο Hardware handshake... -
Page 18: Information Specific To Device
§ Print device information: Device Information Press the r key Purpose > Printout (Example) Display of device information Display Device Information -------------------- § Select the Setup menu: 14.07.2006 12:40 Model MA150Q-000230V Use the x or y key to select Ser. no. 18701636 SETUP in the Function line and press Vers. no. 01-50-01 u to confirm (Operating program version) ID > SETUP is displayed: ------------------- SETUP INFO -------------------- Vers. no. 01-50-01 § Select Device information: (Operating program version) Scale version: ... -
Page 19: Basics Of Moisture Analysis
Basis of Moisture Analysis Purpose Material When deductive methods are used, the The MA moisture analyzer can be used The moisture of a material is often moisture content is determined indi- for quick and reliable deter m ination mistakenly equated to its water content. rectly. A physical property related to the of the moisture content of materials of In fact, the moisture of a material moisture in the substance is measured liquid, pasty and solid substances using includes all of the volatile components (e.g., absorption of electromag n etic the thermogravimetric method. which are emitted when the sample rays). These methods include Karl- is heated, irrespective of the type of Fischer titration, infrared spectroscopy, microwave spectroscopy, etc. material. Among such volatile substanc- es are: Thermogravimetry is the process of determining the loss of mass that occurs – water when a substance is heated. – fats In this process, the sample is weighed – oils before and after being heated, and the – alcohols difference between the two weights... - Page 20 In many cases, the fully automatic of the sample. The heat conductivity shutoff mode will meet your require- of the sample dictates the degree to ments. If the final result is higher or which the heat can be transmitted lower than expected, try varying the to the underlying layers. The higher temperature setting before resorting the conductivity, the faster and more to a different shutoff parameter. uniformly the substance is heated. When analyzing the samples that lose The substance should be applied their moisture only very slowly or when to the sample pan in a thin, even layer. operating a cold moisture analyzer, A height of approximately 2–5 mm for the fully automatic mode may end the 5–15 g substance weight has proved drying routine too early since no ana- lyzable progress in the drying routine to be ideal. Otherwise, the sample will not be dried completely or the analysis can be detected. In this case, preheat time will be unnecessarily extended, the moisture analyzer for 2–3 minutes a crust/skin will form on the surface of before starting the drying routine, or the sample or the sample will scorch, select a different shutoff parameter. and the analysis results obtained will not be reproducible (and therefore The Sartorius Moisture Analyzer cannot be used). Applications Guide provides you with important information on the use of your moisture analyzer. Incorrect application of a sample...
-
Page 21: Preparation
Preparation Adjustment to an Existing Measuring System Make sure you carry out the following A moisture analysis method often replaces another drying method (such as oven preparations prior to drying a sample: drying method) because it is simple to use and requires shorter analysis time. In this case, you should adapt this method to that of the moisture analyzer in order – Adjustment to the available measuring to obtain values comparable to those yielded by your standard reference method. system (if required) § Perform parallel measurements: take a fresh sample and divide it in half – Sample preparation § Determine the moisture content of the first half using your standard method of analysis – Setting the drying program parameters § Analyze the second half of the sample in the moisture analyzer. Use the following settings: – fully automatic mode for the shutoff parameter – lower temperature settings than for the oven drying method – temperature setting for organic substances: 80–100°C – temperature setting for inorganic substances: 140–160°C $ If the result of the second analysis does not correspond to that of the first: – repeat the analysis first using a different temperature setting – t hen use the semi-automatic mode for the shutoff parameter (for example with a different loss rate per 24 s) $ Vary the shutoff parameter if required: – Increase end-point recognition: set the parameter to 2 mg/24 s or 1 mg/24 s – Decrease end-point recognition: set the parameter to 10 mg/24 s or 20 mg/24 s... -
Page 22: Preparing A Sample
§ Take only one sample at a time for a given analysis and prepare it as quickly as possible. This way it will not lose or gain moisture as a result of the ambient conditions. $ If you need to take several samples simultaneously, the samples must be sealed in air- tight containers to ensure that the storage conditions do not alter the state or condition of the samples: – Warm or highly volatile substances lose their moisture very quickly. – S toring samples in a container may lead to moisture condensing on the walls of the container. – If the container is too large, moisture is passed to the air remaining in the container. $ Mix the condensed moisture back in with a sample, if necessary. Preparing a sample § When crushing a sample, avoid any contact with heat: Heat results in moisture loss. § Crush a sample with – a pestle – a shredder (see below) For liquids containing solids, use – a glass stirrer – a spoon, or – a magnetic stirrer. $ Use an appropriately designed tool for shredding a sample. Using disposable sample pans § Use only Sartorius disposable sample pans (inner diameter of 92 mm). Reusing sample pans leads to poor reproducibility of results for several reasons: – sample residues can remain on the pan even after cleaning – residues from cleaning agents can evaporate during the next moisture analysis – s cratches and grooves made during cleaning result in damage that forms points of attack for hot, rising air produced during the drying process (more pronounced buoy- ancy) - Page 23 Applying a Sample to the Sample Pan § Apply the sample to the sample pan in a thin, even layer (height: 2 to 5 mm, weight: 5 to15 g); otherwise: – a sample applied unevenly will result in a non-uniform distribution of heat – a sample will not be dried completely – the analysis time will be prolonged unnecessarily – the sample burns or a crust/ skin forms on its surface as a result of a very thick layer – t he crust makes it difficult or impossible for moisture to escape from the sample during the drying process – an uncertain and unknown quantity of moisture remains in the sample § Apply liquid samples, pasty samples or samples that can melt to a glass fiber filter (order no. 6906940); advantages include: – uniform distribution due to capillary effect – liquids prevented from beading together and forming drops – moisture can evaporate faster with larger surfaces – considerably more convenient than the “sea-sand method” When drying samples containing sugar, a crust or skin can form and seal the surface. A glass fiber filter is particularly useful in such cases. The moisture can evaporate downwards through the surface of the filter. You can prevent or limit crust/skin formation by placing the glass fiber filter on top of the sample. § Cover solid, heat-sensitive samples with a glass fiber filter (order no. 6906940); advantages include: – gentle heating; sample surface is shielded from excessive heat – higher temperature setting can be selected – uniformity of the sample surface – faster evaporation of the moisture – excellent reproducibility for samples containing fat Preventing the formation of crust/skin Solvents can be applied to the sample to prevent the formation of crust/skin during anal- ysis. The solvent applied has no bearing on the final result of an analysis.
-
Page 24: Operating The Moisture Analyzer
Operating the Moisture Analyzer Setting the Drying Parameters Purpose Adapt the moisture analyzer to the special requirements of products. Parameters can be configured individually for each program. Drying Parameters (Overview) ο Factory settings √ User-defined setting ο P1 Program memory to PROGRAM P20 Program name Blank (max. 16 characters) ο Standard drying Heating program Temperature 105°C 40 … 220°C for MA150Q, otherwise 40 … 180°C Gentle drying Temperature 105°C 40 … 200°C for MA150Q, otherwise 40 … 180°C Time 3.0 min. - Page 25 Features Standby Temperature End of Analysis with Shutoff Parameters – Temperature set to defined value Number of Drying Programs: when the sample chamber is closed – Fully automatic 20 programs Initial Weight – Semi-automatic, absolute Programs are listed according to The target weight (as a guide for program number. applying a sample to the analyzer – – Semi-automatic, percentage not as a starting condition) can be Heating Programs entered by the user. The tolerance – Timer mode Two heating programs are available limits of ± 20% are displayed. for performing moisture analysis of – Manual Start of Analysis a substance: – With stability after pressing u key:...
- Page 26 Display Mode Printout of the Analysis Parameters -------------------- § When the desired program is displayed: 14.07.2006 12:40 The following units can be selected for Model MA150Q-000230V displaying analysis results: Press the r key Ser. no. 18701636 Vers. no. 01-50-01 – Moisture > Printout (example on right). Lines with ID more than 20 characters are truncated. -------------------- – Dry weight Additional Functions PROGRAM -------------------- – Ratio The following functions are supported P1 in the program memory: Program name – Weight loss Progr. name: – Display programs MEYER ...
-
Page 27: Example
Example: Standard Drying with Fully Automatic Shutoff Mode The moisture content of 2 g of corn starch is to be analyzed. The sample can scorch if overheated but is not particularly heat sensitive. The analysis is to be ended automatically as soon as a constant weight is reached. Settings (changes in the factory settings): Program number: Final temperature: 130 °C Start of analysis: With stability after Enter key is pressed End of analysis: Fully automatic (factory setting) Part A: Configuring drying parameters Step Key (or instruction) Display/Printout 1. Turn on the moisture analyzer Sartorius logo is displayed Self-test runs y or x C Auto. 2. Select PROGRAM function 0092 g SETUP PROGRAM TARE 3. Confirm the function PROGRAM 4. Select program 5. Select... - Page 28 Step Key (or instruction) Display/Printout 8. Confirm temperature value 9. Select the Bar graph for parameter 2 + y weighing-in sample 10. Confirm Bar graph for parameter weighing-in sample 11. Select the setting and confirm 12. Enter the target weight 3 + x 13. Confirm the target weight 14. Select the Start analysis parameter 15. Confirm the Start analysis 16. Select the With stability setting after ENTER key and confirm 17. Exit the function...
- Page 29 Part B: Performing the analysis Step Key (or instruction) Display/Printout 1. Turn on the moisture analyzer Sartorius logo is displayed Self-test runs C Auto. 0092 g SETUP PROGRAM TARE 2. Prepare the sample: Not necessary with corn starch 3. Open sample chamber and position a new sample pan 4. Tare the sample pan: C Auto. y or x as needed Select the function TARE 0002 g and confirm SETUP PROGRAMM TARA 5. Distribute approx. 2 g of corn starch C Auto. evenly on the sample pan...
- Page 30 Step Key (or instruction) Display/Printout -------------------- 14.07.2006 15:07 Model MA150Q-000230V Ser. no. 18701636 Vers. no. 01-50-01 ID -------------------- Prg 1 Heating STANDARD Fin. temp. 130 °C ...
-
Page 31: Calibration/Adjustment Function
“isoTest” Calibration/Adjustment Functions Heater Adjustment Weighing System Settings The following functions are available in the menu, under You can calibrate and adjust SETUP Calibration/Adjustment the menu item: temperature settings of the drying unit isoTEST using 1-point and 2-point temperature – Weighing system adjustment adjustments as well as the YTM03MA Purpose – Calibration/adjustment temperature adjustment set (see Calibration is the determination – Weighing only “Accessories”). of the difference between the weight readout and the true weight (mass) – Hardware tests of a sample. Calibration does not entail – Interface test making any changes within the – Heater test weighing system. The following functions are available Adjustment is the correction of once the sample pan and the pan the difference between the measured support are removed from the sample value displayed and the true weight... - Page 32 External Calibration/ Adjustment with a Factory-Defined Weight External calibration and adjustment of scales using 100 g adjustment weight Step Key (or instruction) Display/Printout x or y 1. Select in the Function line C Auto. SETUP 0092 g SETUP PROGRAM TARE 2. Confirm SETUP 3. Select isoTEST 2 + y 4. Confirm isoTEST 5. Confirm Weighing system settings 6. Confirm Calibration/adjustment WGH.SYS CAL./ADJ.Verzög.
- Page 33 Step Key (or instruction) Display/Printout Weighing system is being prepared WGH.SYS CAL./ADJ.Verzög. 2sec 100000 for calibration The following is displayed when the system is ready for calibration SETUP PROGRAMM TARA 10. Place the 100 g calibration weight Position the 100 g WGH.SYS CAL./ADJ.Verzög. 2sec 100000 on the weighing system (here 100.00 g) calibration weight “–” sign: weight too low “+” sign: weight too high SETUP PROGRAMM TARA No +/- sign: weight ok At the end of calibration the display shows WGH.SYS CAL./ADJ.Verzög. 2sec 0002 SETUP ADJUST 11. If no adjustment is required, select in the Function line -------------------- and confirm ...
- Page 34 Step Key (or instruction) Display/Printout -------------------- Printout following adjustment: 14.07.2006 15:15 Model MA150Q-000230V Ser. no. 18701636 Vers. no. 01-50-01 ID -------------------- External calibration W-ID Nom. + 100.000 g ...
-
Page 35: Hardware Tests
Hardware Tests The following device elements can be tested: Purpose Hardware tests are performed to check – SBI communication whether the system communication with – Heater internal and external devices is functioning correctly. These tests are not elementary hardware tests. Activating Hardware Tests Step Key (or instruction) Display/Printout x or y 1. Select in the Function line SETUP and confirm 2. Select and confirm 2 + y isoTEST 3. Select and Hardware Test confirm Testing SBI Communication Step Key (or instruction) Display/Printout... - Page 36 Testing Digital I/O Step Key (or instruction) Display/Printout 1. Test connector for RS-232 data output Connect universal key (pin 15) with (see “Pin Assignment Chart”) the digital I/O (pin 16 … pin 19) tested 2. Select see the previous page Hardware Test 3. Select and confirm Test interface isoTEST HARDWARE INTERFACE Test SBI communication Test Digital-I/O 4. Select function Test digital I/O HARDWARE INTERFACE DIG.-I/O and confirm Result: “Test error” or “Test OK” is displayed HARDWARE INTERFACE...
-
Page 37: Data Output
Data Output There are three options for data output: – Output to the moisture analyzer – Output to an external printer (YDP02-0CE or YDP03-0CE) – Output to a peripheral device (e.g. a computer) via the interface port Output to the Moisture Analyzer Display (weights and calculated values) The display is divided into 9 sections. Information on the weighing system, Info/Drying program status/Test function Bar graph the application being used and the sample weighed is output in the following sections: Measured value/result Unit Graphic symbol – Info/drying program status/test function Function line Plus/minus sign Print symbol – Print symbol Busy symbol – Bar graph... - Page 38 Busy Symbol The Busy symbol is shown here when the moisture analyzer is processing a function activated by pressing a key. Plus/Minus Sign The plus or minus sign is displayed here. Measured Value/Result Line This line shows: 5234 – the current weight unit 17.23 – calculated values (e.g., % moisture) Unit This section shows: – the current weight unit (e.g., g) – the drying temperature unit – the unit for calculated values (e.g., % moisture) Graphic Symbol There are a number of different graphic symbols that can be displayed here; for example, to prompt the next user action (such as “Close cover”), to indicate the current function (sample pan with evaporating moisture) or to indicate internal functions that require some time to complete (e.g. with hourglass). Function Line SETUP PROGRAM TARE This line indicates the functions that can be activated (inverse display) by pressing “Enter” (e.g., Setup menu, Program menu, “Tare”, “Start”, or “Cal” [calibration]). If an error occurs, the resulting error code or message overwrites this line.
-
Page 39: Interface Port
Programmable logic controller: The PLC shows the status of the Data output format with SBI: 20 characters + CR LF moisture analysis and can activate the function of the u key via ) xBPI operating mode always with 9600 baud, 8 bits, odd parity, 1 stop bit the digital input. ) Network address is valid only in xBPI mode Computer: Analyses and calculated values Factory settings for SBI operating mode parameters: can be sent to a computer for further evaluation and documentation. Transmission rate: 1200 baud Number of data bits 7 bits Parity: Caution when using ready-made RS-232 connector cable: Stop bits: 1 stop bit RS-232 cables purchased from other Handshake: Hardware handshake after 1 character manufacturers often have incorrect pin Operating mode: assignments for use with Sartorius weighing systems. Be sure to check the Preparation pin assignments against the chart on page 44 before connecting the cable and § See pages 44 and 45 for the pin assignment chart and cabling diagram. disconnect any lines marked differently (such as pin 6). Failure to do so may damage (or completely ruin) your weighing system and/or peripheral device. -
Page 40: Data Output Format
Data Output Format Output format with 20 characters + CR LF The contents of the measured value line and the unit are output with data 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 ID codes. I I + * D D D D D D D D * U U U CR LF * –... - Page 41 Remote Operation (Computer) Device response Meaning XXX Meaning SBI functions for remote operation XXX Active application MAN Moisture analysis/Setup are useful if the current device/application menu/Program menu Application status status can be read out at any time. This CBA Cal./adj. scale Cover status is achieved using the ESC ars_ command CHT Heater adjustment (see next page). The response from the F unction of the u device to the ESC ars_ command has the CMS M easurement format: XXX xx zz ff. adjustment THW Hardware test Operating status Action Main display TARE Tare sample pan Weight value WEIGHING Apply sample Weight value WEIGHING...
-
Page 42: Data Input Format
Data Input Format Remote Operation (Computer) The computer connected on the data port can send commands to the weighing system to control functions. These are control commands and use different formats. Control commands have up to 26 characters. Transmission of these characters is based on the setup configuration for data transmission. Control command formats ESC: Escape Alphanumeric character Format 1: ESC Digit Format 2: ESC Underline (ASCII 95) Format 3: ESC (alphanumeric character) CR: Carriage return (optional) LF: Line feed (optional) Format 4: ESC (alphanumeric character) Format 1 (e.g. ESC K) Format 2 (e.g. ESC x1_) Format 3: Meaning Meaning Meaning Weighing mode 1 acc Only SBI commands, no A lphanumeric input (max. number print output of characters depends on display) - Page 43 Synchronization Handshake: Transmitting device: During data communication between The Sartorius balance interface (SBI) Once XOFF has been received, it prevents moisture analyzer and computer, on the moisture analyzer has transmit further transmission of characters. messages consisting of ASCII characters and receive buffers. You can define When XON is received, it re-enables the are transmitted via the interface. the handshake mode in the Setup transmitting device to send data. For error-free data communication, menu: parameters for baud rate, parity, – Hardware handshake (CTS/DTR) Receiving device: handshake mode and character format – Software handshake (XON, XOFF) must be identical for both units. To prevent too many control commands from being received at one time, XON is You can adapt your moisture analyzer Hardware handshake: not transmitted until the buffer is almost by setting corresponding parameters in empty. the Setup menu. When using hardware handshake, 1 further character can be transmitted If you do not connect a peripheral after CTS (“clear to send”). Activating data output: device to the analyzer’s interface port, this will not generate an error message.
-
Page 44: Pin Assignment Chart
Pin Assignment Chart Female interface connector: Pin assignment: 25-pin D-Submini (DB25S) with Pin 1: Signal ground screwed fastening Pin 2: Data output (T+D) Pin 3: Data input (R+D) Male Connector Used Pin 4: Signal return (T+D/R+D) (please use connectors with the same Pin 5: Clear to send (CTS) specifications) Pin 6: Internally connected 25-pin D-Submini (DB25S) with Pin 7: Internal ground shielded cable clamp assembly Pin 8: Internal ground (Amp type 826 985-1C) and fastening... -
Page 45: Cabling Diagram
Cabling Diagram – Diagram for interfacing a computer or other peripheral device to the moisture analyzer using the RS-232/V24 standard and cables up to 15 m in length MA150 Moisture analyzer Peripheral device 25-pin 9-pin – – Cable type as per AWG 24... -
Page 46: Error Codes
TARE function key – pan support is loaded Unload the moisture analyzer ERR 03 Calibration/adjustment could not be Allow the moisture analyzer to warm up completed within a certain time again and repeat the adjustment process Cal/adj. abort ERR 30 Interface port for printer output Have the port setting changed is blocked by Sartorius Customer Service Print blocked ERR 31 External device not ready to receive Transmit XON, then CTS ( interface handshake timeout “XOFF, CTS”) Print blocked ERR 53 No temperature compensation Contact the Sartorius Service Center No moisture analysis ERR 101 Key is stuck or Release key Key pressed when switching on u key pressed on power-on “Checkerboard” pattern displayed... - Page 47 – Put a glass-fiber filter on top of Sample boils or scorches and the splashes the sample continually change the sample weight – Reduce the sample quantity or distribute more evenly – S elect a semi-automatic shutoff parameter or select timer mode Analysis time too long – Increase temperature – Reduce sample quantity – D ry 2 to 3 minutes with empty disposable sample pan (pre-heat) Sample loses weight prior to start – Remove the sample pan and apply of analysis sample outside the sample chamber Sample is liquid or pasty – Use a glass fiber filter Sample has only a low moisture content – Increase sample quantity Insufficient heat output – Clean temperature sensor Place of installation unstable (vibrations, etc.) – Change the place of installation Please contact the Sartorius Service Center if any other problems occur.
-
Page 48: Care And Maintenance
Care and Maintenance Service Cleaning the Heating Unit and Temperature Sensor Regular servicing by a Sartorius § Open the hood technician will extend the service life of your moisture analyzer and ensure its continued weighing accuracy. Danger: The terminals of the heating Sartorius can offer you service contracts unit are under live current with your choice of regular maintenance § Isolate from Supply Voltage: intervals ranging from 1 month to Unplug Power Cord. 2 years. Disconnect data cables from Maintenance intervals depend on moisture analyzer operating conditions and individual tolerance requirements. Repairs Repair work must only be carried out § Carefully remove any residues from by trained service technicians. -
Page 49: Safety Inspection
> Lock the equipment in a secure place The equipment, including accessories and Safe operation of the moisture analyzer batteries, does not belong in your regular can no longer be guaranteed if: household waste. The European legislation requires that electrical and electronic – There is visible damage to the moisture equipment be collected and disposed of analyzer or power cord separately from other communal waste with the aim of recycling it. – The moisture analyzer no longer functions properly In Germany and many other countries, Sartorius takes care of the return and – The moisture analyzer has been legally compliant disposal of its electrical stored for a relatively long period under and electronic equipment on its own. unfavorable conditions These products may not be placed with the household waste or brought to collection – The moisture analyzer has been subjected centers run by local public disposal to rough handling during shipment operations – not even by small commercial operators. In this case notify your nearest Sartorius Service Center. For disposal in Germany and in the Maintenance and repair work may be other member nations of the European... -
Page 50: Overview
Overview Specifications Dryer functions: Model MA150C MA150Q Heating element Ceramic IR heater Quartz-rod IR heater Temperature range 40 to 180 °C 40 to 220 °C Temperature increments Adjustable in 1 °C increments Temperature adjustment With YTM03MA/YTM05MA temperature adjustment set Weighing functions: Weighing capacity 150 g Readability 1 mg, 0.01% moisture content Repeatability, typical (%) Sample weight 1 to 5 g: 0.2% Sample weight 5 g and over: 0.05% External calibration weight 100 g (E2) (with an accuracy of at least…) d 90 mm Sample pan dimensions Drying parameters: Heating programs Standard; gentle drying Drying time 0.1 to 99.9 minutes Number of stored programs Shutoff criteria F ully-automatic, semi-automatic (absolute, percentage), timer mode (1 + 99.9 min.), manual Display of analysis results M oisture, dry weight, ratio, weight loss, residue (g or g/kg), g/l... -
Page 51: Accessories (Options)
Printer expendables: – 5 paper rolls 69 06937 – Ink ribbon 69 06918 Temperature adjustment set YTM03MA Exchangeable panels for flip-open cover (aluminum) YDS04MA (not recommended for analyzers with a quartz-rod radiator, models MA…Q) Carrying case YDB05MA Software for recording moisture analysis values YMW02MA Expendables: – 80 disposable sample pans, 90 mm d (aluminum) 69 65542 – 80 glass fiber filters (for liquid samples) 69 06940 Interface cable (RS-232/25-pin) 69 57312 Calibration weight: – 100 g (E2) YCW5128-00 Standard operating procedure (SOP) YSL02A For Working with a Moisture Analyzer (For Quality Assurance Documentation) Spare parts: Dust cover for keypad 6960MA02 1 pair of forceps 69MA0072 Other spare parts can be ordered directly through your local Sartorius Service Center. -
Page 53: Index
Index Page Page Accessories 2, 4, 31, 51 Key description Acoustic signal 14, 17 Keypad 2, 5 Adjustment 31, 46 Adjustment to existing measuring system Levelling Application status Operating design Operation Barcode scanner Options 2, 4, 8, 51 Cabling diagram Calibration 31, 38 Package contents Care Password 2, 12, 14, 54 C Declaration of Conformity Pin assignment chart Cleaning 2, 4, 8, 22, 48 Power supply connection Configuring the moisture analyzer 13, 27 Power-up 8, 27, 29, 43, 46 Contents Preparation of sample Principles of moisture analysis Data output 11, 37, 43, 46 Print intermediate results Data output format... - Page 54 General Password Enter/Change Password § Select the password function: § Select the Setup menu: Press u Select in the Function line SETUP x or y > Password prompt is displayed, together with current password § Press u § Enter a new password: > is displayed with submenus Enter all of the password characters SETUP using x and y and press § Select a submenu (in this example, u to confirm “Device parameters”): $ To delete user password, enter Press the y key and press u to confirm a space and press u to confirm § Exit Setup menu: > Password prompt is displayed. Press the c key twice > Restart your application $ Enter all of the password characters using x and y and press u to confirm...
- Page 55 Brief Instructions Sartorius MA150 y Down/Back Overview of Key Functions e On/off key In menu: Go to next menu item on Turn moisture analyzer on/off; same level analyzer remains in standby mode when In alphanumeric input: Show next lowest switched off...
- Page 56 Moisture Analysis Add sample: Switch analyzer on: e key Close sample chamber: Select drying program: Start analysis: START function and u key Select PROGRAM: or directly after closing sample chamber y and u keys Drying in progress: wait Use the y and u keys to select a program (designated P1 through P20) Read off result: Cancel password prompt, if necessary: c key...
- Page 57 Configuration (SETUP) Language Activate menu: Use the y and u keys to German select the SETUP mfunction; confirm English U.S. mode Select desired menu level: y and x keys Français Italiano Exit menu level or exit SETUP: c key Español Select menu item and setting: Device parameters y, x and u keys...
- Page 58 Drying Parameters (PROGRAM) Program name Activate menu: Use the y and u keys to Heating program Standard drying select the PROGRAM function; confirm Gentle drying Standby temperature Select program (P1 through P20) Initial weight Start analysis Exit menu level or exit PROGRAM: With stability when Enter is pressed c key Without stability when cover is closed...
- Page 59 Sartorius Weighing Technology GmbH Weender Landstraße 94–108 37075 Goettingen, Germany Phone +49.5 51.308.0 Fax +49.551.308.3289 www.sartorius.com Copyright by Sartorius Weighing Technology GmbH, Goettingen, Germany. No part of this publication may be reprinted or translated in any form or by any means without prior written permission from Sartorius. All rights reserved by Sartorius in accordance with copyright law. The information and figures contained in these instructions correspond to the version date specified below. Sartorius reserves the right to make changes to the technology, features, specifications and design of the equipment without notice. Date: March 2012, Sartorius Weighing Technology GmbH, Goettingen Printed in Germany on paper that has been bleached without any use of chlorine W_MA150 · KT Publication No.: WMA6034-e12036...
